MagBeast® HM Range

powerful magnetic drilling machines designed for maximum performance built in the UK


The MagBeast® HM range is our UK Manufactured range of Premium Magnetic Drilling Machines. The standard features include a lightweight yet robust machine casting design allowing the operator ease of movement through multiple handle lifting points. A patented twin slide rail system to ensure no worn brass slides and consistent travel with a minimum run out.

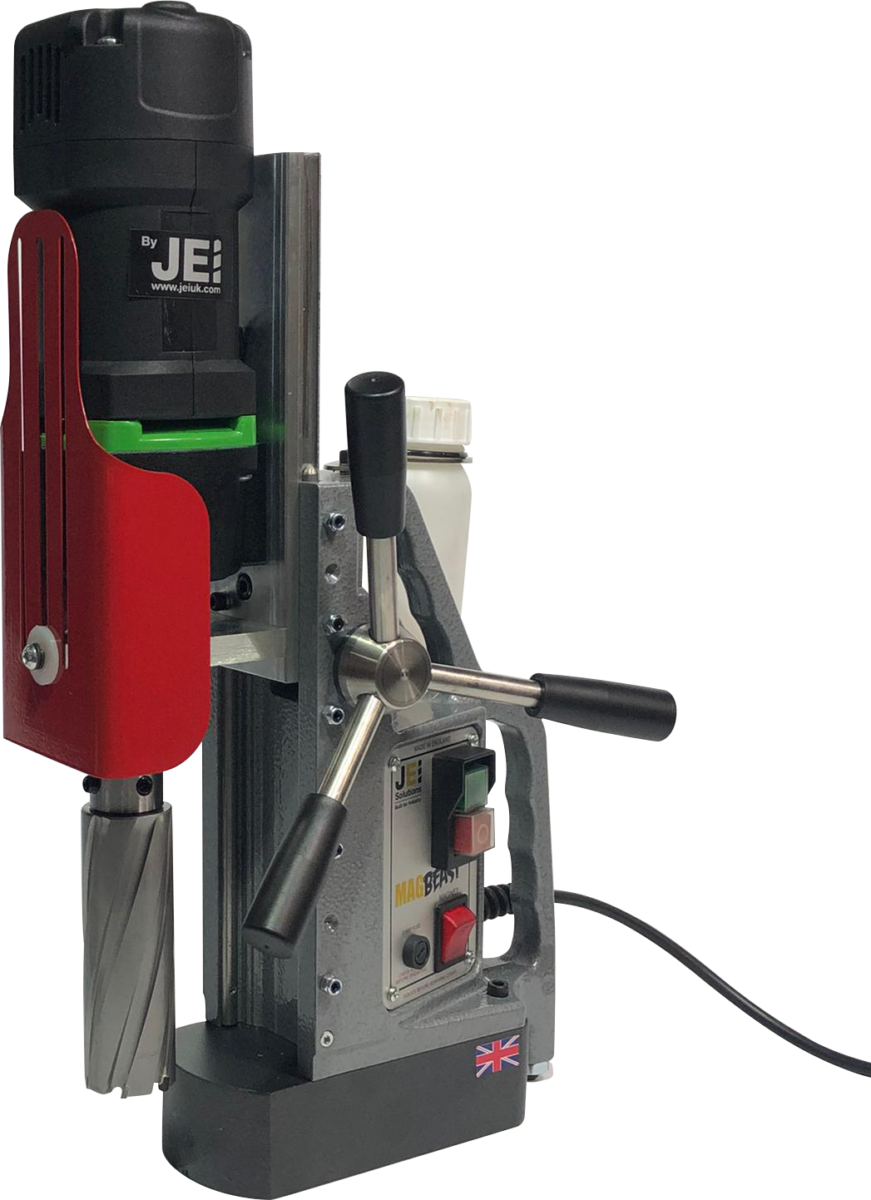

MagBeast® HM40EX Made in the UK

MagBeast® HM40EX


A lightweight and powerful magnetic drilling machine for maximum performance

Weight 11.5kg
Weight
11.5kg
Cutter Capacity 10-40mm
Cutter Capacity
10-40mm
Cutter Length 110mm
Cutter Length
110mm
Motor Power 1100w
Motor Power
1100w
Min/Max Height 320/500mm
Min/Max Height
320/500mm
Countersink 40mm
Countersink
40mm
VIEW THE MagBeast® MH40EX
MagBeast® HM50 Made in the UK

MagBeast® HM50


A durable, dependable heavy-duty 2 morse taper drilling machine.

Weight 14kg
Weight
14kg
Cutter Capacity 10-50mm
Cutter Capacity
10-50mm
Cutter Length 100mm
Cutter Length
100mm
Motor Power 1150w
Motor Power
1150w
Min/Max Height 380/560mm
Min/Max Height
380/560mm
Countersink 40mm
Countersink
40mm
VIEW THE MagBeast® HM50
MagBeast® HM50T Made in the UK

MagBeast® HM50T


A heavy-duty 2 morse taper drilling machine, Featuring variable speed and reverse function.

Weight 14kg
Weight
14kg
Cutter Capacity 10-50mm
Cutter Capacity
10-50mm
Cutter Length 100mm
Cutter Length
100mm
Motor Power 1150w
Motor Power
1150w
Min/Max Height 380/560mm
Min/Max Height
380/560mm
Countersink 40mm
Countersink
40mm
VIEW THE MagBeast® HM50T
MagBeast® HM100 Made in the UK

MagBeast® HM100


A durable, heavy-duty, 3-morse taper drilling machine.

Weight 23kg
Weight
23kg
Cutter Capacity 10-100mm
Cutter Capacity
10-100mm
Cutter Length 150mm
Cutter Length
150mm
Motor Power 1700w
Motor Power
1700w
Min/Max Height 440/700mm
Min/Max Height
440/700mm
Countersink 55mm
Countersink
55mm
VIEW THE MagBeast® HM100
MagBeast® HM100T Made in the UK

MagBeast® HM100T


The complete 3MT magnetic drilling and tapping model is also capable of cutting, reaming, counterboring and threading holes.

Weight 23kg
Weight
23kg
Cutter Capacity 10-100mm
Cutter Capacity
10-100mm
Cutter Length 150mm
Cutter Length
150mm
Motor Power 1800w
Motor Power
1800w
Min/Max Height 440/700mm
Min/Max Height
440/700mm
Countersink 55mm
Countersink
55mm
VIEW THE MagBeast® HM100T
MagBeast® HM140T Made in the UK

MagBeast® HM140T


A durable, heavy-duty 4 Morse Taper Powerhouse designed for many hole making applications.

Weight 39kg
Weight
39kg
Cutter Capacity 10-140mm
Cutter Capacity
10-140mm
Cutter Length 150mm
Cutter Length
150mm
Motor Power 2300w
Motor Power
2300w
Min/Max Height 570/850mm
Min/Max Height
570/850mm
Countersink 80mm
Countersink
80mm
VIEW THE MagBeast® HM140T
MagBeast® HMLP45 Made in the UK

MagBeast® HMLP45


Designed to fit into the most height restrictive areas.

Weight 11kg
Weight
11kg
Cutter Capacity 10-45mm
Cutter Capacity
10-45mm
Cutter Length 55mm
Cutter Length
55mm
Motor Power 1100w
Motor Power
1100w
Min/Max Height 180mm
Min/Max Height
180mm
Countersink 30mm
Countersink
30mm
VIEW THE MagBeast® HMLP45
MagBeast® Ultra Low Profile Made in the UK

MagBeast® Ultra Low Profile


The world’s lowest height compact drilling machine designed to fit into the most height restrictive areas, only 150 mm working height.

Weight 9kg
Weight
9kg
Cutter Capacity 35mm
Cutter Capacity
35mm
Cutter Length 35mm
Cutter Length
35mm
Motor Power 1100w
Motor Power
1100w
Min/Max Height 150mm
Min/Max Height
150mm
Countersink 30mm
Countersink
30mm
VIEW THE MagBeast® Ultra Low Profile
