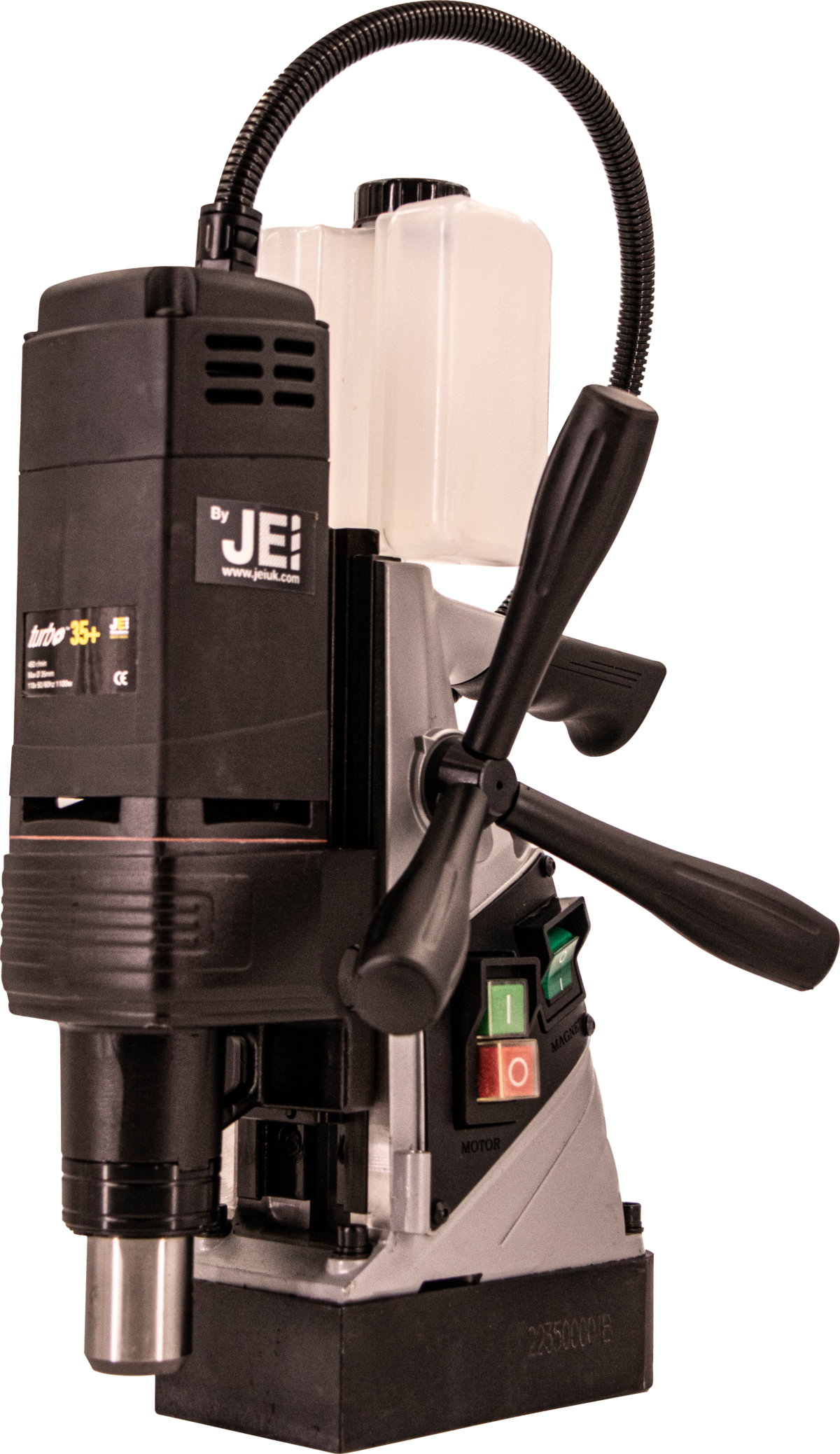

Turbo™ 35+
A new economical, lightweight Magnetic Drilling Solution from JEI
Designed for accurate. practical hole making with both TCT and HSS Cutters
- Fully adjustable motor slide for added versatility of use
- Modern moulded shape with easy access open handle
- 1100 Watt Powerful Motor
- Large Capacity Coolant tank
- Maximum stroke of 210mm allowing for drilling depths of up to 150mm
- Can be used with 13mm chuck and adaptor set (JEICA-13MM/19)
- Supplied in hardened carry case
DOWNLOADS:
Sleek, lightweight and versatile, the Turbo™ 35+ provides a practical hole making solution, with its added benefit of an adjustable motor, providing a longer cutting reach than other machines in its size range.
Why the Turbo™ 35+?
Turbo™ 35+SPECIFICATIONS
| Model | Turbo™ 35+ |
| Weight | 10.5kg |
| Spindle | 19mm |
| Cutter Capacity | 35mm Ø x 150mm depth of cut |
| Twist Drill Capacity | 13mm (with chuck) |
| Countersink Capacity | 30mm |
| Tapping Capacity | N/A |
| Reaming Capacity | N/A |
| Motor | 1100 watts |
| Height Min/Max | 375/ 580 mm (including cable/gland) |
| Length | 275 mm |
| Width | 181 mm Including Handles |
| No of Geared Speeds | 1 Fixed Speed |
| RPM | No load 720 RPM, loaded 450 RPM |
| Magnet Deadlift (on 25mm plate) | 1000 kg on 1" Plate (9600 N) |
| Magnetic Base Dimensions | 168 mm x 80 mm |
| Noise Level | < 90dB |
| Vibration Level | < 2.5 m/s2 |
| Voltage / Part Number | 110 V - DRILL-T35/1 240 V - DRILL-T35/2 |
| Shipping Weight | 15.8kg |
| Shipping Dimensions | 55 x 45 x 22 cm |
The perfect Turbo™ 35+ starter kits.
Turbo™ 35+ HSS Package Kit Includes the Turbo™ 35+ Drill (110v or 240v) and a 3 Piece Turbo™ Steel M2AL (HSS) Starter Kit.
DRILL-T35-CSET/1 (110v)
DRILL-T35-CSET/2 (220v)
Turbo™ 35+ TCT Package Kit Includes the Turbo™ 35+ Drill (110v or 240v) and a 3 Piece Turbo™ Tough TCT Starter Kit.
DRILL-T35-TCSET/1 (110v)
DRILL-T35-TCSET/2 (220v)
Fully adjustable motor slide for added versatility
The All-New Turbo™ 35+ comes with a fully adjustable motor slide allowing multiple drilling depths from 35mm to 150mm. It also suits a 13mm chuck and a twist drill, order your new Turbo™ 35+ online today!
