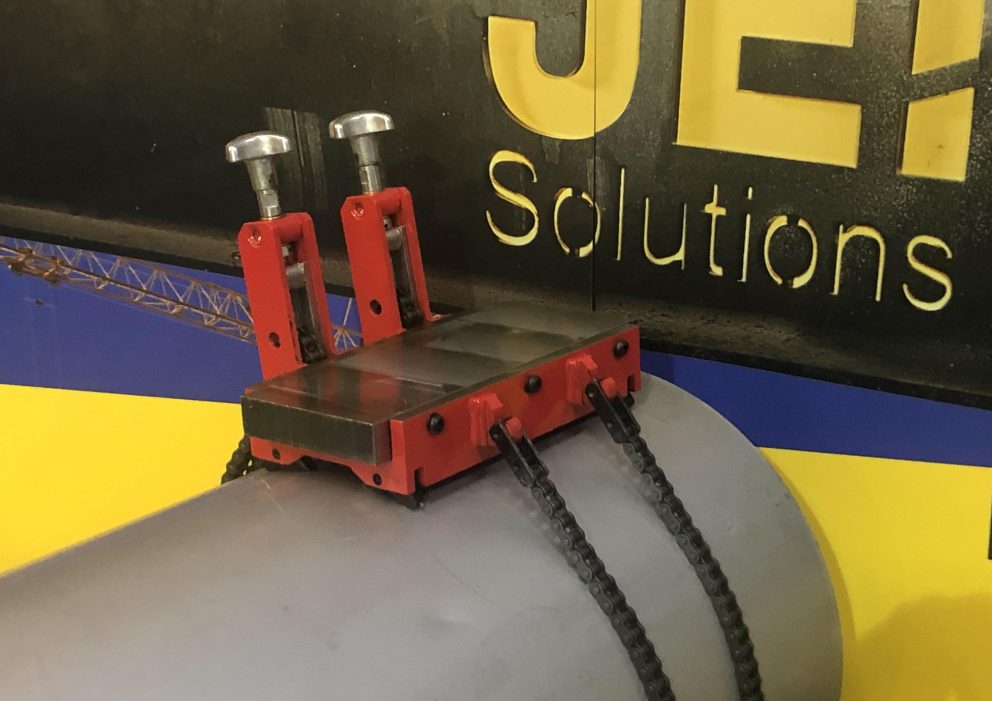

Pipe Attachment Kits

A handy solution which allows most models of MagBeast® magnetic drilling machines to cut holes in pipe and tube sections.



Features a chain clamping system to secure the machine into a safe drilling location. Four versions are available, with a minimum pipe diameter of 80 mm.

SMALL CHAIN BASE


JEICB-S

  • For use on pipes between 80 mm - 250 mm diameter as standard
  • Increase maximum diameter by 500 mm with an additional length of chain (part number JEICB-18)
  • Ideal for use with JEI's MiniBeast™ and MagBeast® HM40 magdrills
  • Suitable for machines with magnet base dimensions 205 mm x 95 mm
SMALL CHAIN BASE

MEDIUM CHAIN BASE


JEICB-M

  • For use on pipes between 80 mm - 250 mm diameter as standard
  • Increase maximum diameter by 500 mm with an additional length of chain (part number JEICB-18)
  • Ideal for use with JEI's MagBeast® HM50 range of magdrills
  • Suitable for machines with magnet base dimensions 205 mm x 95 mm

LARGE CHAIN BASE


JEICB-L

  • For use on pipes between 150 mm - 500 mm diameter as standard
  • Increase maximum diameter by 500 mm with two additional lengths of chain (two x part number JEICB-18)
  • Ideal for use with JEI's MagBeast® 4 magdrill
  • Suitable for machines with magnet base dimensions 258 mm x 130 mm
LARGE CHAIN BASE

EXTRA LARGE CHAIN BASE


JEICB-XL

  • For use on pipes between 150 mm - 500 mm diameter as standard
  • Increase maximum diameter by 500 mm with two additional lengths of chain (two x part number JEICB-18)
  • Ideal for use with JEI's MagBeast® HM100 range of magdrills
  • Suitable for machines with magnet base dimensions 258 mm x 130 mm
EXTRA LARGE CHAIN BASE

ULTRA XL PIPE ATTACHMENT - NEW INNOVATION!


Specially designed to adapt the largest of machines in JEI’s range, making it now possible to cut holes up to 200 mm in diameter, or make threads up to M52 in pipes with the MagBeast™ 5MT.

  • For use on pipes between 150 mm - 500 mm diameter as standard
  • Increase maximum diameter by 500 mm with two additional lengths of chain (two x part number JEICB-18)
  • Ideal for use with JEI models; MagBeast™ 5, HM140T, PRO132T and PRO112T
  • Suitable for large magnetic drilling machines with magnet base 150 mm wide
ULTRA XL PIPE ATTACHMENT - NEW INNOVATION!
