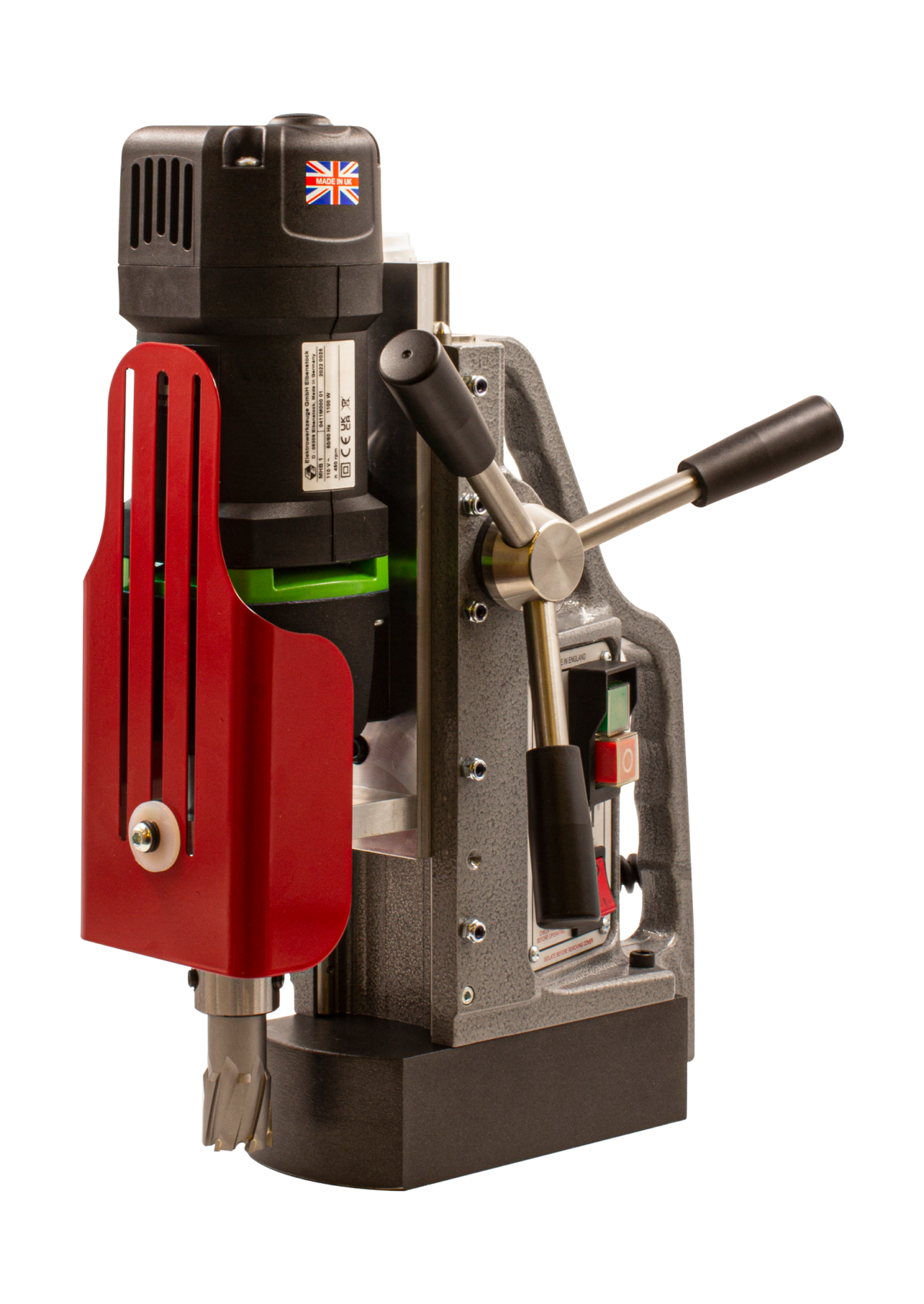

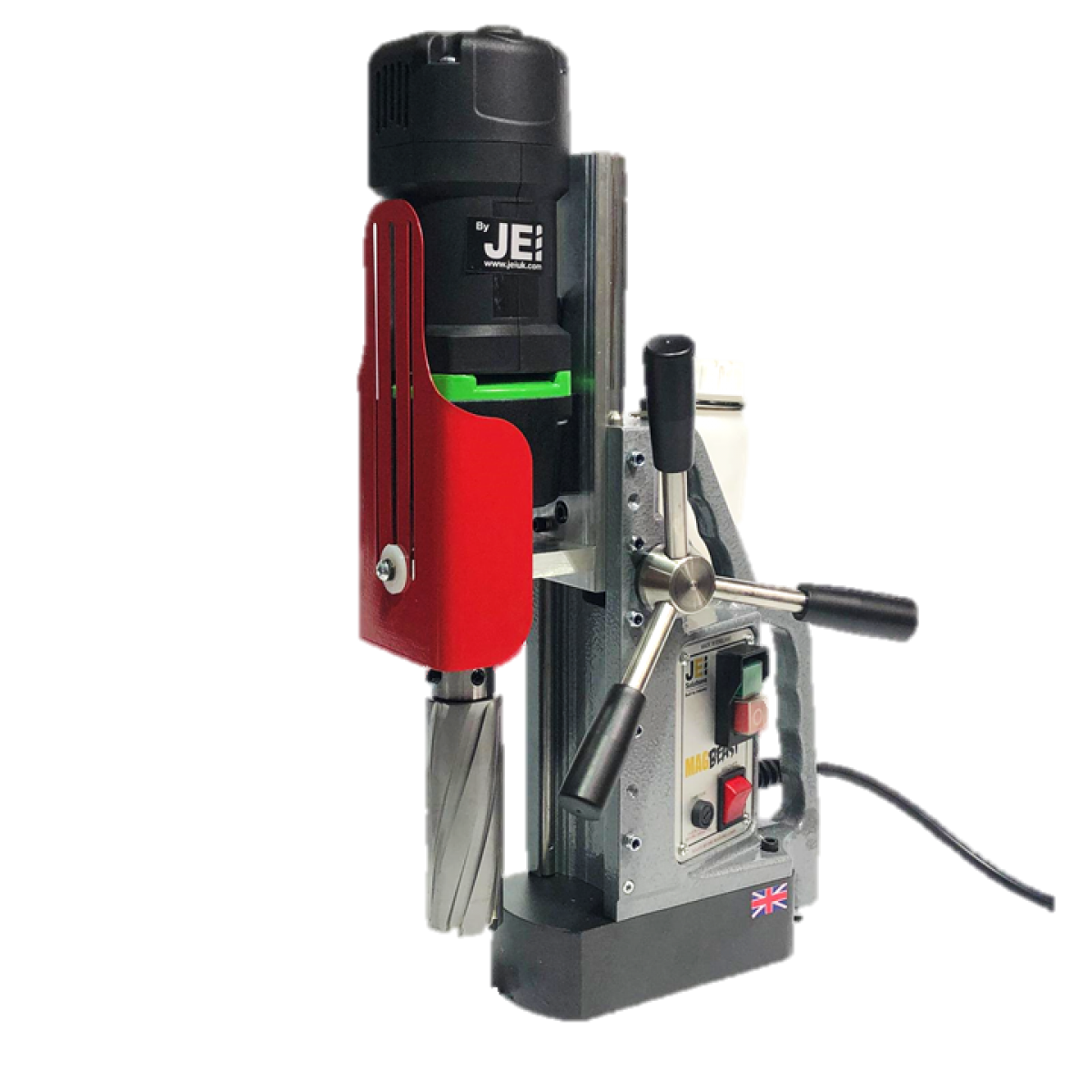

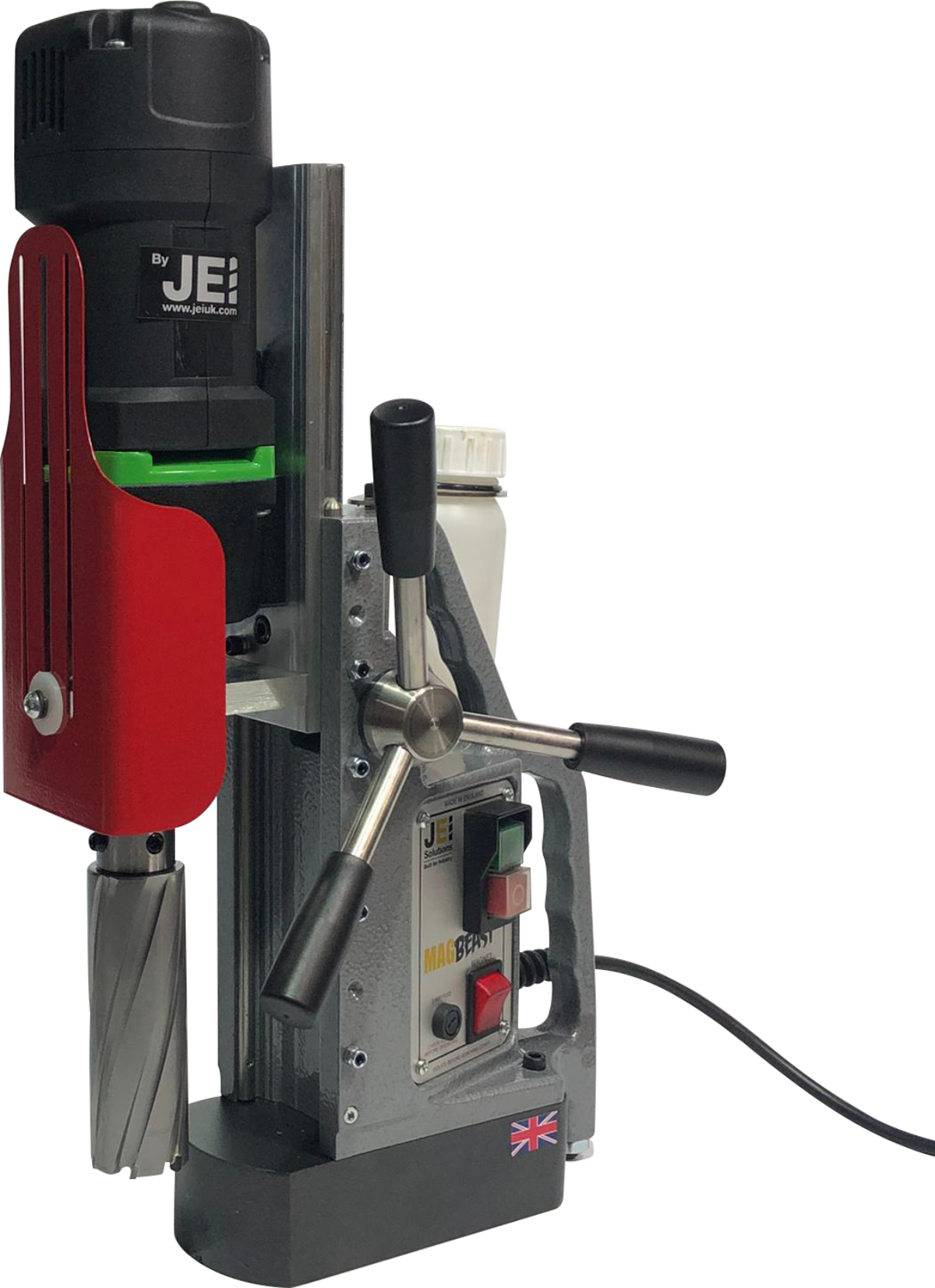

Made in the UK MagBeast® HM40EX

MagBeast® HM40EX



A lightweight and powerful magnetic drilling machine for maximum performance

  • Powerful 1100 W motor – enabling 40 mm cutter capacity
  • Weighs only 11.5 kg with a 40 mm cutter capacity – unrivalled weight to cutting capacity ratio.
  • 170mm total drill travel – facility to use extra-long cutters.
  • Maintenance friendly twin slide rails – no wearing parts and adjustment free operation.
  • Spoke handles can be fitted on left or right side for operator convenience.
  • Easily adapted to use with additional chuck and adaptor kit to accept twist drills up to 13 mm (part no - JEICA-13MM/19)


Rely on the expert capabilities of the MagBeast® HM40EX. Featuring extra long drill travel, ideal for 100 mm long cutters, and a 40mm diameter cutting capacity.

MagBeast® HM40EXSPECIFICATIONS


Model HM40EX HM40EX SWIVEL
Spindle 19 mm 19 mm
Weight 11.5 kg 12 kg
Cutter Capacity 40 mm Ø x 110 mm depth of cut 40 mm Ø x 110 mm depth of cut
Twist Drill Capacity 13 mm Ø with optional attachment (part no - JEICA-13MM/19) 13 mm Ø with optional attachment (part no - JEICA-13MM/19)
Countersink Capacity 40 mm 40 mm
Motor 1100 W 1100 W
RPM No load 720 RPM
Loaded 450 RPM
No load 720 RPM
Loaded 450 RPM
Swivel Base n/a 360 degree
Height min/max 320 / 500 mm 330 / 510 mm
Length x Width 280 x 165 mm 280 x 165 mm
Magnetic Base L x W 85 x 170 mm 85 x 170 mm
Magnet Deadlift 1100 kg on 1” Plate (10750 N) 1100 kg on 1” Plate (10750 N)
Noise Level < 90dB < 90dB
Vibration Level < 2.5 m/s2 < 2.5 m/s2
Voltage/ Part no 110 V - DRILL-HM40EX/1
240 V - DRILL-HM40EX/2
110 V - DRILL-HM40EX/1S
240 V - DRILL-HM40EX/2S
Shipping Weight 16 kg 16.5kg
Shipping Dimensions 460 x 360 x 180 mm 470 x 360 x 180 mm

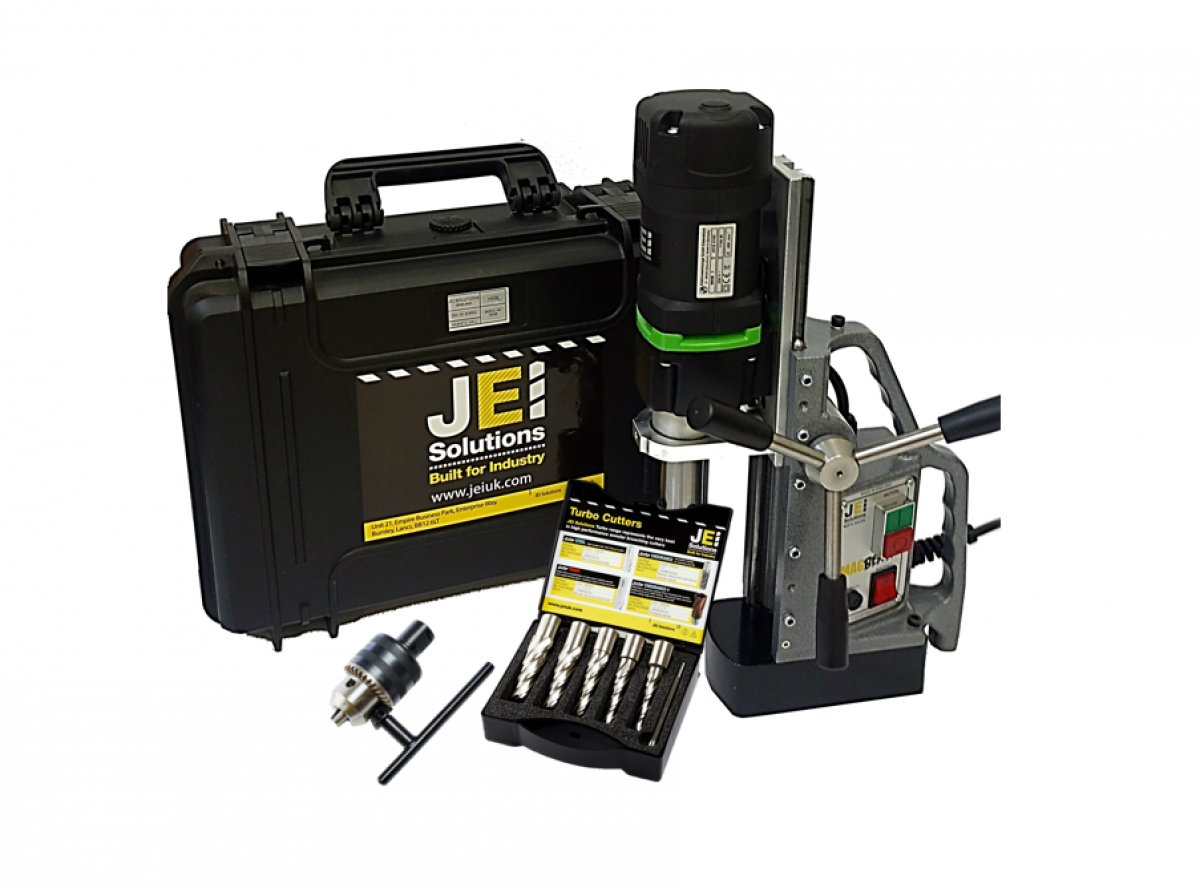

Available as a Machine Package


Purchase your HM40EX magdrill as a complete package, including:

  • HM40EX magdrill
  • 5 piece Turbo™ Steel Cutter Set (14, 16, 18, 20, 22 mm x 1" depth of cut plus pin to suit)
  • 13 mm chuck with 19mm shank adaptor

Part Number:

110v - DRILL-HM40EX/1SET

240v - DRILL-HM40EX/2SET

  ORDER AS A PACKAGE
