MagBeast® HM100


  • Reaming 39

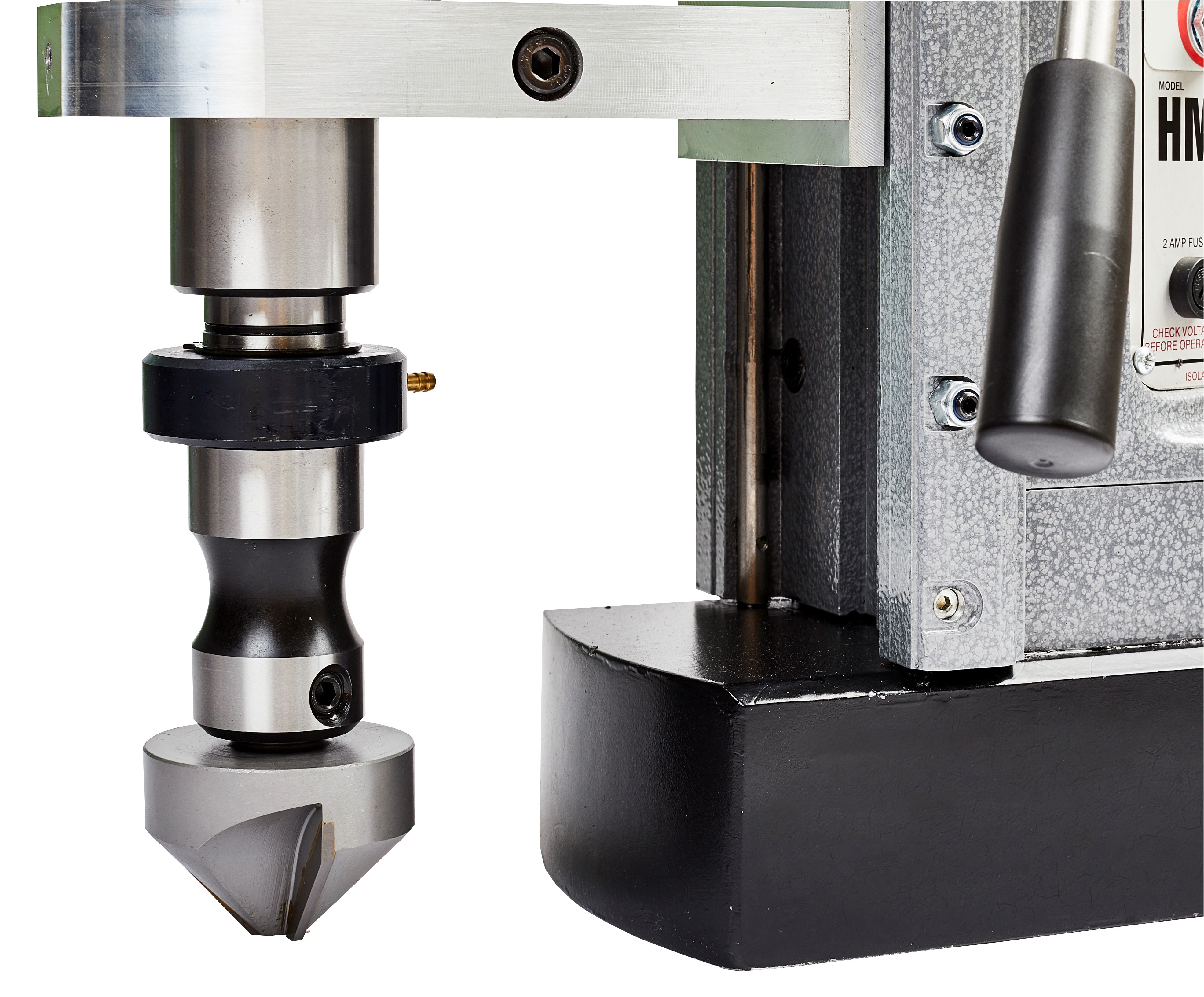

  • Counterskin 55

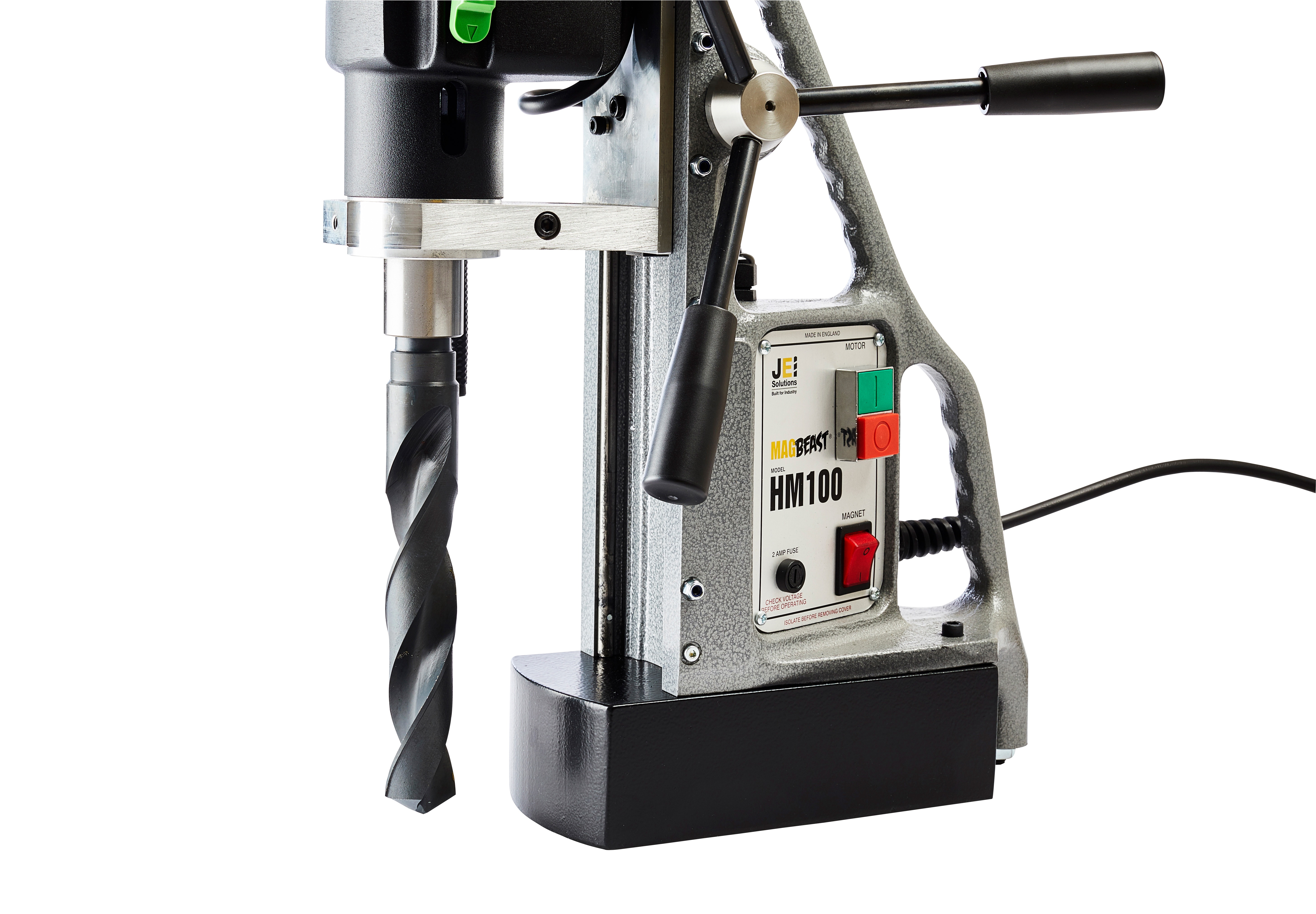

  • Twist drill 32

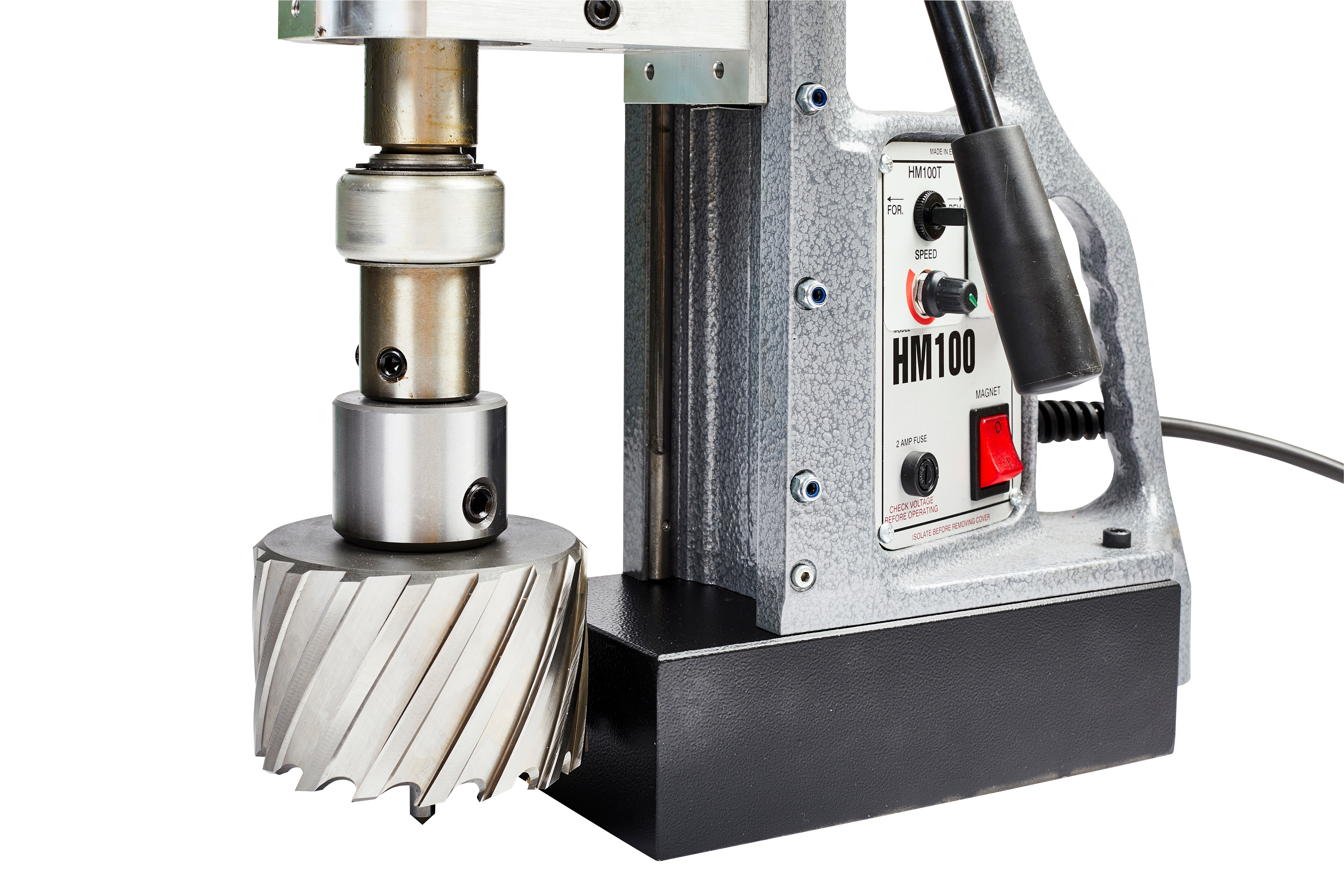

  • Core drilling 100

A durable, heavy duty, 3 morse taper drilling machine.

  • Heavy duty 1700 W motor. Enables large cutting capacity.
  • Weighs only 24 kg and 100 mm cutter capacity. Unrivalled weight to cutting capacity ratio.
  • 4 speed gearbox. Ideal for a wide selection of cutting operations.
  • 250 mm total drill travel. Facility to use 150 mm (6”) long cutters.

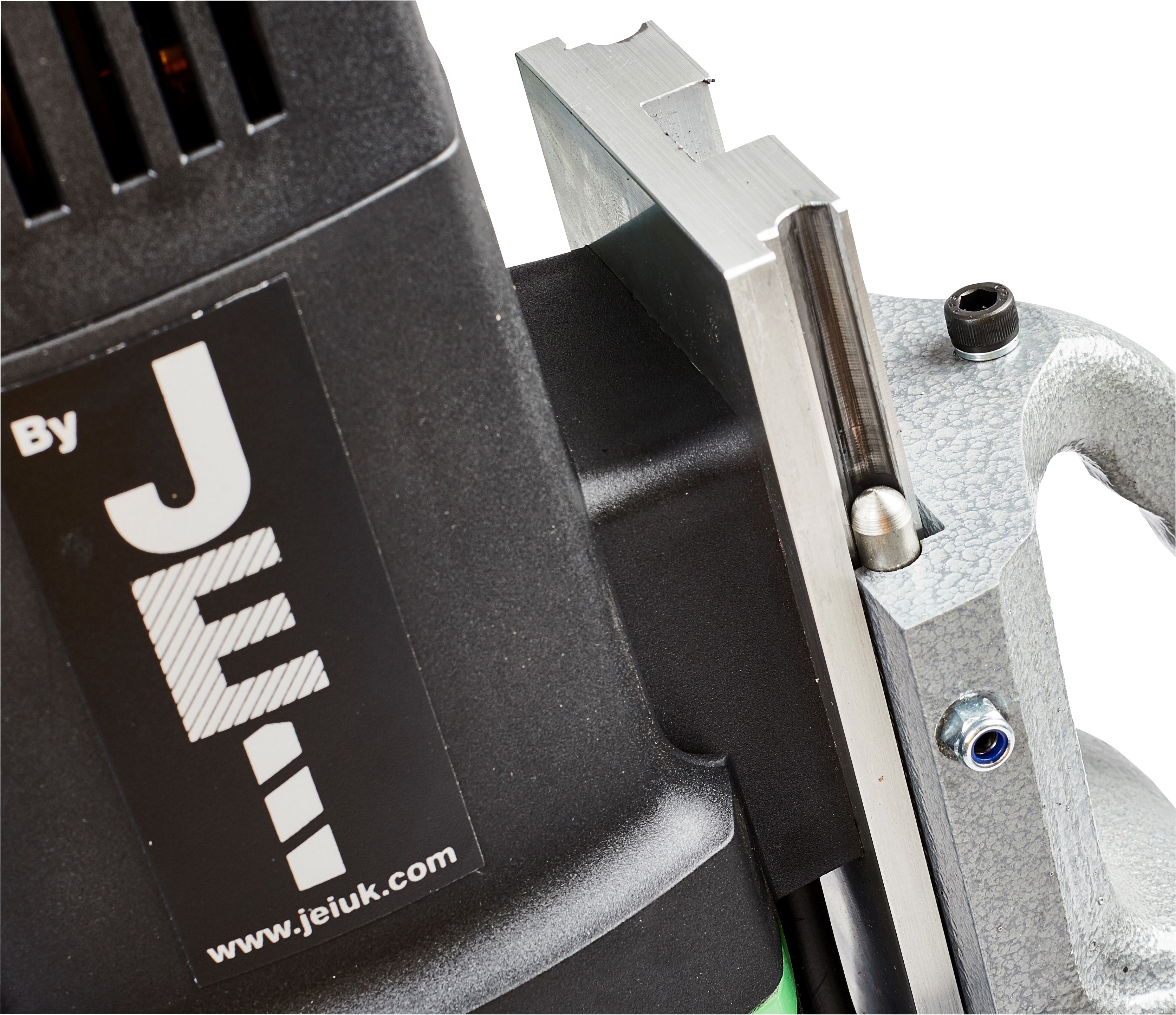

  • Maintenance friendly twin slide rails. No wearing parts and adjustment free operation.

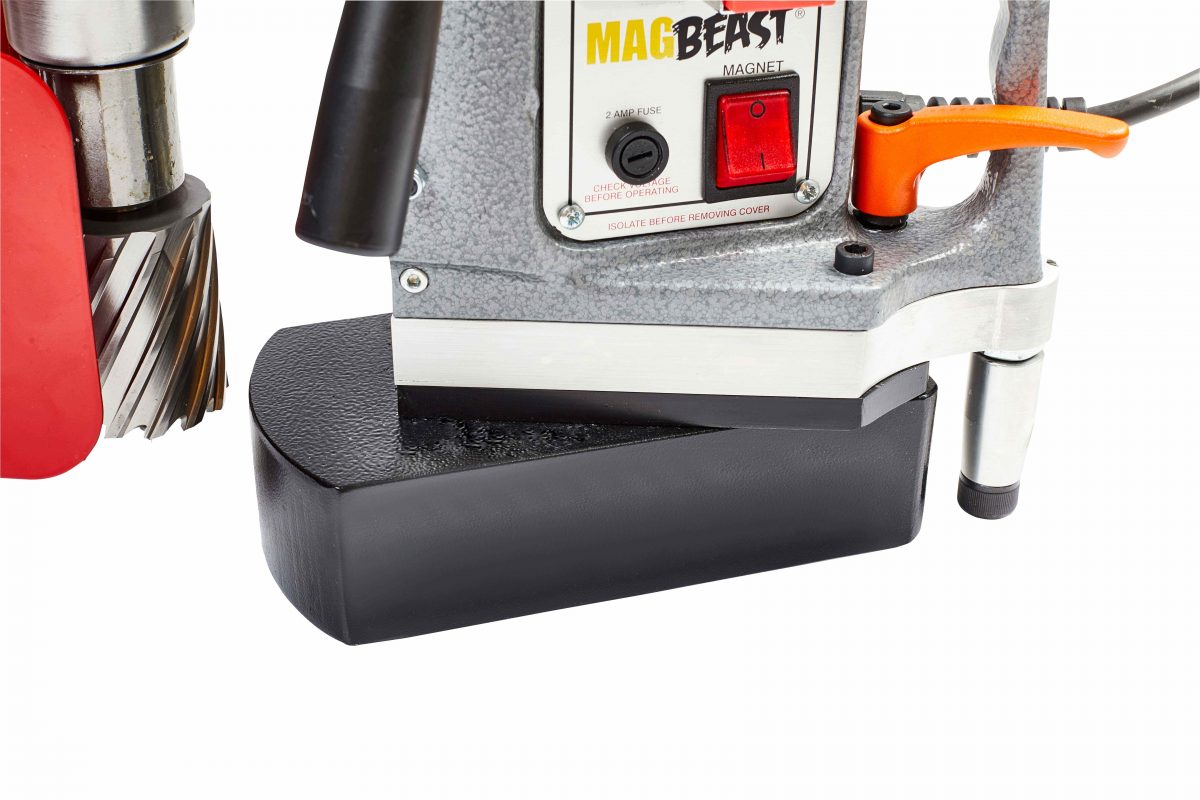

  • Optional 360º swivel base


The substantial 1700 W motor on the MagBeast® HM100 enables a large cutting capacity and 4-speed gearbox for those demanding projects. Adjustment-free operation and no wearing parts.

MagBeast® HM100SPECIFICATIONS


Model HM100 HM100S - SWIVEL BASE MODEL
Spindle MT3 MT3
Arbor Bore 19 mm 19 mm
Weight 24 kg 27.5 kg
Max Stroke 250 mm 290 mm
Cutter Capacity 100 mm Ø x 6” depth of cut 100 mm Ø x 6” depth of cut
Twist Drill Capacity 19 mm with 2MT Chuck / 32 mm with 3MT Twist Drill 19 mm with 2MT Chuck / 32 mm with 3MT Twist Drill
Countersink Capacity 55 mm 55 mm
Reaming Capacity 39 mm 39 mm
Motor 1700 W 1700 W
RPM 4 Fixed Speeds:
no load 215/330/460/680 RPM
loaded 110/175/245/385 RPM
4 Fixed Speeds:
no load 215/330/460/680 RPM
loaded 110/175/245/385 RPM
Swivel Base n/a 360 Degree
Height min/max 450 / 700 mm 495 / 740 mm
Length x Width 345 x 190 mm 345 x 190 mm
Magnetic Base L x W 212 x 102 mm 212 x 102 mm
Magnet Deadlift 2050 kg on 1” Plate (20100 N) 2050 kg on 1” Plate (20100 N)
Noise Level < 90dB < 90dB
Vibration Level < 2.5 m/s2 < 2.5 m/s2
Voltage/ Part no 110 V – DRILL-HM100
240 V – DRILL-HM100/2
110 V – DRILL-HM100S
240 V – DRILL-HM100S/2
Shipping Weight 29 kg 32 kg
Shipping Dimensions 571 x 450 x 250 mm 571 x 450 x 250 mm

Available with Full 360° swivel base - HM100S


Find Out More About the HM100S Swivel Based Model
Available with Full 360° swivel base - HM100S
