MagBeast® HM50T


  • Reaming 22
  • Counterskin 40
  • Tapping capacity m20
  • Twist drill 23
  • Core drilling 50

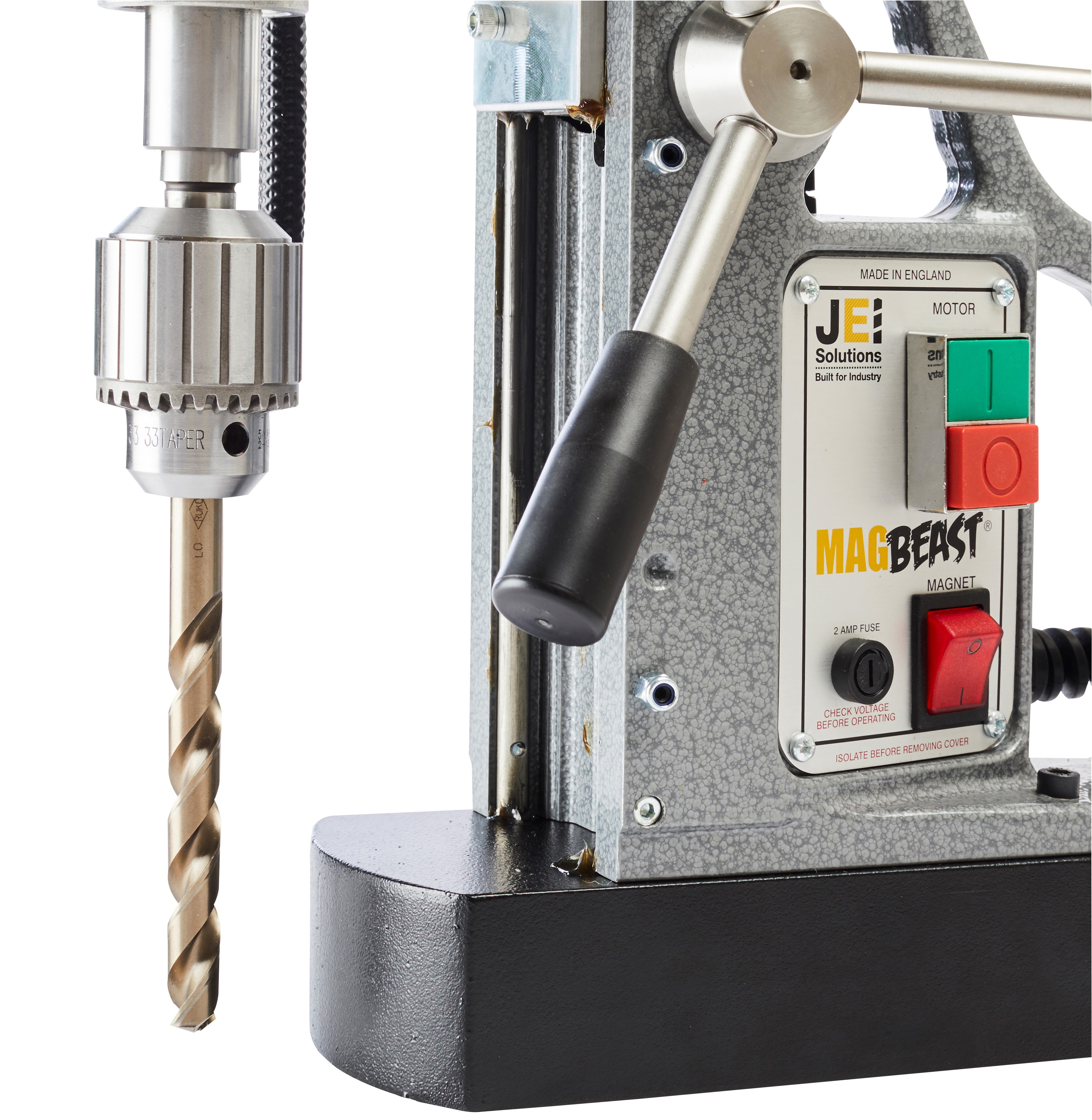

A heavy duty 2 morse taper drilling machine, Featuring variable speed and reverse function.

  • Variable speed, high torque motor. Ideal for countersinking and reaming.
  • Reverse speed motor ideal for threading (tapping) holes.
  • Lightweight. Only 14kg yet can cut up to 50 mm diameter.
  • Maintenance friendly twin slide rails.
  • No wearing parts and adjustment free operation.
  • Spoke handles can be fitted on left or right side for operator convenience (applies to all HM50 models).
  • Optional 360º Swivel Base


A heavy-duty 2 morse taper drilling machine, the MagBeast® HM50T is ideal for countersinking and reaming. A lightweight option, weighing at only 14kg, that can cut up to 50mm in diameter.

MagBeast® HM50TSPECIFICATIONS


Model HM50T HM50TS (WITH SWIVEL BASE)
Spindle MT2 MT2
Weight 14 kg 16.5 kg
Max Stroke 180 mm 200 mm
Cutter Capacity 50 mm Ø x 4” depth of cut 50 mm Ø x 4” depth of cut
Twist Drill Capacity 13 mm with 2MT Chuck ~ 23 mm with 2MT Twist Drill 13 mm with 2MT Chuck ~ 23 mm with 2MT Twist Drill
Countersink Capacity 40 mm 40 mm
Tapping Capacity M20 M20
Reaming Capacity 22 mm (19 mm shank) 22 mm (19 mm shank)
Motor 1150 W (110 V) 1250 W (240 V) 1150 W (110 V) 1250 W (240 V)
RPM 2 Variable Speeds, 180–430, 100–250 RPM 2 Variable Speeds, 180–430, 100–250 RPM
Swivel Base n/a 360 Degree
Height min/max 380 / 560 mm 390 / 590 mm
Length x Width 280 x 170 mm 280 x 170 mm
Magnetic Base L x W 90 x 180 mm 90 x 180 mm
Magnet Deadlift 1250 kg on 1” Plate (12000 N) 1250 kg on 1” Plate (12000 N)
Noise Level < 90dB < 90dB
Vibration Level < 2.5 m/s2 < 2.5 m/s2
Voltage/ Part no 110 V – DRILL-HM50T ~ 240 V – DRILL-HM50T/2 110 V – DRILL-HM50TS ~ 240 V – DRILL-HM50TS/2
Shipping Weight 19 kg 22 kg
Shipping Dimensions 490 x 380 x 200 mm 490 x 380 x 200 mm

Available with Full 360° swivel base - HM50TS


The Ultimate HM50 magdrill option - the HM50TS. Gives you all the power of the 2 MT HM50 magdrill with the additional variable speed, reverse and swivel base features in one machine.

Find Out More About the HM50TS Swivel Based Model
Available with Full 360° swivel base - HM50TS
