Ideal for Oil & Offshore Drilling Solutions.

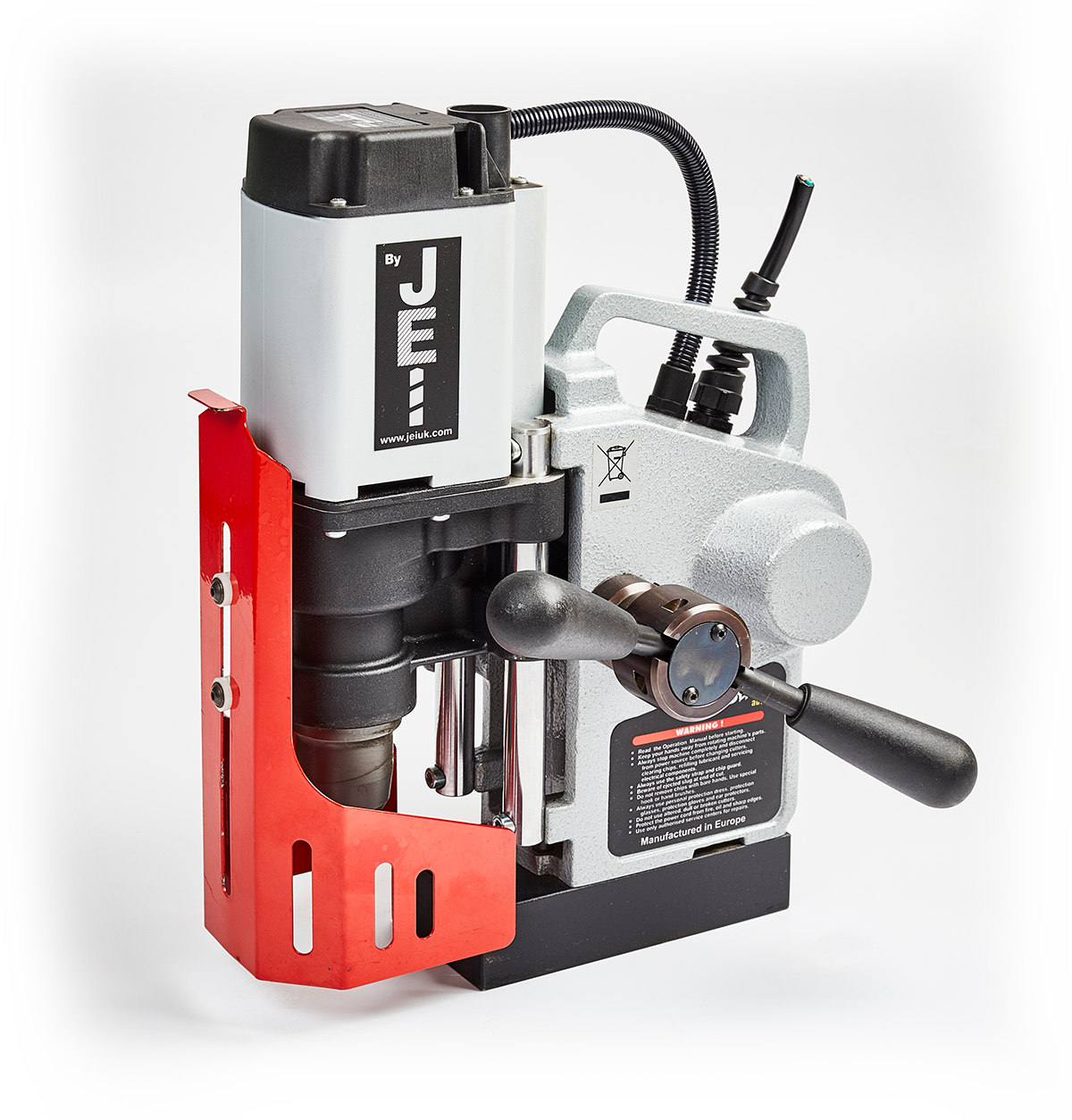

The world's smallest Automatic Magnetic Drilling Machine with all the Features of the MiniBeast™️.
- Compact size and weight - ideal for site work.
- Internal coolant reservoir - ensuring maximum cutter life.
- Self correcting slide rails - for maintenance free operation.
- Light-weight - only 13kg.

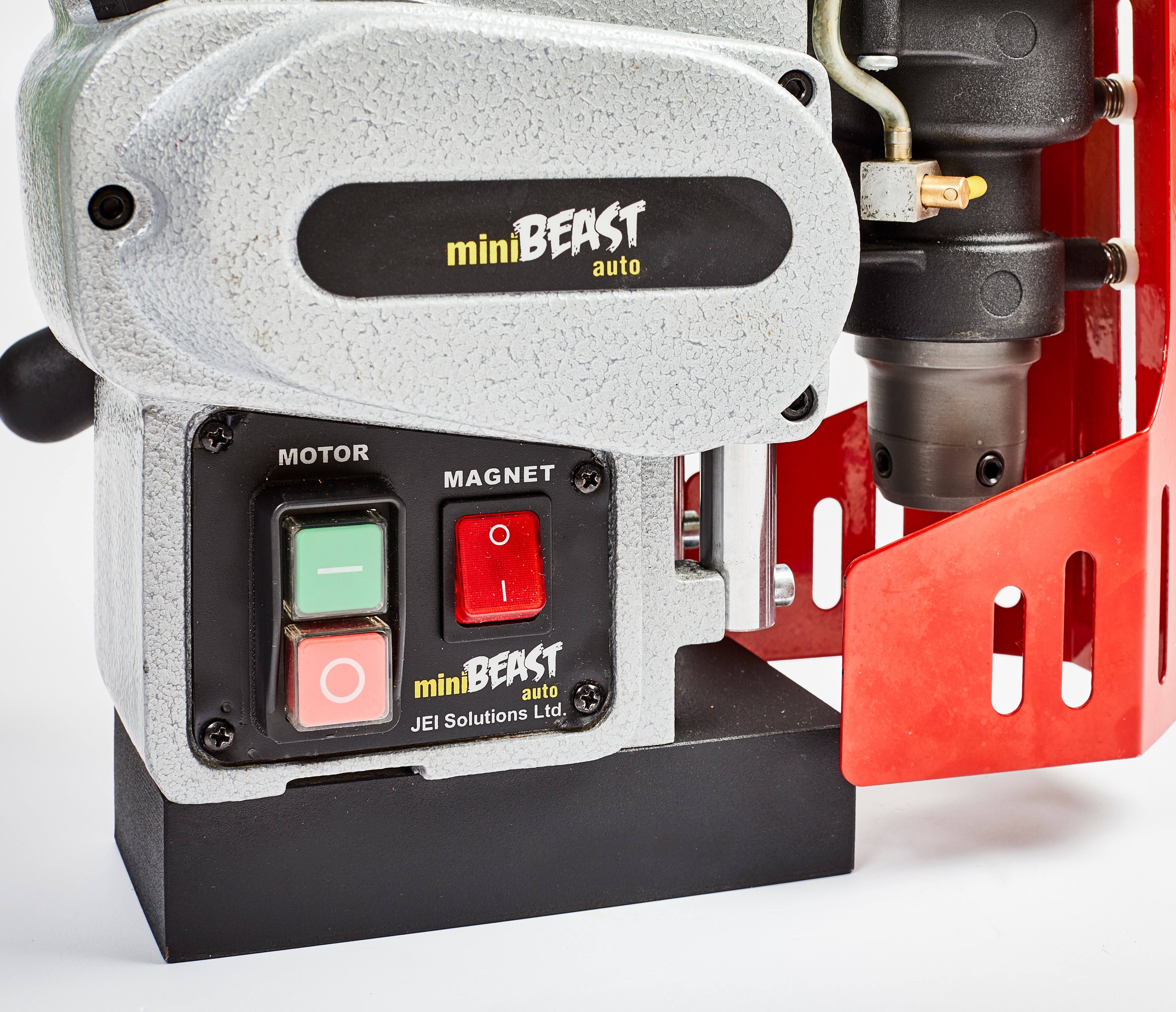

- Easier operation – lets the machine control the task.
- Increased productivity – one operator can control several machines at one time.
- Improved tool life – let the machine do the cutting. More holes per tool with better hole results.
- Protects against misuse of machine and wearing parts – no manual overloading of the motor.
- Longer overall life of the machine.
The MiniBeast™ Auto is ideal for high production environments, cutting more holes in less time. Easy, maintenance-free operation means this can control the task for greater productivity.
|Cutter Capacity||35 mm Ø x 2" depth of cut|

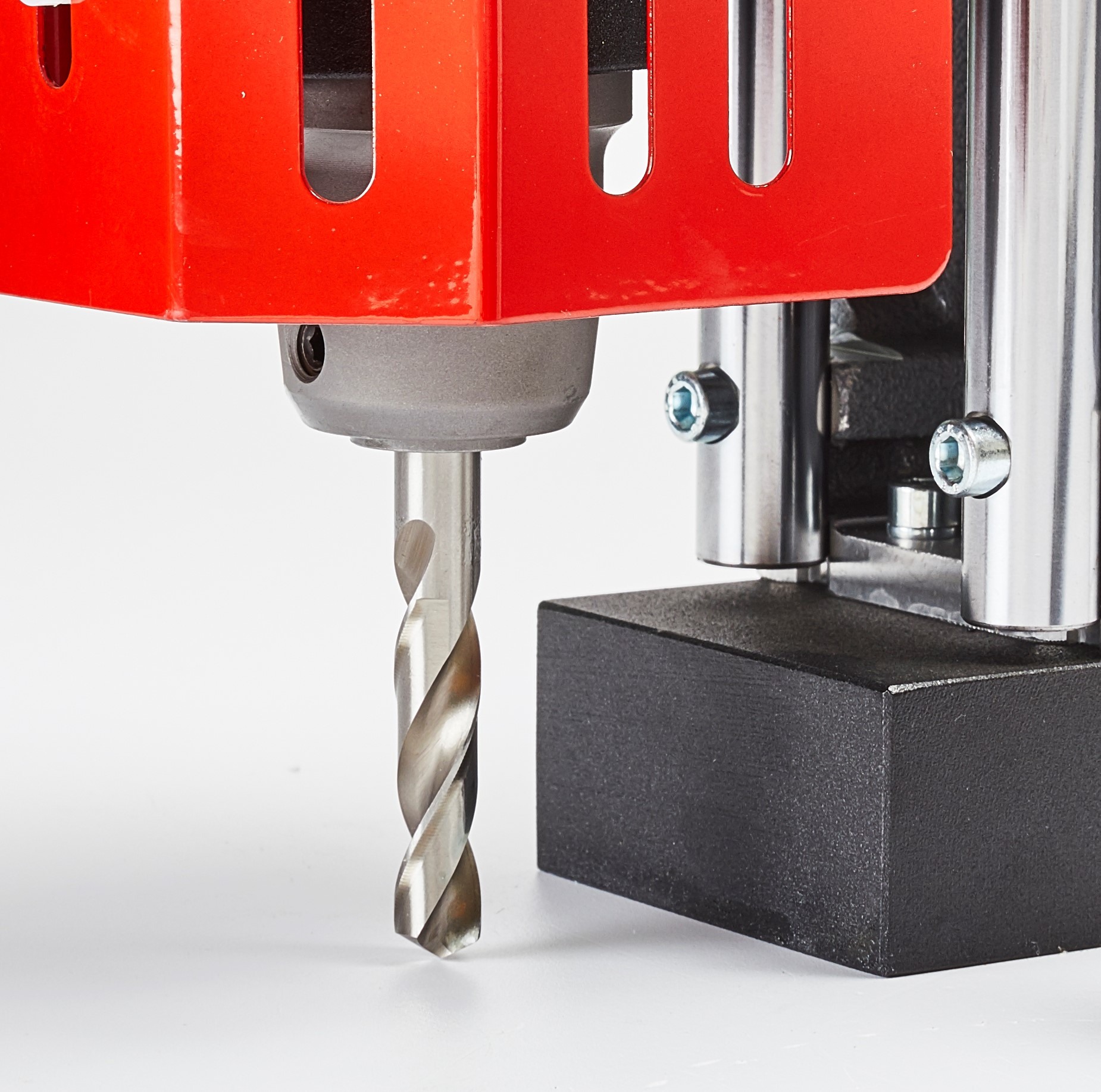

|Twist Drill Capacity||12 mm Ø with optional twist drills|

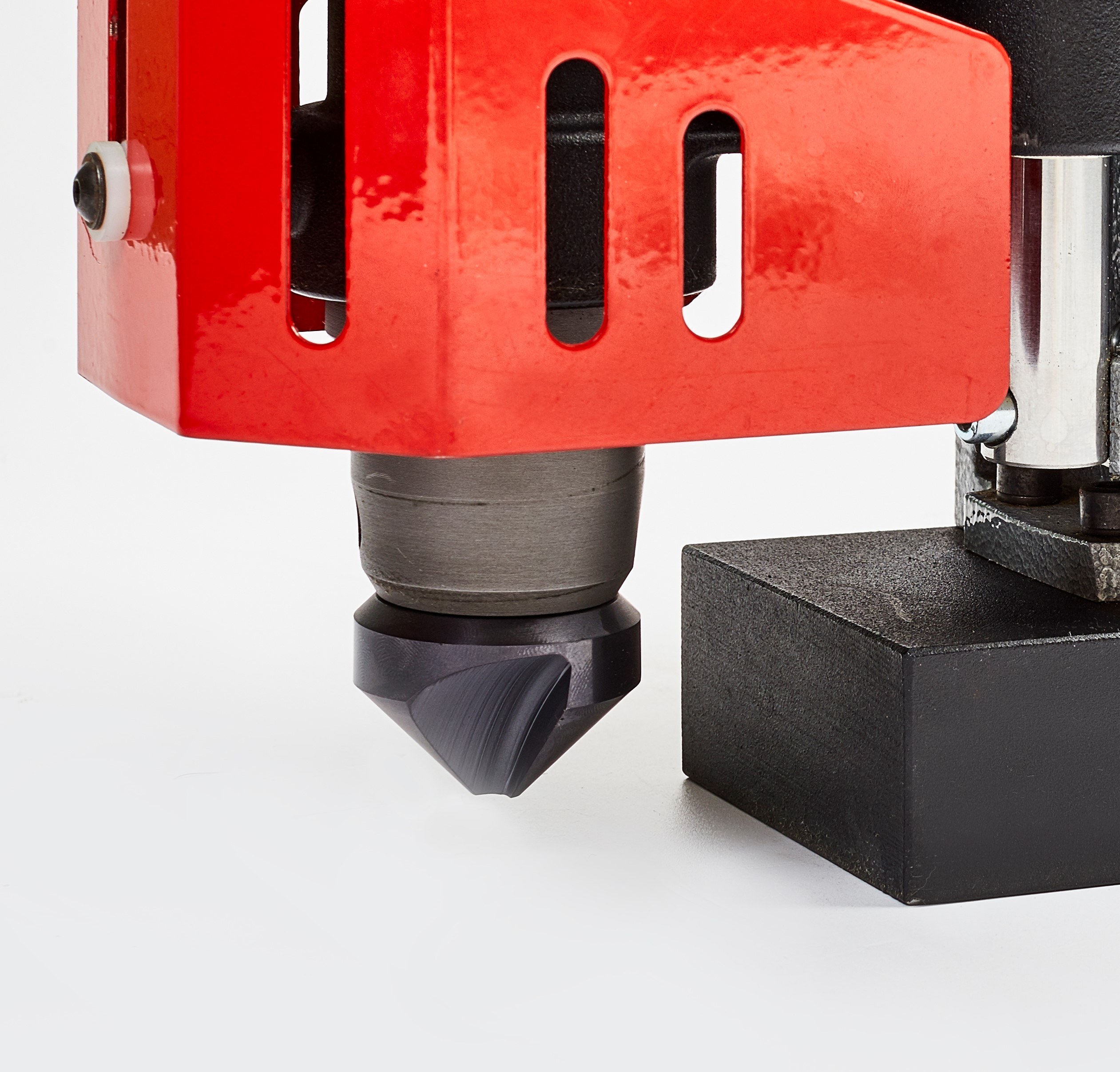

|Countersink Capacity||30 mm|
|Height Min/Max||307 / 377|
|RPM||1 Fixed Speed (no load 520 RPM, loaded 350 RPM)|
|Magnetic Base Dimensions||160 mm x 80 mm|
|Magnet Deadlift (on 25mm plate)||980 kg on 1" Plate (9600 N)|
|Noise / Vibration Level||< 90dB / < 2.5 m/s2|
|Voltage/Part No||110v PartNo Drill 19041/A - 240v PartNo Drill 19042/A|
|Shipping Weight||19.10 kg|
|Shipping Dimensions||360 x 350 x 260 mm|
