MiniBeast™
A Magdrill that’s lightweight and powerful for maximum performance - JEI's original best seller.
- Compact size and weight - ideal for site work.
- Internal coolant reservoir - ensuring maximum cutter life.
- Self correcting slide rails - for maintenance free operation.
- Lightweight - only 10kg.
- Hidden motor cable - for added protection.
- Left or right hand sided handle operation.
Available for hire!
JEI Solutions' flagship drill, the MiniBeast™ offers a lightweight yet powerful drilling solution. Weighing only 10kg, this portable magnetic drill is perfect for on-site or workshop use. Through its unique features, compact size and power the Minibeast™ has become a popular choice for the steel fabricator
MiniBeast™SPECIFICATIONS
| Model | MINIBEAST™ |
| Weight | 10 kg |
| Spindle | 19mm |
| Cutter Capacity | 35mm Ø x 2" depth of cut |
| Twist Drill Capacity | 12 mm with optional Turbo™ twist drills |
| Countersink Capacity | 30mm |
| Tapping Capacity | N/A |
| Reaming Capacity | N/A |
| Motor | 1010 watts |
| Height Min/Max | 307 / 377 |
| Length | 260 mm |
| Width | 166 mm |
| No of Geared Speeds | 1 Fixed Speed |
| RPM | No load 520 RPM, loaded 350 RPM |
| Magnet Deadlift (on 25mm plate) | 980 kg on 1" Plate (9600 N) |
| Magnetic Base Dimensions | 160 mm x 80 mm |
| Noise Level | < 90dB |
| Vibration Level | < 2.5 m/s2 |
| Voltage / Part Number | 110 V - DRILL-19041 240 V - DRILL-19042 |
| Shipping Weight | 13.3 kg |
| Shipping Dimensions | 49cm x 38cm x 19cm |

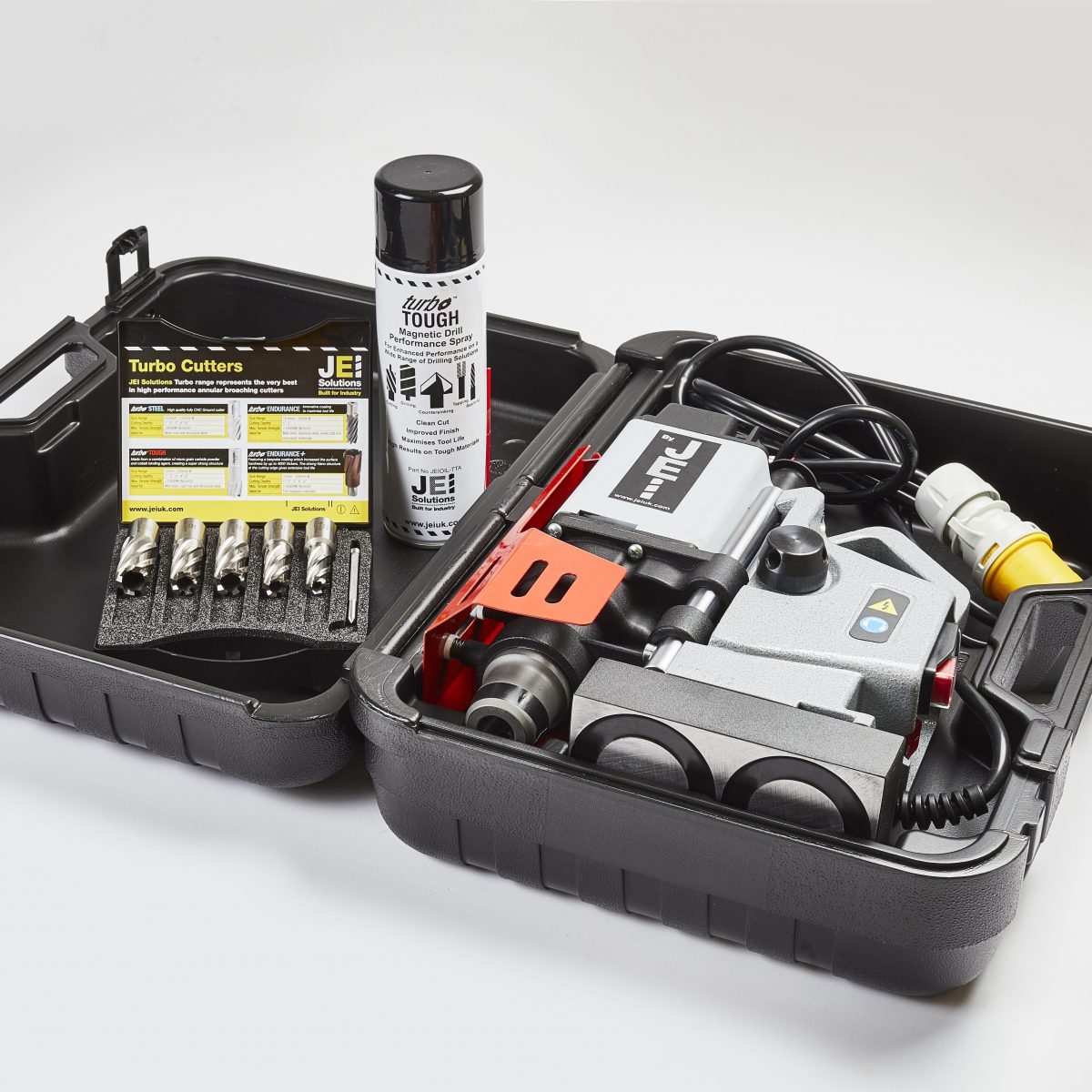

ALSO AVAILABLE AS A PACKAGE
Our MiniBeast™ package includes:
- 1 x MiniBeast™ Drill (110 V or 240 V)
- 1 x 5 pc Turbo™ Steel Cutter set (14, 16, 18, 20, 22 mm x 1” Depth & Pin)
- 1 x 500 ml Turbo™ Tough Drill and Tap Spray
Part Numbers - MINIBEAST-SET1 (110 v) and MINIBEAST-SET2 (240 v)
The perfect starter kit for your hole making application.
ORDER AS A PACKAGE

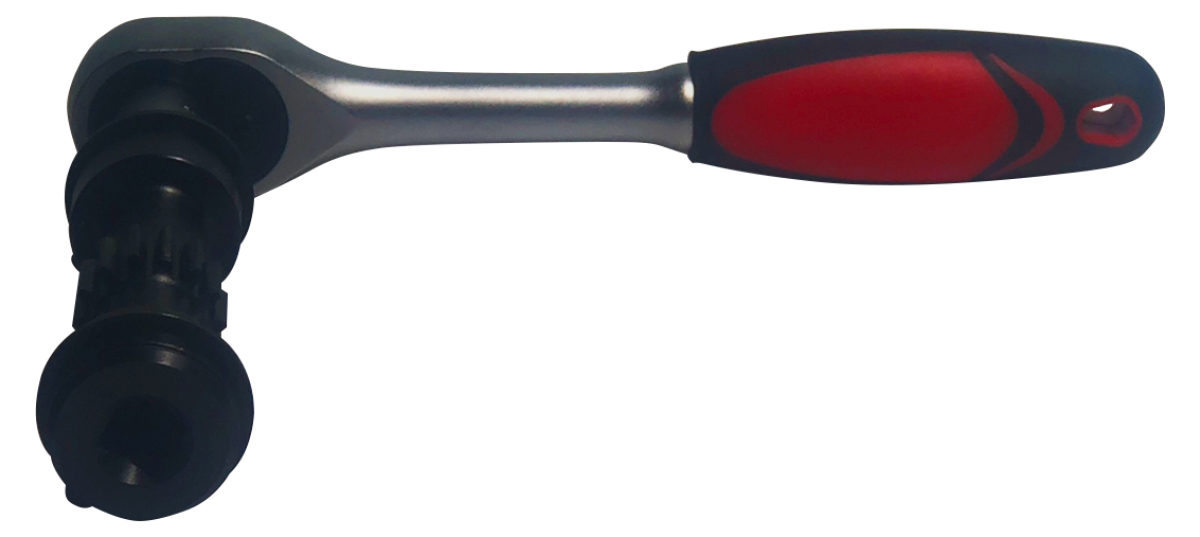

Optional ratchet conversion kit available
Covert your existing standard MiniBeast™ magnetic drilling machine with our pinion and ratchet kit.
Part number - MINIBEAST-RHA

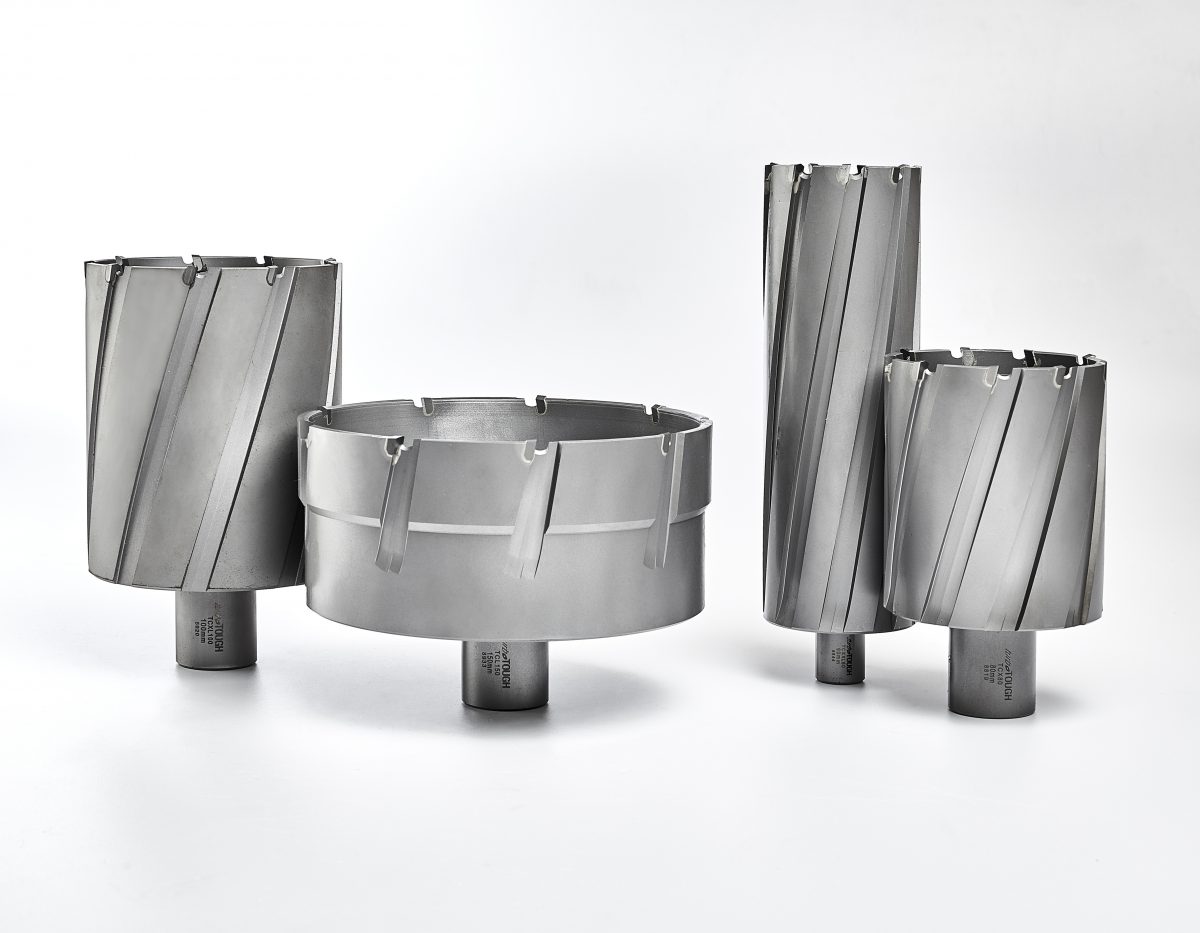

Maximise the performance of your MiniBeast™ with our Turbo™ Tough TCT Cutter Range
Our cutters and tools are designed to be long-lasting, withstanding vigorous usage without compromising on performance or precision.
