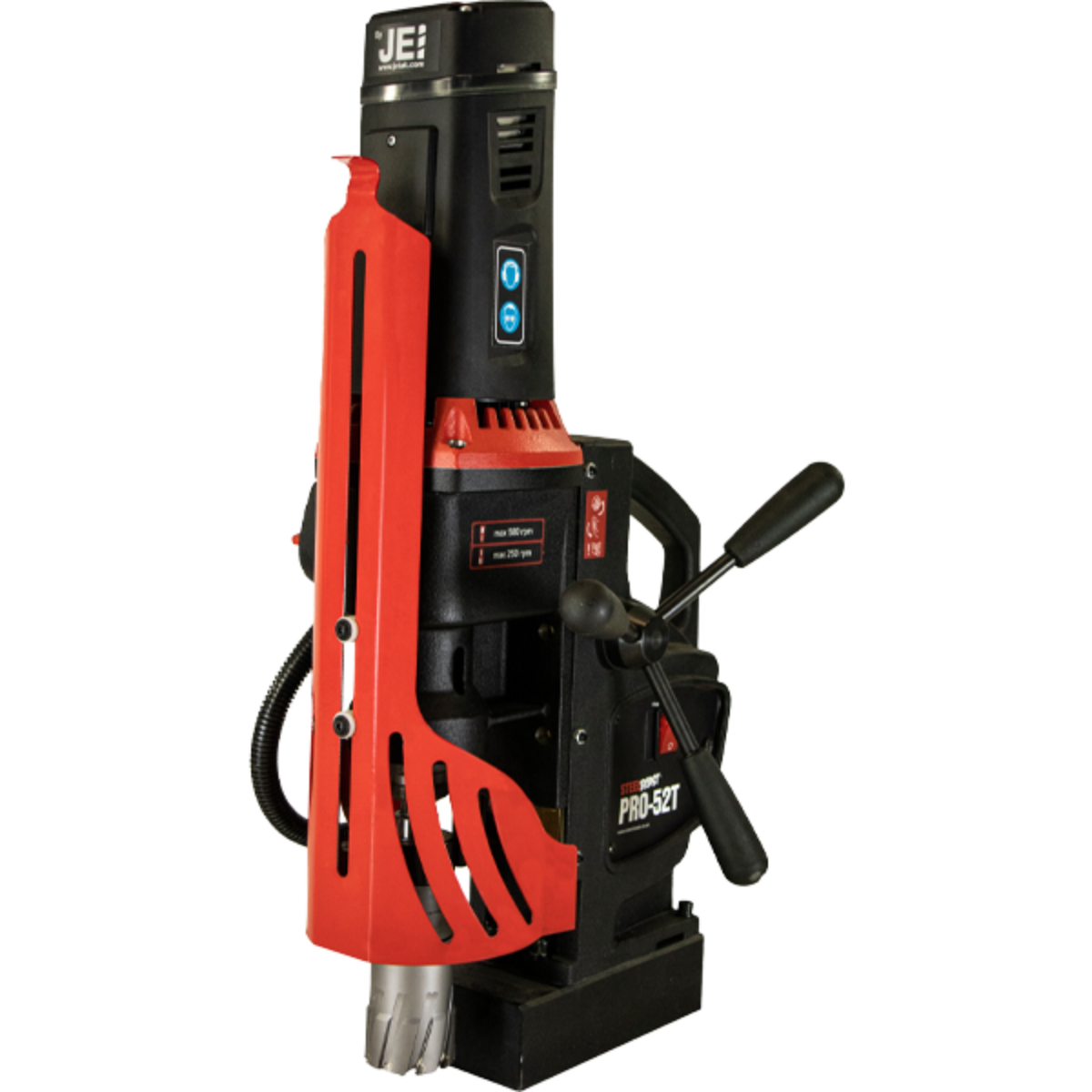

PRO-52T

UNIVERSAL TAPPING AND DRILLING MACHINE.

The PRO-52T is a powerful, universal tapping and drilling machine suitable for hole cutting and tapping applications. Features a powerful 1600 W variable speed motor enabling milling capacity up to 50 mm (2”) and drilling capacity up to 23 mm (7/8”).

  • 1600 W powerful motor
  • Intelligent speed control system
  • Both overload and overheat protection
  • Heavy duty 2-speed gearbox
  • Tilt sensor
  • 360-degree visual monitoring system
  • Large coolant container


The PRO-52T drilling machine is suitable for hole cutting and tapping applications. Powerful 1600 W variable speed motor enables milling capacity up to 50mm (2”) and drilling capacity up to 23 mm (7/8”).

Machine’s forward & reverse work modes allow thread cutting up to M20 with a new tapping system.

PRO-52TSPECIFICATIONS


Model PRO-52T
Motor Speeds (under load) (1) 160-250 rpm
(2) 390-580 rpm
Motor Power 1600 W
Weight 17 kg (37 lbs)
Max milling capacity 50 mm (2")
Max drilling capacity 23 mm (7/8")
Max Tap size M20 (3/4")
Stroke 190 mm (7-1/2")
Max depth of cut 75 mm (3") *
Voltage / Part Number 110-120 V, 50-60 Hz / DRILL-PRO52T/1
220-240 V, 50-60 Hz / DRILL-PRO52T/2
Magnetic clamping force 1122 kG (11,000 N)
Magnet Base Dimensions 90 mm x 180 mm x 48 mm 3-9/16" x 7" x 1-7/8"
Min, Workpiece Thickness 8 mm (5/16)
Spindle MT2
Tool holder 19 mm (3/4") Weldon
