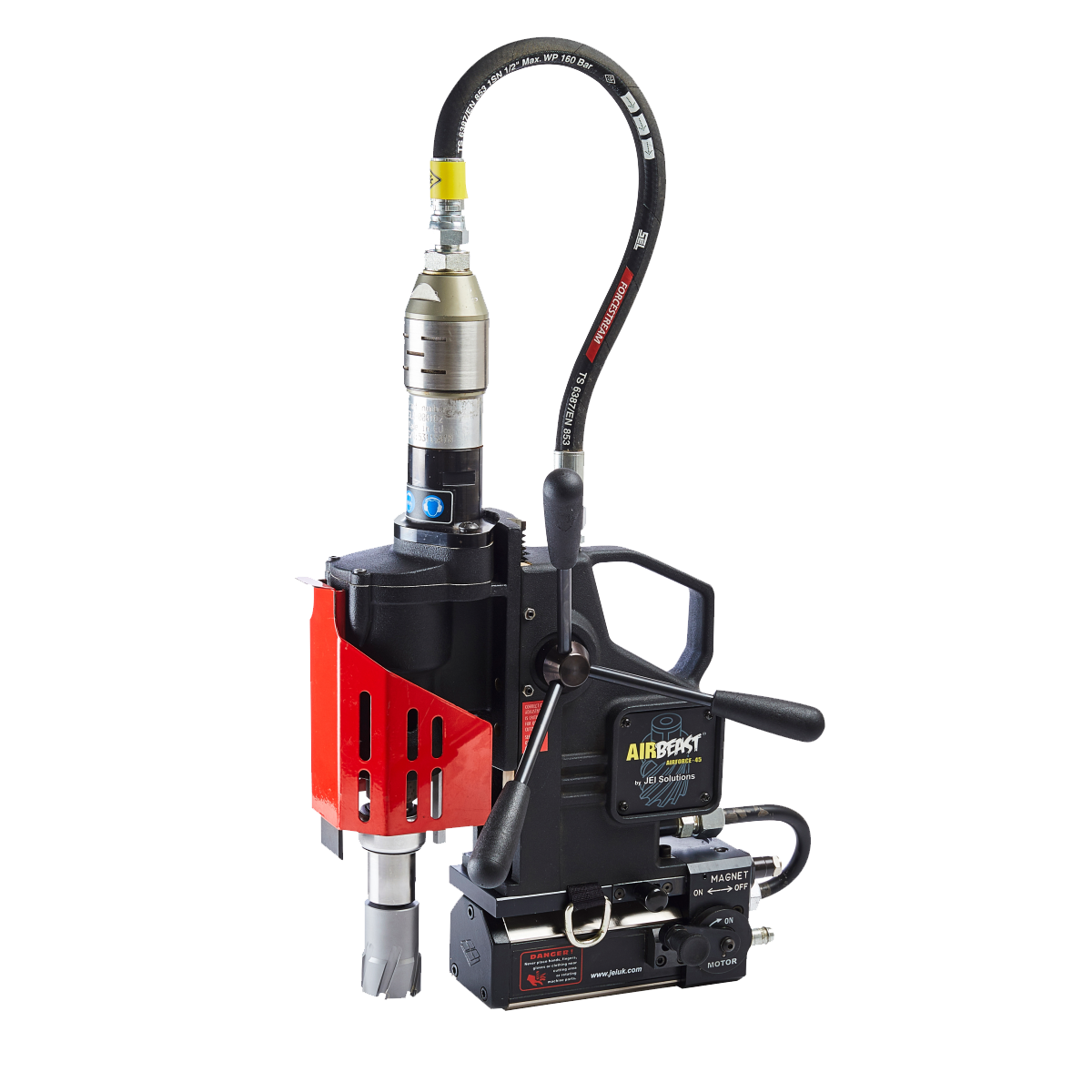

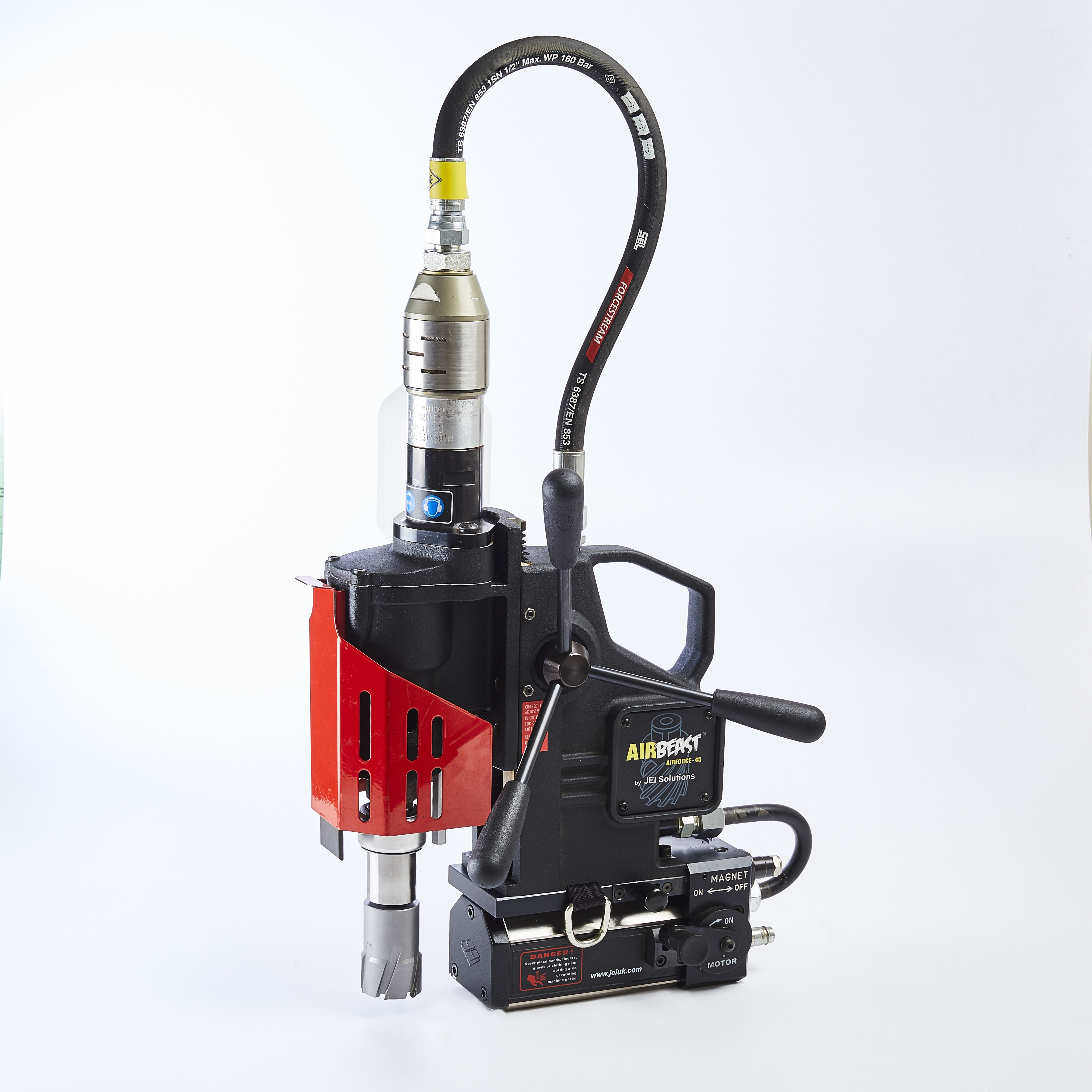

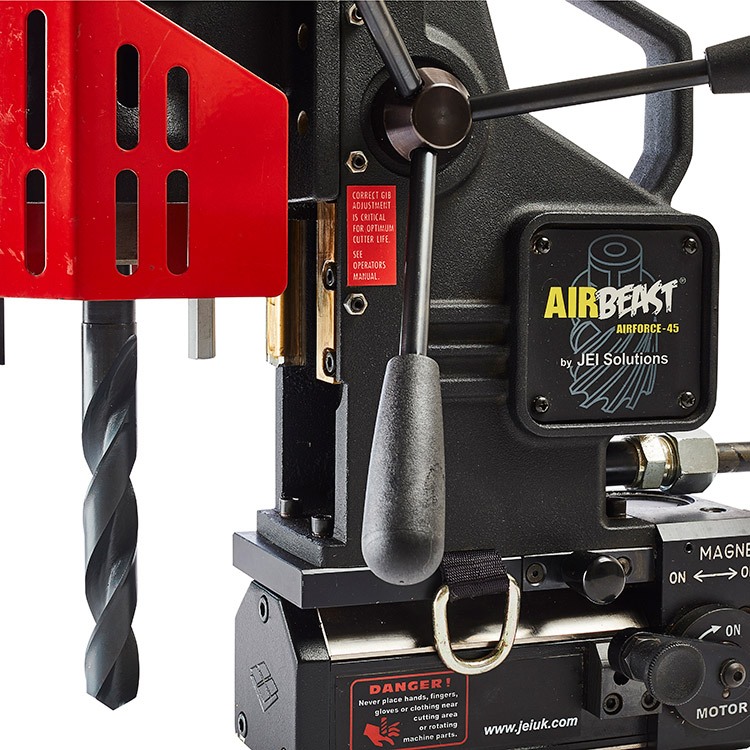

AirBeast® 45A
A pioneering 2 morse taper, ATEX approved pneumatic drilling machine.
- Pneumatic drive and permanent magnetic base eliminates the need for electric power.

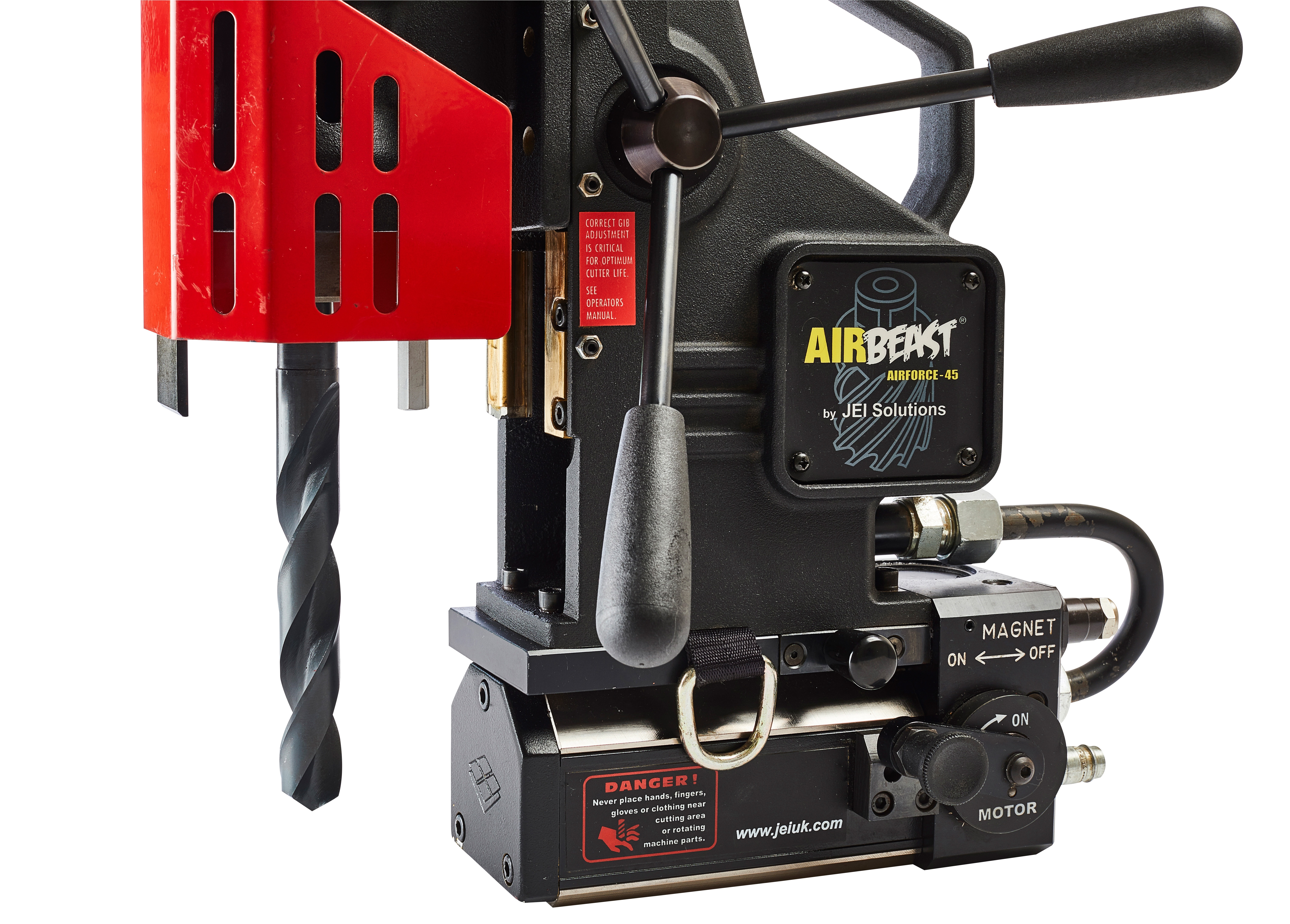

- 2 morse taper twist drill capacity.

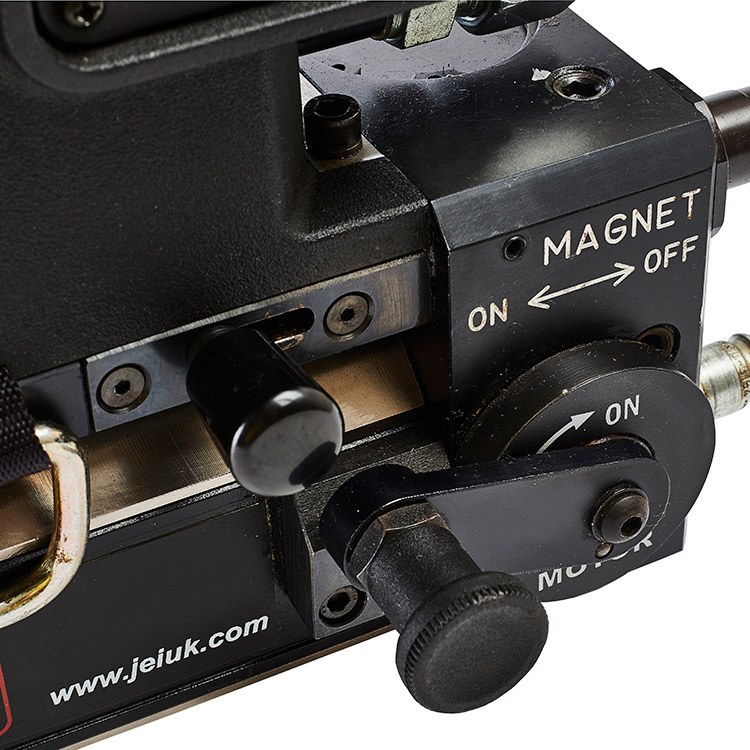

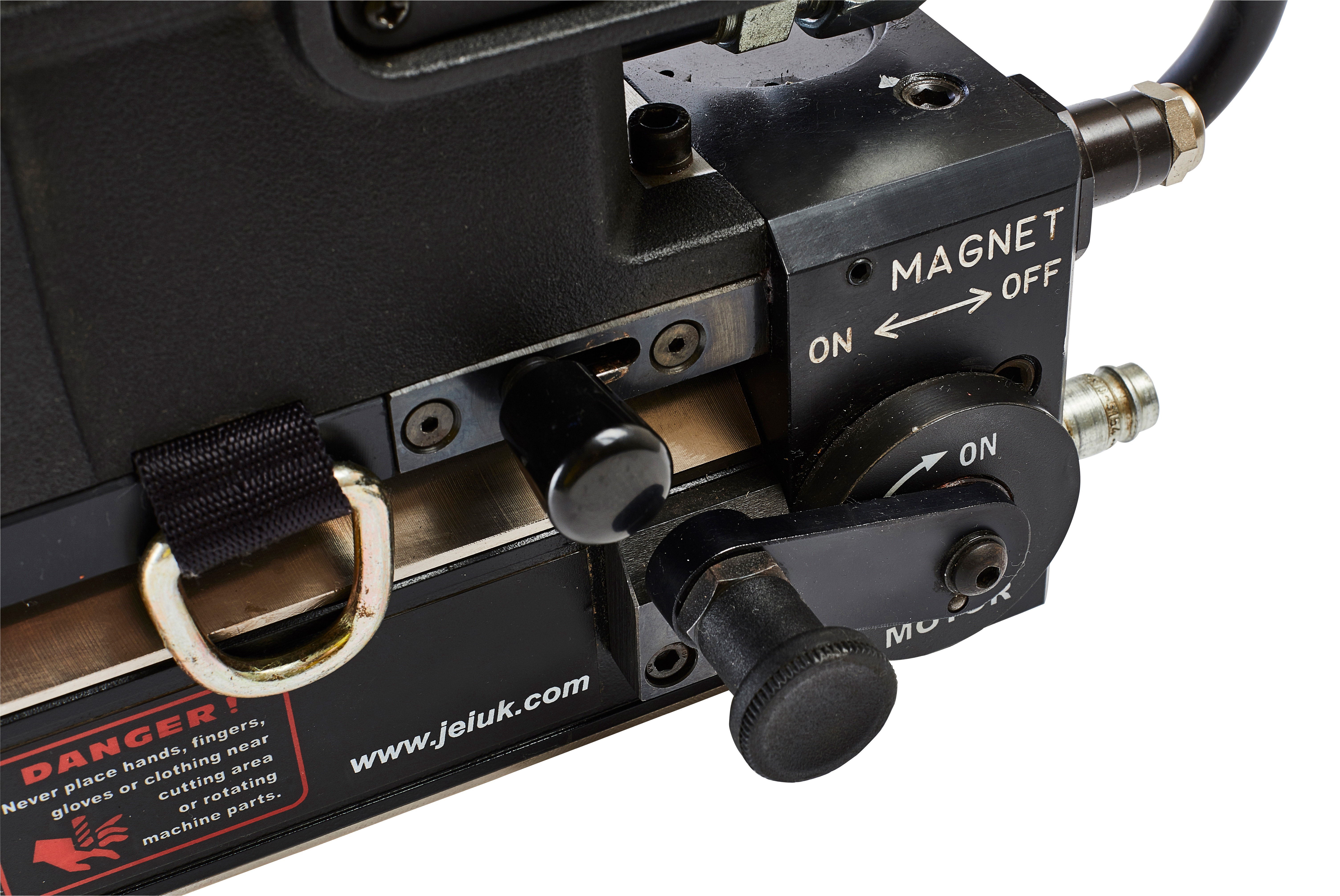

- Strong permanent magnetic base.
- Ergonomic design to suit offshore industry.
- Ideal for hazardous environments such as oil drilling platforms, mining, shipbuilding or petrochemical industries.
Available for hire!
The AirBeast® 45A is ideal for hazardous environments such as oil drilling platforms, mining, shipbuilding and petrochemical industries. A pneumatic drive and permanent magnetic base eliminate the need for electric power.
AirBeast® 45ASPECIFICATIONS
| Model | AIRBEAST 45 ATEX |
| Spindle | 2MT (19 mm shank) |

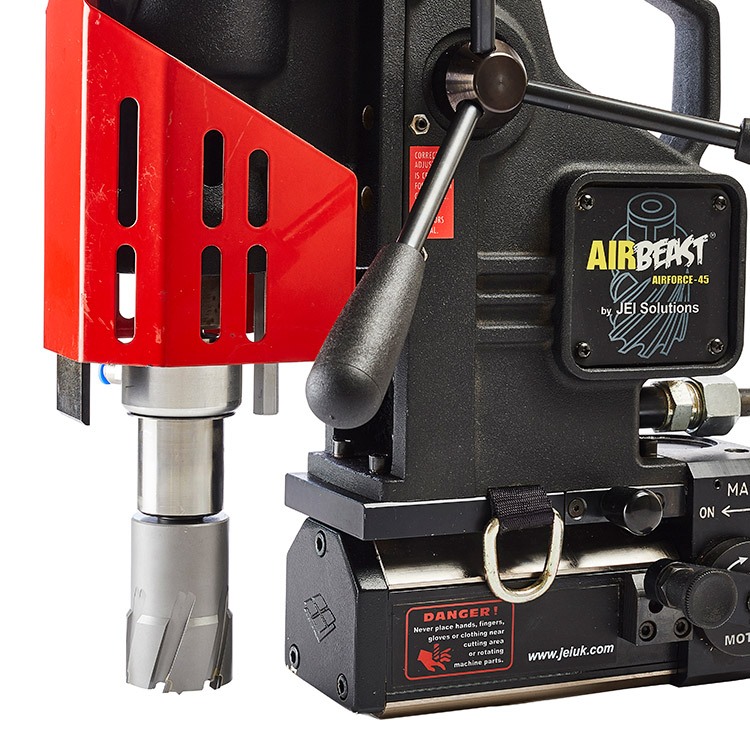

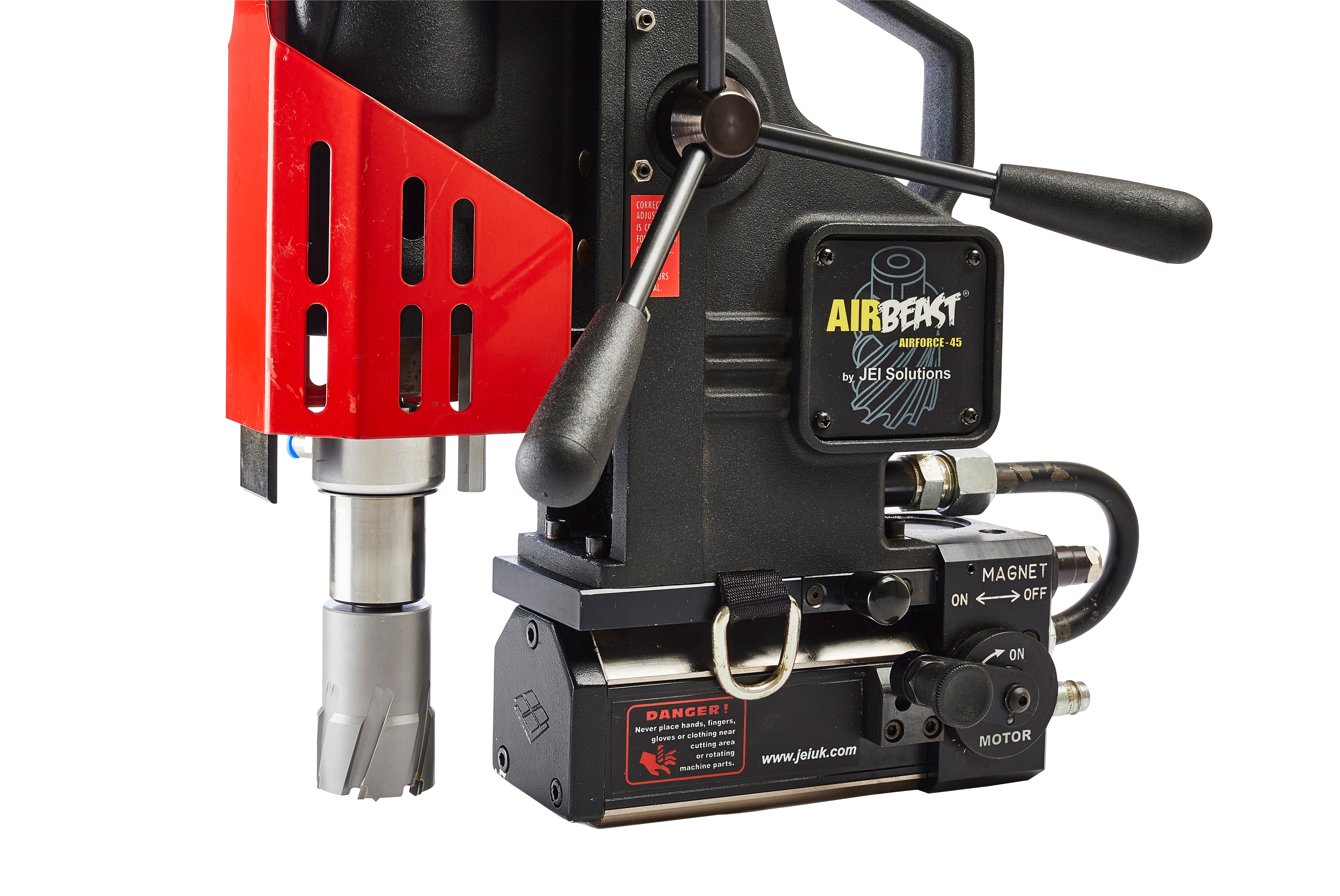

| Maximum drilling capacity with annular cutter | 45 mm (1-3/4") |
| Maximum drilling capacity with twist drill | 20 mm (13/16") |
| Maximum depth of cut | 51 mm (2") |
| Max Stroke | 150 mm |
| Air consumption | 1400 l/min (50 CFM) |
| Pressure | 6 Bar (87 psi) |
| Air Connection | CEJN 410 DN 10.4 R 3/8" BSPT fitting for quick coupling |
| RPM | 2 Fixed Speeds, no load 500 / 330 RPM, loaded 290 / 190 RPM |
| Magnet Deadlift | 765 kg on 1” Plate (7500 N) |
| Overall Dimensions | 424 mm x 268 mm x 703 mm |
| Magnetic Base dimensions | 80 mm x 80 mm x 143 mm |
| Noise Level | < 90dB |
| Vibration Level | < 2.5 m/s2 |
| Weight | 26.5 kg |
| Shipping Weight | 42 kg |
| Shipping Dimensions | 600 mm x 800 mm x 800 mm |
| Part no | DRILL-AIR45/ATEX |
Other drilling machines within the AirBeast® range

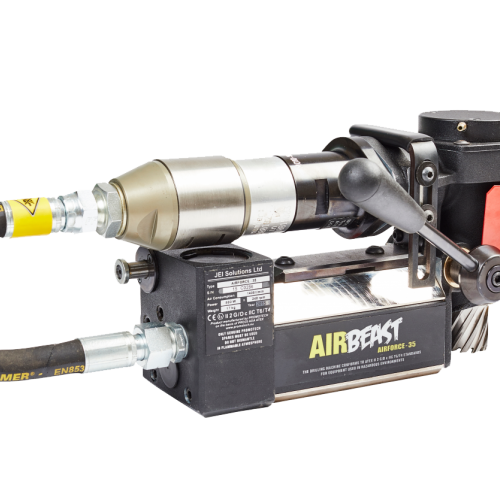

AirBeast® 35A
ATEX Approved, pneumatic drill specifically designed for space restricted and hazardous environments
View details
