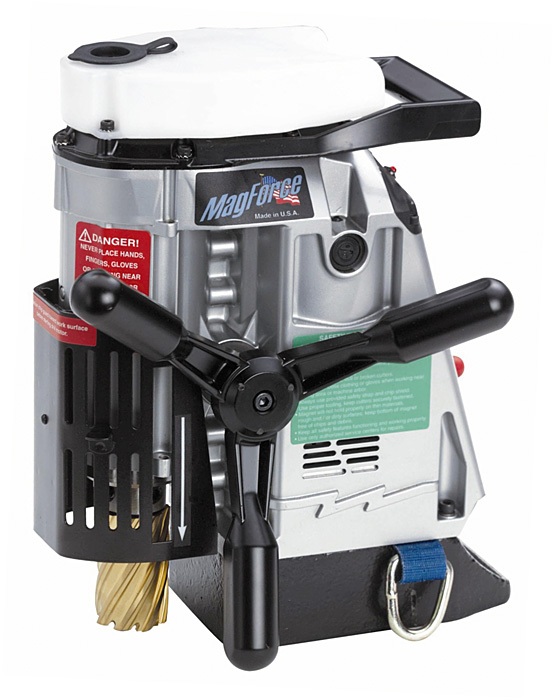

MAGFORCE
A unique compact design providing a premium performance.

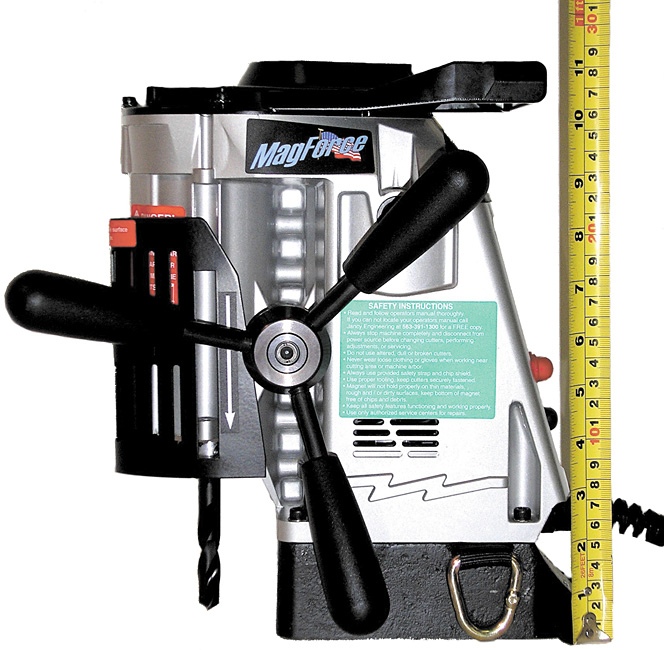

- Designed to drill in the most restricted areas - extra low profile which can be reduced to 279mm
- Cylindrical feed - unique support & alignment to the cutter - never needs adjustment
- One Piece Casting - ensures strength and stability
- Maintenance Free - no adjustments necessary, no worn slides, screws or support brackets & no exposed motor cable
- Internal Coolant - supplies cutting fluid spindle to centre of cutter for positive slug ejection
- Safety conscious - motor overload cut out and LED
- User friendly control panels
- Indicator alert if material is too thin
DOWNLOADS:
Perfect for dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Quis ipsum suspendisse ultrices gravida.
MAGFORCESPECIFICATIONS
| Model | MAGFORCE |
| Weight | 12.25kg |
| Cutter Capacity | 40mm Ø x2" depth of cut |
| Twist Drill Capacity | 12mm with twist drill set |
| Motor | 1200 watts |
| Height Min/Max | Min 270 (without coolant bottle) / Max 310 |
| Length | 292mm |
| Width | 163mm |
| RPM | Single Speed 350 RPM |
| Magnetic Base Dimensions | 101.6mm x 165mm |
| Magnet Deadlift (on 25mm plate) | 821kg |
| Noise Level | Does not exceed 95dB |
| Vibration Level | Does not exceed 2,5m/s2 |
| Voltage | 110v or 240v |
Want to make sure the MAGFORCE is right for you? Speak to our specialist solutions team today.
