AUTOMATIC AP1020-00 & AP1040-00

PIPE AND PLATE BEVELLING MACHINE

The WS-30 weld shaver is an easy-to-use, portable, Industrial heavy-duty machine designed specifically for creating a perfect flush finish on a weld seam joint.

Standard accessories include a guide rail with magnetic clamping system to maintain a constant position against the workpiece

Want to make sure the 'Automatic AP1020-00 & AP1040-00' is right for you? Speak to our specialist solutions team today.

In stock
SKU
SB-PBEV-AP1020-AP1040-00

DOWNLOADS:

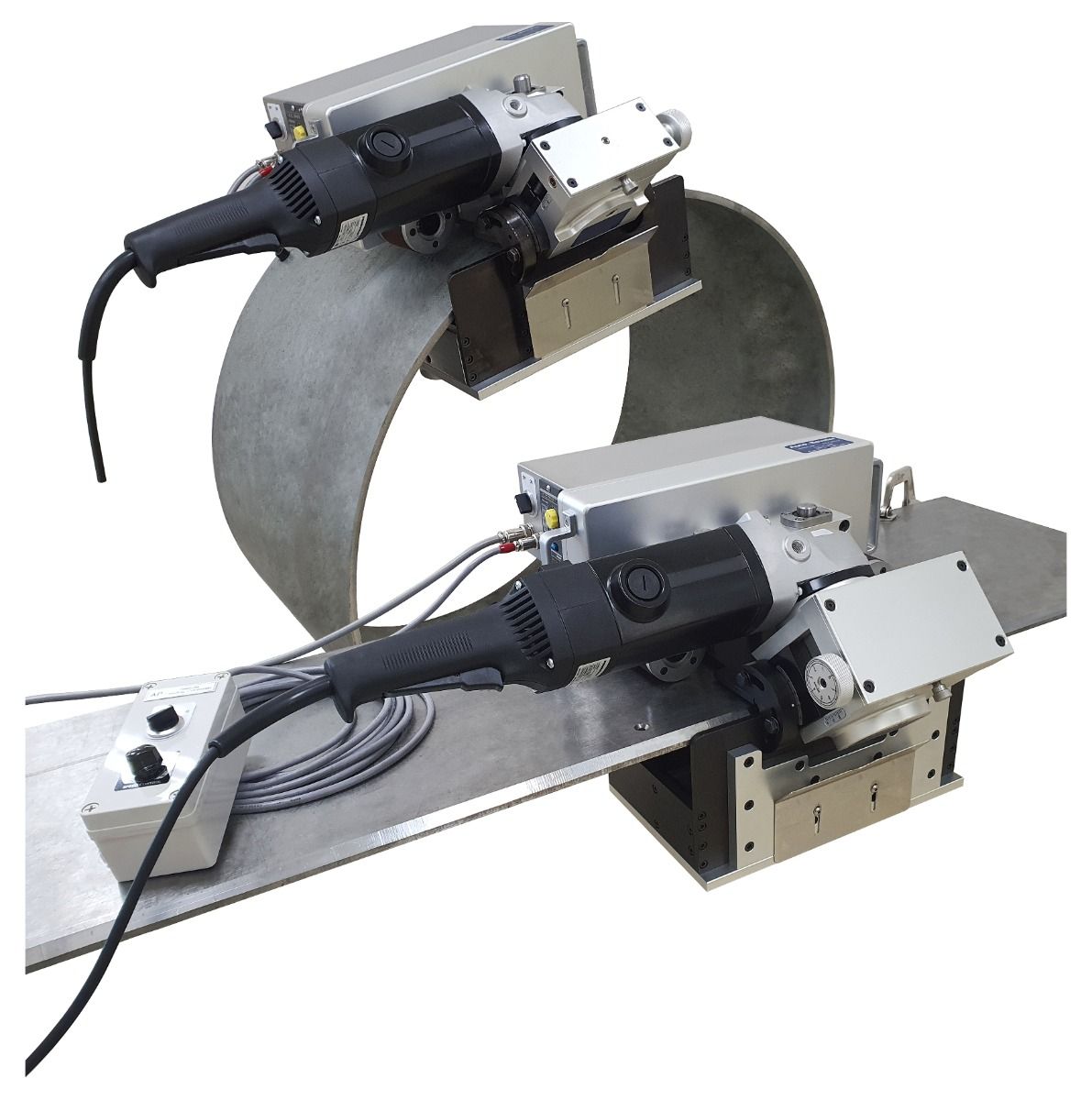

main product photo

AUTOMATIC AP1020-00 & AP1040-00 SPECIFICATIONS


Model AUTOMATIC AP1020-00 & AP1040-00
Maximum Diagonal Width Of Bevelling 21mm / 42mm
Maximum Wall Thickness Of Bevelling (45°) 15mm / 30mm
Work Scope (Diameter) More than 24”~ Plate
Max Bevel Width: AP1020-00 - 21mm AP1040-00 - 42mm

Max Bevel Width: AP1020-00 - 21mm AP1040-00 - 42mm

Bevel Angle: 0° - 45

Bevel Angle: 0° - 45

Pipe Diameter: 610mm (24”) to plate

Pipe Diameter: 610mm (24”) to plate

Max Wall Thickness Bevelling: AP1020-00 - 15mm (45°) AP1040-00 - 30mm (45°)

Max Wall Thickness Bevelling: AP1020-00 - 15mm (45°) AP1040-00 - 30mm (45°)

Pipe OD Bevelling

Pipe OD Bevelling

Facing Off

Facing Off

Applicable Thickness of Work Piece: AP1020-00 - 5-40mm AP1040-00 - 10-65mm (Different as per diameter)

Applicable Thickness of Work Piece: AP1020-00 - 5-40mm AP1040-00 - 10-65mm (Different as per diameter)

Features

Easy & fast set-up (Approx. 3minutes)
Applicable to pipes with various diameters & plates with one machine
Convenient work with a spinning handle
