Pipe Attachment Kits

Formulated to enhance cutter performance and extend tool life.

A handy solution which allows most models of MagBeast® magnetic drilling machines to cut holes in pipe and tube sections.

In stock

Only %1 left

SKU

DRILL-ACC-PAKS

DOWNLOADS:

Product Brochure

Manual

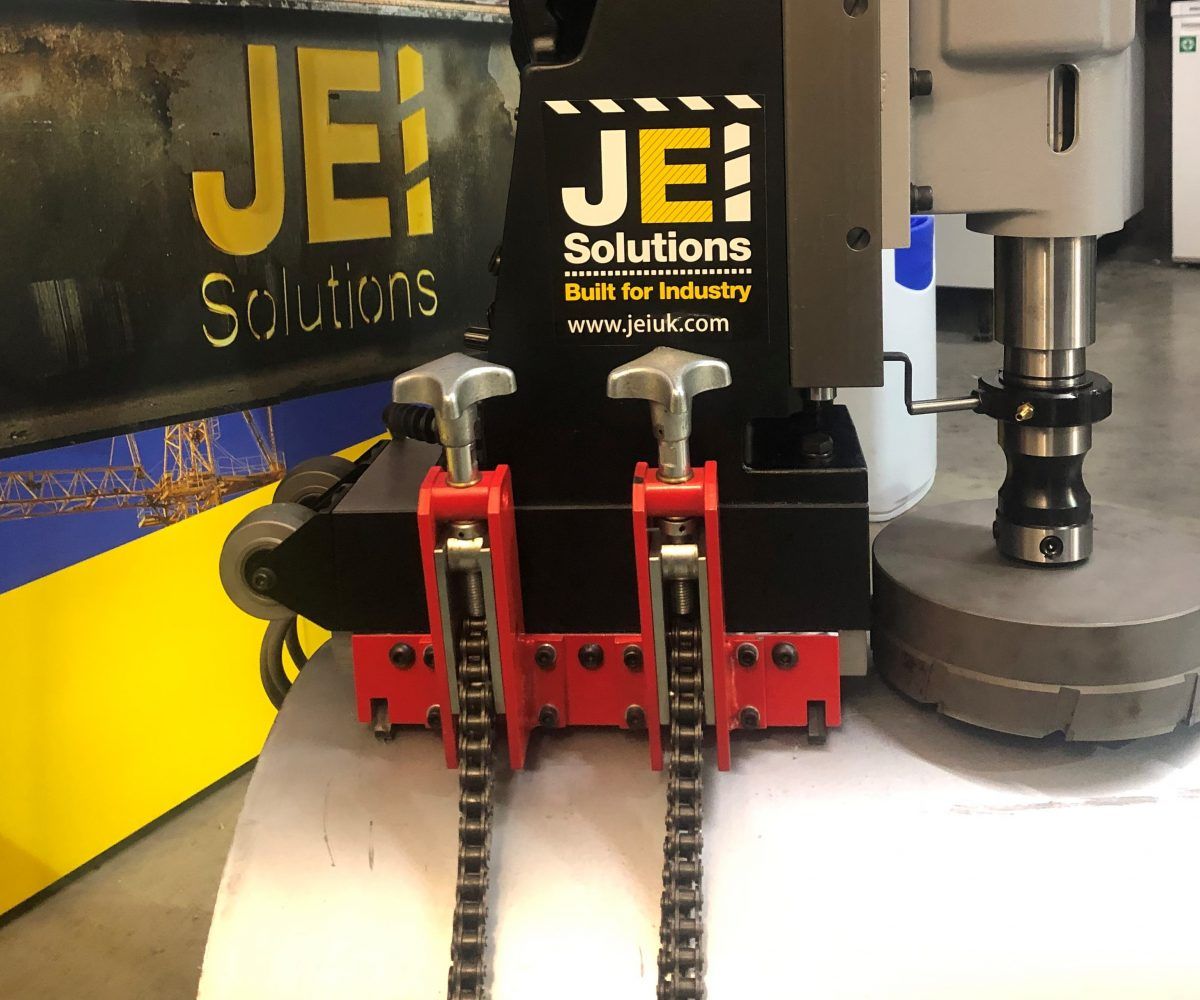

Features a chain clamping system to secure the machine into a safe drilling location. Four versions are available, with a minimum pipe diameter of 80 mm.

SMALL CHAIN BASE

JEICB-S

For use on pipes between 80 mm - 250 mm diameter as standard
Increase maximum diameter by 500 mm with an additional length of chain (part number JEICB-18)
Ideal for use with JEI's MiniBeast™ , Minibeast Auto, Minibeast Cordless, Turbo 35+, PRO52T, Midibeast and PRO72T
Suitable for machines with magnet base dimensions 205 mm x 95 mm

MEDIUM CHAIN BASE

JEICB-M

For use on pipes between 80 mm - 250 mm diameter as standard
Increase maximum diameter by 500 mm with an additional length of chain (part number JEICB-18)
Ideal for use with JEI's MagBeast® HM40EX, HM50, and HM50T
Suitable for machines with magnet base dimensions 205 mm x 95 mm

LARGE CHAIN BASE

JEICB-L

For use on pipes between 150 mm - 500 mm diameter as standard
Increase maximum diameter by 500 mm with two additional lengths of chain (two x part number JEICB-18)
Ideal for use with JEI's MagBeast® PRO122T
Suitable for machines with magnet base dimensions 258 mm x 130 m

EXTRA LARGE CHAIN BASE

JEICB-XL

For use on pipes between 150 mm - 500 mm diameter as standard
Increase maximum diameter by 500 mm with two additional lengths of chain (two x part number JEICB-18)
Ideal for use with JEI's MagBeast® HM100, HM100T and PRO152T
Suitable for machines with magnet base dimensions 258 mm x 130 mm

ULTRA XL PIPE ATTACHMENT - NEW INNOVATION!

Specially designed to adapt the largest of machines in JEI’s range, making it now possible to cut holes up to 200 mm in diameter, or make threads up to M52 in pipes with the MagBeast™ 5MT.

For use on pipes between 150 mm - 500 mm diameter as standard
Increase maximum diameter by 500 mm with two additional lengths of chain (two x part number JEICB-18)
Ideal for use with JEI models; MagBeast™ HM140T, PRO152T and HM200T
Suitable for large magnetic drilling machines with magnet base 150 mm wide
