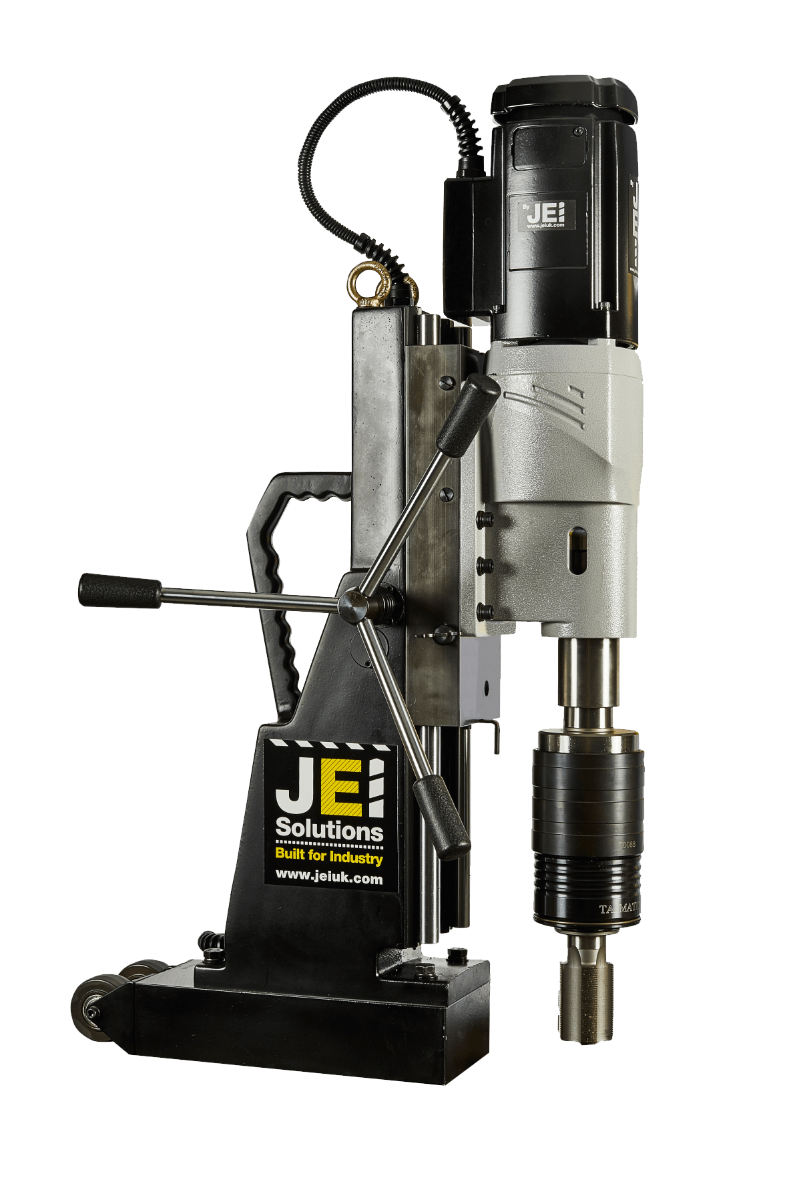

MagBeast® HM200T (MagBeast® 5)

  • 10-200mm Core Drilling
  • Countersink 110mm
  • Twist Drill 50mm
  • 52mm Reaming
  • M52 Tapping Capacity

The world’s largest capacity portable magnetic drilling and tapping machine, designed to solve the most challenging of applications

  • Commanding 2850W, high torque motor. Delivers maximum power to produce up to 200 mm Ø holes.
  • Reversible with multi speeds.
  • Ability to tap holes up to M52.
  • 455mm of drill travel. Can be adapted for many special projects..
  • Optional single phase 110 V or 240 V operation. Can be used on any site environment.
  • Twin slide rails. Ensuring maintenance free operation and minimum hole tolerance.
  • Soft start motor switch.
  • Protects motor and tool during start up operation.
  • Overload and clutch control.
  • Cuts out motor under excessive load, protecting tool, gearbox and motor against incidental damage.
In stock
SKU
DRILL-MAGBEAST-HM200T

DOWNLOADS:

Product Brochure
Manual
Spare Parts

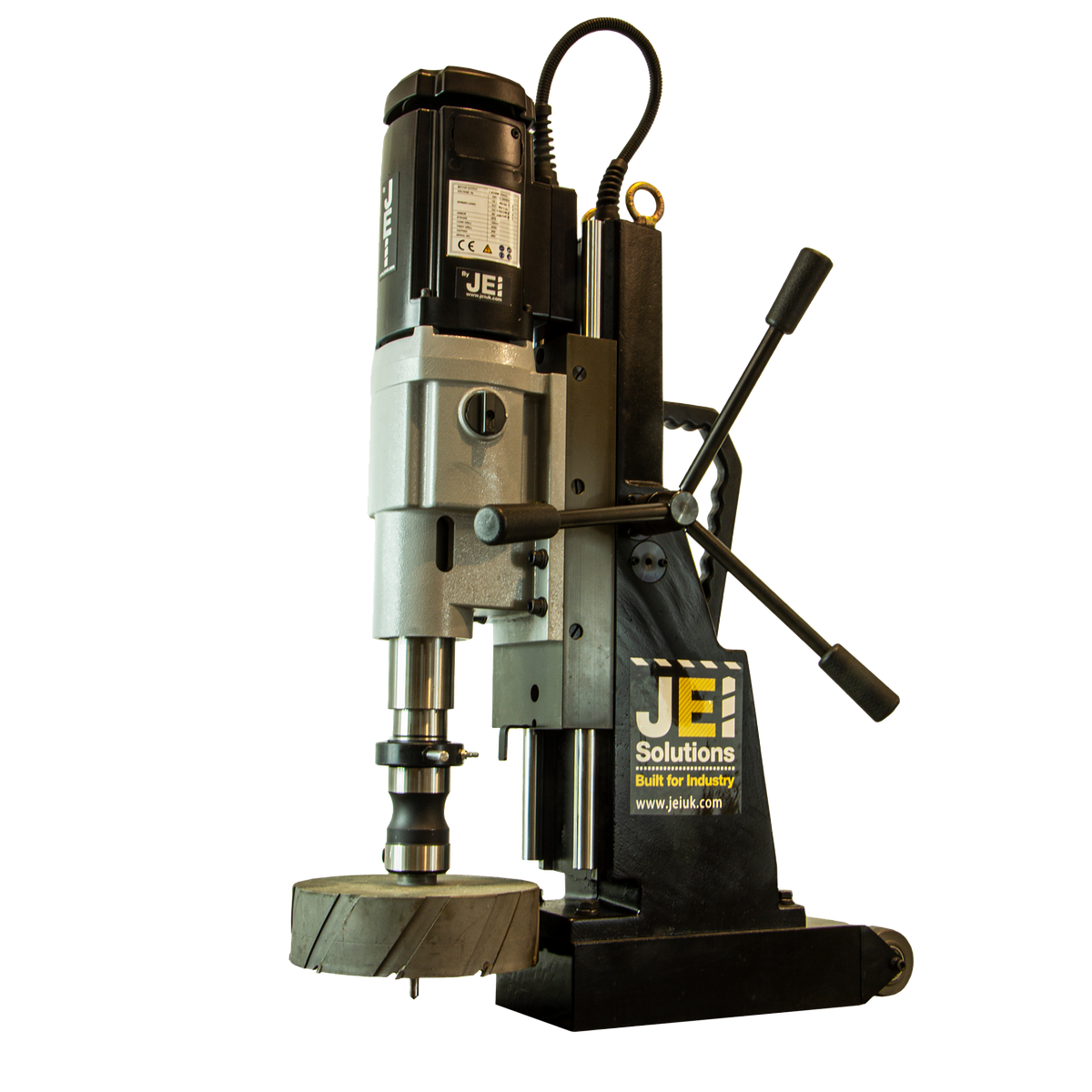

main product photo
Designed to solve the most challenging of applications, the Magbeast HM200T (MagBeast® 5) offers a commanding 2850W, high torque motor that delivers maximum power to produce an incredible 200mm cutting capacity.

Why the MagBeast® HM200T (MagBeast® 5)?

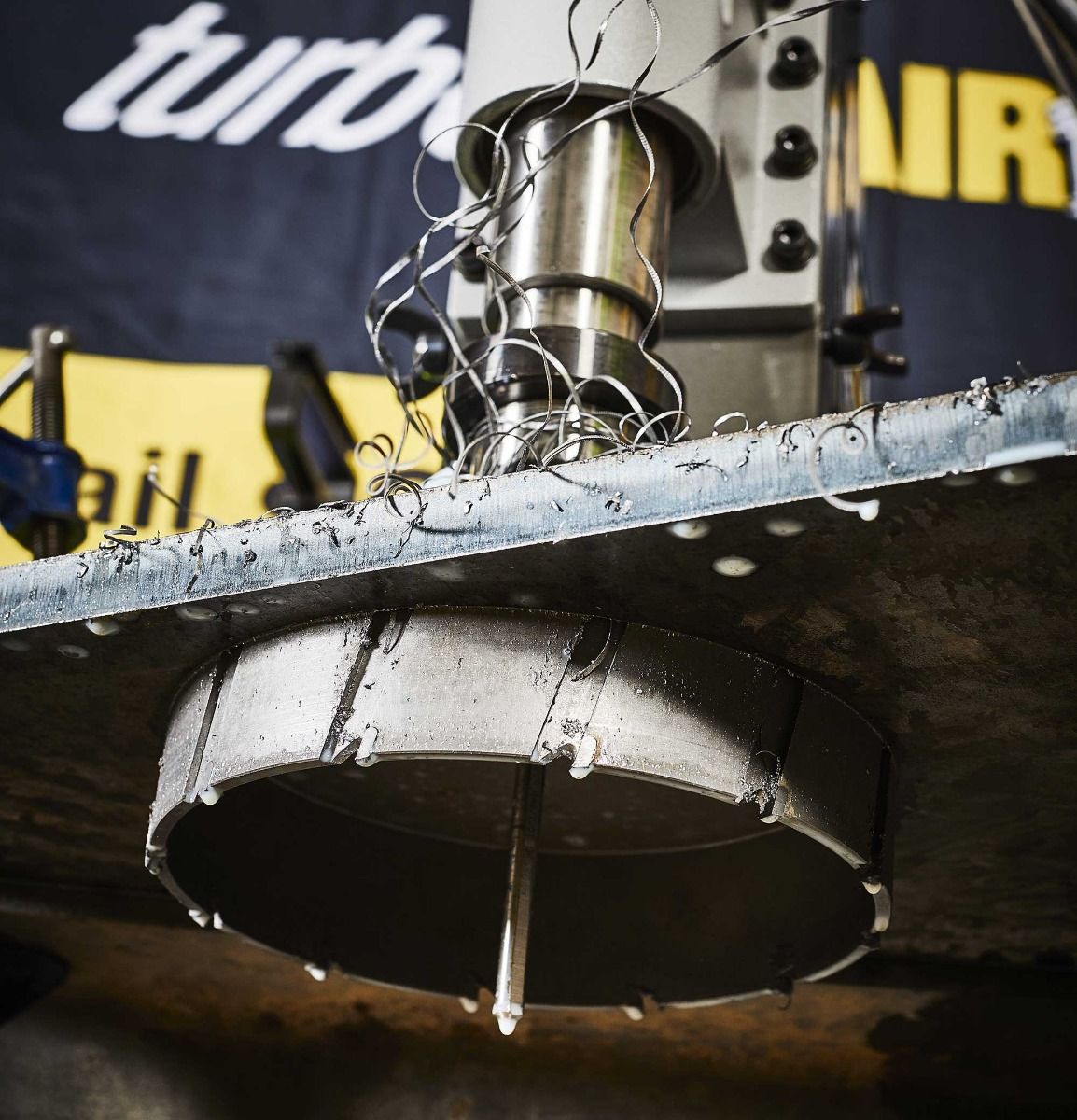

Incredible 200 mm Ø cutting capacity

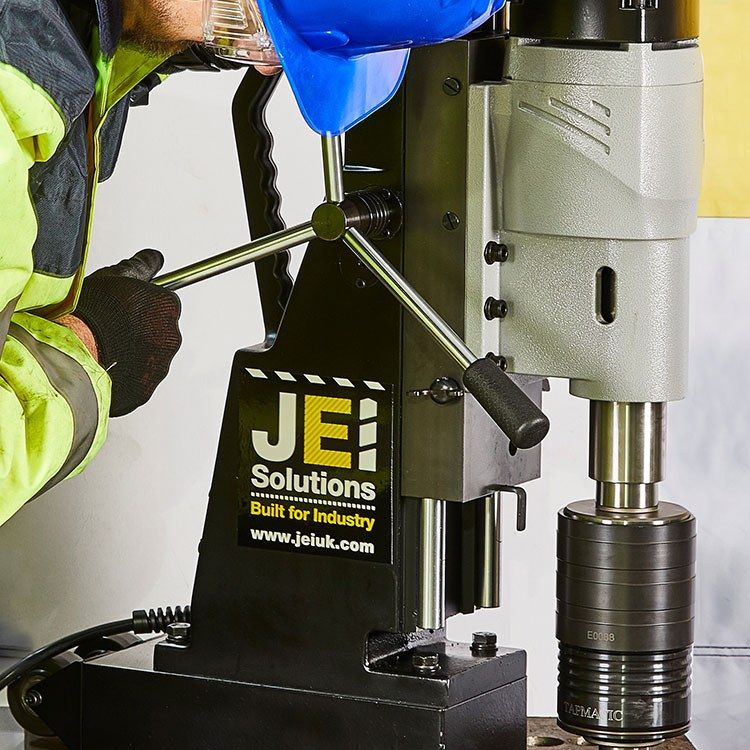

Creates a threaded hole up to M52

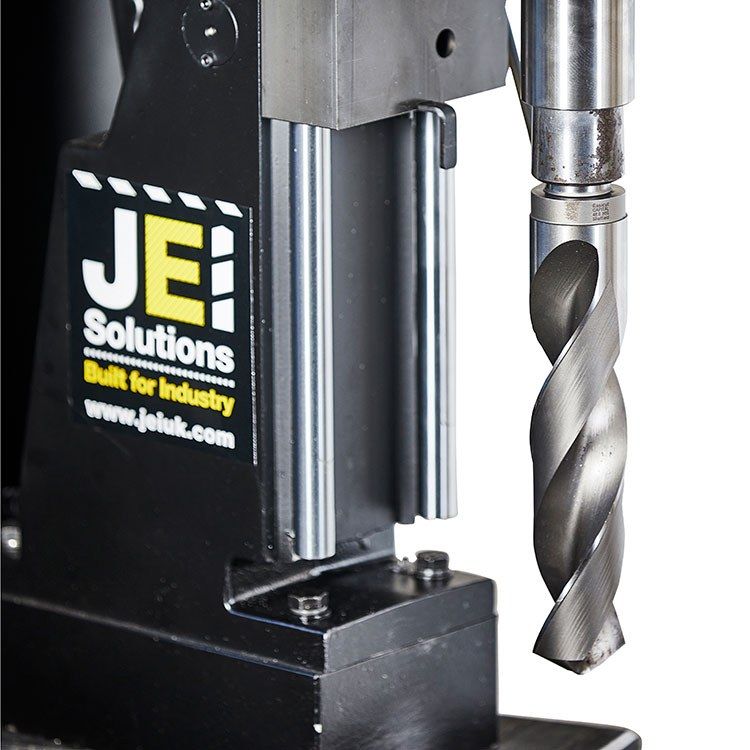

Solid drills up to 52 mm 5MT

Optional Pipe Attachment Kit

MagBeast® HM200T (MagBeast® 5) SPECIFICATIONS

Model Magbeast HM200T (MagBeast® 5MT)
Arbor Bore 1-1/4”
Countersink Capacity 110 mm Ø
Cutter Capacity 200 mm Ø
Magnetic Base Dimensions 295 x 140 x 70 mm
Magnet Deadlift 2300 kg on 1” Plate (26,800 N)
No of Geared Speeds 4 Multi Speed
Twist Drill Capacity 52 mm Ø
Tapping Capacity M52
Reaming Capacity 52mm
Motor 2850 W
Spindle MT5
Height Min/Max 730 / 955 mm
Length / Width 455 x 280 mm
RPM 40/60 90/130 170/240 380/545 RPM
Noise Level < 90dB
Vibration Level < 2.5 m/s2
Voltage / Part No. 110 V – DRILL-HM200T/1 ~ 240 V – DRILL-HM200T/2
Shipping Weight (Incl. 4.0Ah Battery) 70 kg
Shipping Dimensions 790 x 490 x 240 mm
Weight with 4.0Ah Battery 52kg

Optional Accessory - Ultra XL Pipe Attachment Kit for use with the Magbeast HM200T (MagBeast™ 5)

NEW INNOVATION! Specially designed to adapt the largest of machines in JEI’s range, making it now possible to cut holes up to 200 mm diameter, or make threads up to M52 in pipes with the Magbeast HM200T (MagBeast™ 5MT).

  • For use on pipes between 150 mm - 500 mm diameter as standard.
  • Increase maximum diameter by 500 mm with two additional lengths of chain (two x part number JEICB-18).
  • Ideal for use with JEI models; PRO122T, HM140T, PRO152T & HM200T (MB5).
  • Suitable for large magnetic drilling machines with magnet base 150 mm Wide.
Optional Accessory - Ultra XL Pipe Attachment Kit for use with the Magbeast HM200T
