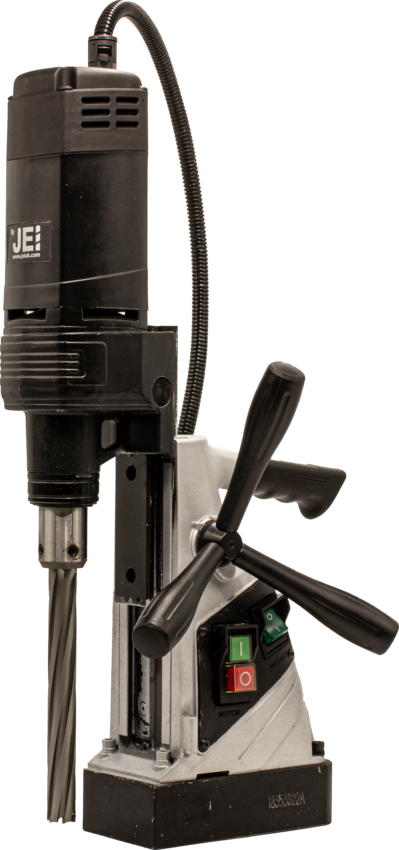

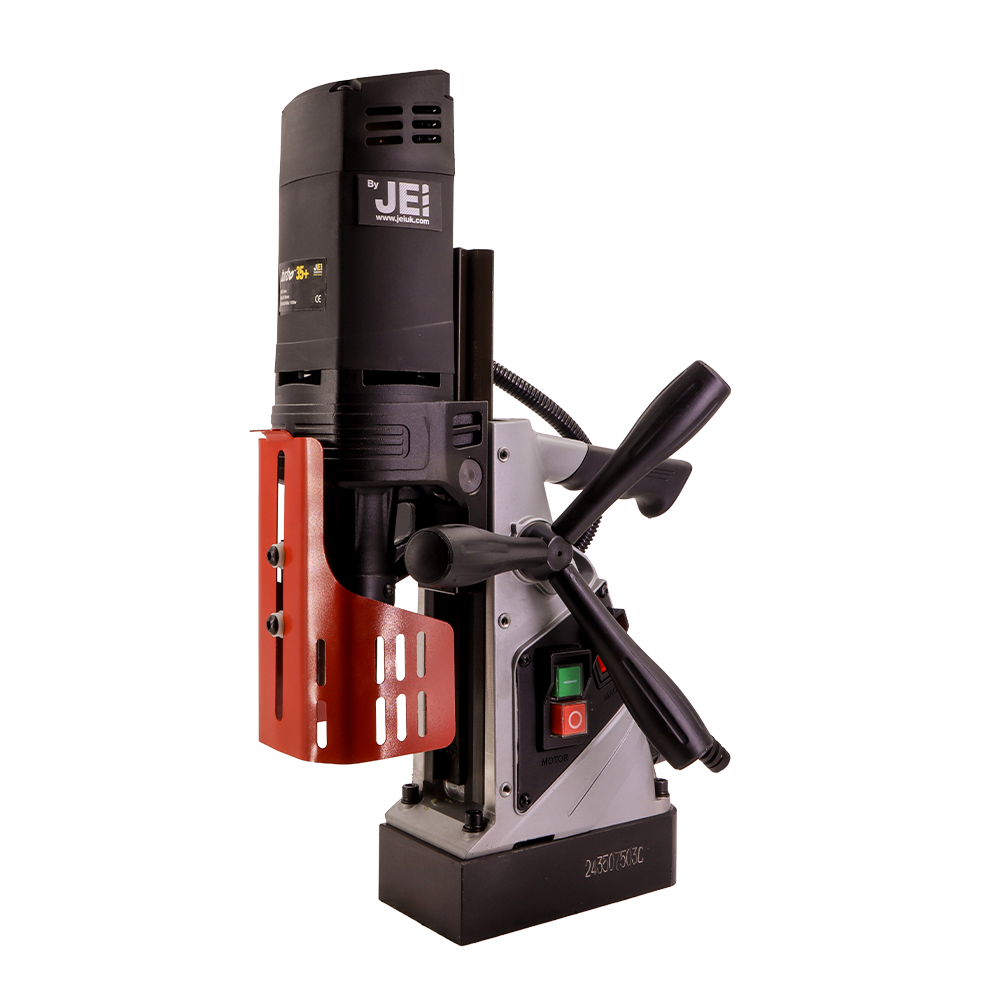

Turbo™ 35+

A new economical, lightweight Magnetic Drilling Solution from JEI

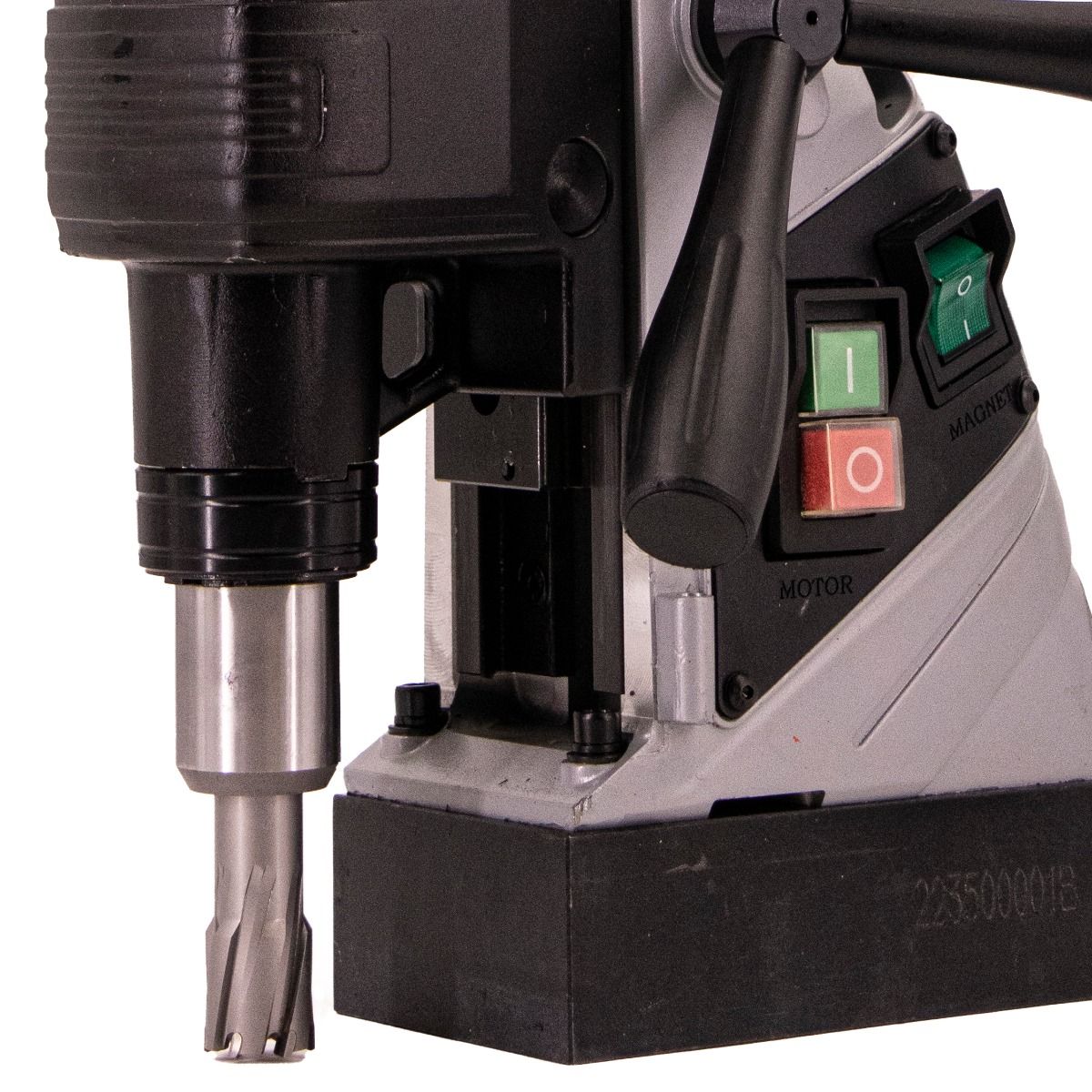

Designed for accurate. practical hole making with both TCT and HSS Cutters

Fully adjustable motor slide for added versatility of use.

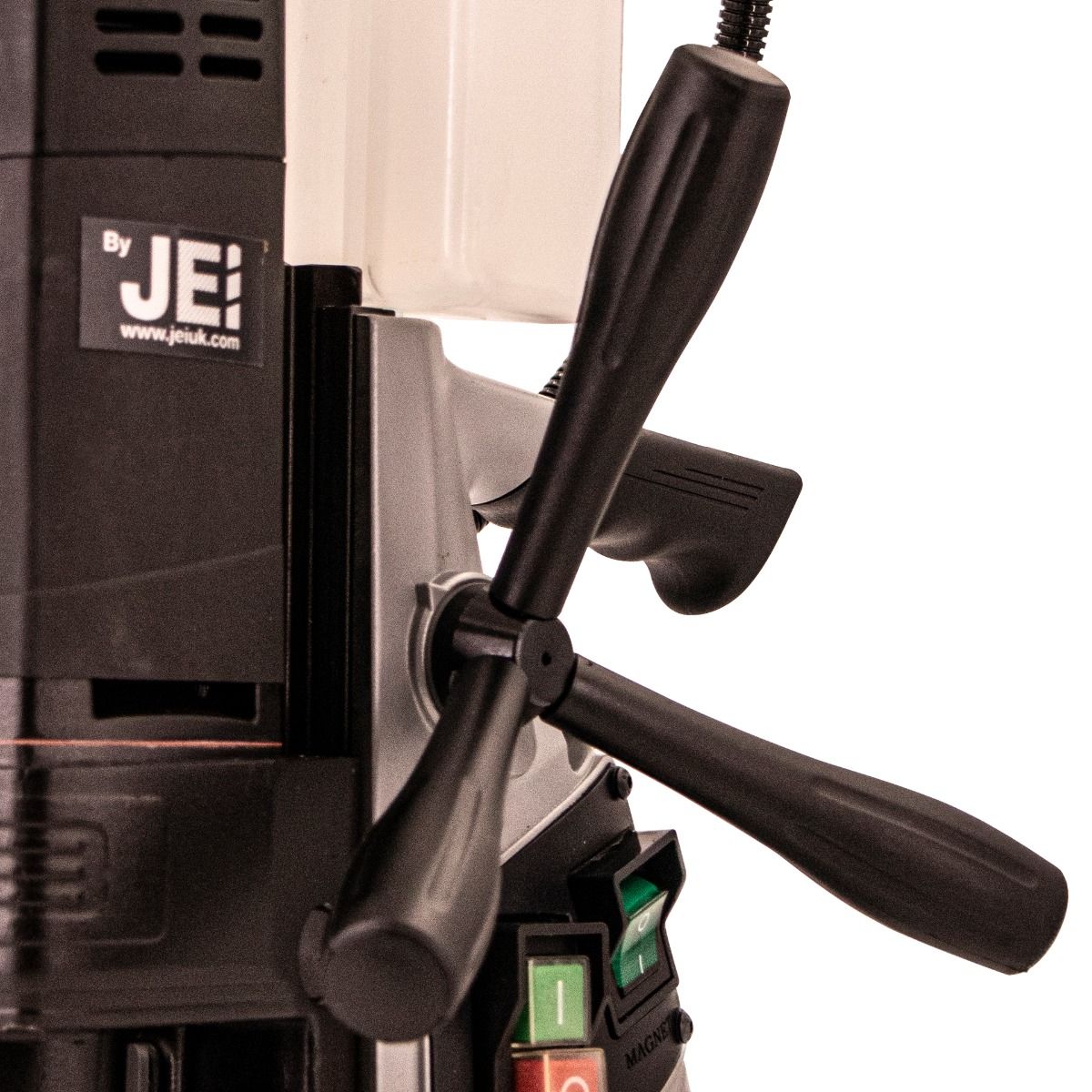

Modern moulded shape with easy access open handle.
1100 Watt Powerful Motor.
Large Capacity Coolant tank.
Maximum stroke of 210mm allowing for drilling depths of up to 150mm.
Can be used with 13mm chuck and adaptor set (JEICA-13MM/19).
Supplied in hardened carry case.

In stock

SKU

DRILL-TUR35+

DOWNLOADS:

Product Brochure

Sleek, lightweight and versatile, the Turbo™ 35+ provides a practical hole making solution, with its added benefit of an adjustable motor, providing a longer cutting reach than other machines in its size range.

Why the Turbo™ 35+?

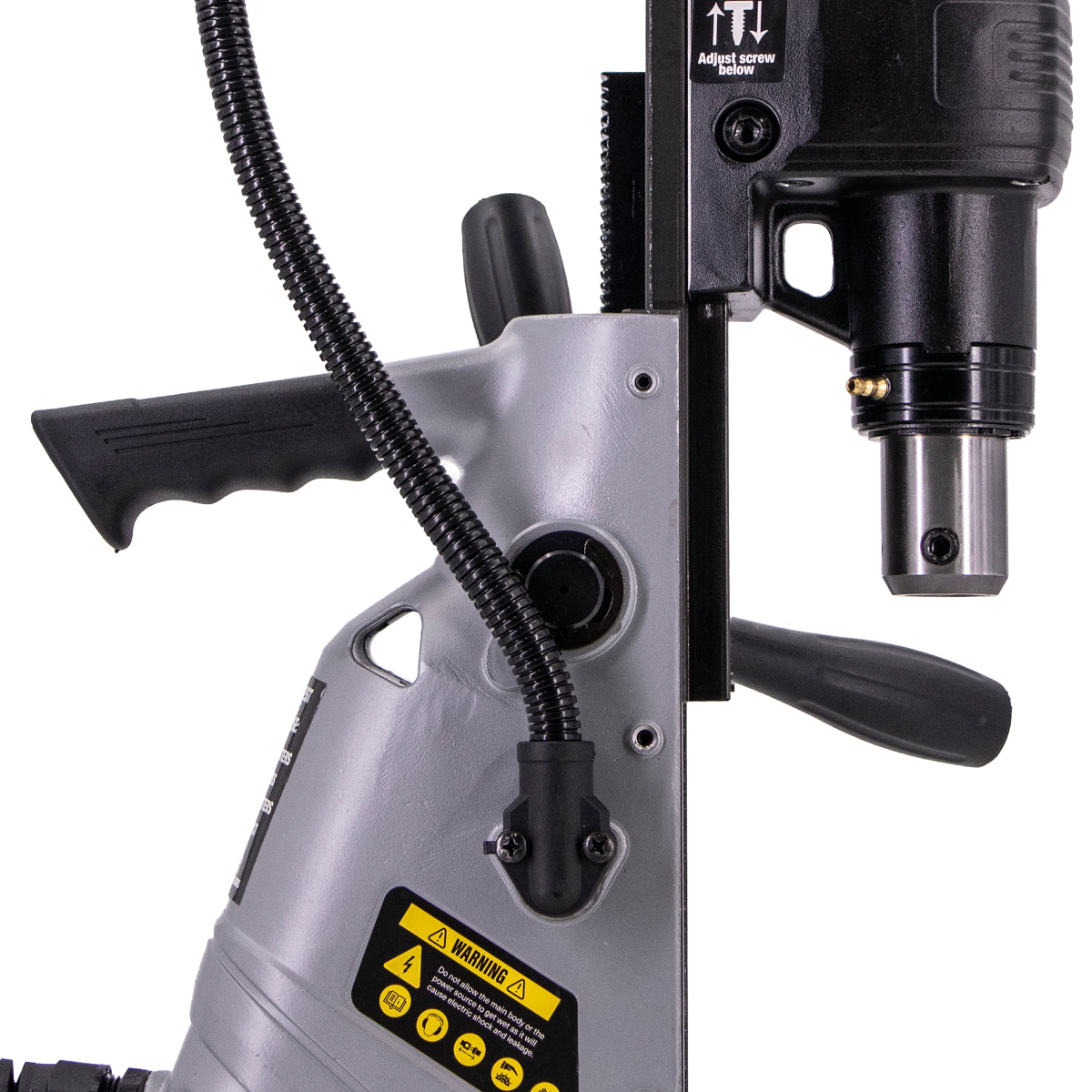

Maximum stroke 210mm

Ability to set cutting depth

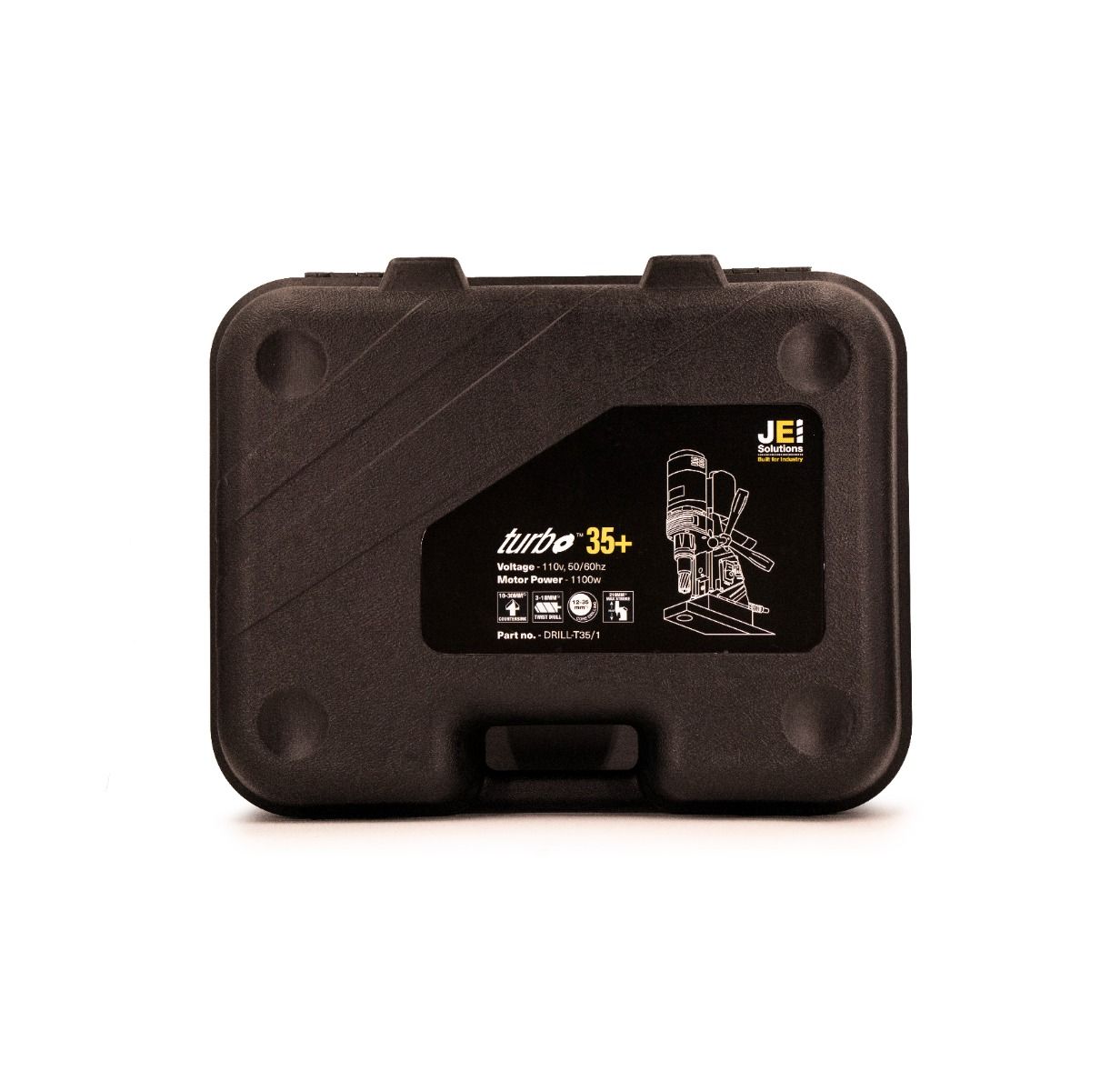

Hardened carrying case

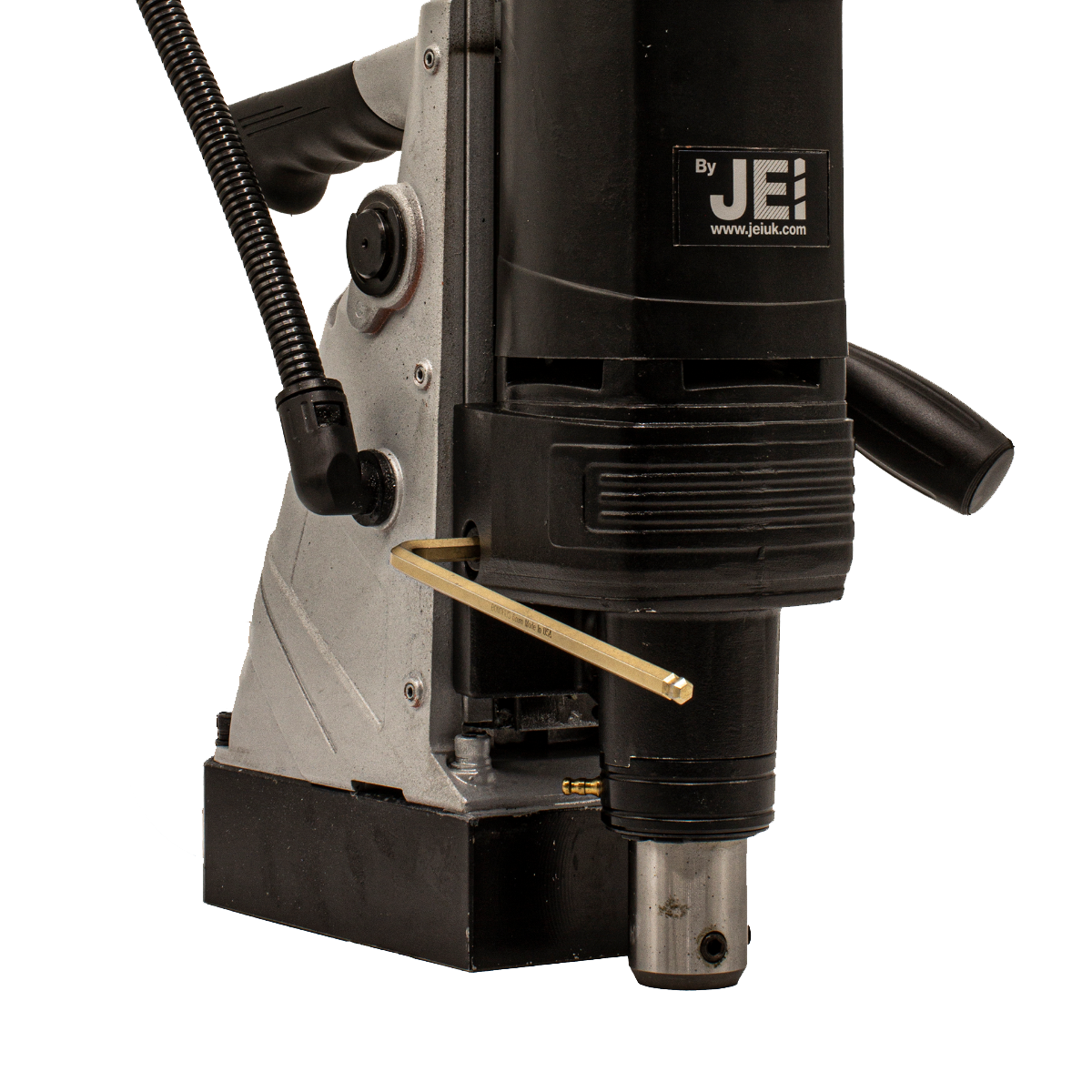

Longer Cutting Depth

Modern moulded shape with easy access open handle

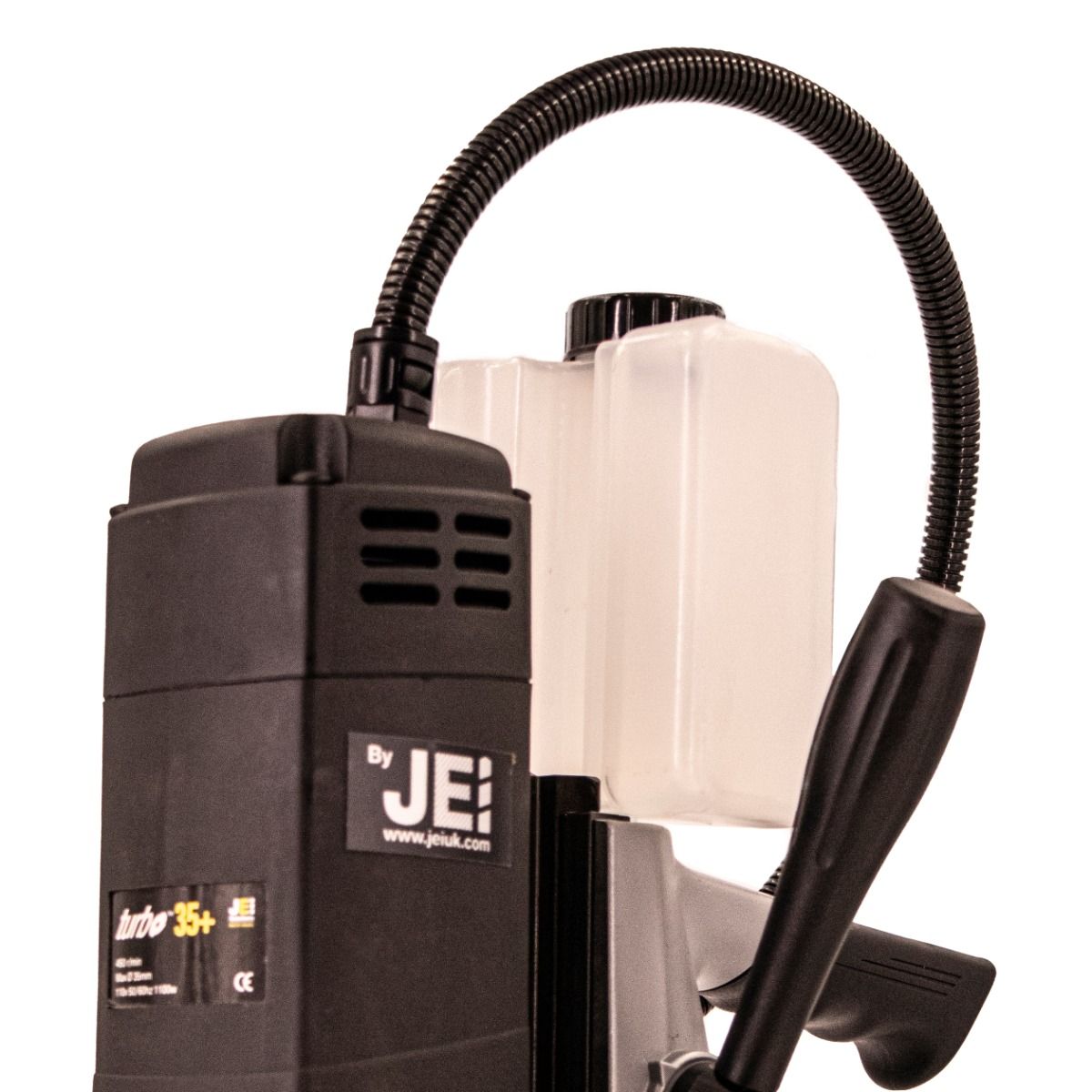

Coolant bottle easily fits to rear of machine, and connects to external coolant ring for internal cooling of cutting tool

Turbo™ 35+ SPECIFICATIONS

Model	Turbo™ 35+
Countersink Capacity	30mm
Cutter Capacity	35mm Ø x 150mm depth of cut
Magnetic Base Dimensions	168 mm x 80 mm
Magnet Deadlift	1000 kg on 1" Plate (9600 N)
No of Geared Speeds	1 Fixed Speed
Twist Drill Capacity	13mm (with chuck)
Tapping Capacity	N/A
Reaming Capacity	N/A
Motor	1100 watts
Spindle	19mm
Height Min/Max	375/ 580 mm (including cable/gland)
Length / Width	275 mm/181 mm Including Handles
RPM	No load 720 RPM, loaded 450 RPM
Noise Level	< 90dB
Vibration Level	< 2.5 m/s2
Voltage / Part No.	110 V - DRILL-T35/1 / 240 V - DRILL-T35/2
Shipping Weight (Incl. 4.0Ah Battery)	15.8kg
Shipping Dimensions	55 x 45 x 22 cm
Weight with 4.0Ah Battery	10.5kg

The perfect Turbo™ 35+ starter kits.

Turbo™ 35+ HSS Package Kit Includes the Turbo™ 35+ Drill (110v or 240v) and a 3 Piece Turbo™ Steel M2AL (HSS) Starter Kit.

DRILL-T35-CSET/1 (110v)
DRILL-T35-CSET/2 (220v)

Turbo™ 35+ TCT Package Kit Includes the Turbo™ 35+ Drill (110v or 240v) and a 3 Piece Turbo™ Tough TCT Starter Kit.

DRILL-T35-TCSET/1 (110v)
DRILL-T35-TCSET/2 (220v)

Fully adjustable motor slide for added versatility

The All-New Turbo™ 35+ comes with a fully adjustable motor slide allowing multiple drilling depths from 35mm to 150mm. It also suits a 13mm chuck and a twist drill, order your new Turbo™ 35+ online today!
