ABM-28 AUTOMATIC PLATE EDGE BEVELLING MACHINE

A New Generation Autofeed Machine

With the ability to bevel steel on top, front and bottom edges, the ABM28 can run without the assistance of an operator with precision.

Continuous adjustment bevel angles between 60° and -60°, eliminates the need to turn the plate over. J-groove bevelling option available.

Want to make sure the 'ABM-28 Plate and Pipe Beveller' is right for you? Speak to our specialist solutions team today.

In stock

SKU

SB-PBEV-ABM-28

DOWNLOADS:

Product Brochure

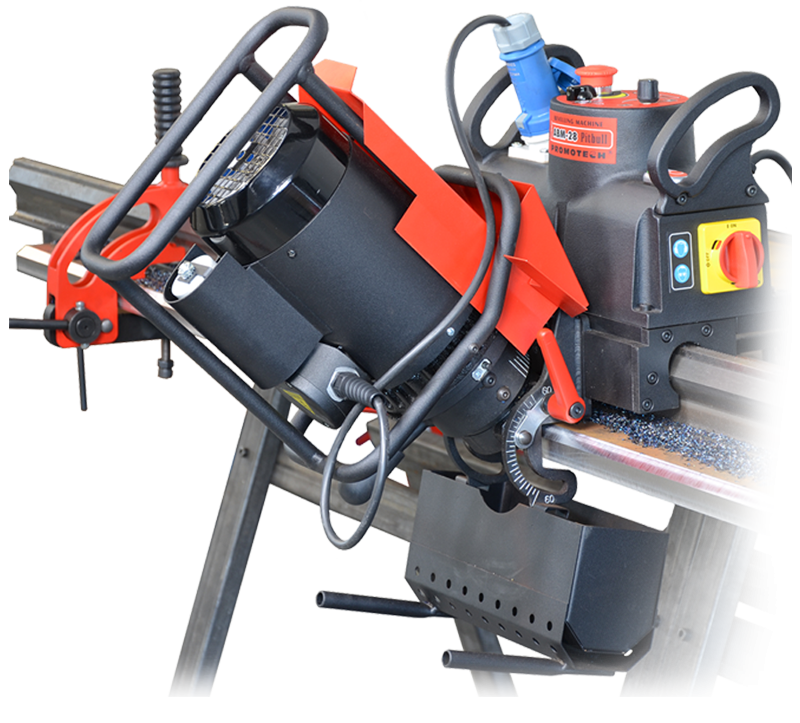

main product photo

Why the ABM-28 AUTOMATIC PLATE EDGE BEVELLING MACHINE?

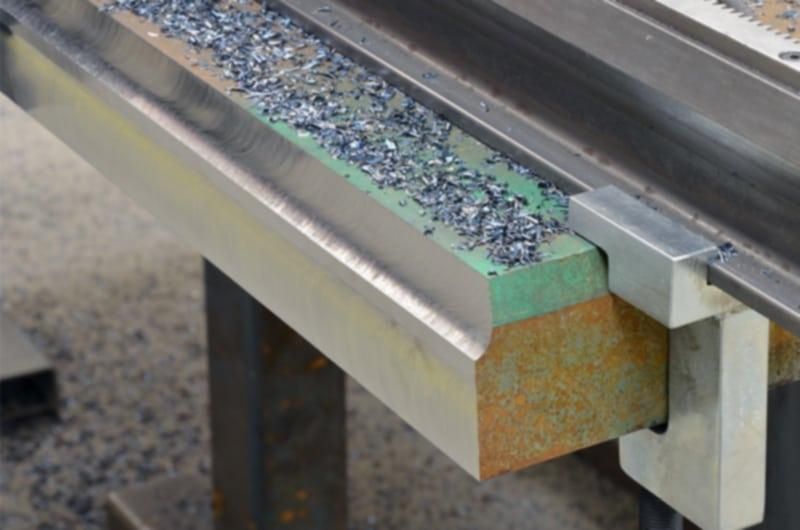

J-groove Bevelling

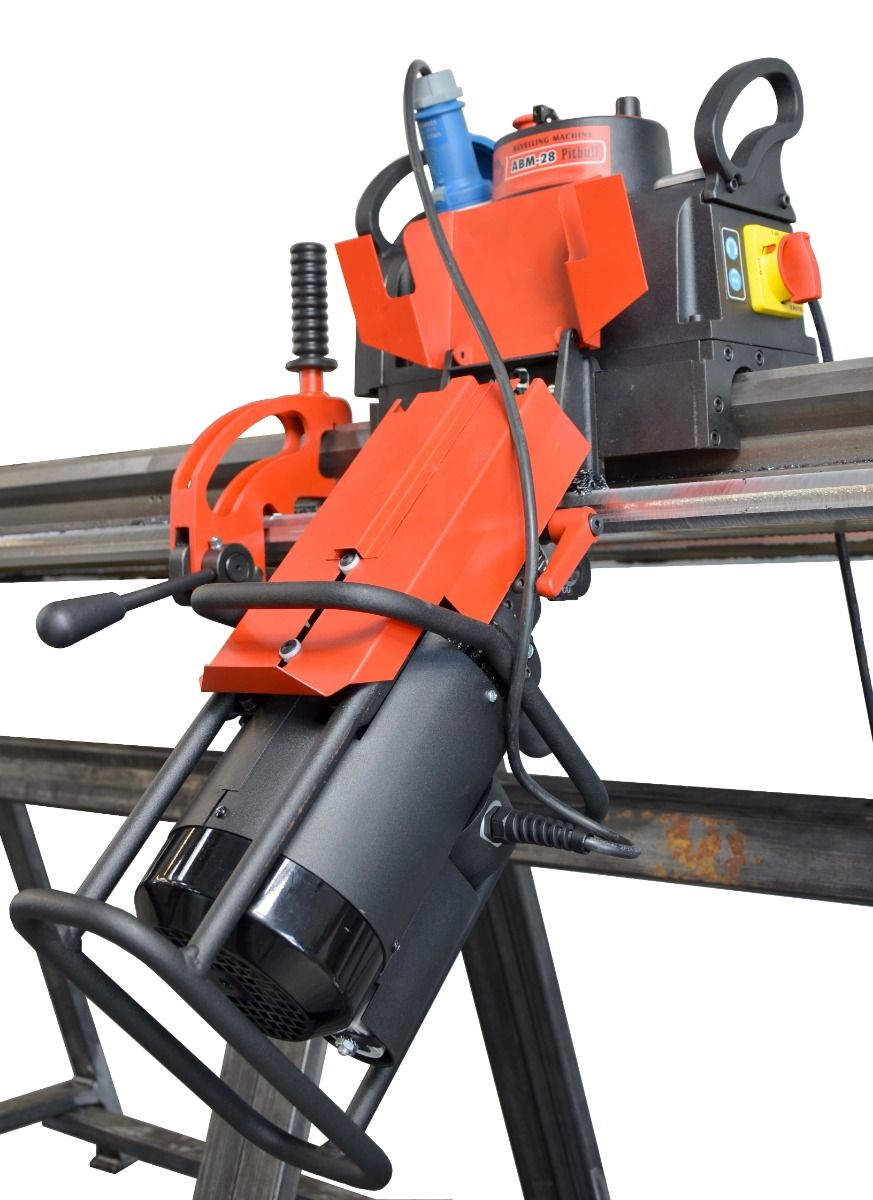

Bottom bevelling

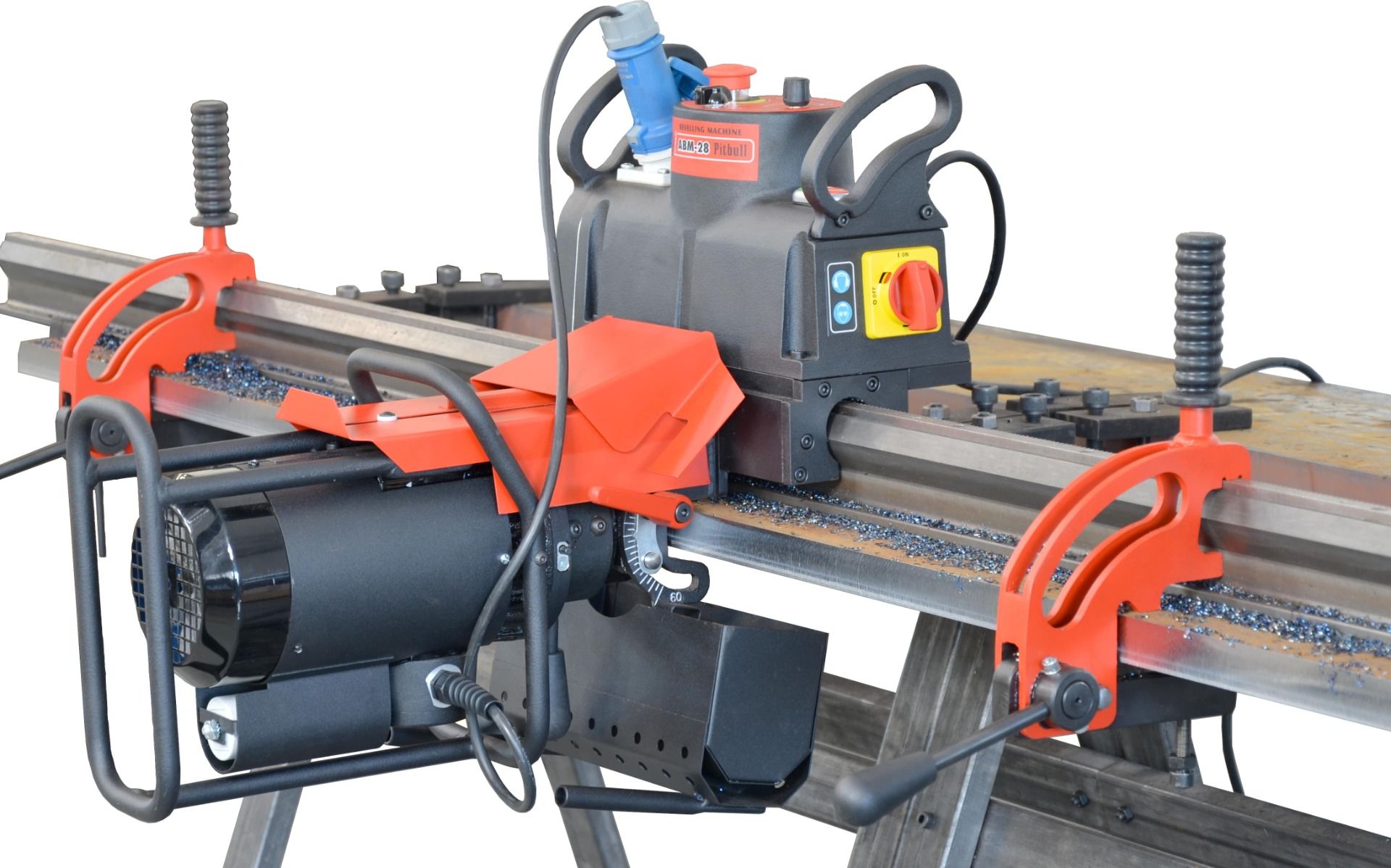

Facing off

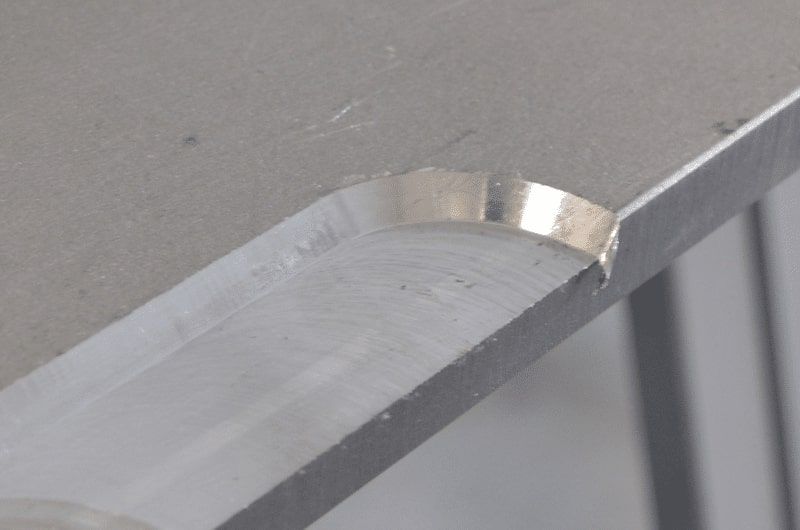

Clad Removal

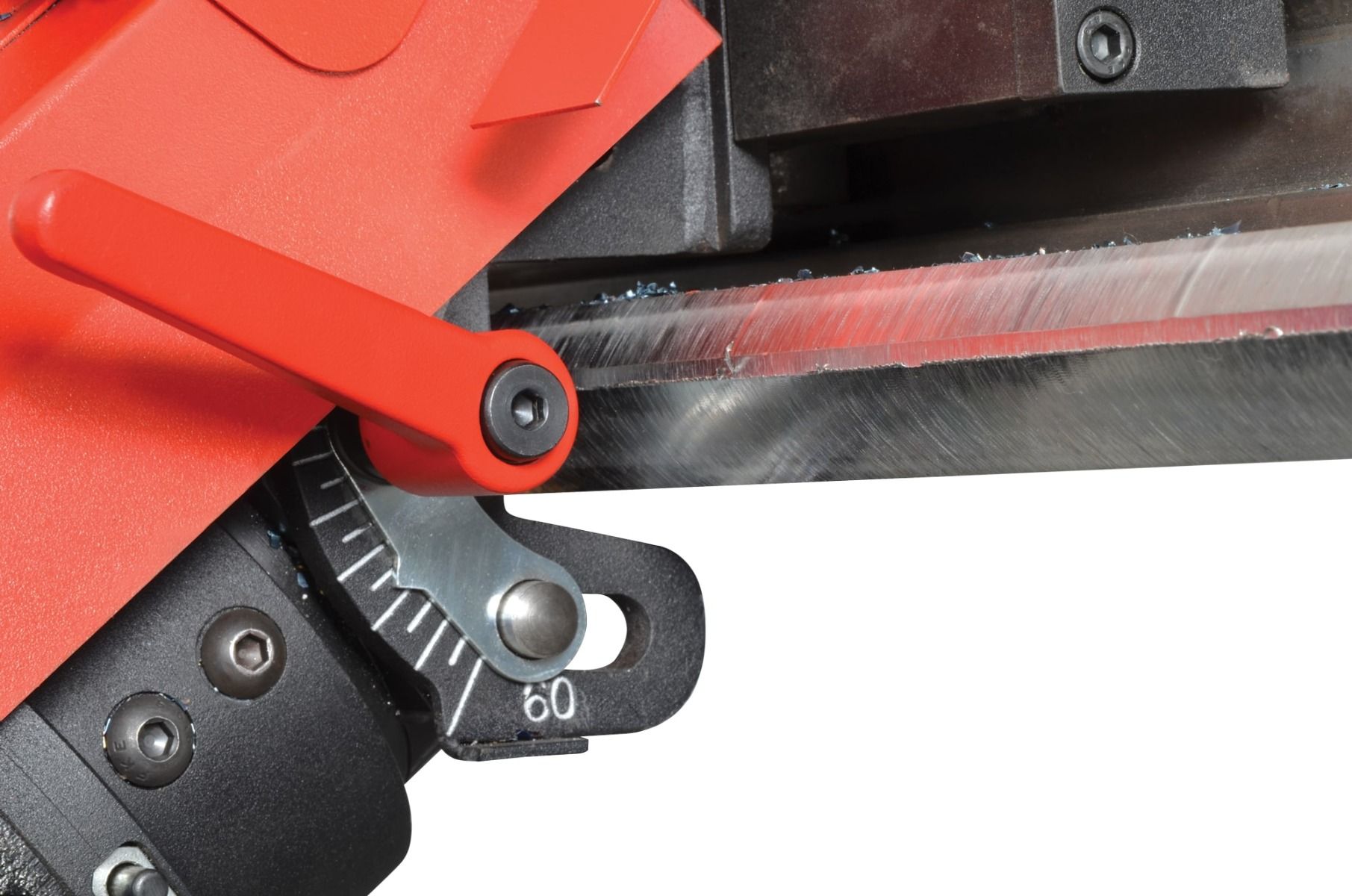

Continuous bevel angle adjustment

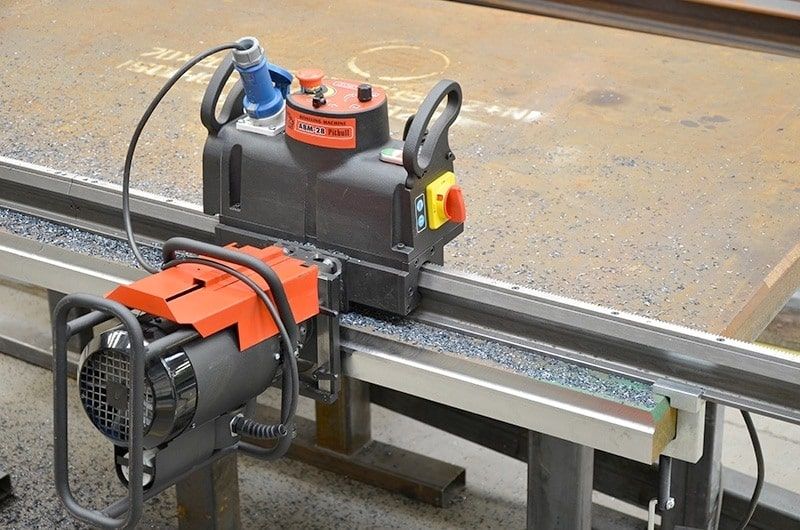

Bevelling thick plates

Top Bevelling

Top bevelling

Facing off

Bottom bevel

Bottom bevelling

J-groove bevelling

Bevel angle from 60 to -60° Bevelling in both travel directions

Bevel angle from 60 to -60° Bevelling in both travel directions

Bevel width up to 35mm

Bevel width up to 35mm

Bevel angles

Plate thickness up to 35mm 36-70mm (option)

Accessories

Bevelling head (7 inserts required)

Bevelling head (7 inserts required)

J-groove R8 bevelling head (5 inserts R8 required)

J-groove R8 bevelling head (5 inserts R8 required)

J-groove R6 bevelling head (6 inserts R6 required)

J-groove R6 bevelling head (6 inserts R6 required)

Cutting insert for J-groove R8 end preparation

Cutting insert for J-groove R8 end preparation

Cutting Insert (1 piece), sold 10pcs/box

Cutting Insert (1 piece), sold 10pcs/box

Cutting insert for J-groove R6 end preparation

Cutting insert for J-groove R6 end preparation

Track clamp for 10-35mm thick plates

Track clamp for 10-35mm thick plates

Guide track L=1200mm (47.25”)

Guide track L=1200mm (47.25”)

Track clamp for 36-70 mm thick plates

Track clamp for 36-70 mm thick plates

Clamp for 10-35 mm thick plates

Clamp for 10-35 mm thick plates

Clamp for 36-70 mm thick plates

Clamp for 36-70 mm thick plates

Bevelling unit support for beveling 10-35mm thick plates from -60° to 60°

Bevelling unit support for beveling 10-35mm thick plates from -60° to 60°

Bevelling unit support for beveling 36-70 mm thick plates at 0° to 60° (incl. facing)

Bevelling unit support for beveling 36-70 mm thick plates at 0° to 60° (incl. facing)

Bevelling unit support for beveling 36-70 mm thick plates at 0° to -60°

Bevelling unit support for beveling 36-70 mm thick plates at 0° to -60°

Angle attachment with height adjustment

Angle attachment with height adjustment

Download the ABM-28 specifications

DOWNLOAD BROCHURE DOWNLOAD MANUAL

Watch our video of the ABM-28 Plate and Pipe Beveller
