RailBeast Cordless RDC-36

Compact, portable, and built for demanding trackside environments, the Rail Beast is the professional choice for rail drilling applications.

  • Fast positioning, quick clamp and instant unlocking mechanisms make it a safety conscious, user-friendly device.
  • Supplied with a positioning (locating) plate to ensure accurate drilling.
  • Rail templates (formers) available which are suitable for any rail profile.
Out of stock
SKU
DRILL-RDC36

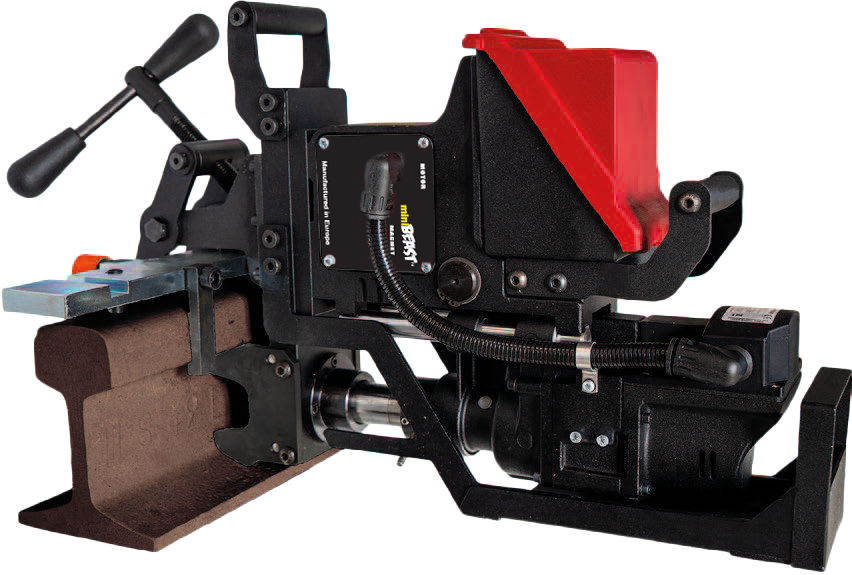

main product photo
Designed for modern rail maintenance and infrastructure projects, the JEI RailBeast delivers powerful drilling performance with the freedom of cordless operation.

RailBeast Cordless RDC-36 SPECIFICATIONS


Model RDC-36, RAIL CORDLESS DRILLING MACHINE
Weight 14.5 kg
Cutter Capacity 36 mm Ø
Twist Drill Capacity 16 mm
Arbor Bore 19 mm Weldon shank
Motor 1000 W
RPM 350 RPM
Height Min/Max 361 mm
Length / Width 558 x 213 mm
Power Supply Battery
Max Drilling Depth 30 mm
Max Stroke 40 mm
Rail Templates Available UIC54, UIC60, P50, P65, S49 (specials on request)
Rail Hole Positioners Available UIC54, UIC60, P50, P65, S49 (specials on request)
Voltage / Part No. 18 V Part No’ DRILL-RDC-36
