Turbo™ Hex Bridge Reamers

Designed for when the bolt won’t fit the hole. Designed with a hexagon head, ready to fit hex socket for use with an impact wrench.

JEI present an ideal solution for the steel erector to enlarge and align pre-drilled holes in structural steel.

  • Steel FabricationSteel Fabrication
  • BridgeworkBridgework
In stock
Only %1 left
SKU
CUTT-FAB-THBR

DOWNLOADS:

Product Brochure
14 - 39mm ⌀
Size Range
14 - 39mm ⌀
900n/mm2
Max. Tensile Strength
900n/mm2
Steel construction, Bridgework
Perfect For
Steel construction, Bridgework
Hexagon
Shank Size
Hexagon

Why the Turbo™ Hex Bridge Reamers Cutters?

Can be mounted to an impact wrench with either ½” or ¾” drive using JEI’s hex socket adaptors. Ideal for portable use in a vertical or inverted position, to retain the reamer in the machine drive.

Turbo™ Hex Bridge Reamers SPECIFICATIONS

Model Turbo™ Hex Bridge Reamers
Hole Enlarging Depth 520mm - 63mm
Start Diameter 7mm - 22.5mm
Hex Size 24mm - 51mm
Overall Length 140mm - 200mm

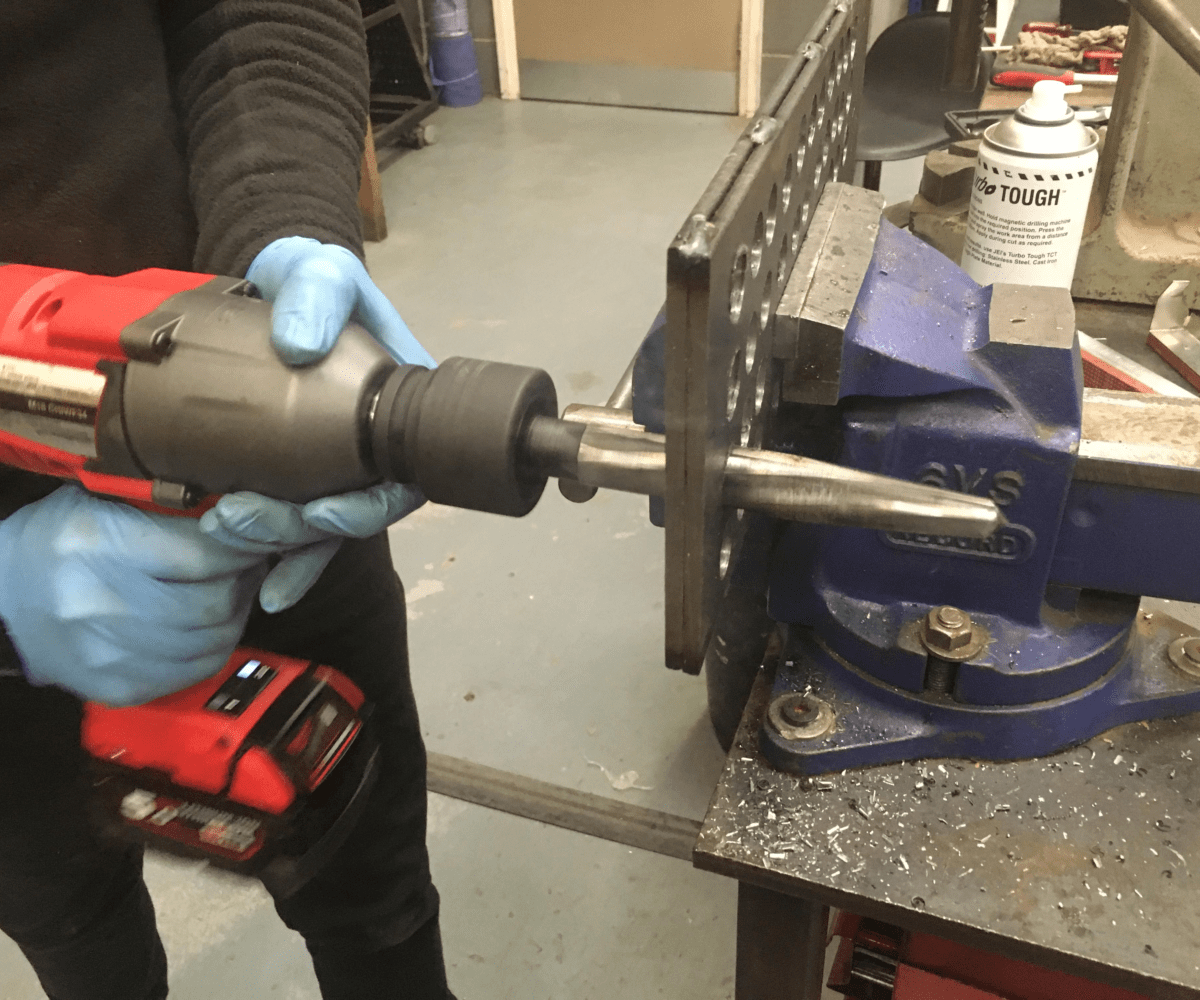

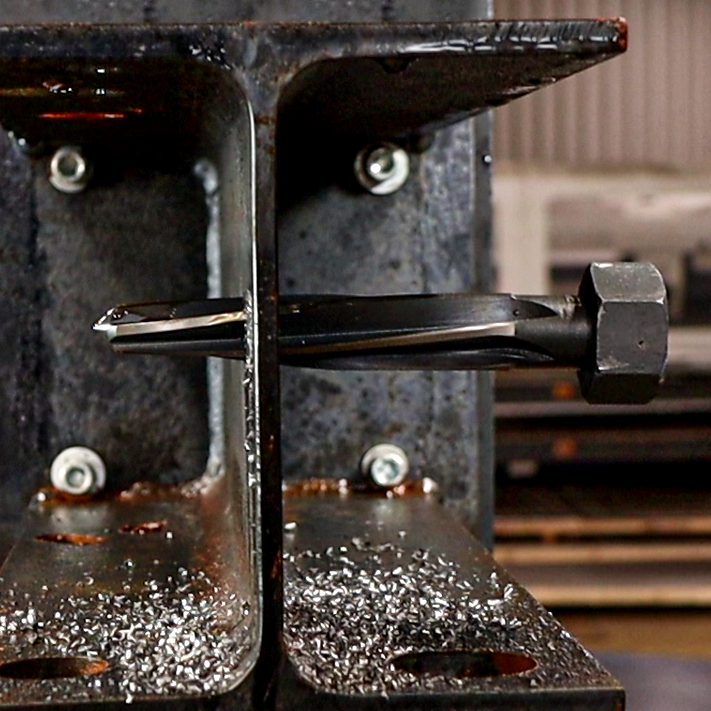

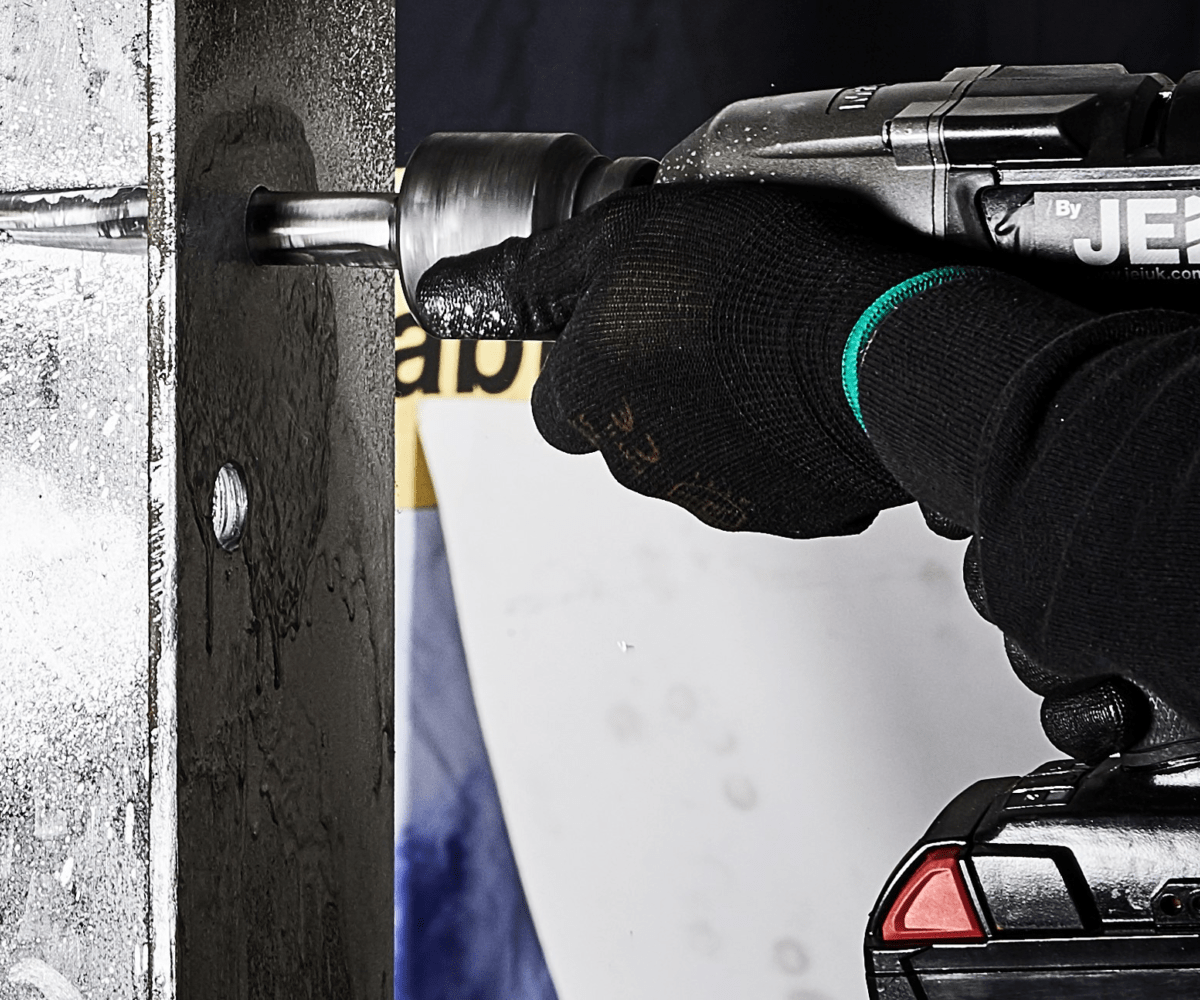

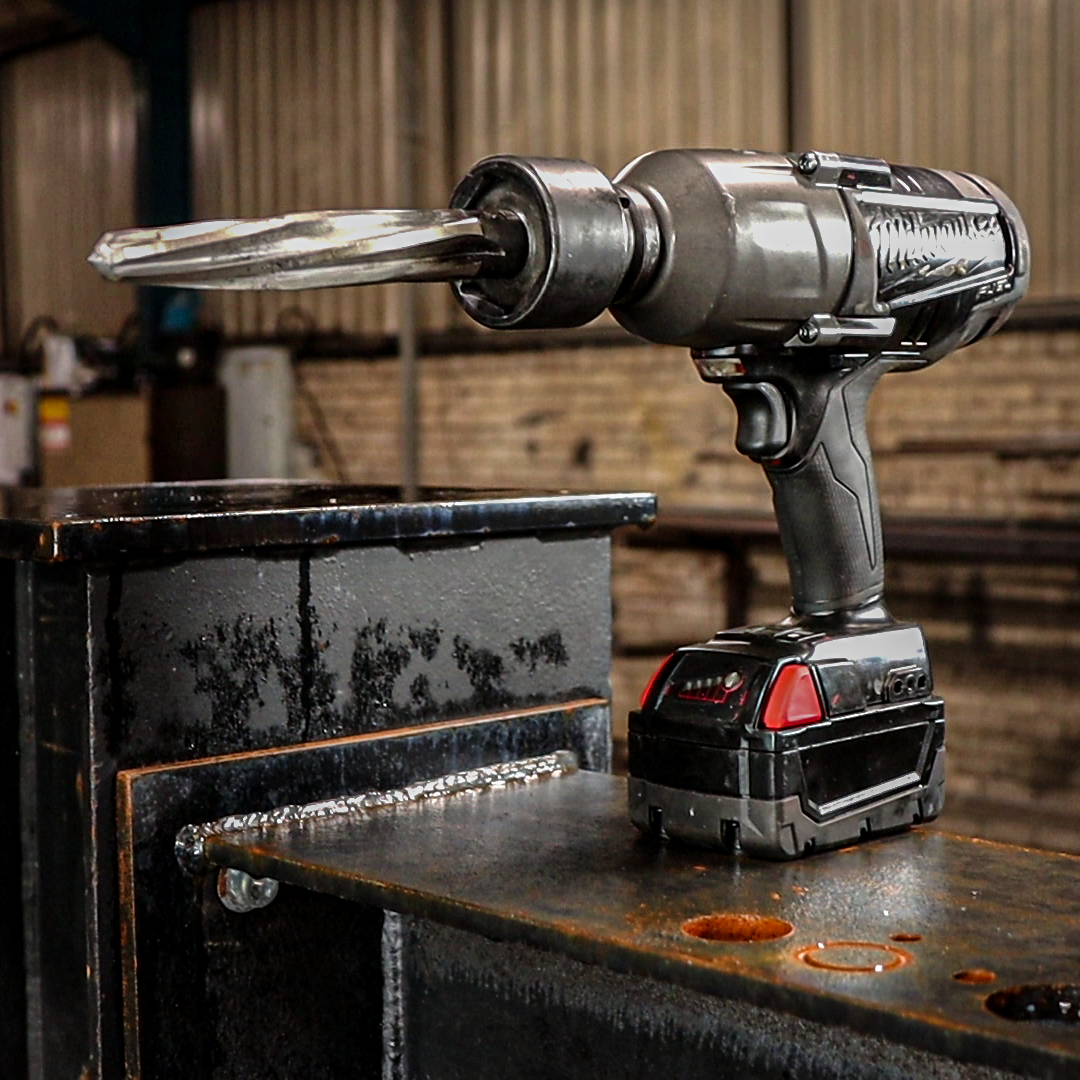

REAMERS IN ACTION


Turbo™ Hex Bridge Reamers by JEI. Designed as a handy and economical solution to align and enlarge existing holes in steel, ready for bolting. Ideal for use with an Impact Wrench with additional hex socket adaptor.

Contact Us
Turbo™ Hex Bridge Reamers

Turbo™ Hex Bridge Reamers

  • Ideal for use with a heavy duty impact wrench.
  • Opens up existing holes in steelwork when the bolt won't fit.
  • Aligns holes to fit bolt through two plates.
  • Fit into 1/2" or 3/4" drive hex socket.
PRODUCT SPECIFICATION

Available in 3 or 5 Piece Kits

Need multiple sizes? Save time and money with our Turbo™ Hex Bridge Reamer sets at JEI. Available as 3 or 5 piece kits.

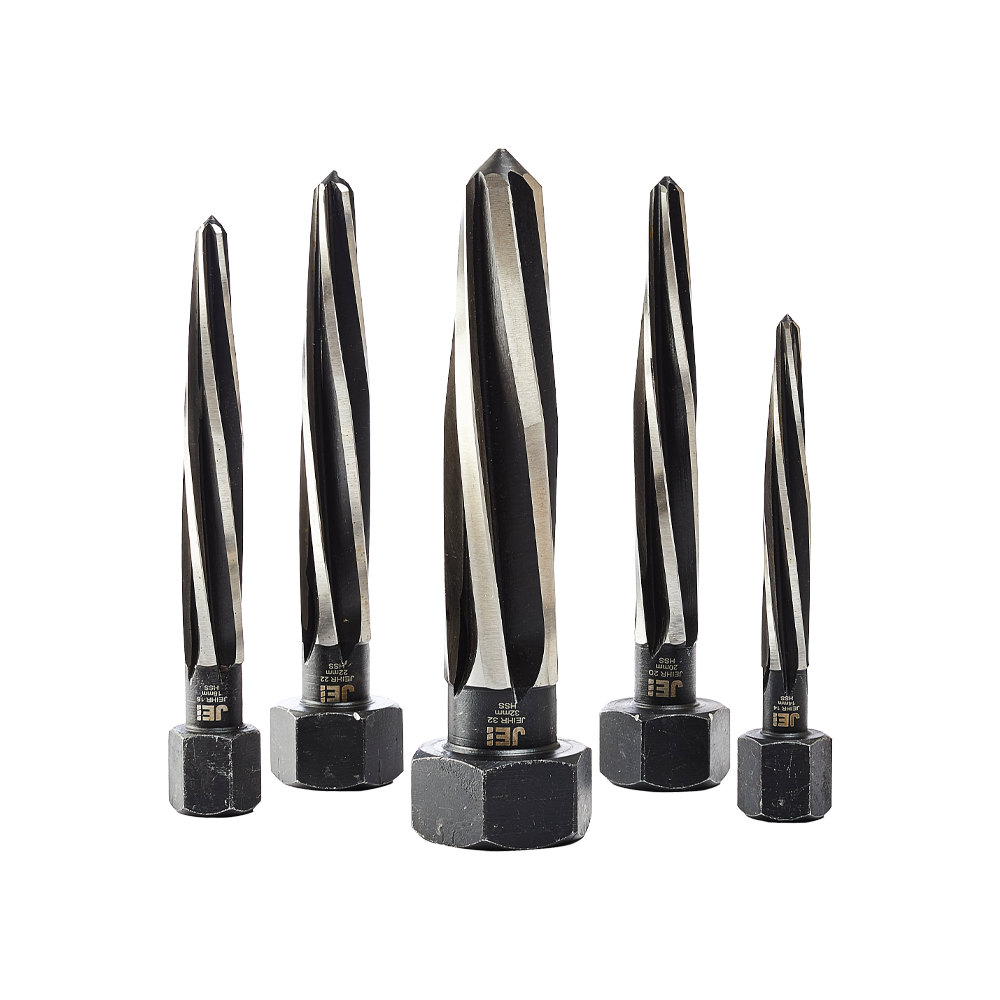

5 piece set includes - 14, 18, 22, 26 and 32 mm Hex Bridge Reamers.
3 piece set includes - 14, 18 and 22 mm Hex Bridge Reamers.
Hex socket adaptors available separately.

Contact Us
Available in 3 or 5 Piece Kits
Hex Socket Adaptors

Hex Socket Adaptors

Ideal for using with an impact wrench for bolting purposes. Can be used to mount hex reamers for aligning holes in steel.

  • Available on 1/2" or 3/4" drive.
Contact Us

Can't find the size you require? Get in touch.

We can manufacture a range of cutters and machines to suit your requirement. No matter your requirement, contact us today and speak to our specialist team.
