SCANTOOL 75FG

IDEAL GRINDERS FOR LARGE AND HEAVY ITEMS

SCANTOOL floor belt grinders are the ideal grinders for large and heavy items that cannot be lifted/moved to the grinder. Used, among others in shipyards and in the windmill industry for grinding of welds in floor height. With SCANTOOL floor belt grinders the operator can stand up and grind in floor level.

Want to make sure the 'Scantool 75FG' is right for you? Speak to our specialist solutions team today.

In stock
SKU
SB-IBG-SCAN-75FG

DOWNLOADS:

Manual

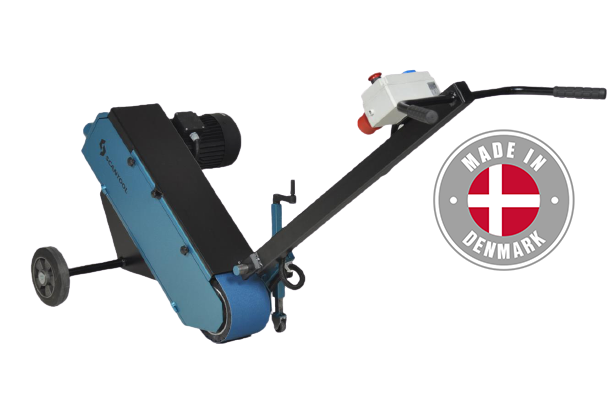

main product photo

SCANTOOL 75FG SPECIFICATIONS

Model SCANTOOL 75FG
Grinding belt (mm) 75x2000
Height 1000
Net Weight 70kg
Motor 5.5 HP
Length / Width 2000mm / 710mm
RPM 2800/3300
Number of spindle speeds 1
Voltage / Part No. 3x400/440V-50/60 Hz
Wheel size, Drive wheel (ø mm) 200x75x28
Wheel size, Contact wheel (ø mm) 200x75x20

Adjustable floor grinder

On the Scantool 75FG, the operating handle is height adjustable and can be customised for height of person. The pressure from the floor belt grinders are also adjustable and at the same time it is possible to adjust the belt grinding surface, so you can always use the full width of the grinding belt, although the floor is uneven.
