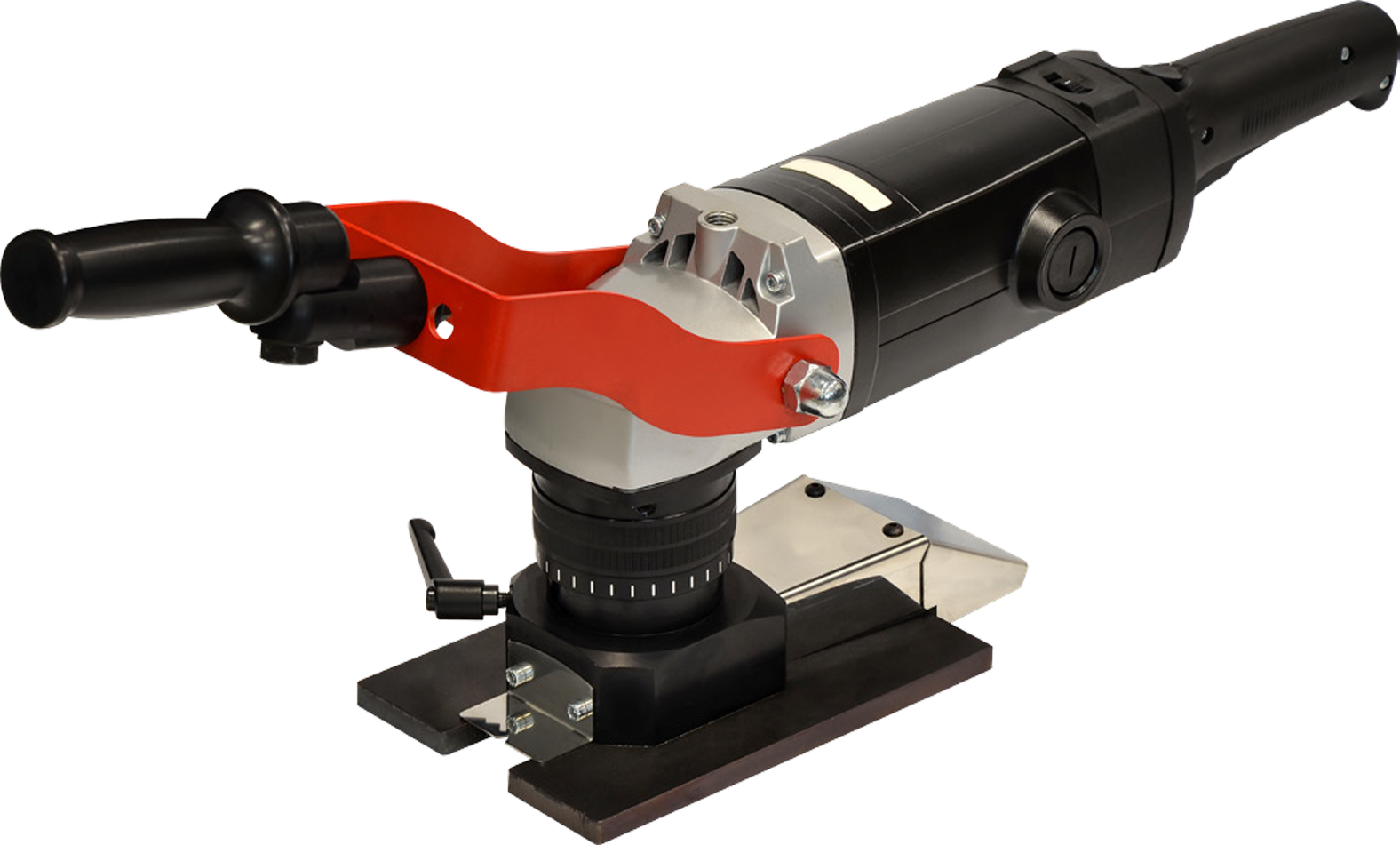

PORTABLE WELD SHAVER WS-30

Weld Milling Machine

The WS-30 weld shaver is an easy-to-use, portable, Industrial heavy-duty machine designed specifically for creating a perfect flush finish on a weld seam joint.

It is capable of machining weld seam removal up to 11 mm high and 30 mm wide, milling down to a level and continuous surface with the rest of the parent metal in preparation for painting, coating or any other further processing.

Featuring a powerful, heavy duty motor with electric speed controls to optimise cutting conditions. Fitted with a rotary face milling head that ensures exceptional efficiency without causing heat distortion.

Standard accessories include a guide rail with magnetic clamping system to maintain a constant position against the workpiece

Want to make sure the 'Portable Weld Shaver WS-30' is right for you? Speak to our specialist solutions team today.

In stock
SKU
SB-PBEV-WS-30


PORTABLE WELD SHAVER WS-30 SPECIFICATIONS


Model PORTABLE WELD SHAVER WS-30
Max Milling Depth -1.5 mm
Max Milling Height 11 mm
Max Milling Width 30 mm
Motor 2200 W
Rotational Speed Without Load 1800-5850 rpm
Voltage / Part No. 1~ 220-240 V, 50-60 Hz / UKS-0761-10-20-00-0
Max. milling height 11mm

Max. milling height 11mm

Max. milling width 30 mm

Max. milling width 30 mm

Max. milling depth - 1.5 mm

Max. milling depth - 1.5 mm

Features

Comfort and ergonomics of work
Powerful electric motor
Removal of excess weld up to 11 mm high and 30 mm wide
Possibility of undercutting to a depth of up to 1.5 mm
Continuous milling height adjustment
Milling head is equipped with 5 pcs of 2-sided indexable cutting inserts
Electronic speed control between 1800–5850 rpm
Overload protection
