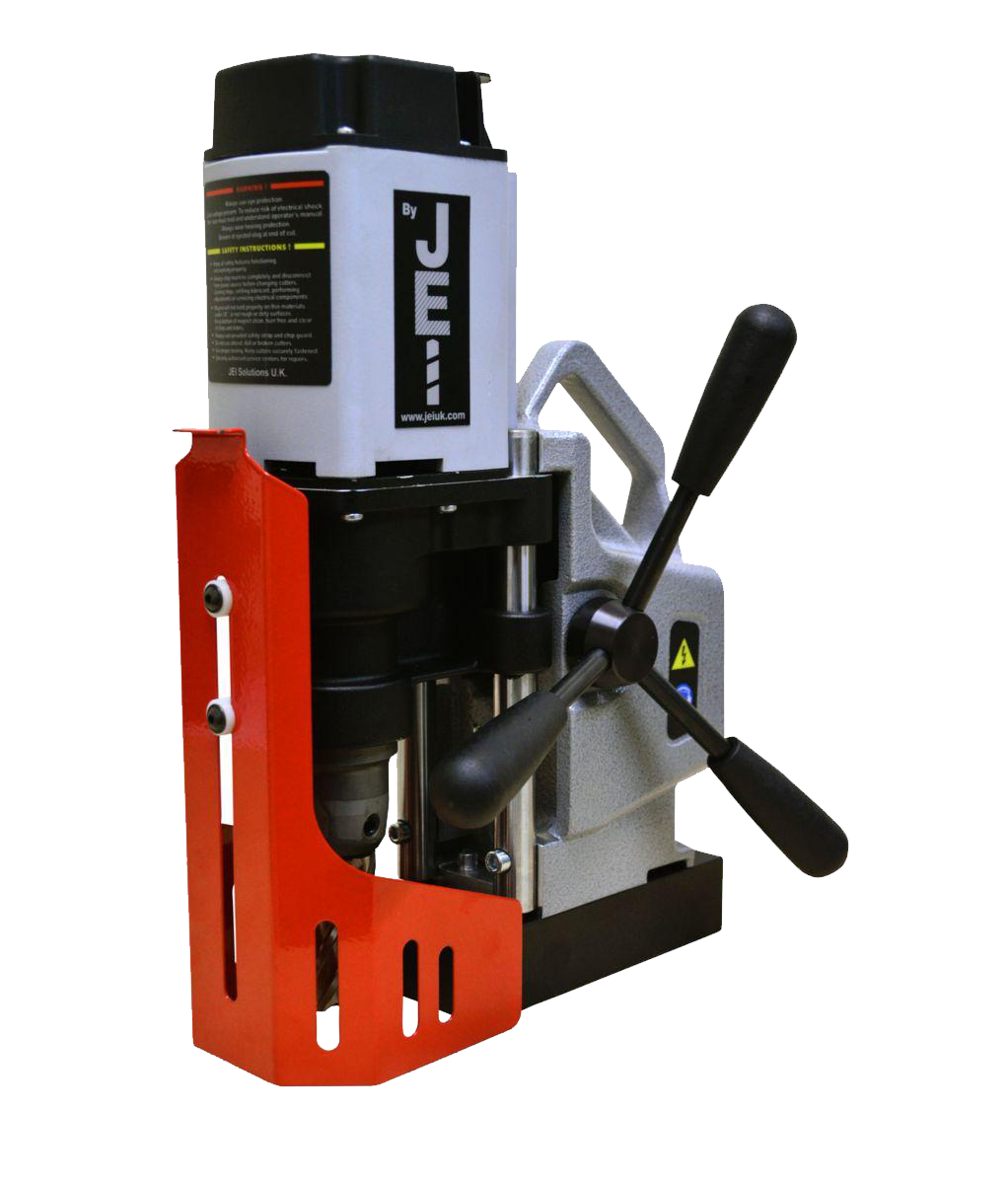

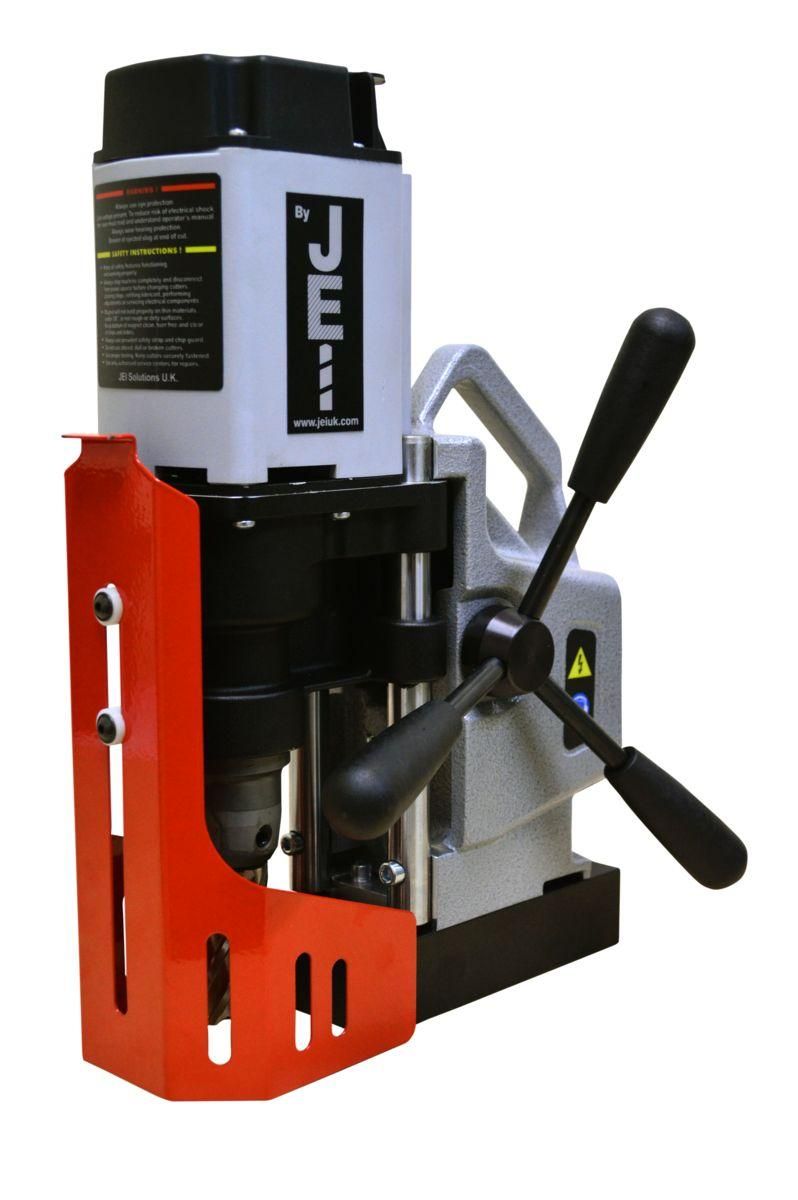

JEI Solutions' flagship drill, the MiniBeast™ offers a lightweight yet powerful drilling solution. Weighing only 10kg, this portable magnetic drill is perfect for on-site or workshop use. Through its unique features, compact size and power the Minibeast™ has become a popular choice for the steel fabricator
| Model | MiniBeast™ |
|---|---|
| Countersink Capacity | 30mm |

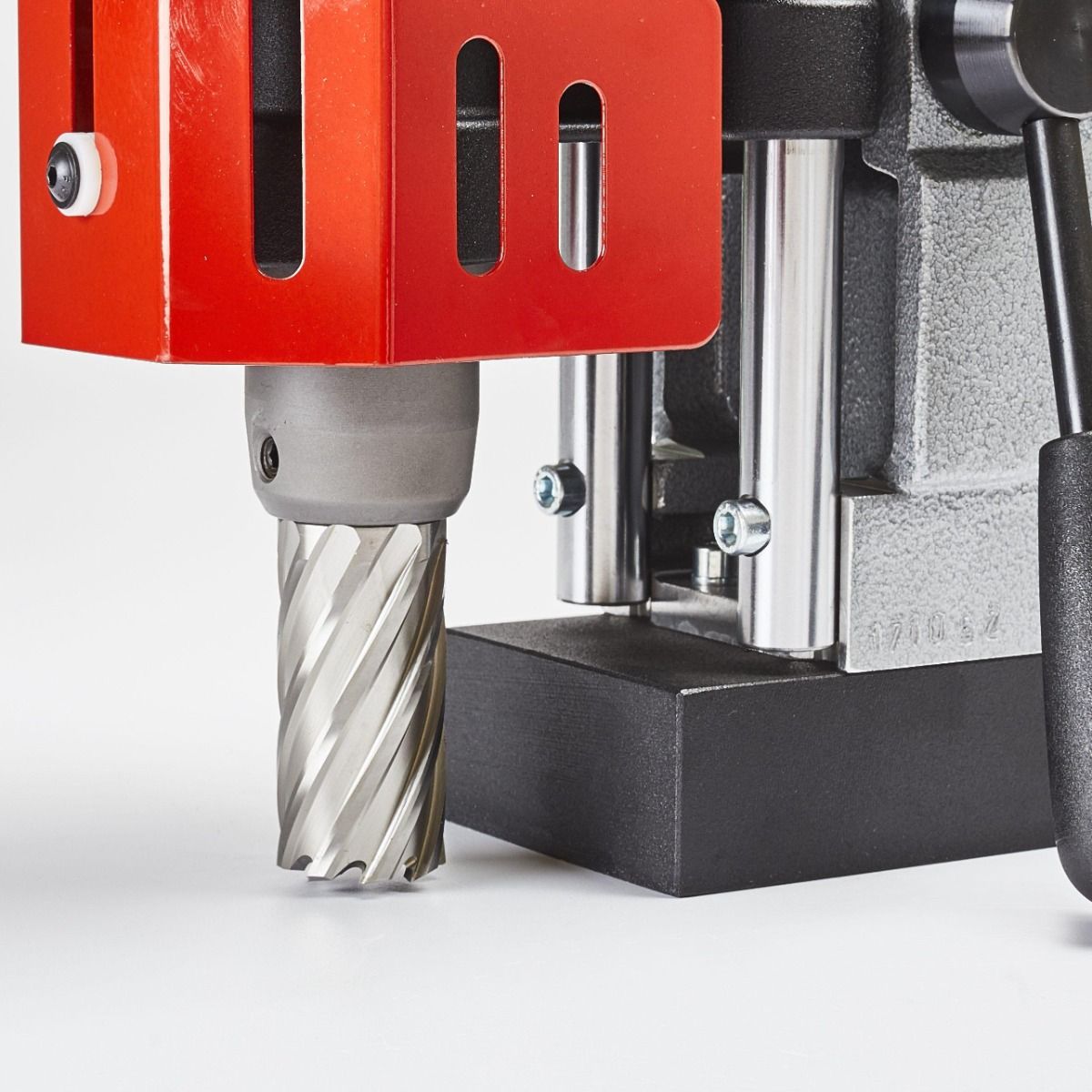

| Cutter Capacity | 35mm Ø x 2" depth of cut |
| Magnetic Base Dimensions | 160 mm x 80 mm |
| Magnet Deadlift | 980 kg on 1" Plate (9600 N) |
| No of Geared Speeds | 1 Fixed Speed |

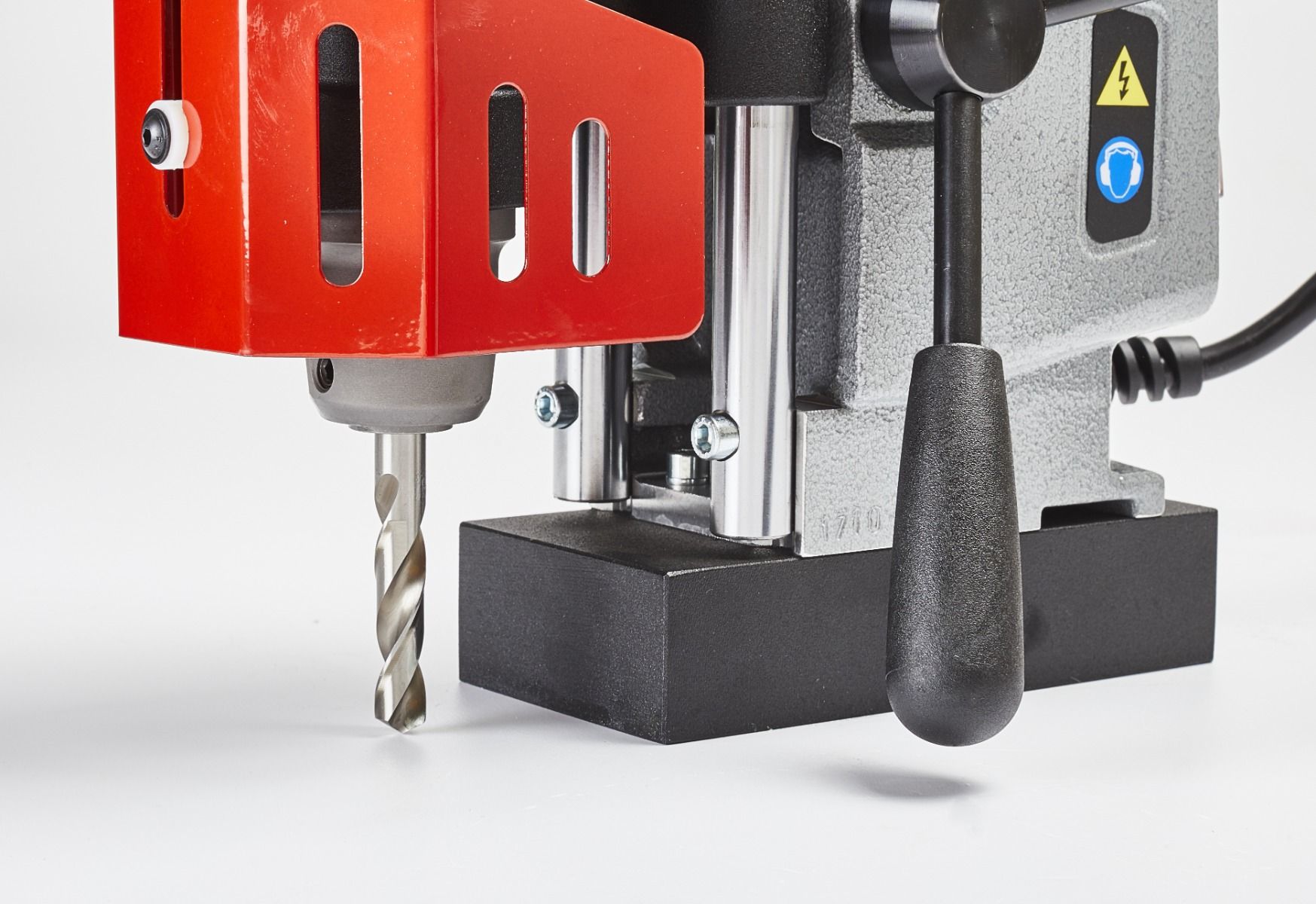

| Twist Drill Capacity | 12 mm with optional Turbo™ twist drills |
| Tapping Capacity | N/A |
| Reaming Capacity | N/A |
| Motor | 1010 watts |
| Spindle | 19mm |
| Height Min/Max | 307 / 377 |
| Length / Width | 260 mm/166mm |
| RPM | No load 520 RPM, loaded 350 RPM |
| Noise Level | < 90dB |
| Vibration Level | < 2.5 m/s2 |
| Voltage / Part No. | 110 V - DRILL-19041/240 V - DRILL-19042 |
| Shipping Weight (Incl. 4.0Ah Battery) | 13.3 kg |
| Shipping Dimensions | 49cm x 38cm x 19cm |
| Weight with 4.0Ah Battery | 10 kg |
We don't just supply industries with the very best performing drilling and cutting solutions - we design and manufacturer them too! Our expert team at JEI have design a wide range of completely bespoke and unique solutions to overcome the most demanding challenges.
JEI realise that any issues with your machines can be costly for business. We hold an extensive range of spare parts that is not limited to the JEI range and also includes Jancy Slugger machines from 1990 to 2010 production.
