The MINIBEAST ULTRA™ is specifically designed for situations that may involve power outages, such as drilling into walls. Its magnetic base, powered by strong neodymium magnets, allows it to operate without electricity, ensuring reliability and convenience even in the absence of power.
A key feature of this machine is its switchable holding force, which enables easy and precise positioning of the drill. By partially engaging the magnetic base, users can adjust the drill's position with accuracy, enhancing the efficiency and effectiveness of the drilling process.

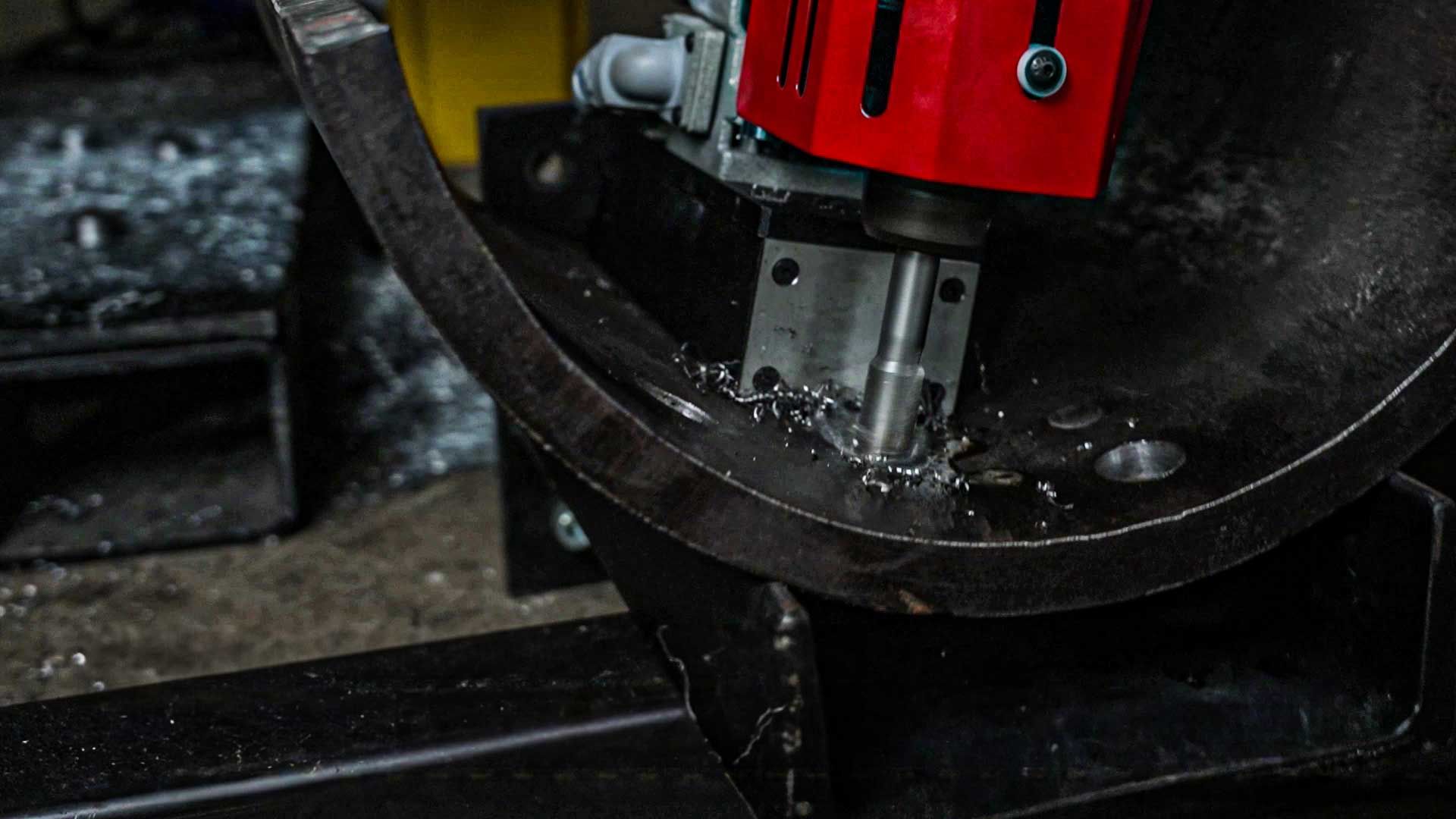

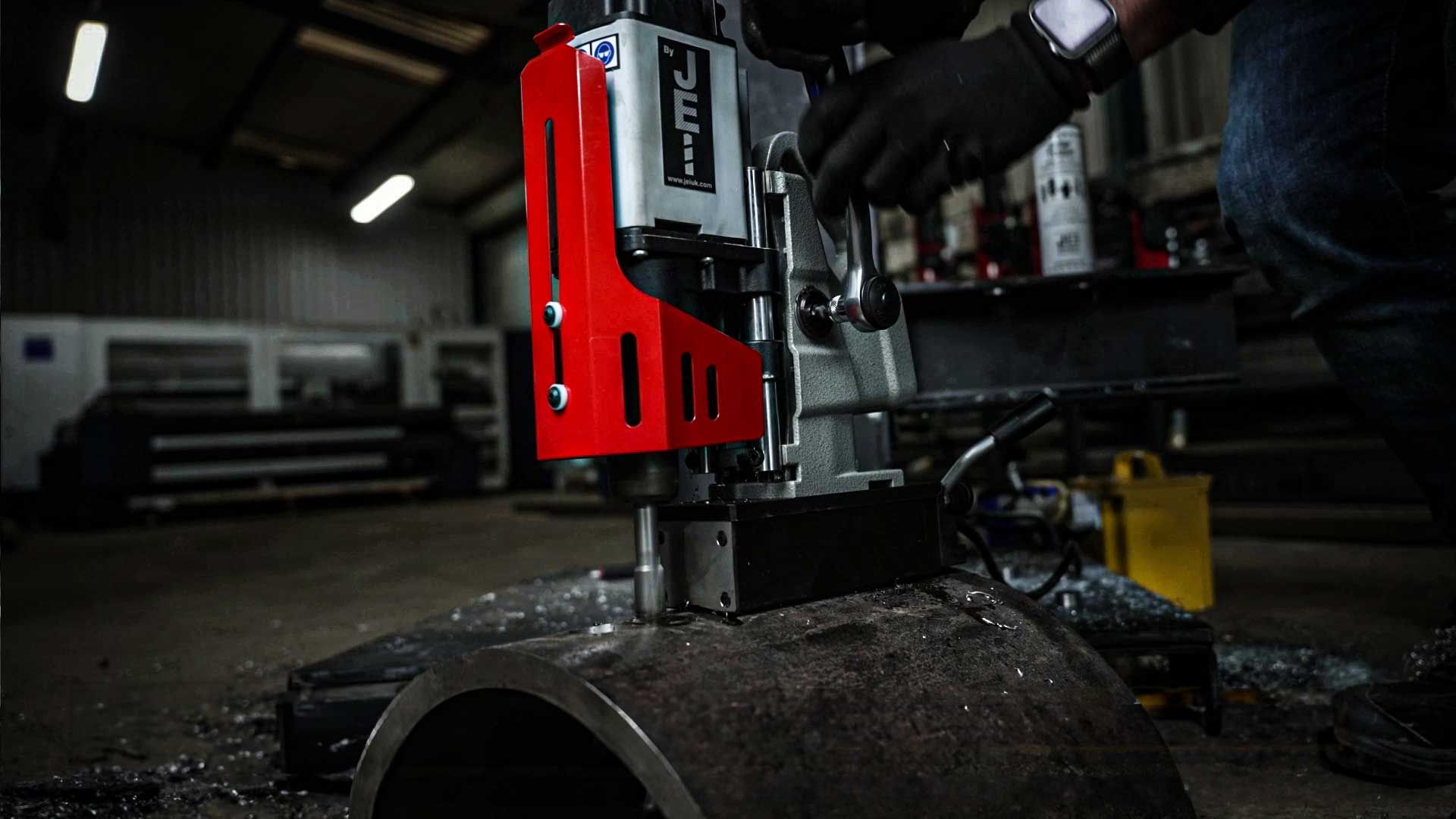

This drill is designed to accommodate various material shapes, including convex surfaces with a minimum diameter of 80 mm and concave surfaces with a minimum diameter of 1000 mm. Its versatility allows users to easily tackle a wide range of drilling tasks, making it a practical choice for diverse applications.
| Model | MiniBeast™ ULTRA |
|---|---|
| Countersink Capacity | 30 mm |

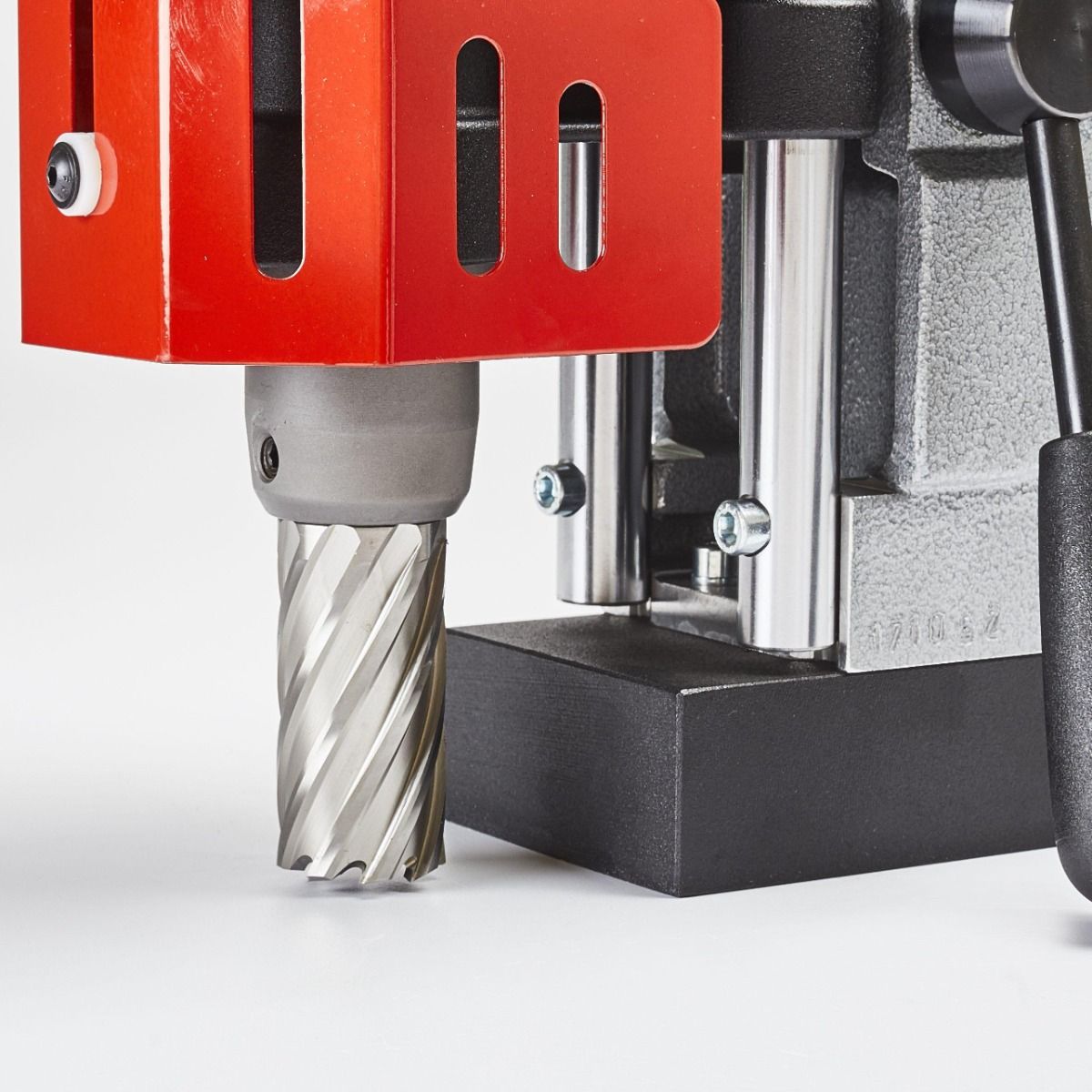

| Cutter Capacity | 36mm Ø x 2" depth of cut |
| Magnetic Base Dimensions | 243 mm × 218 mm × 96 mm |
| Magnet Deadlift | 6000 N |
| Max Stroke | - |
| Minimum Workpiece Thickness | - |
| No of Geared Speeds | 1 Fixed Speed |

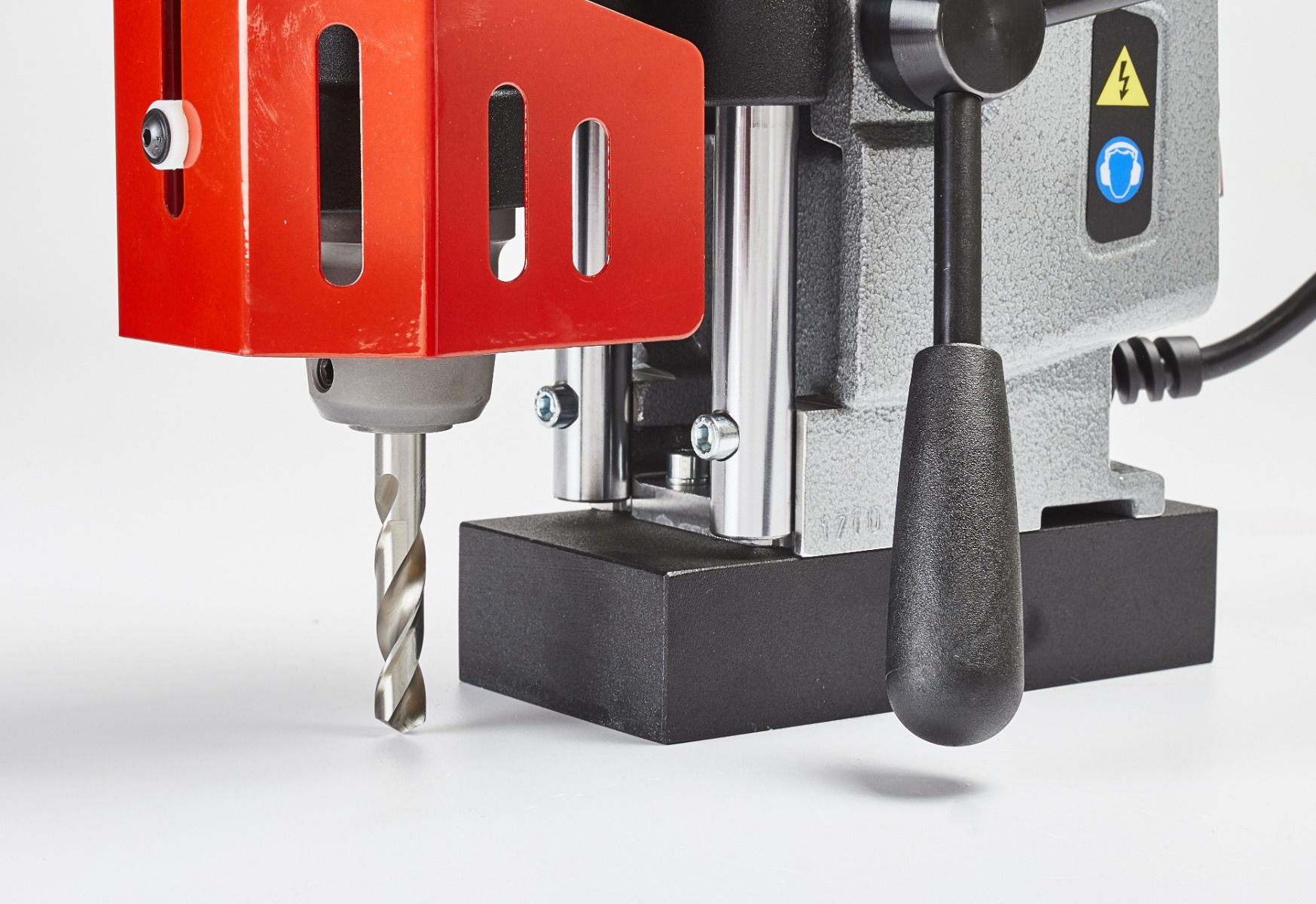

| Twist Drill Capacity | 12 mm with optional Turbo™ twist drills |
| Tapping Capacity | 70 mm |
| Reaming Capacity | 1000 mm |
| Motor | 1020 watts |
| Spindle | 19mm |
| Height Min/Max | 307 / 377 |
| Length / Width | 260 mm/166 mm |
| RPM | Loaded 350 RPM |
| Noise Level | < 90dB |
| Vibration Level | < 2.5 m/s2 |
| Voltage / Part No. | 110 V - DRILL-MBU/1 / 240 V - DRILL-MBU/2 |
| Shipping Weight (Incl. 4.0Ah Battery) | 17 kg |
| Shipping Dimensions | 49cm x 38cm x 19cm |
| Weight with 4.0Ah Battery | 14 kg |
Our cutters and tools are designed to be long-lasting, withstanding vigorous usage without compromising on performance or precision.
