MiniBeast™ RT


  • 10-35mm Core Drilling
  • Counterskin-30
  • Twist Drill 12mm

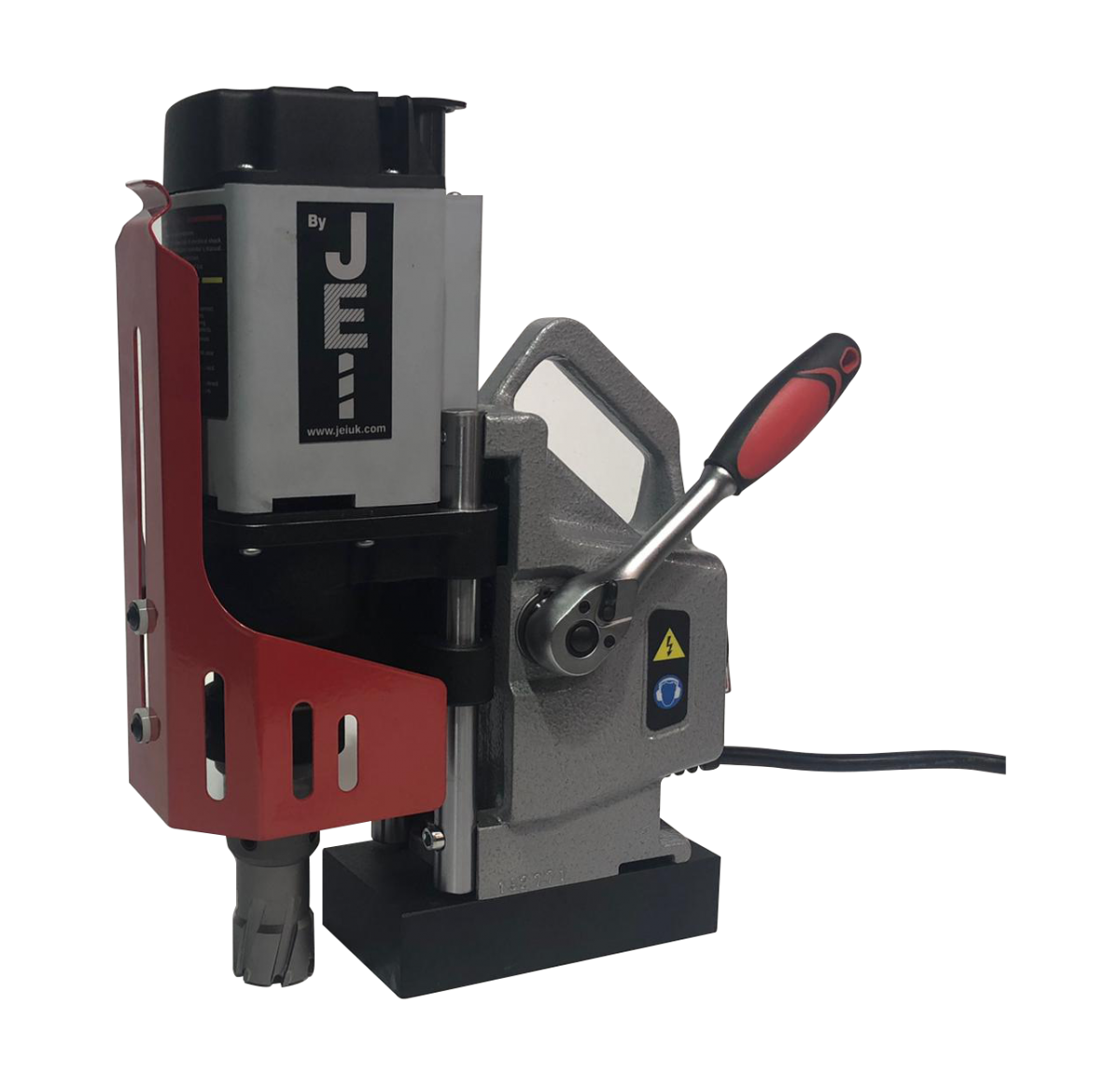

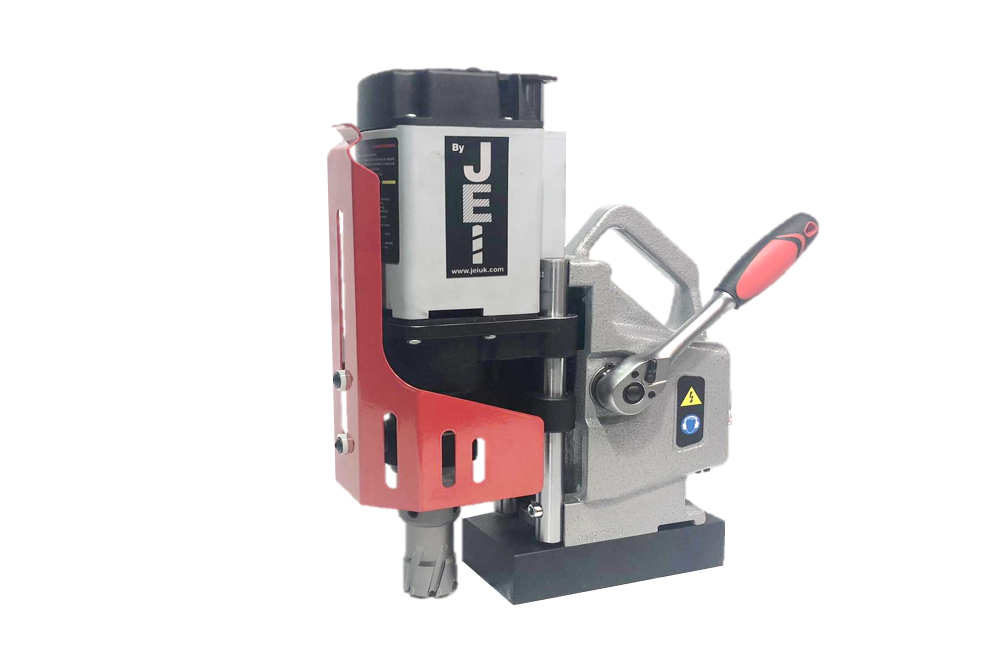

A compact and powerful magnetic drilling machine with a ratchet handle system, designed to enable simpler drilling.

  • Extra compact operation only 110 mm* wide - providing the ability to use the machine in close corners of beams and upstands. *width without ratchet extension (provided but not necessary with most applications).

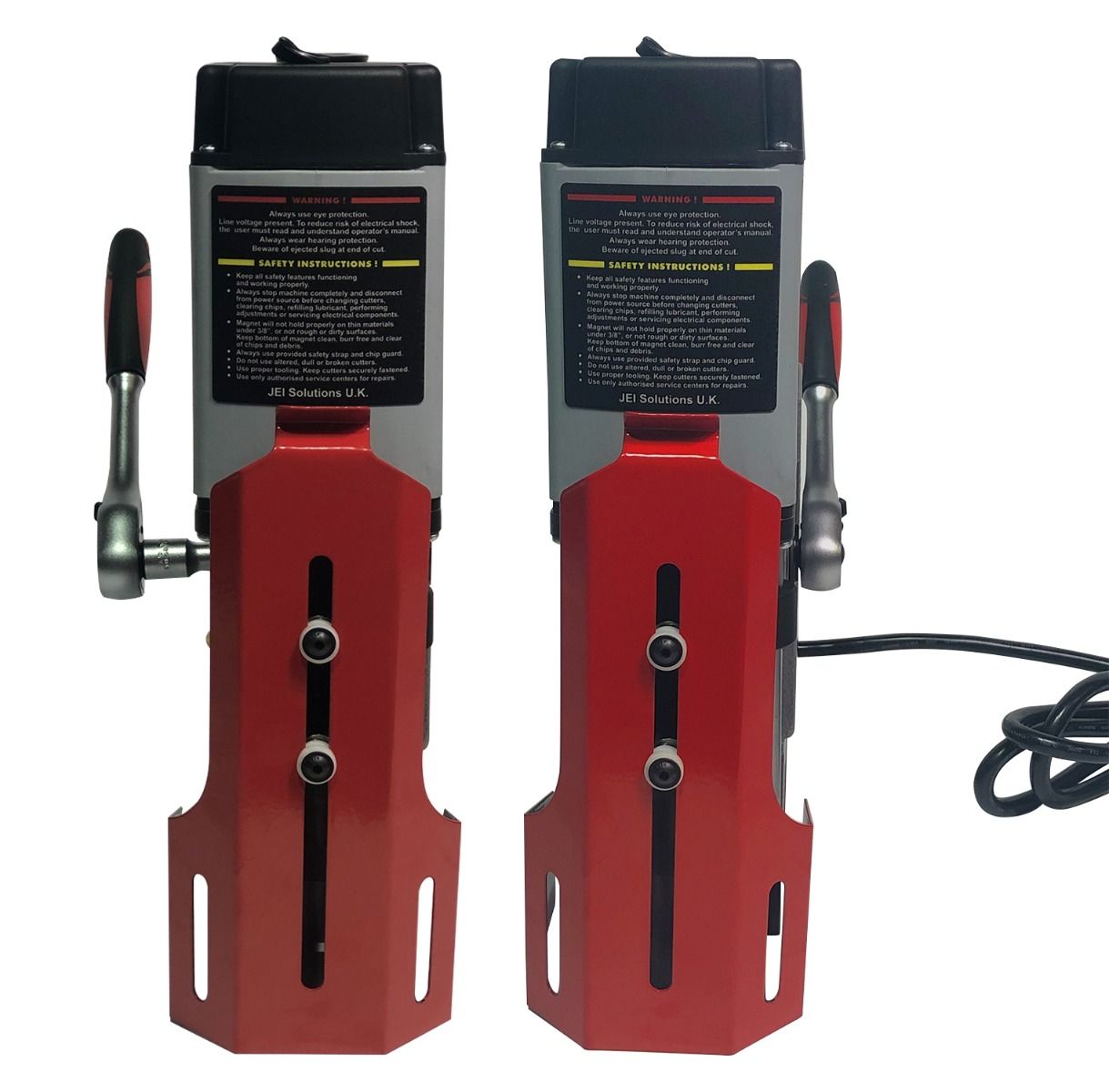

  • Fast & convenient left or right hand sided lever operation. No tools required to remove pinion or handles, simply remove ratchet and change sides.

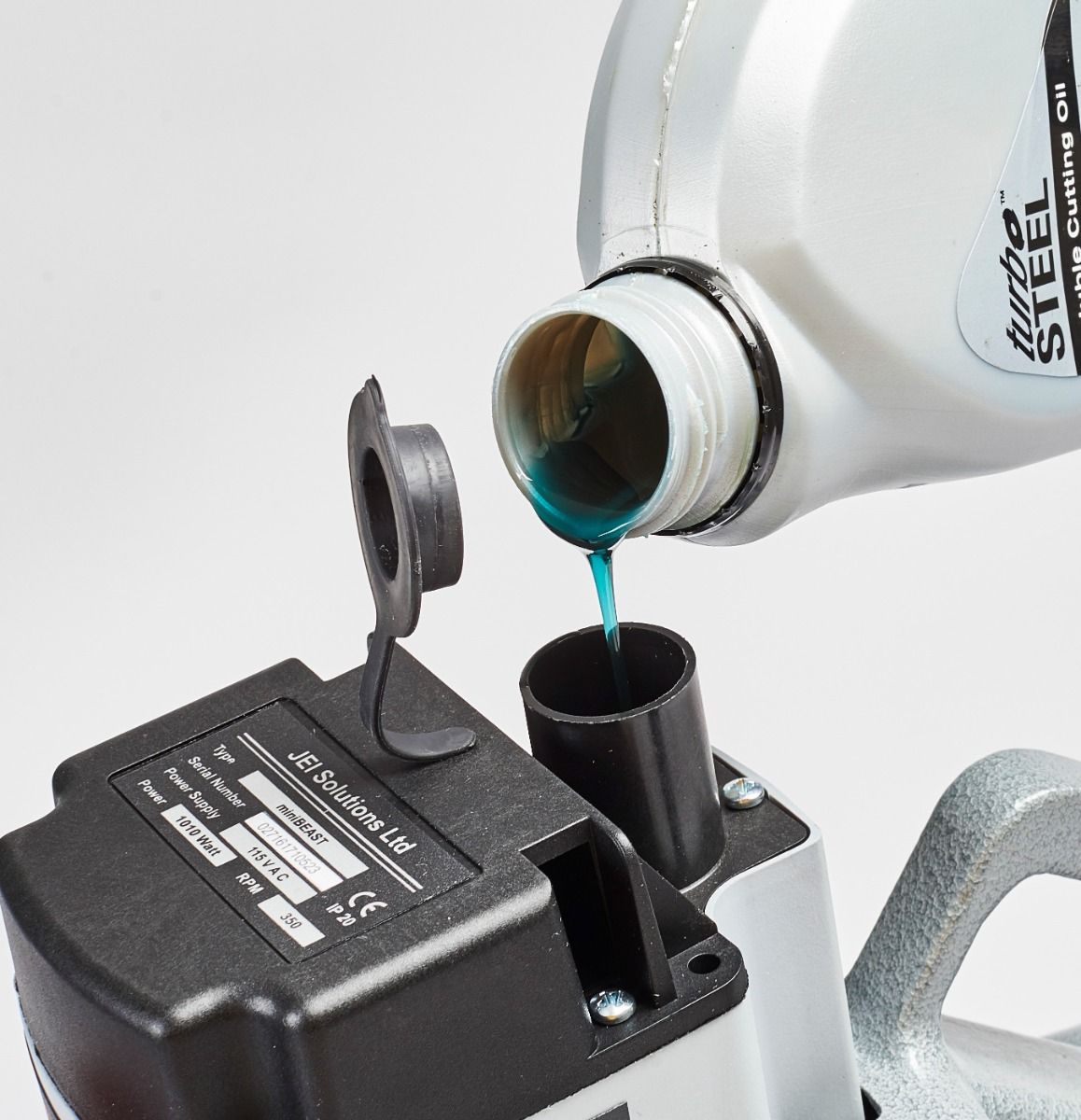

  • Internal coolant reservoir - ensuring maximum cutter life.

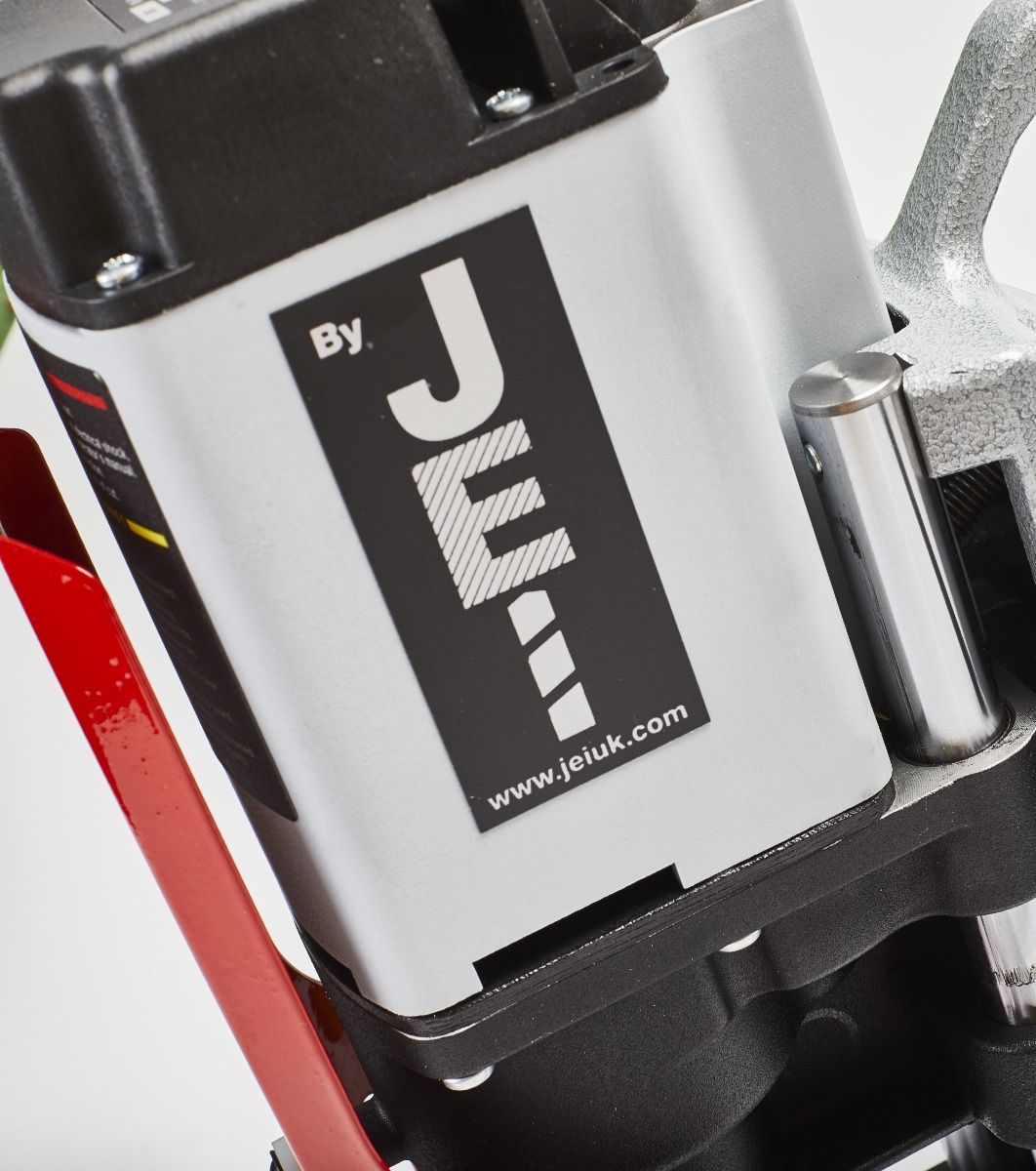

  • Self correcting slide rails - for maintenance free operation.
  • Light-weight - only 10kg.
  • Hidden motor cable - for added protection.
In stock
SKU
DRILL-MB-RT

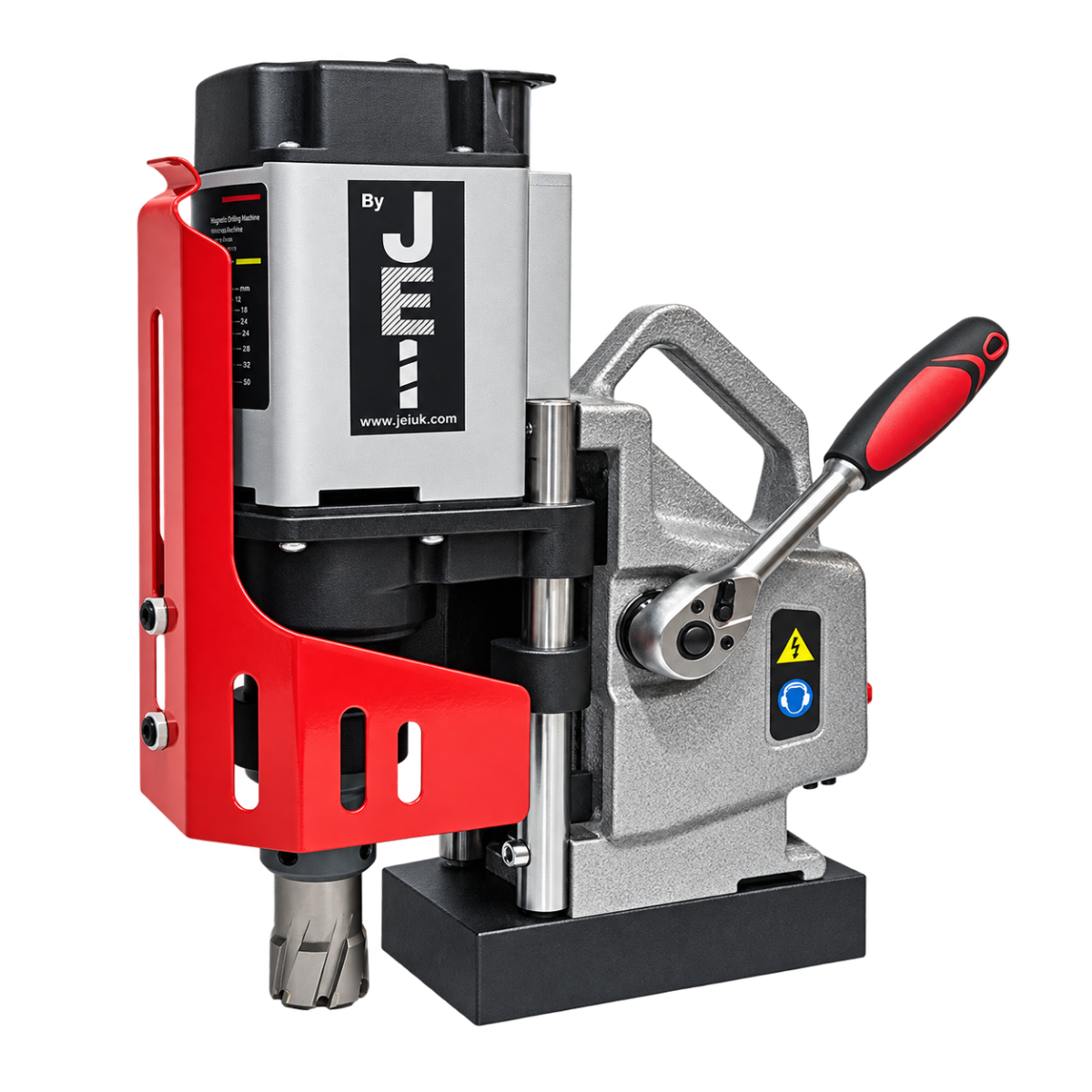

main product photo
The MiniBeast™ RT offers an even more compact option to JEI's flagship MiniBeast™ magnetic drilling machine. With the use of a ratchet handle system, the machine can operate in more restricted spaces.

MiniBeast™ RT SPECIFICATIONS


Model MiniBeast™ RT

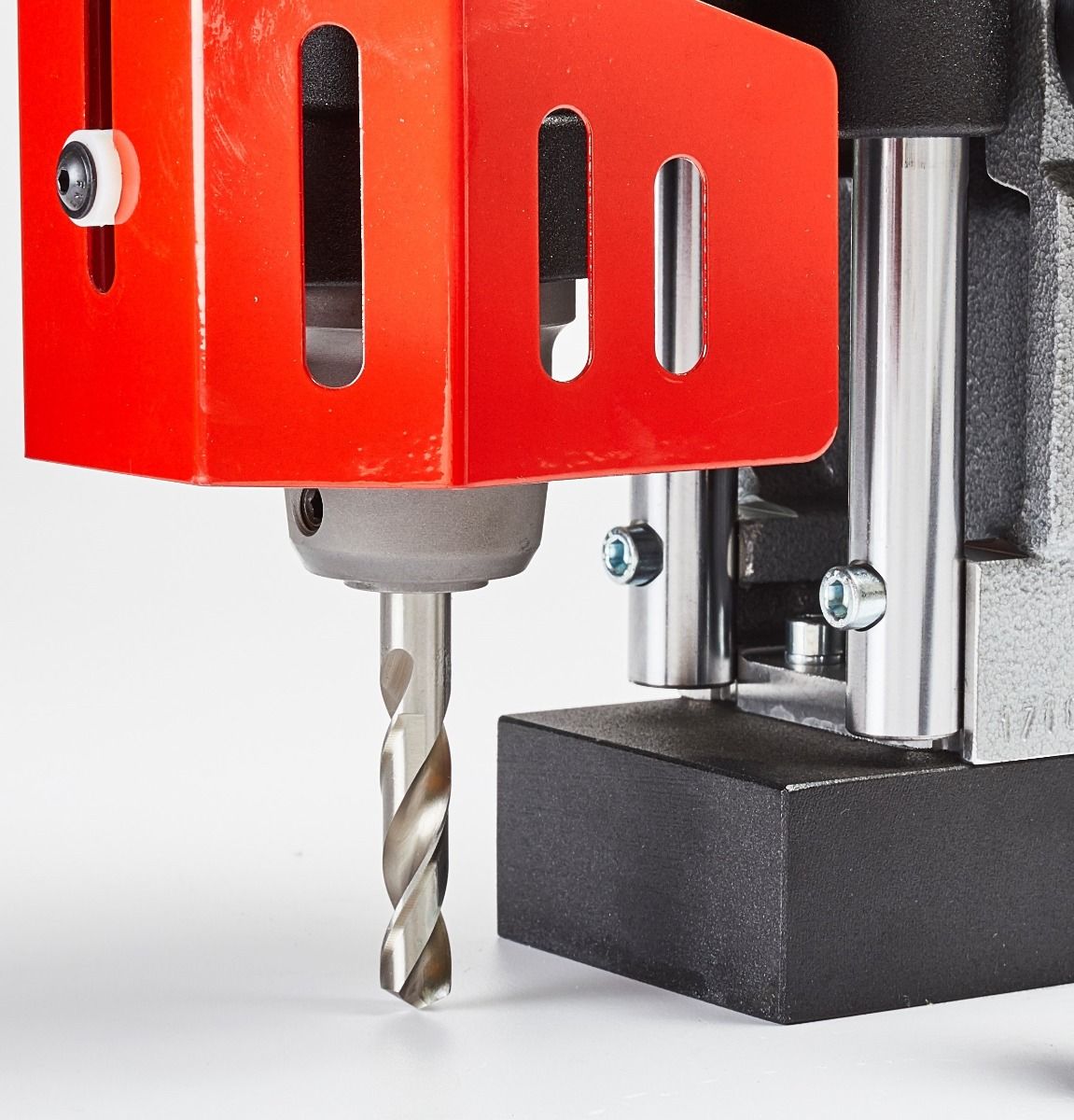

Cutter Capacity 12 mm with optional Turbo™ twist drills
Magnetic Base Dimensions 160 mm x 80 mm
Magnet Deadlift 980 kg on 1" Plate (9600 N
Motor 1010 watts
Spindle 35mm Ø x 2" depth of cut
Height Min/Max 307 / 377
Length / Width 260 mm/110 mm (without guard or ratchet extension)
RPM 1 Fixed Speed (no load 520 RPM, loaded 350 RPM)
Noise Level < 90dB
Vibration Level < 2.5 m/s2
Voltage / Part No. 110 V - DRILL-19041/RT / 240 V - DRILL-19042/RT
Shipping Weight (Incl. 4.0Ah Battery) 13.3 kg
Shipping Dimensions 490 mm x 380 mm x 190 mm
Weight with 4.0Ah Battery 10 kg

Optional ratchet conversion kit available

Convert your existing standard MiniBeast™ magnetic drilling machine with our pinion and ratchet kit.

Part number - MINIBEAST-RHA

Optional ratchet conversion kit

Maximise the performance of your MiniBeast™ with our Turbo™ Tough TCT Cutter Range


Our cutters and tools are designed to be long-lasting, withstanding vigorous usage without compromising on performance or precision.

Maximise the performance of your MiniBeast
