MiniBeast™ LP35+

  • 10-35mm Core Drilling
  • Counterskin-30
  • Twist Drill 12mm

Premium low profile drilling machine, ideal for use with HSS or TCT cutters.

  • Ultra-low fixed working height only 176 mm.
  • Extremely low weight of just 9.5 kg.
  • Compact design perfectly suited to space restricted areas.
  • Maximum drilling diameter of 35 mm with annular cutters.
  • Will accept standard length (35 mm) tungsten carbide annular cutters.
  • Positive quill drive for close tolerance holes.
  • Accepts short series twist drills with 19.05 mm (3/4”) weldon shank.
  • Integrated safety guard.
  • Detachable feed ratchet handle can be fixed from either left or right side.
  • Lifting handle for easy transportation.
In stock
SKU
DRILL-MB-LP35-PLUS

DOWNLOADS:

Product Brochure
Manual
Spare Parts

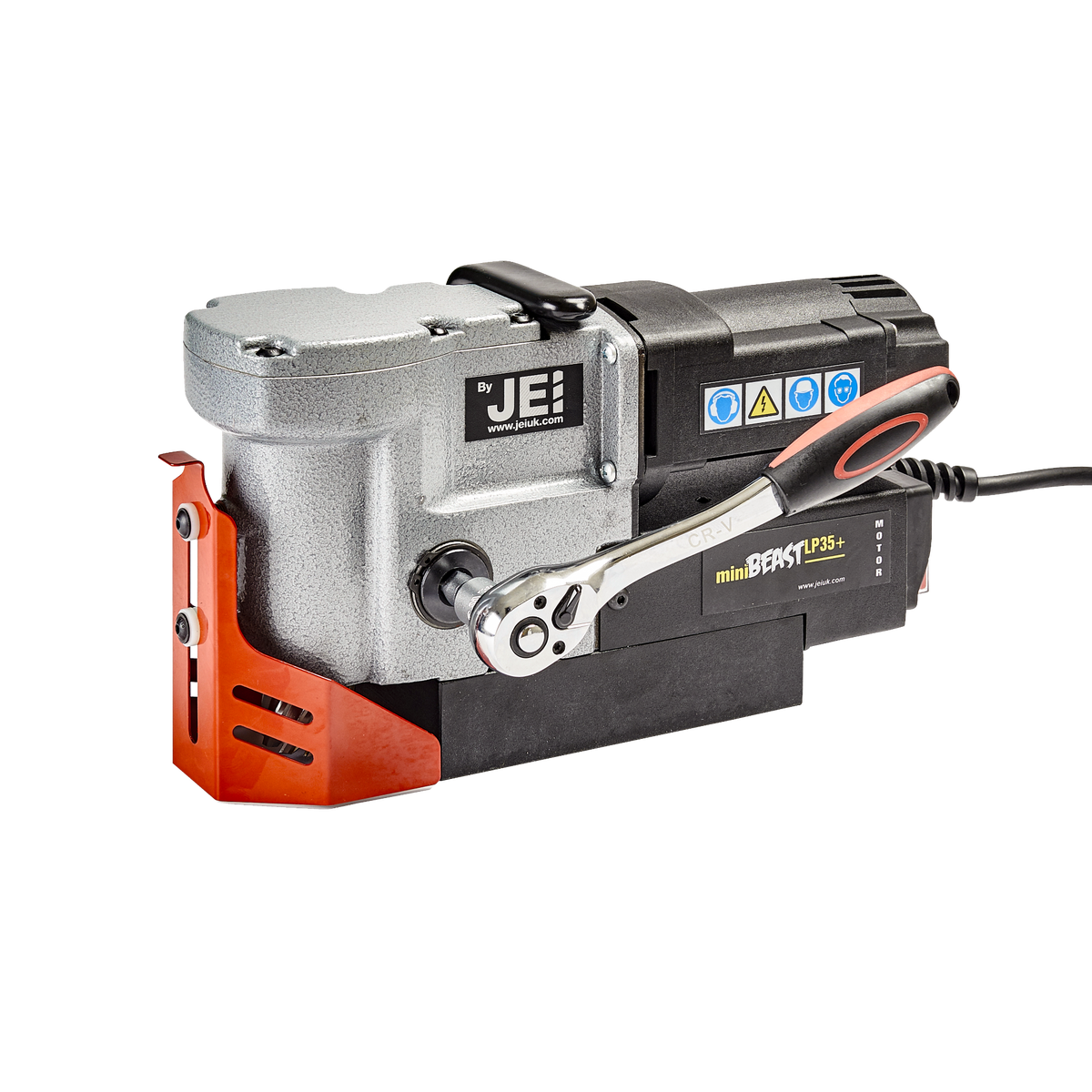

main product photo

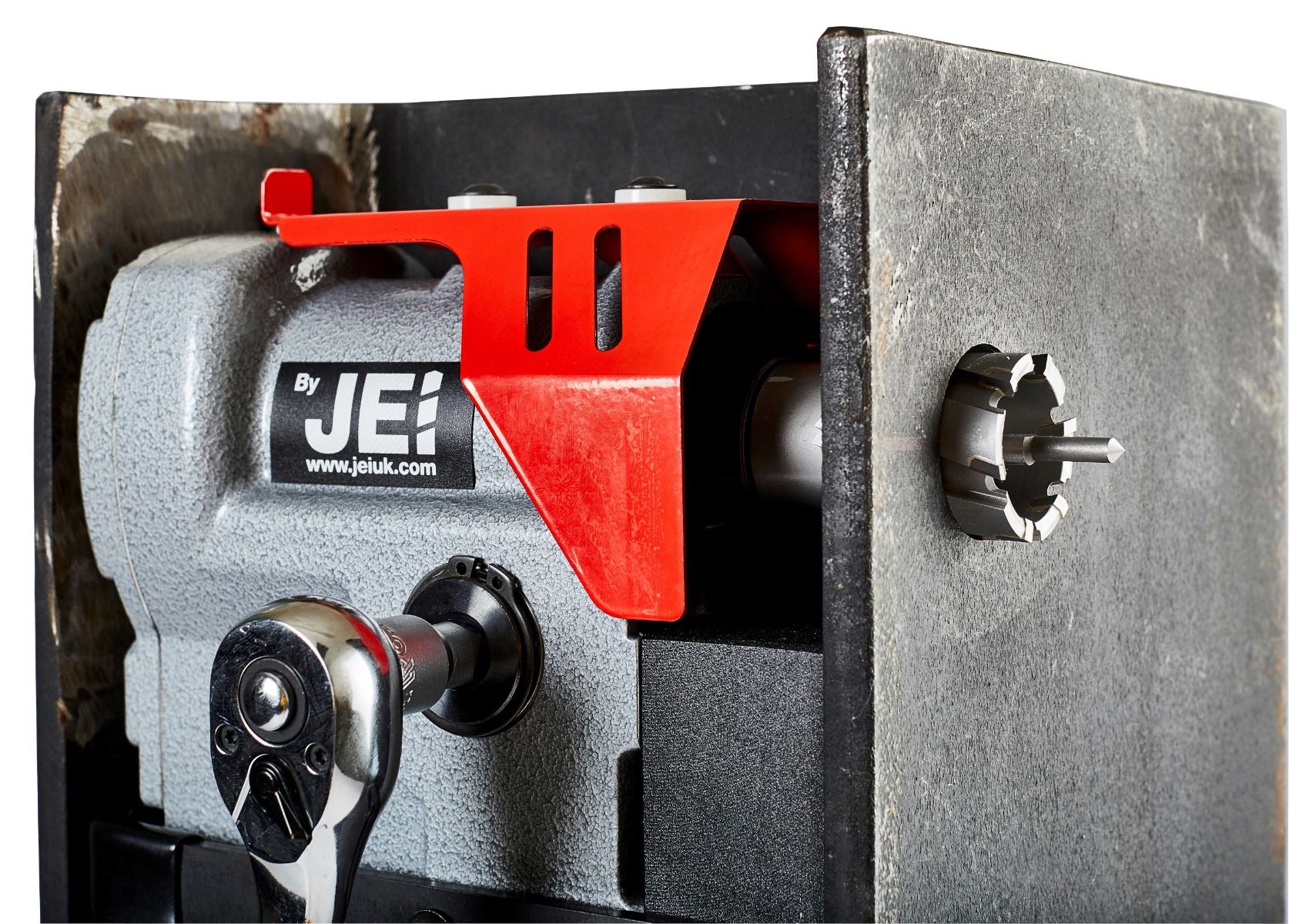

With its compact design, the MiniBeast™ LP35+ is ideal for drilling in those smaller spaces. The LP35+ packs a powerful punch at only 176mm in height and 9.5kg in weight, making it perfect for structural site work.

Why the MiniBeast™ LP35+?

Compact Design

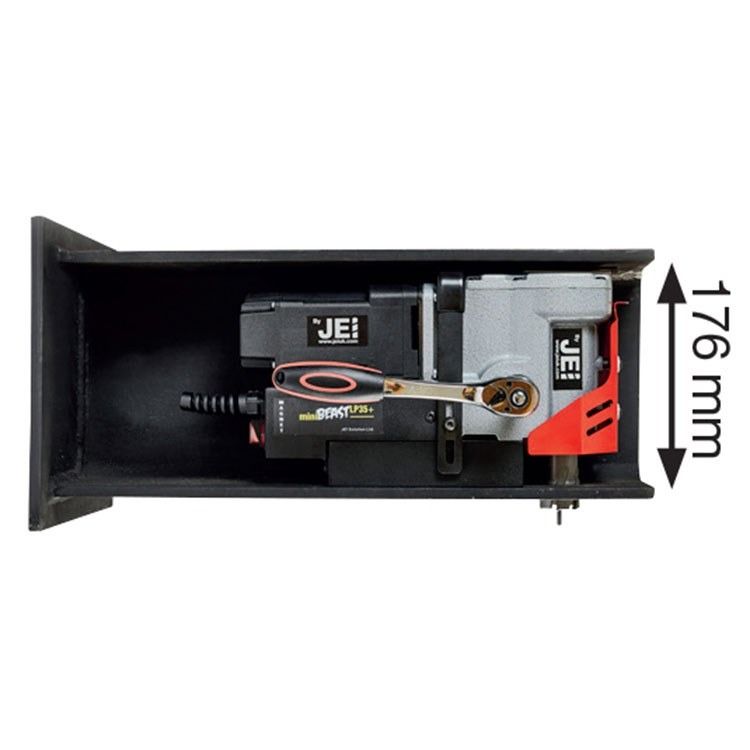

Only 176mm Height

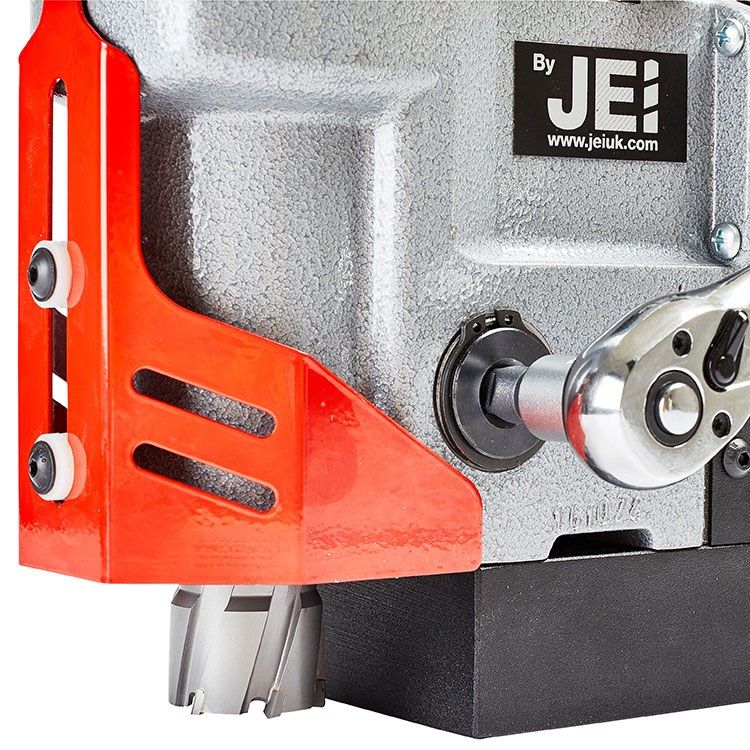

35mm Ø TCT Cutter Capacity

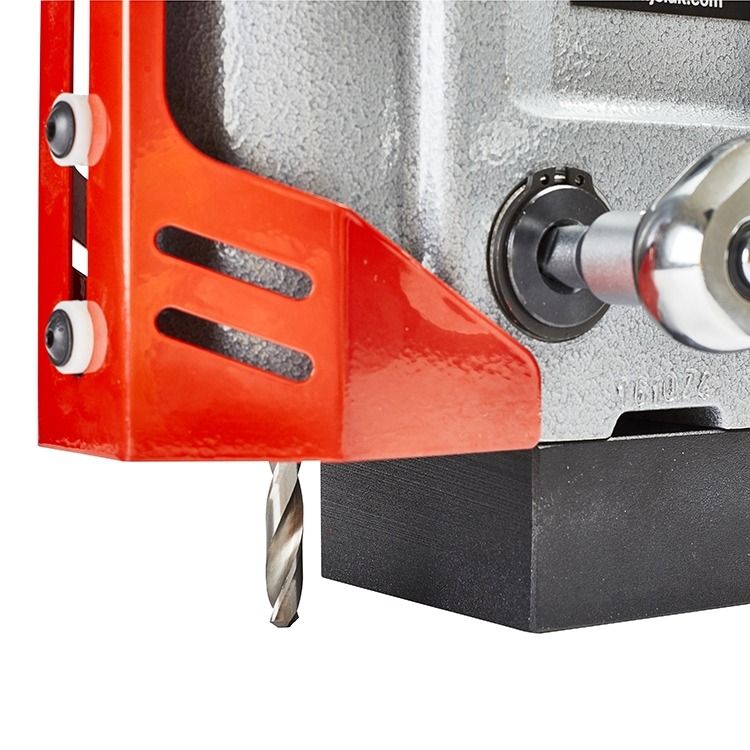

Optional 12mm Twist Drill Capacity

MiniBeast™ LP35+ SPECIFICATIONS

Model MiniBeast™ LP35+
Countersink Capacity 30 mm
Magnetic Base Dimensions 165 x 80 mm
Magnet Deadlift 910 kg on 1” Plate (8900 N)
Max Drilling 30 mm
Max Drilling Depth 20 mm with HSS Turbo™ Steel annular cutter. 32 mm with Turbo™ Tough TCT annular cutter
No of Geared Speeds 1 Fixed Speed no load 520 RPM loaded 350 RPM
Twist Drill Capacity 12 mm Ø with optional Turbo™ Twist drills
Motor 920 W
Spindle 19 mm
Length / Width 380 x 147 mm
Noise Level < 90dB
Vibration Level < 2.5 m/s2
Voltage / Part No. 110 V – DRILL-LP35P/1 / 240 V – DRILL-LP35P/2
Shipping Weight (Incl. 4.0Ah Battery) 12.4 kg
Shipping Dimensions 490 x 380 x 190 mm
Weight with 4.0Ah Battery 9.5 kg

ALSO AVAILABLE AS A MACHINE PACKAGE

Purchase your MiniBeast™ LP35+ magdrill as a complete package, including:

MiniBeast™ LP35+magdrill
5 piece Turbo Tough Cutter Set (14, 16, 18, 20, 22 mm x 35 mm depth of cut plus pins to suit)
500 ml Endurance Plus Cutting Spray Paste
Part Numbers - 110v - LP35P/SET1 240v - LP35P/SET2

MiniBeast LP35+ Package
