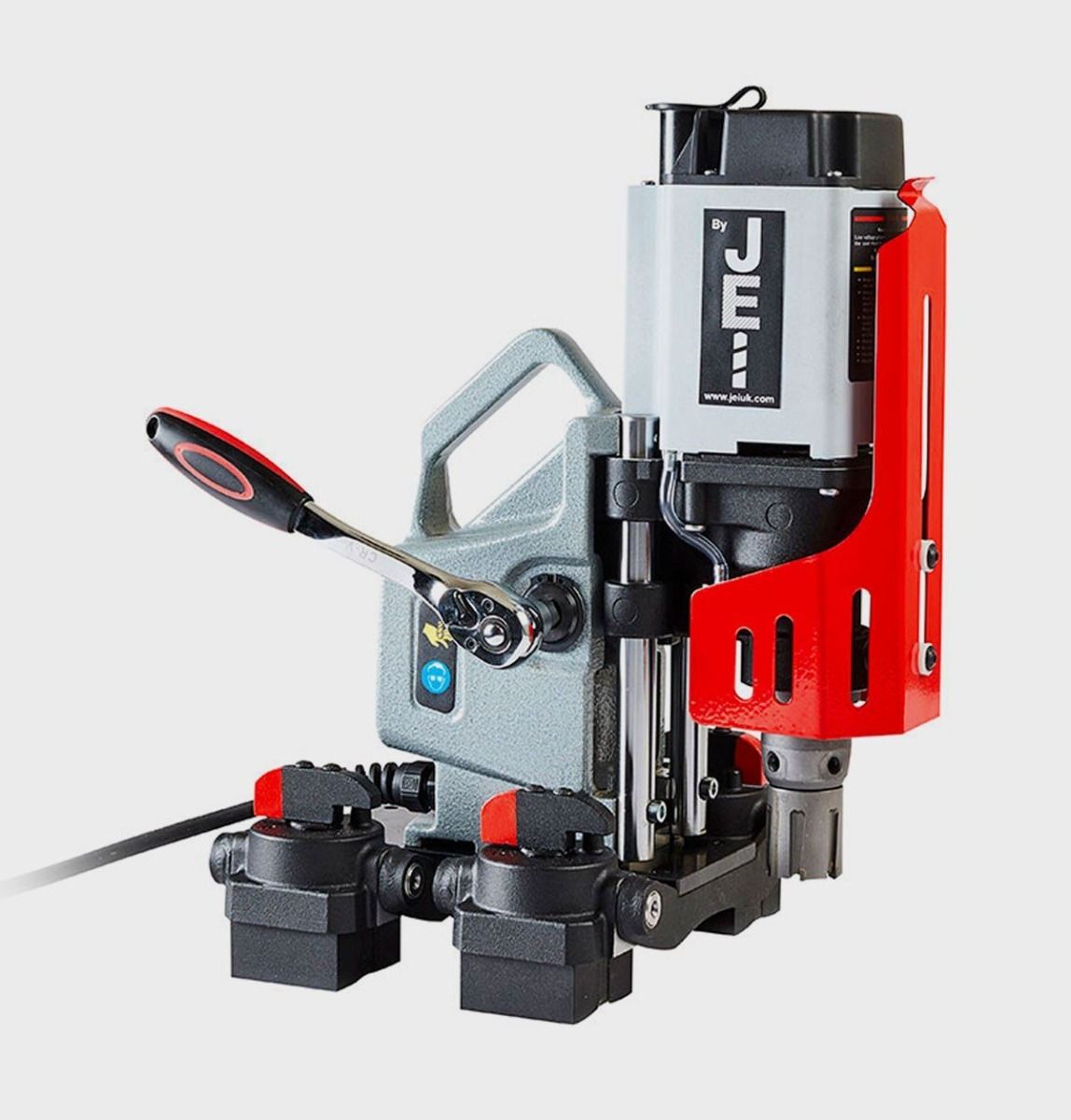

MiniBeast™ Curve


  • 10-35mm Core Drilling
  • Counterskin-30
  • Twist Drill 12mm

For drilling pipes, convex and concave surfaces.

  • Easily swivels into position.

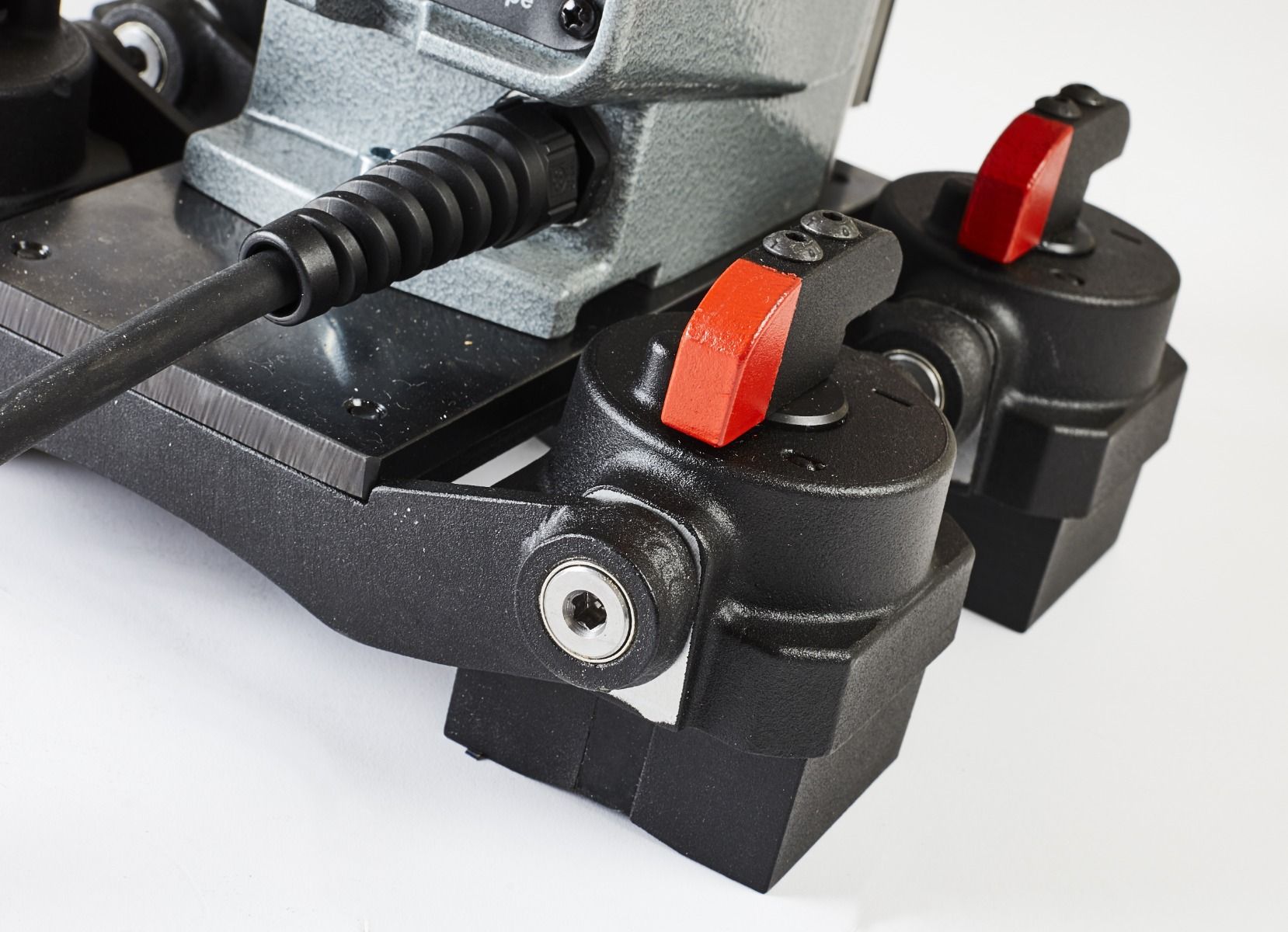

  • Four permanent magnetic bases.

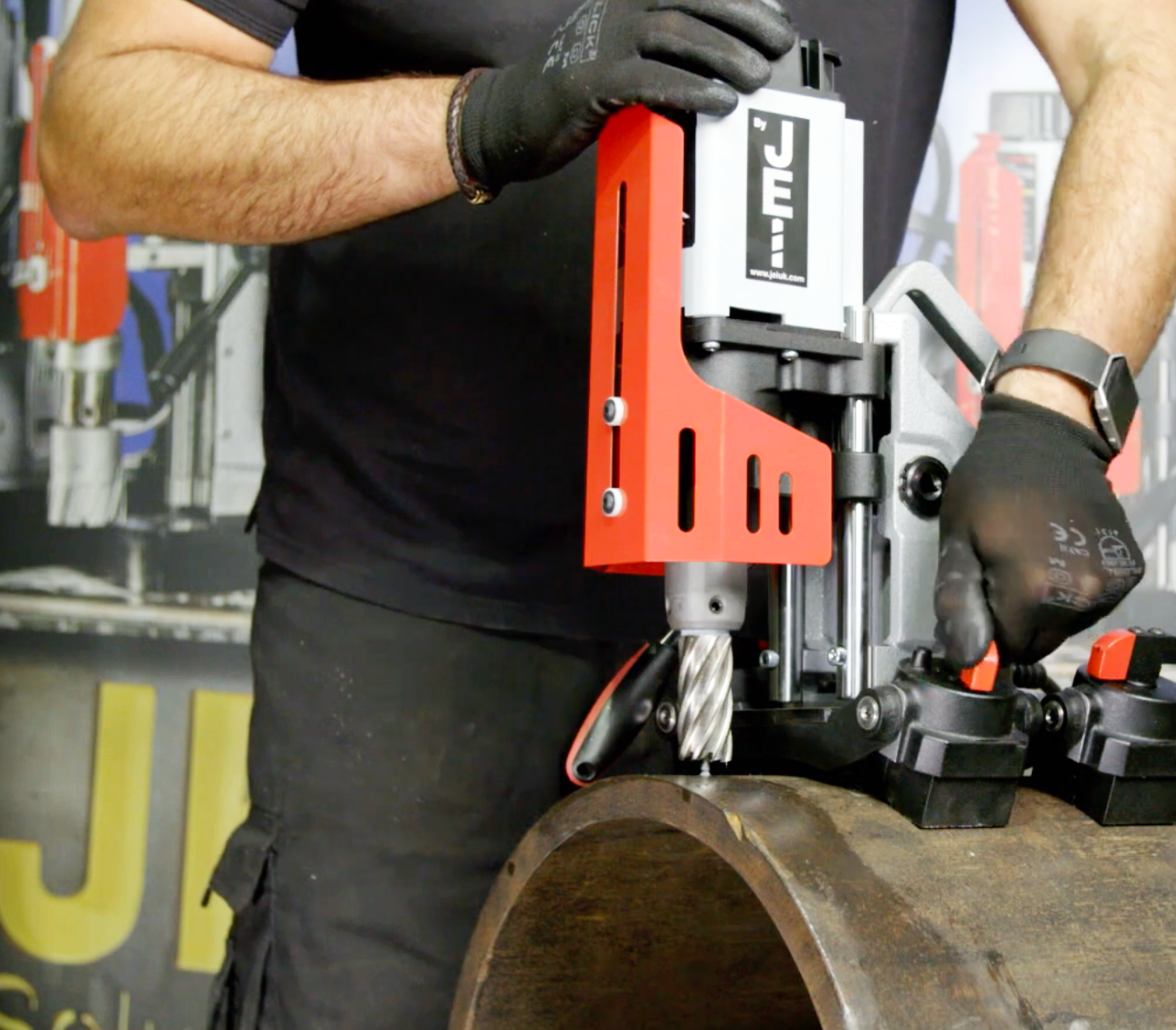

  • Holds onto pipes with an outside radius of ØR300 mm.

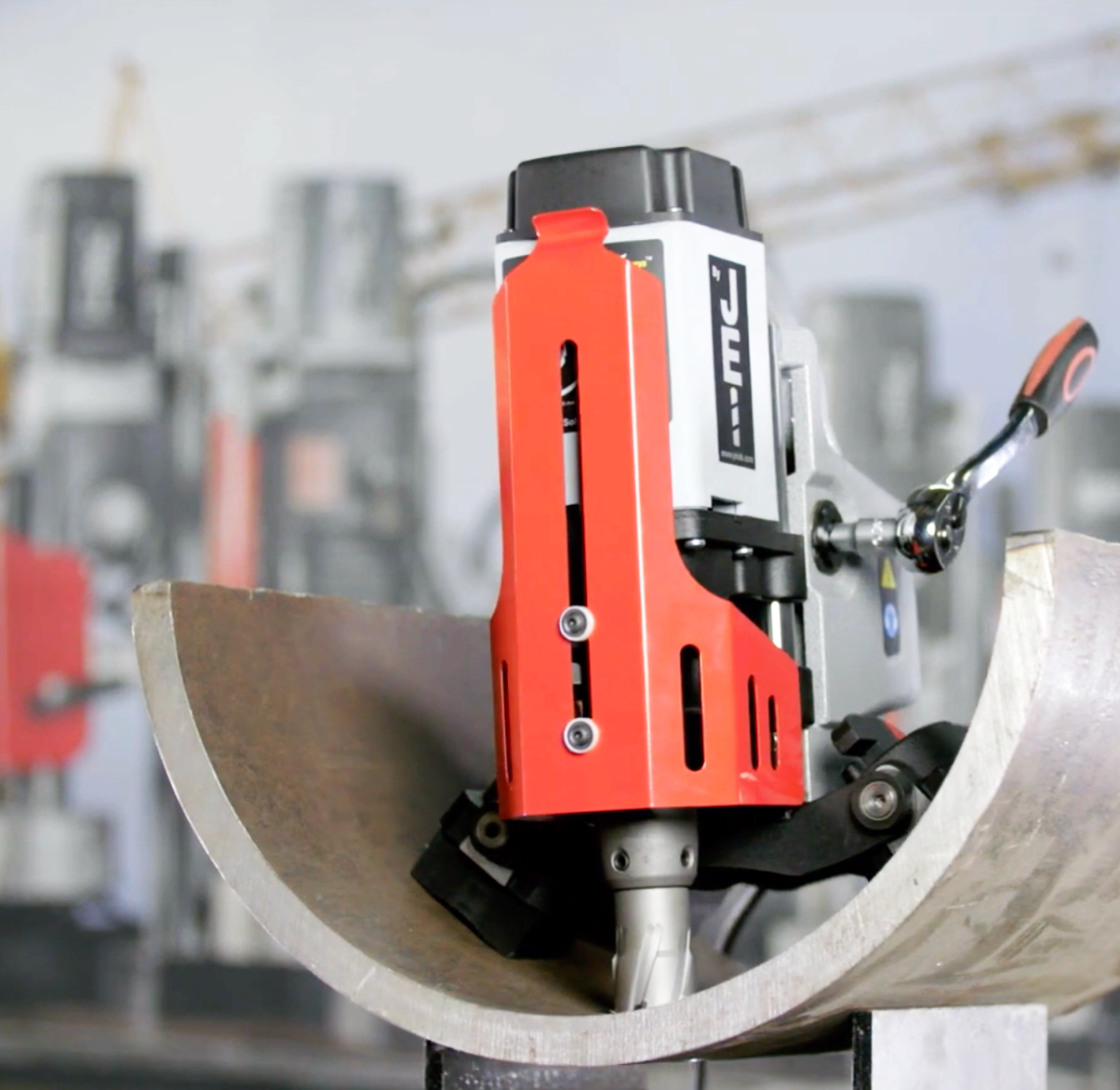

  • Holds onto pipes with an inside radius of ØR500 mm.
  • Compact size and weight - ideal for site work.
  • Internal coolant reservoir - ensuring maximum cutter life.
  • Self correcting slide rails - for maintenance free operation.
  • Light-weight - only 15kg.
  • Hidden motor cable - for added protection.

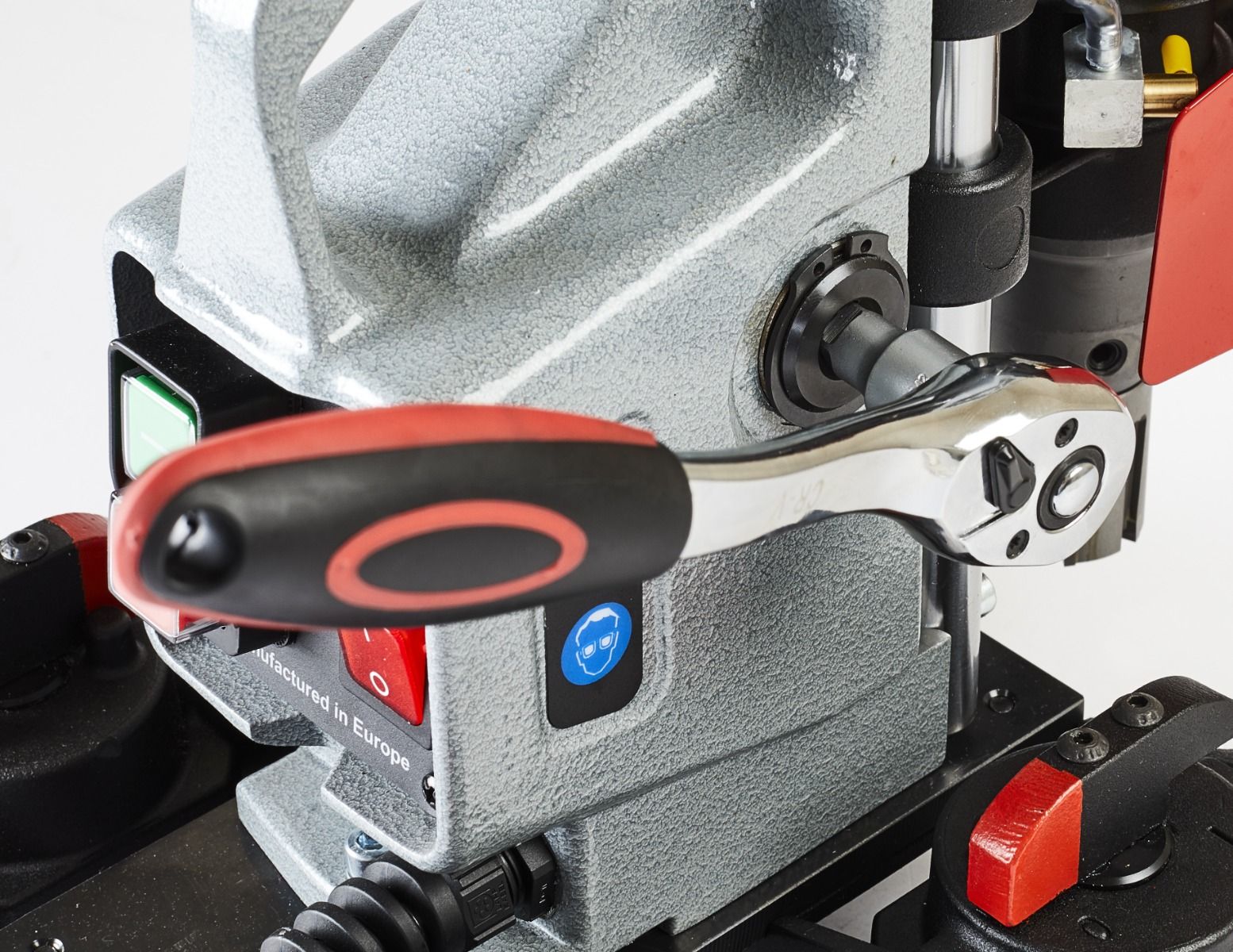

  • Detachable feed ratchet handle.
In stock
SKU
DRILL-MB-CVE


The MiniBeast™ Curve is designed to cut holes in steel pipes, convex and concave surfaces, without the need for additional clamping attachments.

MiniBeast™ Curve SPECIFICATIONS


Model MiniBeast™ Curve
Cutter Capacity 35 mm Ø x 35 mm Depth
Magnetic Base Dimensions 250 x 230 mm
Magnet Deadlift 600 kg on 1” Plate (6000 N)
Min. Pipe Diameter (Inside) 1000 mm Ø
MIn. Pipe Diameter (Outside) 300 mm Ø
Max Stroke 55 mm
Min. Radius R 500
Minimum Workpiece Thickness 10 mm
Height Min/Max 315 / 390 mm
Length / Width 300/245 mm
Shipping Dimensions 110 V – DRILL-MBCP/1 ~ 240 V – DRILL-MBCP/2
Weight with 4.0Ah Battery 15 kg
