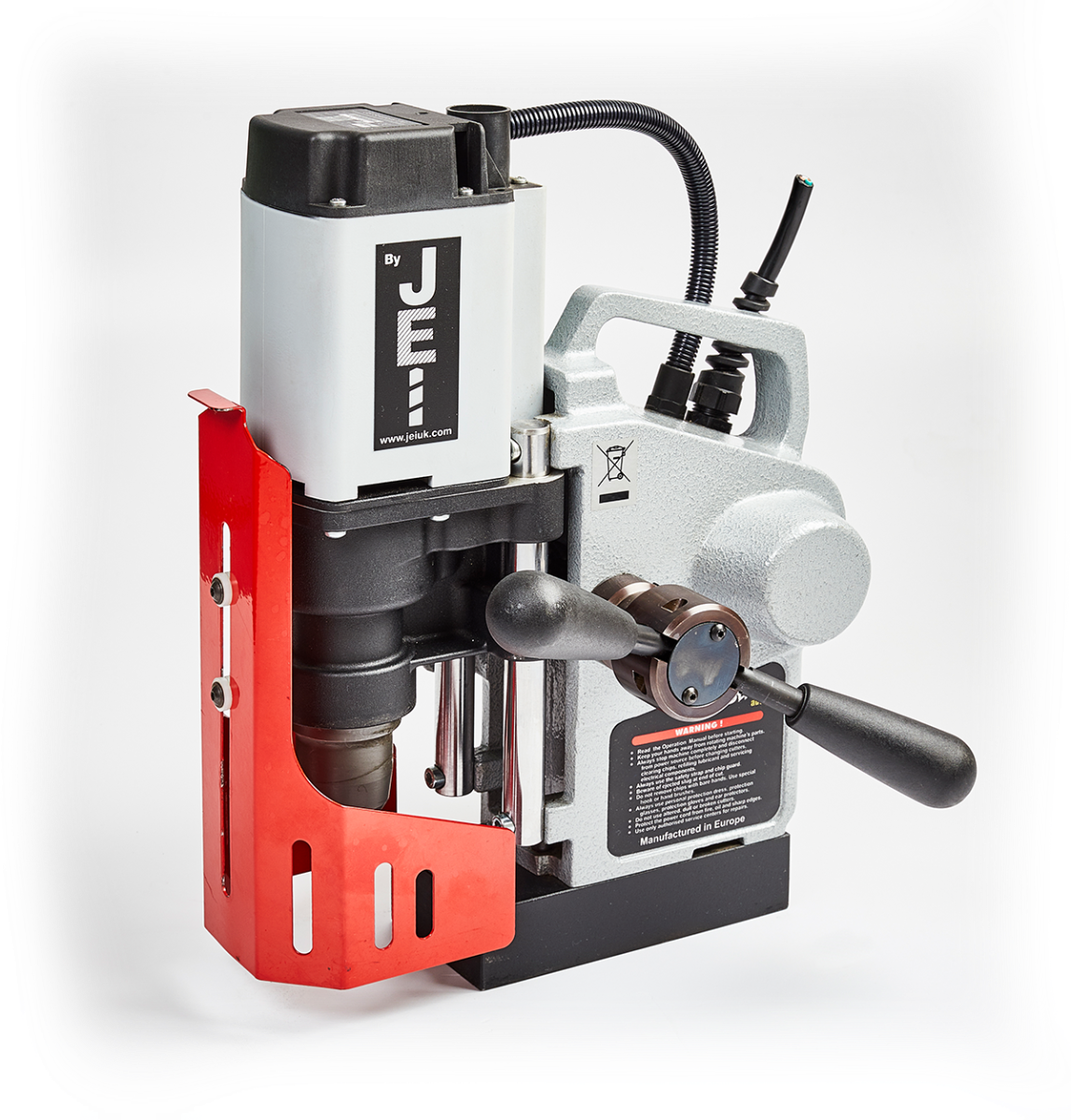

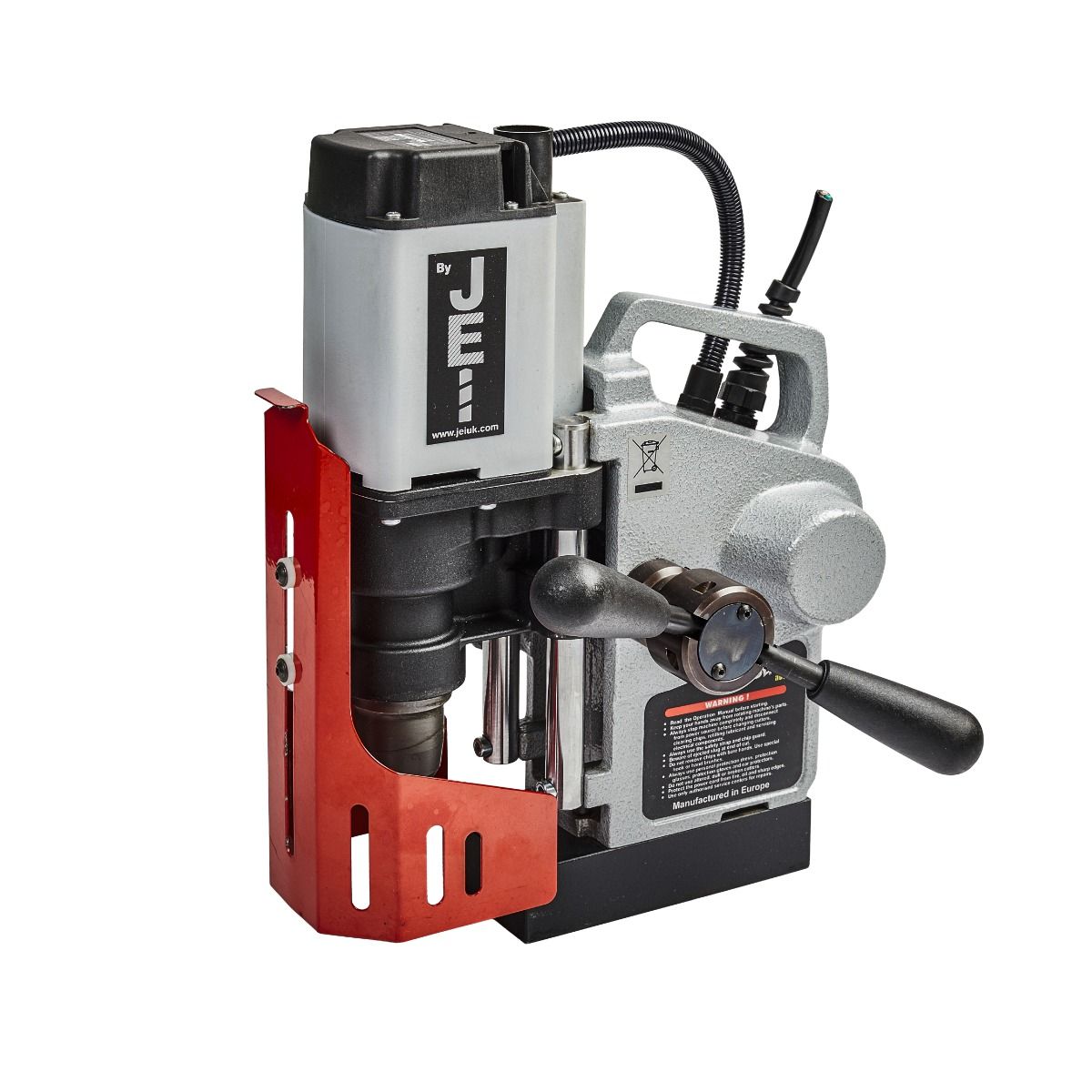

MiniBeast™ Auto


  • 10-35mm Core Drilling
  • Counterskin-30

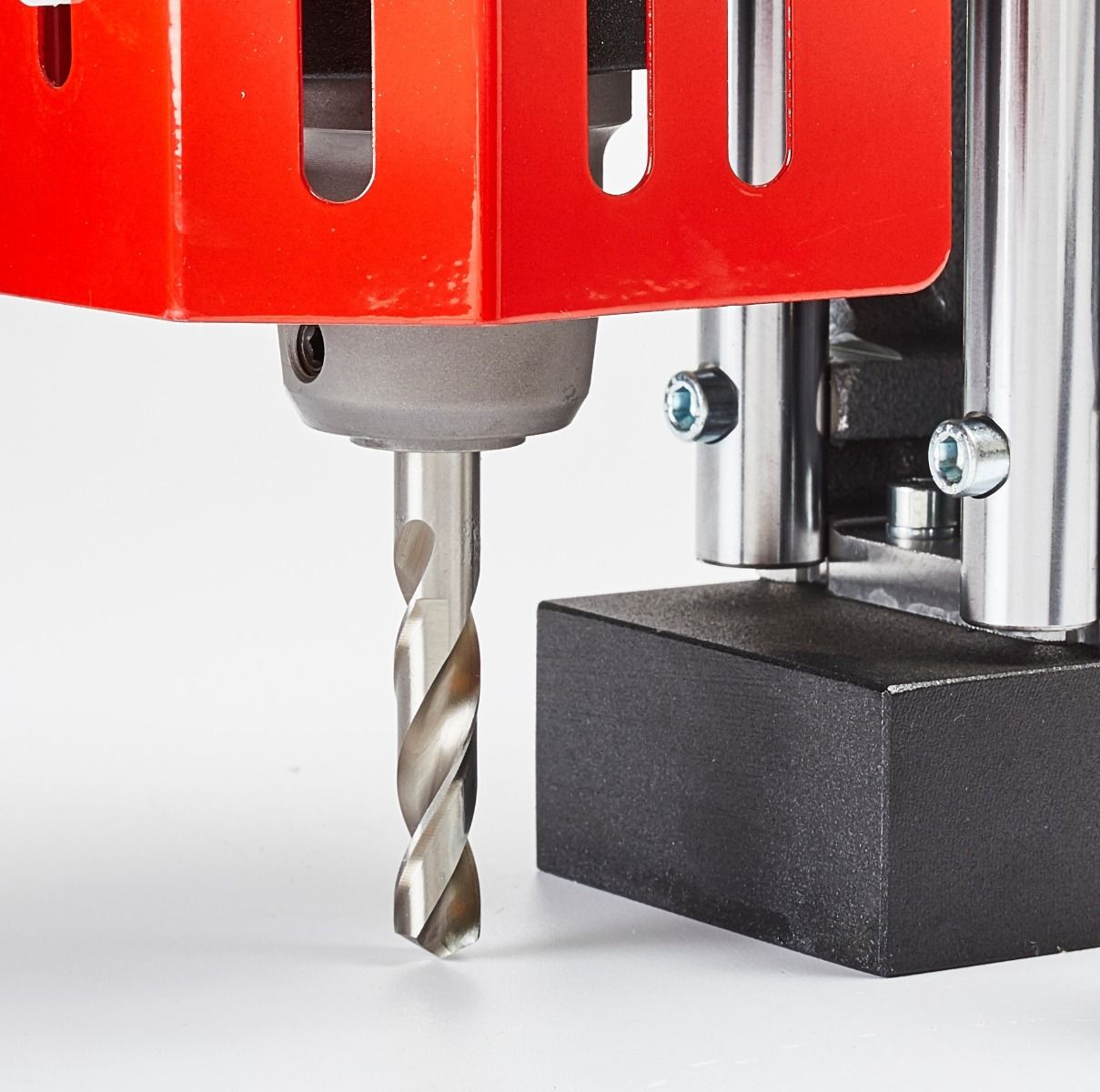

  • Twist Drill 12mm

The world's smallest Automatic Magnetic Drilling Machine with all the Features of the MiniBeast™️.

  • Compact size and weight - ideal for site work.

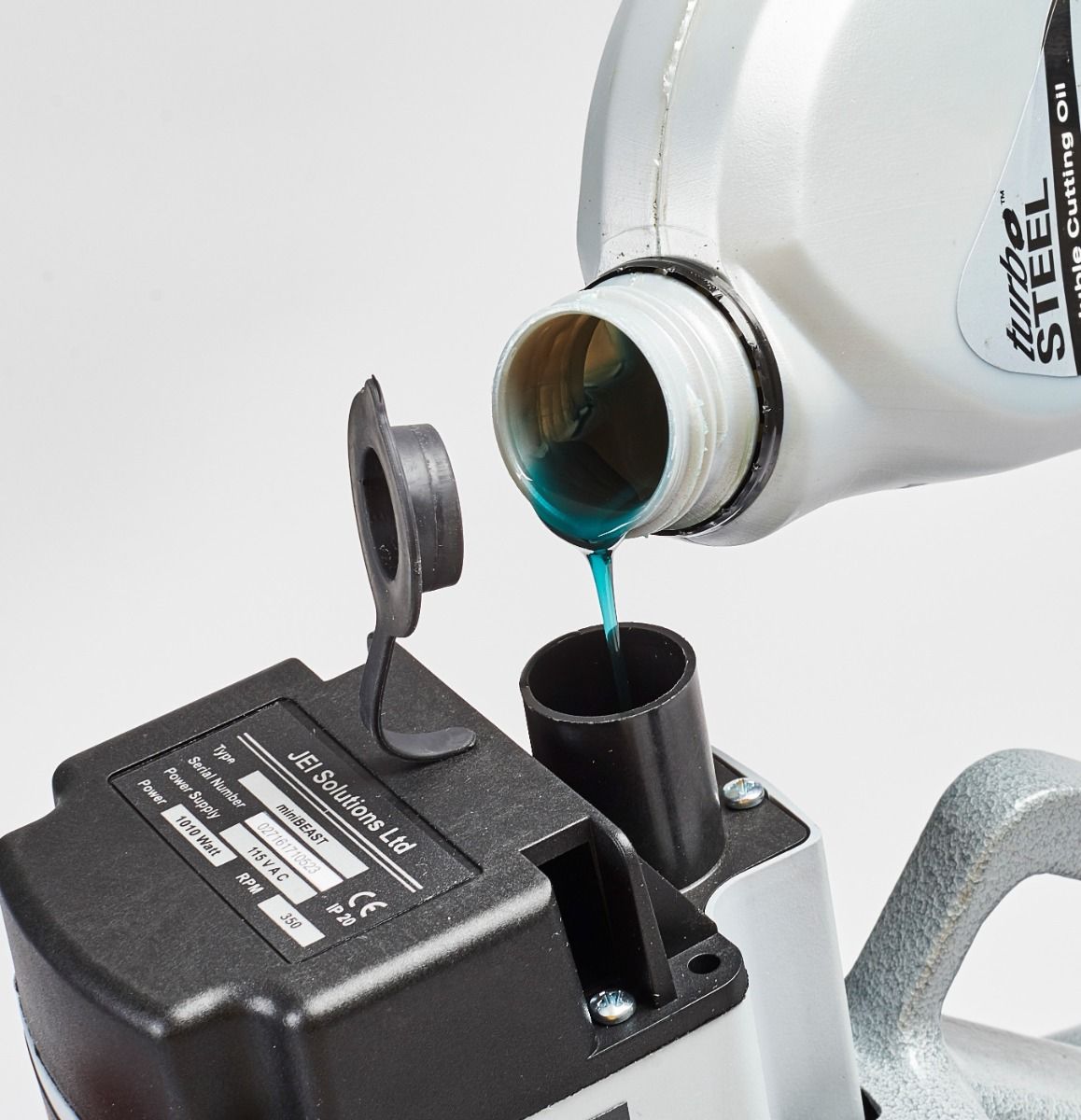

  • Internal coolant reservoir - ensuring maximum cutter life.
  • Self correcting slide rails - for maintenance free operation.
  • Lightweight - only 13kg.
  • Easier operation – lets the machine control the task.
  • Increased productivity – one operator can control several machines at one time.
  • Improved tool life – let the machine do the cutting. More holes per tool with better hole results.
  • Protects against misuse of machine and wearing parts – no manual overloading of the motor.
  • Longer overall life of the machine.
In stock
SKU
MiniBeast™ Auto


The MiniBeast™ Auto is ideal for high production environments, cutting more holes in less time. Easy, maintenance-free operation means this can control the task for greater productivity.

MiniBeast™ Auto SPECIFICATIONS


Model MiniBeast™ Auto
Countersink Capacity 30 mm
Cutter Capacity 35 mm Ø x 2" depth of cut
Magnetic Base Dimensions 160 mm x 80 mm
Magnet Deadlift 980 kg on 1" Plate (9600 N)
Twist Drill Capacity 12 mm Ø with optional twist drills
Motor 1010 W
Spindle 19 mm
Height Min/Max 307 / 377
Length / Width 285 mm/221mm
RPM 1 Fixed Speed (no load 520 RPM, loaded 350 RPM)
Noise Level < 90dB
Vibration Level < 2.5 m/s2
Voltage / Part No. 110v PartNo Drill 19041/A - 240v PartNo Drill 19042/A
Shipping Weight (Incl. 4.0Ah Battery) 19.10 kg
Shipping Dimensions 360 x 350 x 260 mm
Weight with 4.0Ah Battery 13kg
