MAGSLOT™ 20XY

DUAL-AXIS PORTABLE MAGNETIC MILLING MACHINE

A unique solution for slot milling and hole elongation in steel, the MAGSLOT™ 20XY is engineered for applications where precision, flexibility, and on-site capability are essential. With dual-axis feed (X & Y), this machine allows controlled milling in multiple directions — making complex steel modifications faster, easier, and more accurate.

  • Dual-axis feed, allowing 115 mm of milling travel per operation in both axis. With patented slide rails to ensure minimal vibration and steady cut.
  • Weighs only 24 kg. Making it portable and convenient to bring to the workpiece in any position.
  • Integrally fixed Milling collet chuck (size ER32). Conveniently accepts end mills between M3-M20 Ø.
  • Optional additional 19 mm shank Annular broach cutter holder. Converts machine to a magnetic drill to cut round holes up to 40 mm Ø.
  • Lockable downward motor slide. Fixes the milling tool to desired depth.
In stock
SKU
JEI-MAGSL/XY

DOWNLOADS:

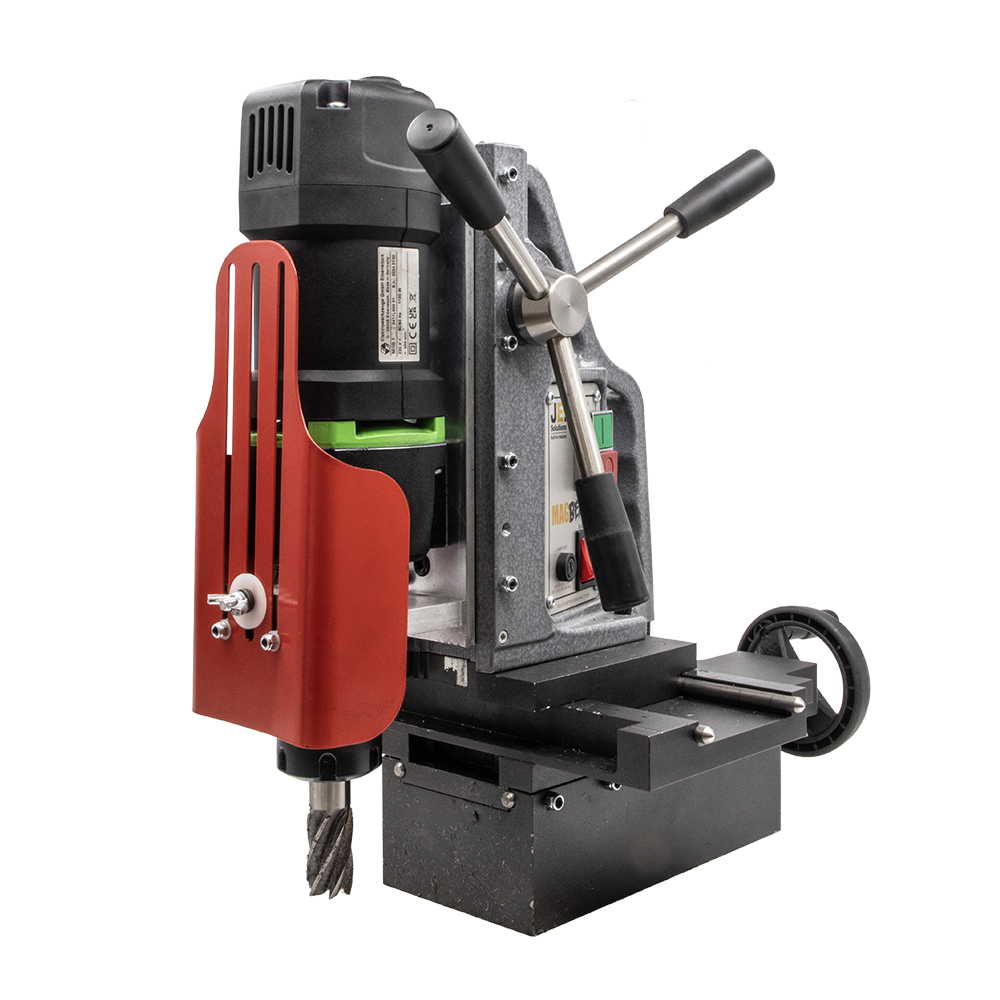

main product photo
The Magslot™ 20XY by JEI is a unique, cutting-edge, compact, and lightweight tool that allows you to easily create slots and elongate holes in steel in both X and Y axis. Weighing in at only 24 kg means it is portable and can be taken to the workpiece, magnetised into position, and used quickly and efficiently to make light work of difficult tasks.

MAGSLOT™ 20XY SPECIFICATIONS

Model MAGSLOT 20XY
Weight 24 Kg
Motor 1100W
RPM 720 RPM (no load) 450 RPM (with load)
Length / Width 420 mm x 70 mm (including Spoke handles)
Magnet Deadlift 2500 kg on 1" Plate
Vibration Level < 2.5 m/s2
Endmill Cutter Range M3 - M20
Milling Chuck Type ER32
Maximum Horizontal (Slot) Feed in One Pass 115 mm
Maximum Vertical Travel 190 mm
Maximum Core Cutter Capacity* (Optional Extra) 20 mm Ø
