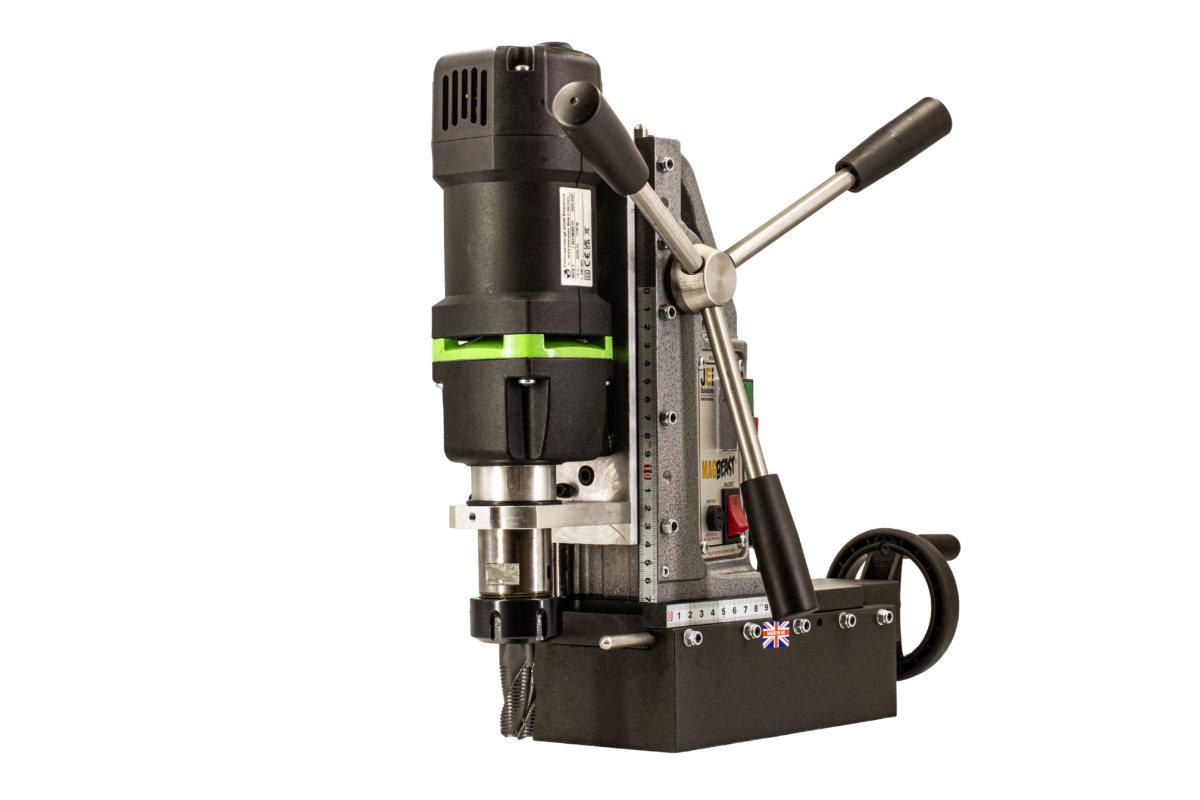

MAGSLOT™ 20X

PORTABLE MAGNETIC MILLING MACHINE

A unique solution for Milling holes in steel, on site, or in the workplace

  • Horizontal Single-axis feed, allowing 90 mm of milling travel per operation. With patented slide rails to ensure minimal vibration and steady cut.
  • Weighs only 20kg. Making it portable and convenient to bring to the workpiece in any position.
  • Integrally fixed Milling collet chuck (size ER32). Conveniently accepts end mills between M3-M20 Ø.
  • Optional additional 19 mm shank Annular broach cutter holder. Converts machine to a magnetic drill to cut round holes up to 40 mm Ø.
  • Lockable downward motor slide. Fixes the milling tool to desired depth.
In stock
SKU
JEI-MAGSL

DOWNLOADS:

Product Brochure

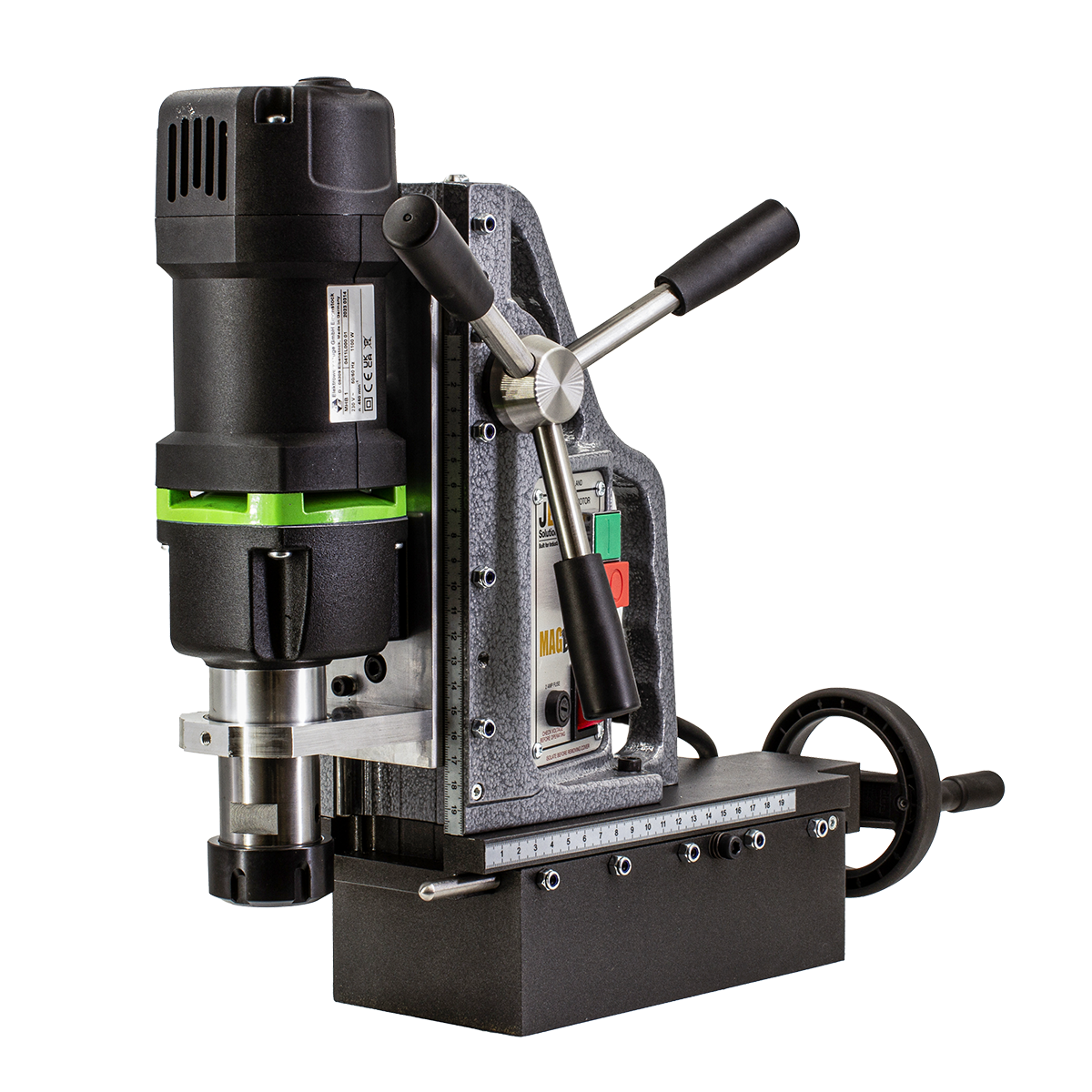

main product photo
The Magslot™ 20X by JEI is a unique, cutting-edge, compact, and lightweight tool that allows you to easily create slots and elongate holes in steel. Weighing in at only 20 kg means it is portable and can be taken to the workpiece, magnetised into position, and used quickly and efficiently to make light work of difficult tasks.

MAGSLOT™ 20X SPECIFICATIONS

Model MAGSLOT 20X
Endmill Cutter Range M3 - M20
Magnet Deadlift 2500 kg on 1" Plate
Motor 1100W
Length / Width 420 mm x 70 mm (including Spoke handles)
RPM 720 RPM (no load) 450 RPM (with load)
Milling Chuck Type ER32
Maximum Horizontal (Slot) Feed in One Pass 90 mm
Maximum Vertical Travel 190 mm
Maximum Core Cutter Capacity* (Optional Extra) 40 mm Ø
Vibration Level < 2.5 m/s2
Weight with 4.0Ah Battery 20 Kg
