MagBeast® Ultra Low Profile


  • 10-35mm Core Drilling
  • Counterskin-30

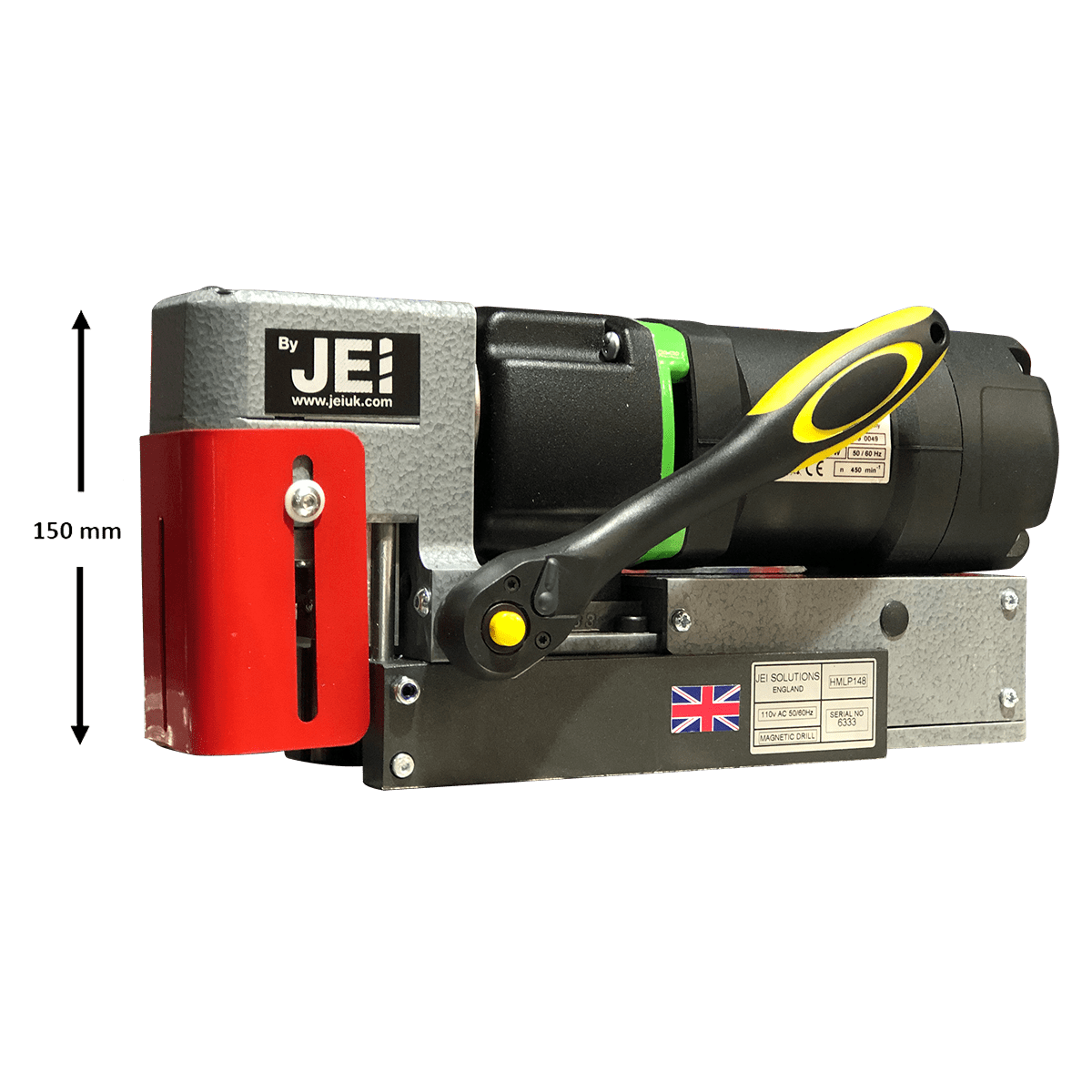

The World’s Lowest Height Compact Drilling Machine Designed To Fit Into The Most Height Restrictive Areas, Only 150 Mm Working Height

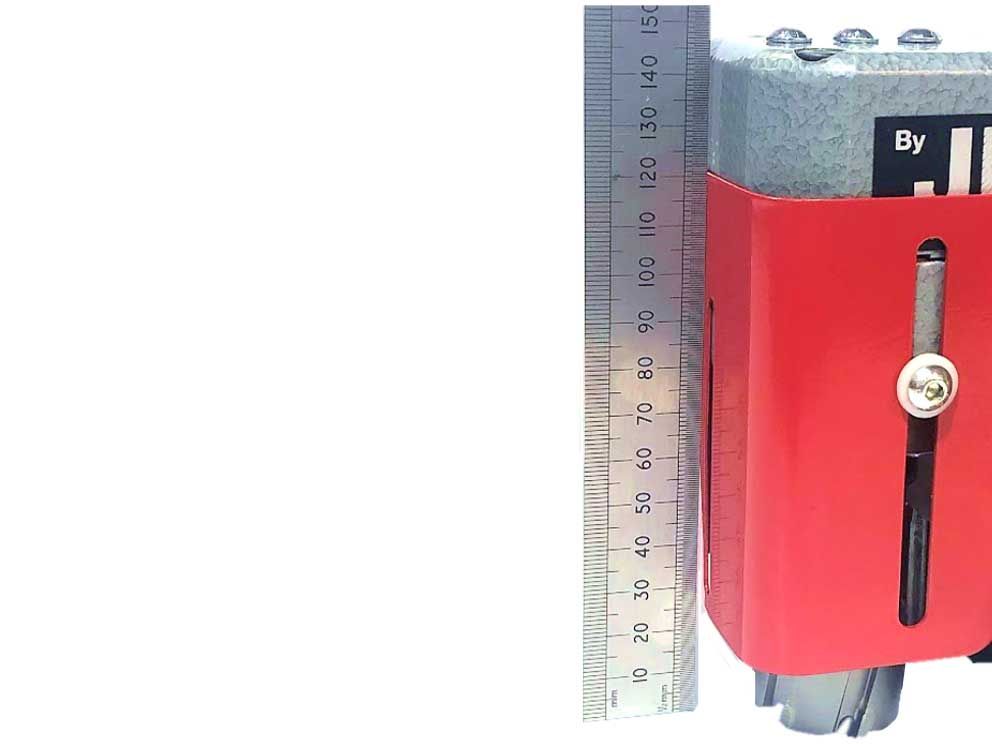

  • Ultra low design to fit into the most height restrictive areas – only 150 mm high.
  • Capacity – will handle up to 35 mm diameter holes through 35 mm plate.

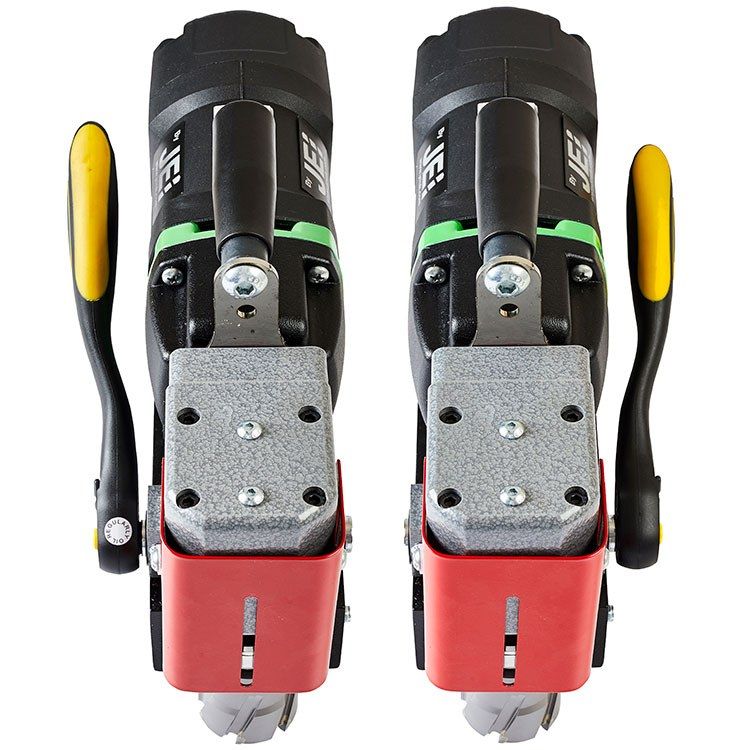

  • Convenient ratchet handle can be used in either a left or right hand position.
  • Maintenance free – no adjustable slides, no exposed motor cord.
  • Ideal for bridge maintenance work & repairs, platform drilling, steel construction.
Out of stock
SKU
DRILL-MAGBEAST-ULP


The Ultra Low Profile is designed to fit into the most height restrictive areas at only 150mm high. Small in stature but not in power, this drill will handle up to 35mm diameter holes through 35mm plates.

MagBeast® Ultra Low Profile SPECIFICATIONS


Model Ultra Low Profile
Countersink Capacity 30 mm
Cutter Capacity 35 mm Ø x 35 mm depth of cut
Magnetic Base Dimensions 184 x 85 mm
Magnet Deadlift 1000 kg on 1” Plate (9800 N)
No of Geared Speeds 1 Fixed Speed
Motor 1100 W
Spindle 19 mm
Height Min/Max 150 mm
Length / Width 320 x 120 mm
RPM no load 500 RPM loaded 290 RPM
Noise Level < 90dB
Vibration Level < 2.5 m/s2
Voltage / Part No. 110 V – DRILL-ULP35/1 ~ 240 V – DRILL-ULP35/2
Shipping Weight (Incl. 4.0Ah Battery) 13 kg
Shipping Dimensions 360 x 350 x 260 mm
Weight with 4.0Ah Battery 9kg
