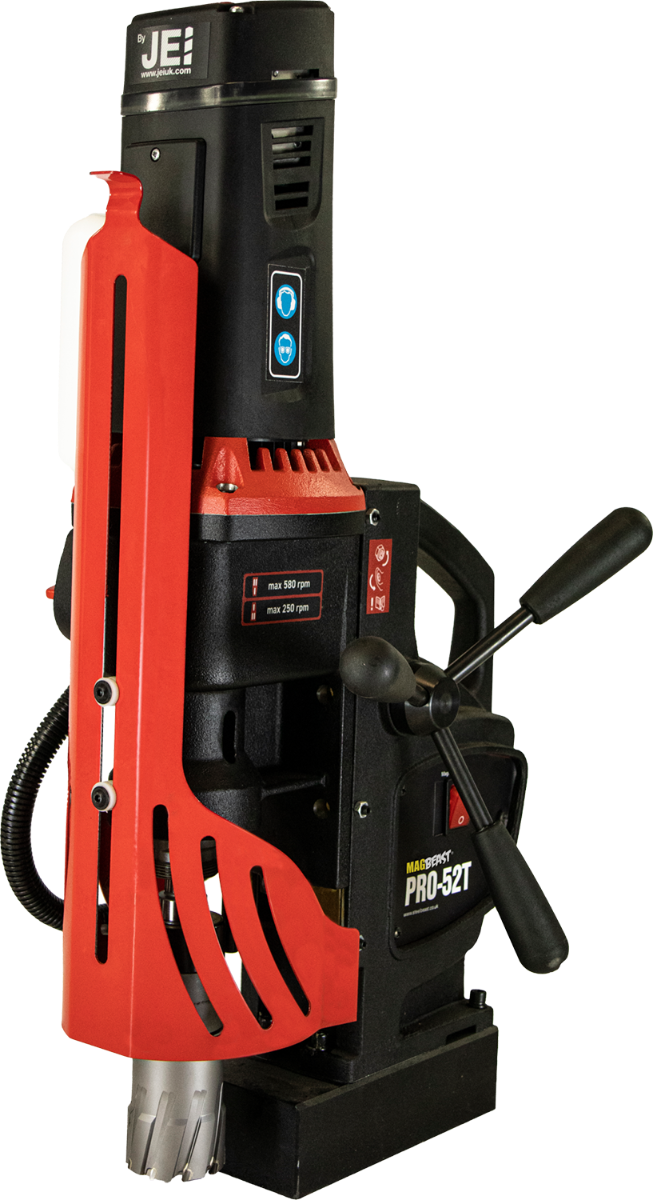

Magbeast Premium PRO-52T


  • 10-50mm Core Drilling
  • Countersink 40
  • Twist Drill 23mm
  • 22mm Reaming
  • M20 Tapping Capacity

UNIVERSAL TAPPING AND DRILLING MACHINE

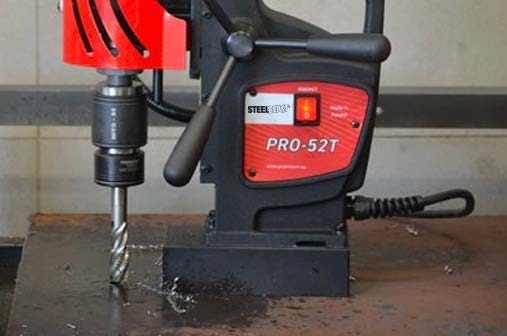

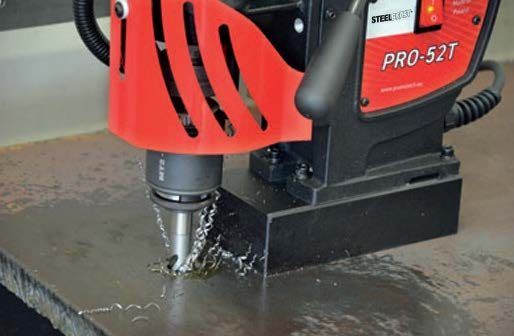

The PRO-52T is a powerful, universal tapping and drilling machine suitable for hole cutting and tapping applications. Features a powerful 1600 W variable speed motor enabling milling capacity up to 50 mm (2”) and drilling capacity up to 23 mm (7/8”).

  • 1600 W powerful motor.

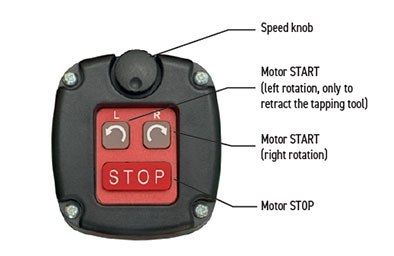

  • Intelligent speed control system.
  • Both overload and overheat protection.
  • Heavy duty 2-speed gearbox.
  • Tilt sensor.
  • 360-degree visual monitoring system.
  • Large coolant container.
In stock
SKU
DRILL-MAGBEAST-PRO-52T

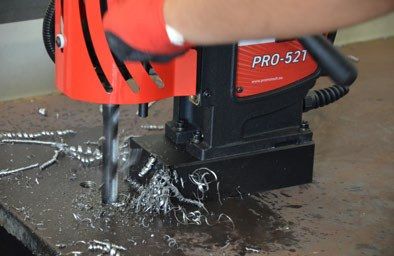

The Magbeast Premium PRO-52T drilling machine is suitable for hole cutting and tapping applications. Powerful 1600W variable speed motor enables cutting capacity up to 50mm (2”) and twist drill capacity up to 23 mm (7/8”).

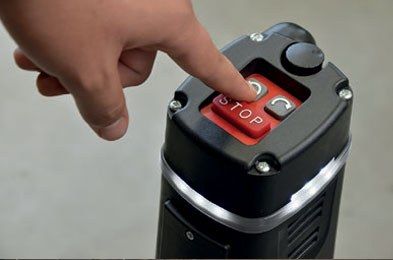

Machine’s forward & reverse work modes allow thread cutting up to M20 with a new tapping system.

Magbeast Premium PRO-52T SPECIFICATIONS


Model PRO-52T

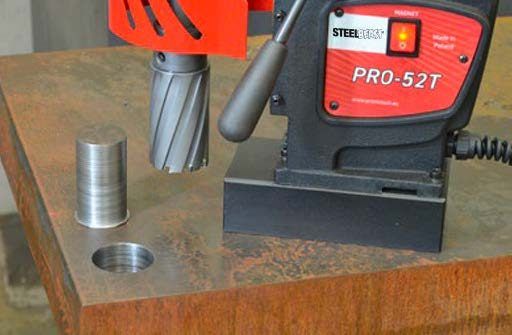

Cutter Capacity 50 mm (2")
Magnetic Base Dimensions 90 mm x 180 mm x 48 mm 3-9/16" x 7" x 1-7/8"
Magnet Deadlift 1122 kG (11,000 N)
Maximum Depth of Cut 75 mm (3")
Max Stroke 190 mm (7-1/2")
Minimum Workpiece Thickness 8 mm (5/16)
Twist Drill Capacity 23 mm (7/8")
Tapping Capacity M20 (3/4")
Motor 1600 W
Spindle MT2
Rotational Speed With Load (1) 160-250 rpm (2) 390-580 rpm
Tool Holder 19 mm (3/4") Weldon
Voltage / Part No. 110-120 V, 50-60 Hz / DRILL-PRO52T/1
220-240 V, 50-60 Hz / DRILL-PRO52T/2
Weight with 4.0Ah Battery 17kg
