Magbeast Premium PRO-122T

  • 10-120mm Core Drilling
  • Countersink 60mm
  • Twist Drill 3175mm
  • 39mm Reaming
  • M30 Tapping Capacity
In stock
SKU
DRILL-PRO-122T

DOWNLOADS:

Product Brochure
Manual
Spare Parts

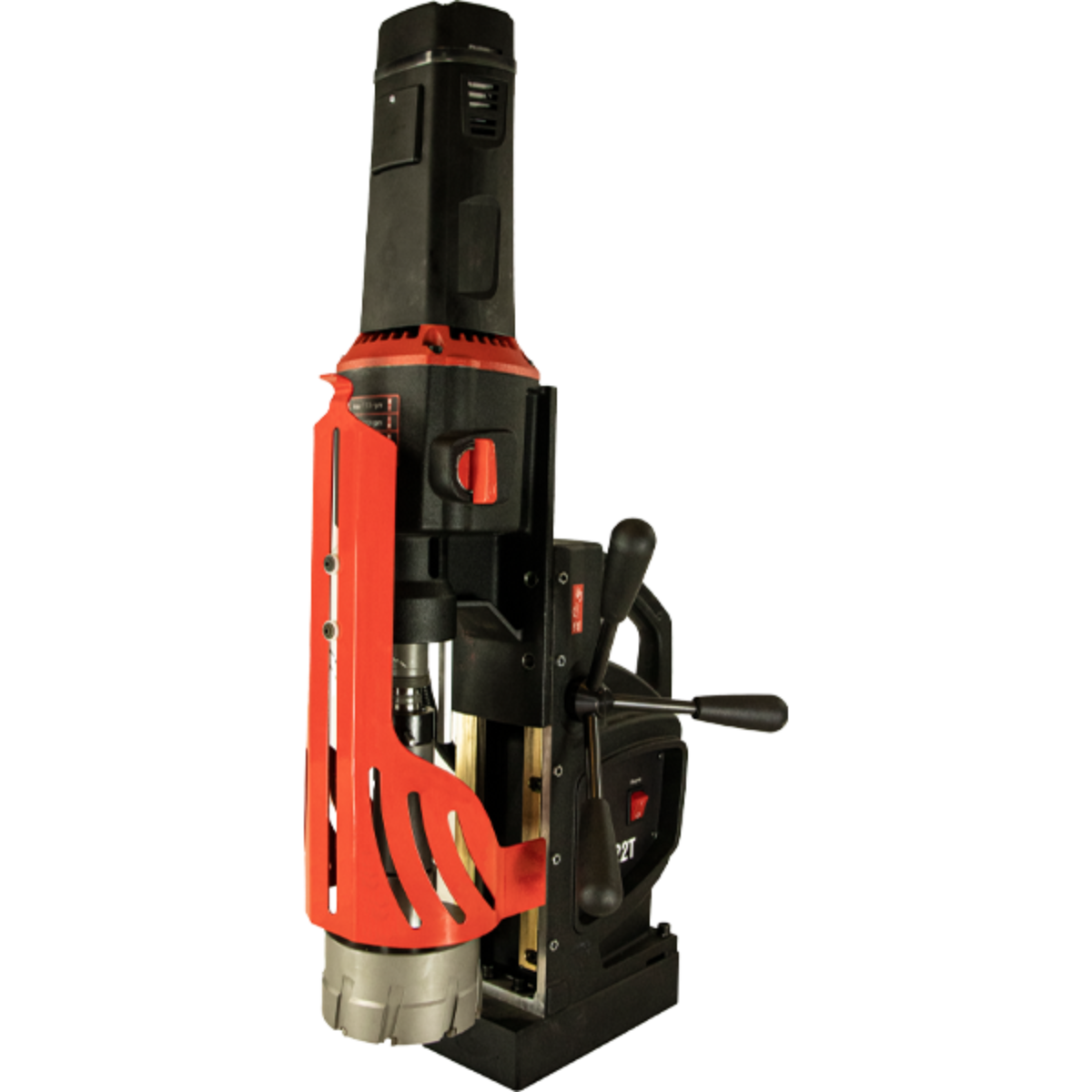

main product photo

Why the Magbeast Premium PRO-122T?

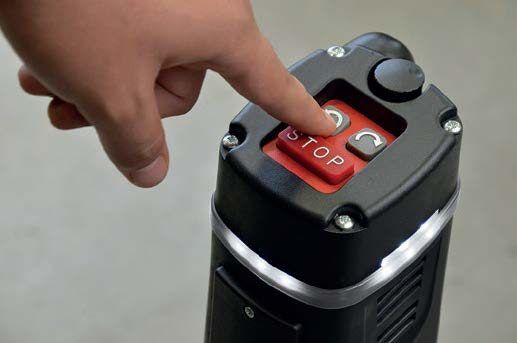

Intuitive control panel at top of the drill

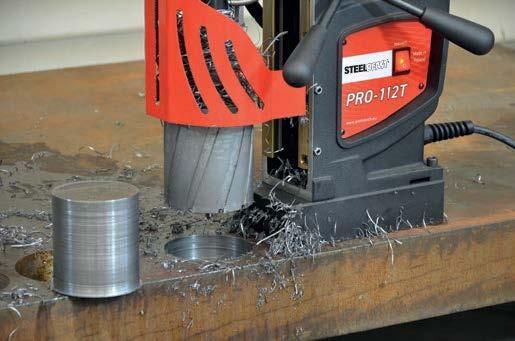

Cutter capacity up to 120 mm (4.72”) Max depth of cut up to 100 mm (4”)

Counterclockwise (CCW) rotation User-friendly control of tapping tool release

Through hole tapping up to M30

Magbeast Premium PRO-122T SPECIFICATIONS

Model Magbeast Premium PRO-122T
Cutter Capacity 120 mm (4.72")*
Magnetic Base Dimensions 110 mm x 220 mm x 50 mm | 4.3" x 8.7" x 2"
Magnetic Clamping Force 1835 kG (18,000 N)
Maximum Depth of Cut 100 mm (4")
Max Stroke 225 mm (9")
Minimum Workpiece Thickness 10 mm (3/8")
Twist Drill Capacity 31.75 mm (1-1/4")
Tapping Capacity M30 (1-1/4")
Spindle MT3
Tool Holder 19 mm (3/4") or 32 mm (1-1/4") Weldon
Voltage / Part No. 1~ 220-240 V, 50-60 Hz
1~ 110-120 V, 50-60 Hz
Weight with 4.0Ah Battery 25kg
