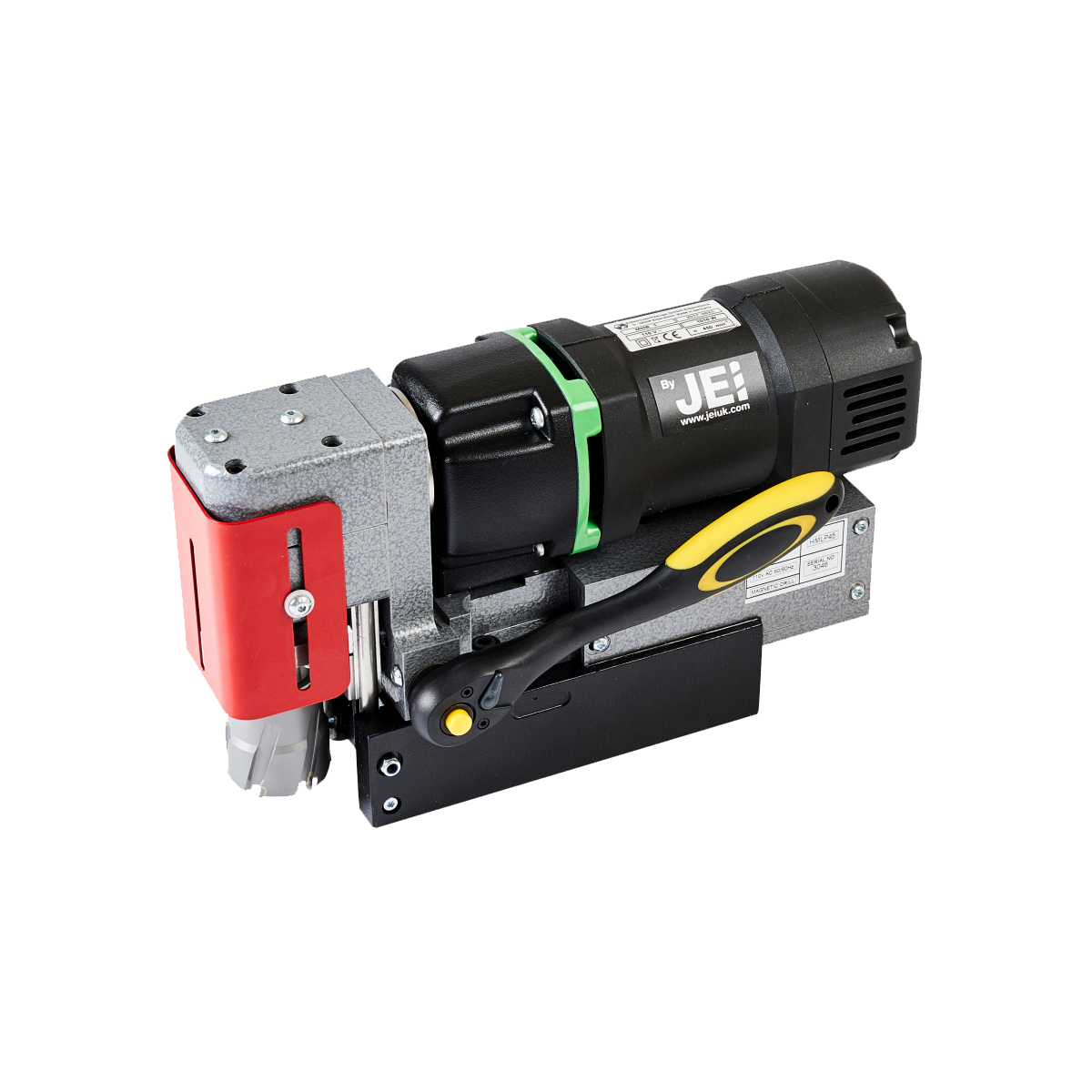

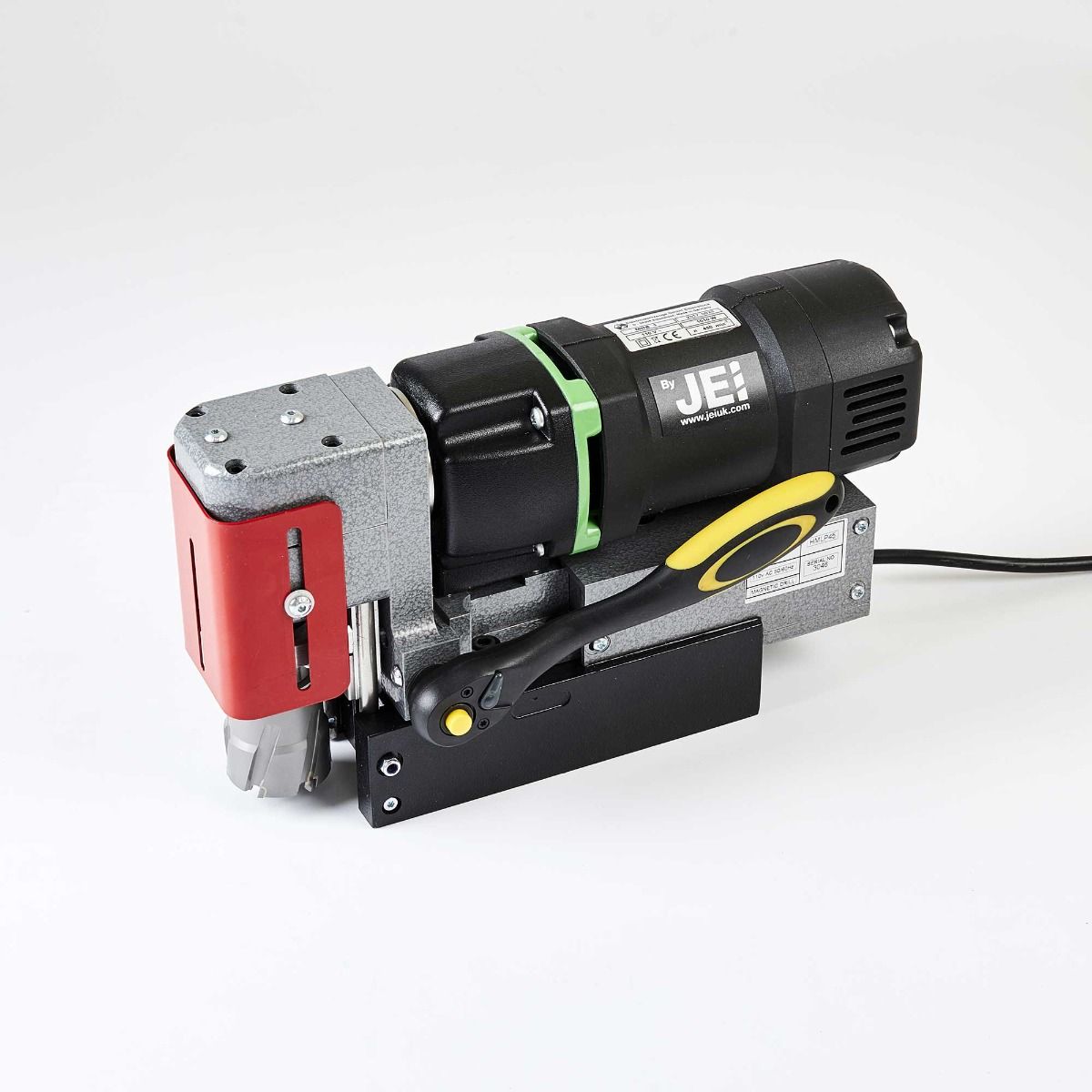

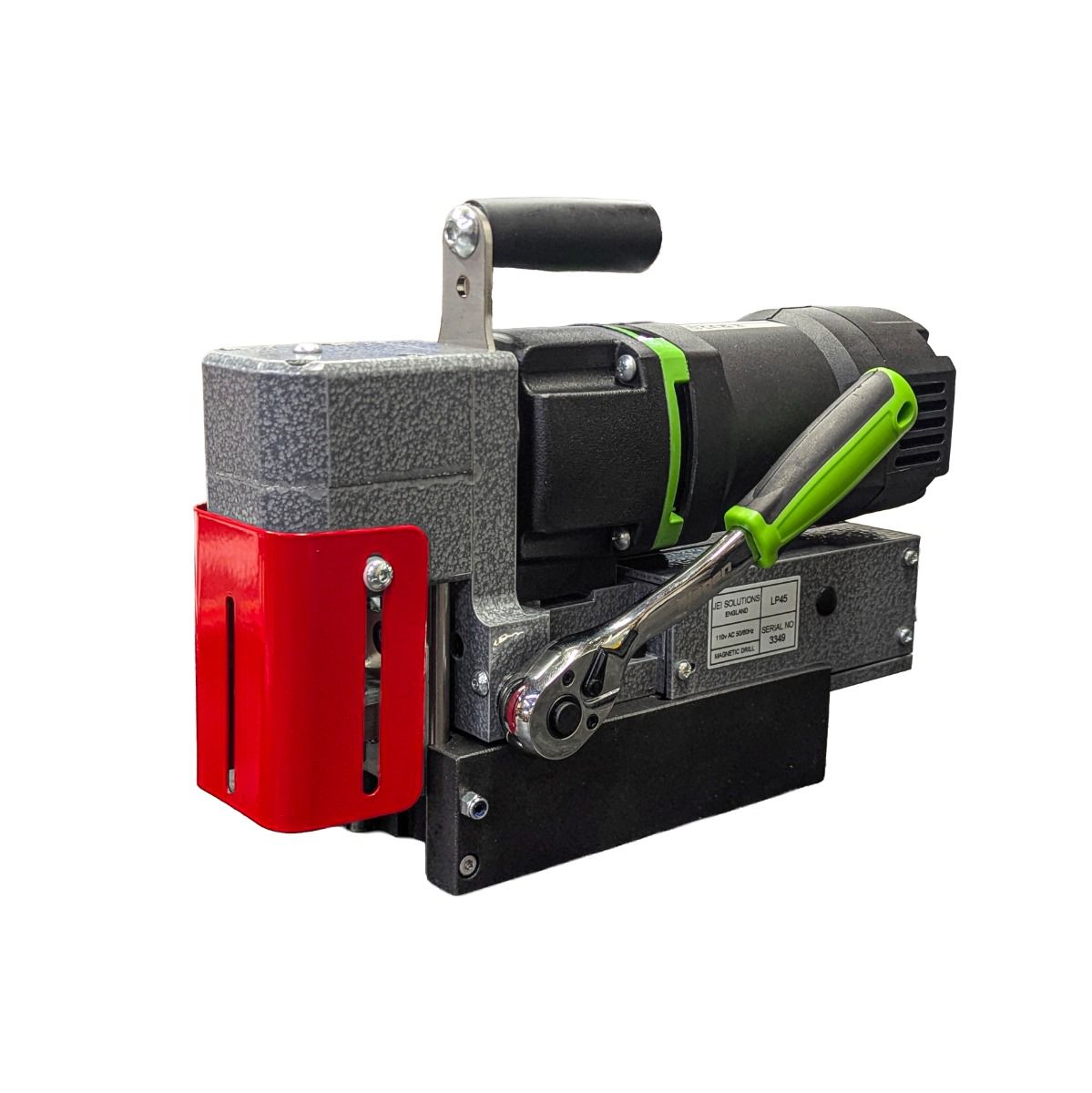

MagBeast® LP45

Designed to fit into the most height restrictive areas

Compact design – only 180 mm high.
Big capacity – will handle up to 45 mm diameter holes through 50 mm plate.
Convenient ratchet handle can be used in either a left or right hand position.

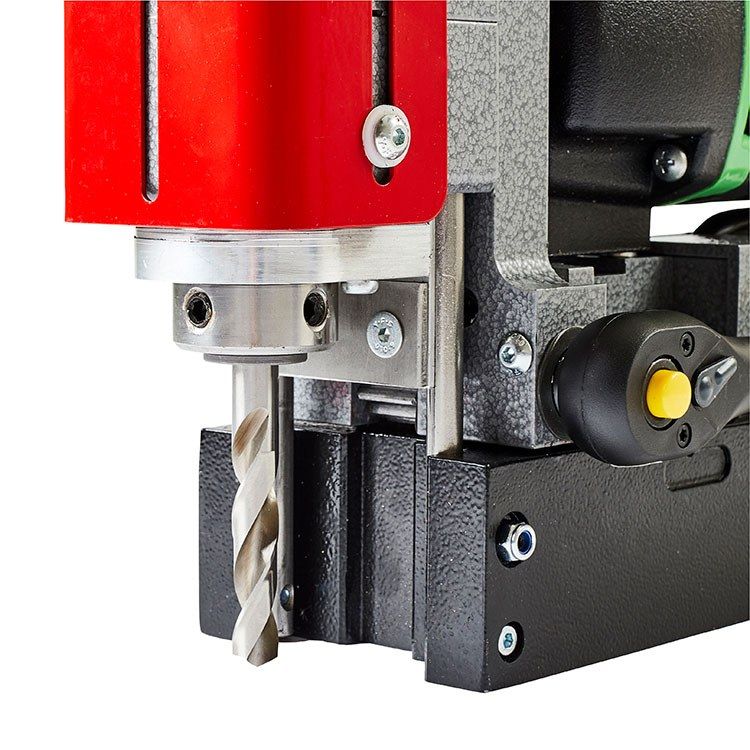

12 mm twist drill capacity.
Maintenance free – no adjustable slides, no exposed motor cord.
Can be used with 13mm chuck and adaptor set (JEICA-13MM/19).
Ideal for bridge maintenance work & repairs, platform drilling, steel construction

In stock

SKU

DRILL-MAGBEAST-LP45

DOWNLOADS:

The LP45 is designed to fit into the most height restrictive areas at only 180mm high. Small in stature but not in power, this drill will handle up to 45mm diameter holes through 50mm plates.

Why the MagBeast® LP45?

Compact, only 180mm height

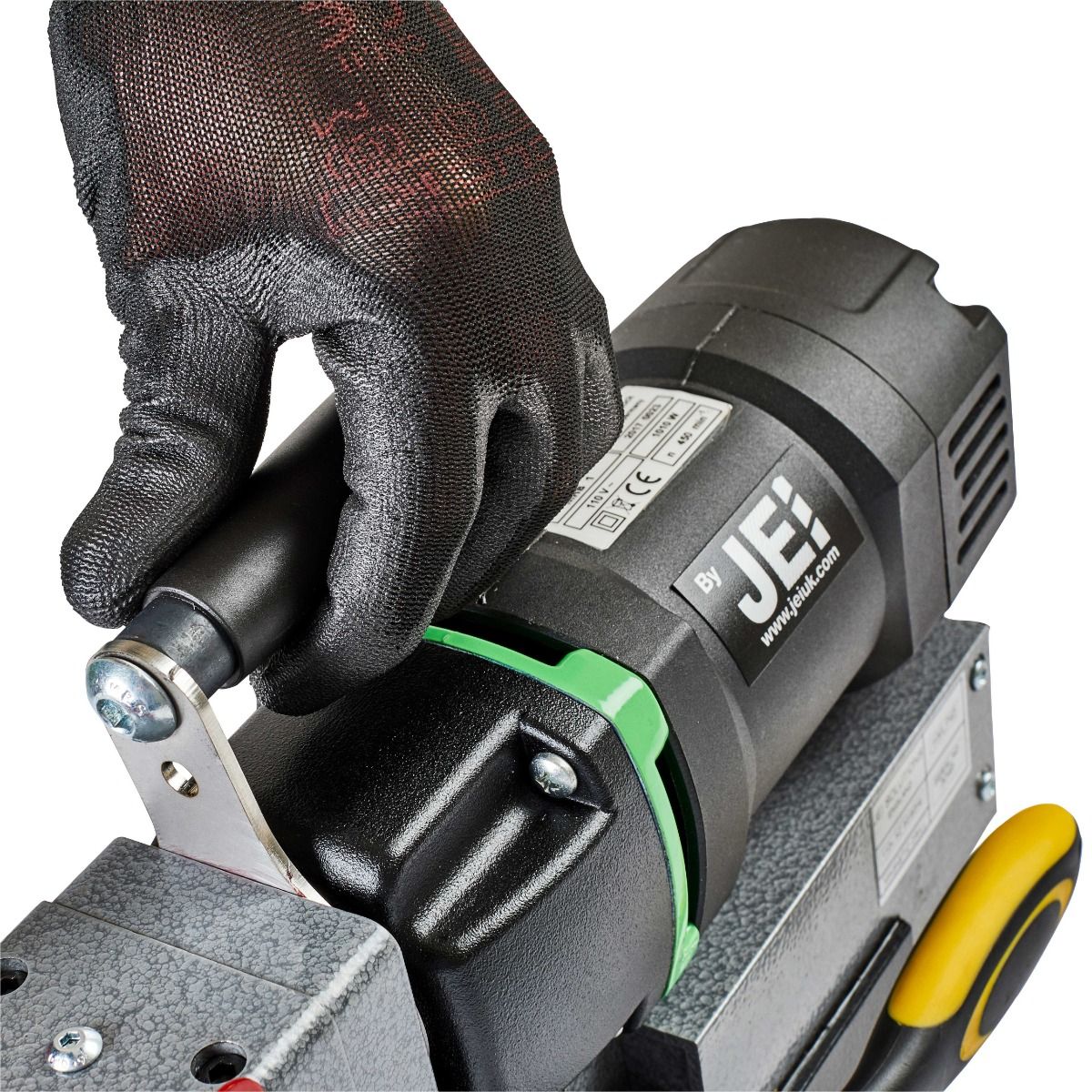

Convenient carry handle

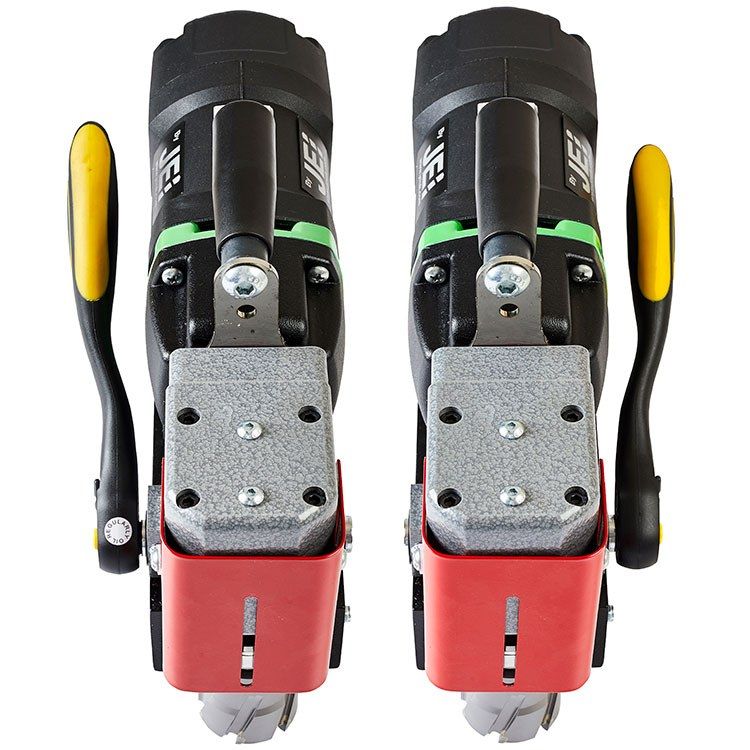

Ratchet handle for left or right sided operation

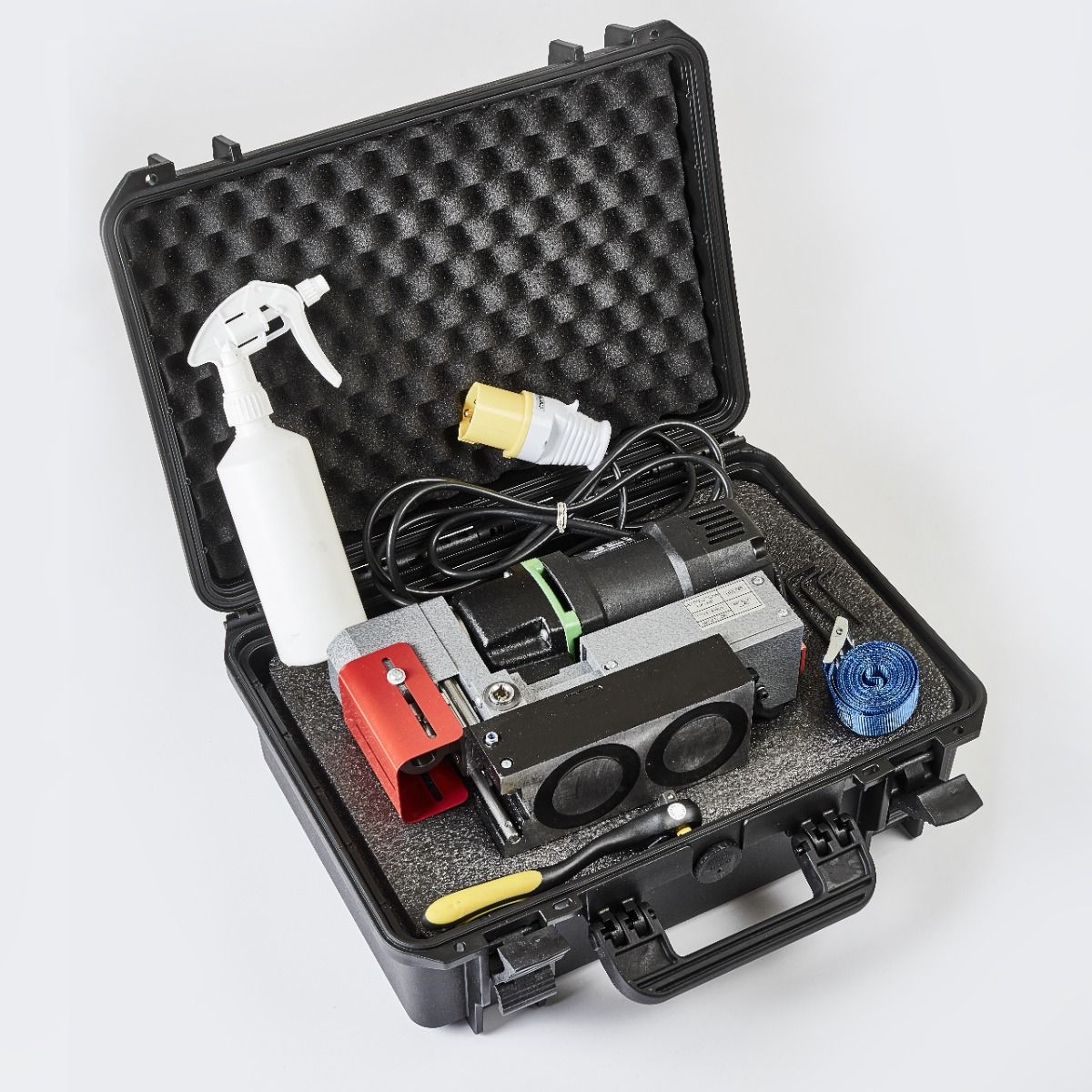

Heavy Duty Plastic Carry Case

Will accept Twist Drills fitted with a 19 mm shank head

Capacity to cut up to 50 mm depth of cut

MagBeast® LP45 SPECIFICATIONS

Model	LP45
Countersink Capacity	30 mm
Cutter Capacity	45 mm Ø x 2” depth of cut
Magnetic Base Dimensions	183 x 85 mm
Magnet Deadlift	1200 kg on 1” Plate (11700 N)
No of Geared Speeds	1 Fixed Speed
Twist Drill Capacity	12 mm Ø with optional Turbo™ Twist drills
Motor	1010 W
Spindle	19 mm
Height Min/Max	180 mm
Length / Width	310 x 120 mm
RPM	No load 500 RPM loaded 290 RPM
Noise Level	< 90dB
Vibration Level	< 2.5 m/s2
Voltage / Part No.	110 V – DRILL-LP45/1 ~ 240 V – DRILL-LP45/2
Shipping Weight (Incl. 4.0Ah Battery)	15 kg
Shipping Dimensions	360 x 350 x 260 mm
Weight with 4.0Ah Battery	11 kg
