MagBeast® HM50T

A heavy duty 2 morse taper drilling machine, Featuring variable speed and reverse function

Variable speed, high torque motor. Ideal for countersinking and reaming.
Reverse speed motor ideal for threading (tapping) holes.
Lightweight. Only 14kg yet can cut up to 50 mm diameter.

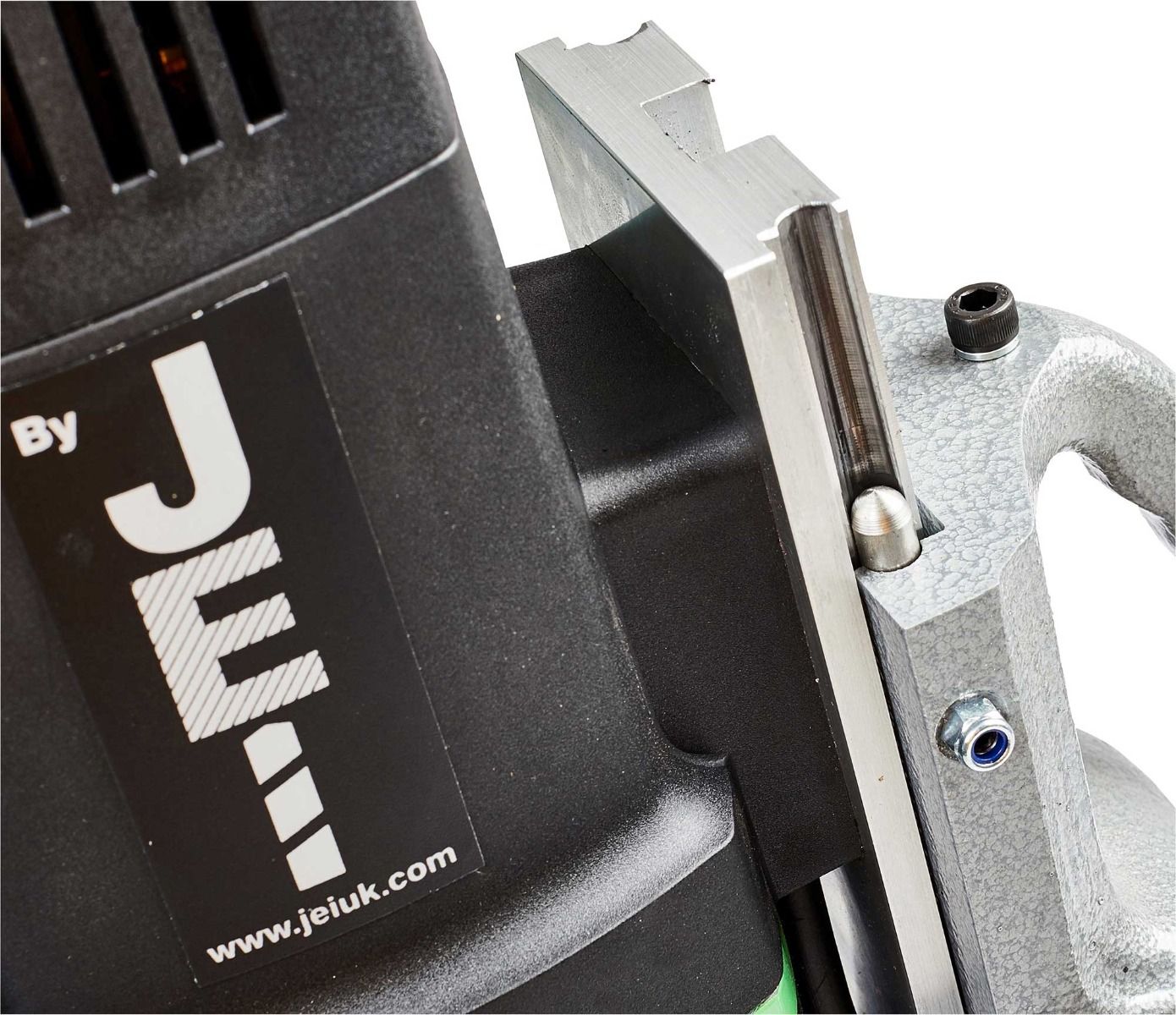

Maintenance friendly twin slide rails.
No wearing parts and adjustment free operation.
Spoke handles can be fitted on left or right side for operator convenience (applies to all HM50 models).
Optional 360º Swivel Base.

In stock

SKU

DRILL-MAGBEAST-HM50T

DOWNLOADS:

Product Brochure

Manual

A heavy-duty 2 morse taper drilling machine, the MagBeast® HM50T is ideal for countersinking and reaming. A lightweight option, weighing at only 14kg, that can cut up to 50mm in diameter.

Why the MagBeast® HM50T?

Variable speed & forward/reverse simple control panel

Maintenance free slide rails - no worn brass rails

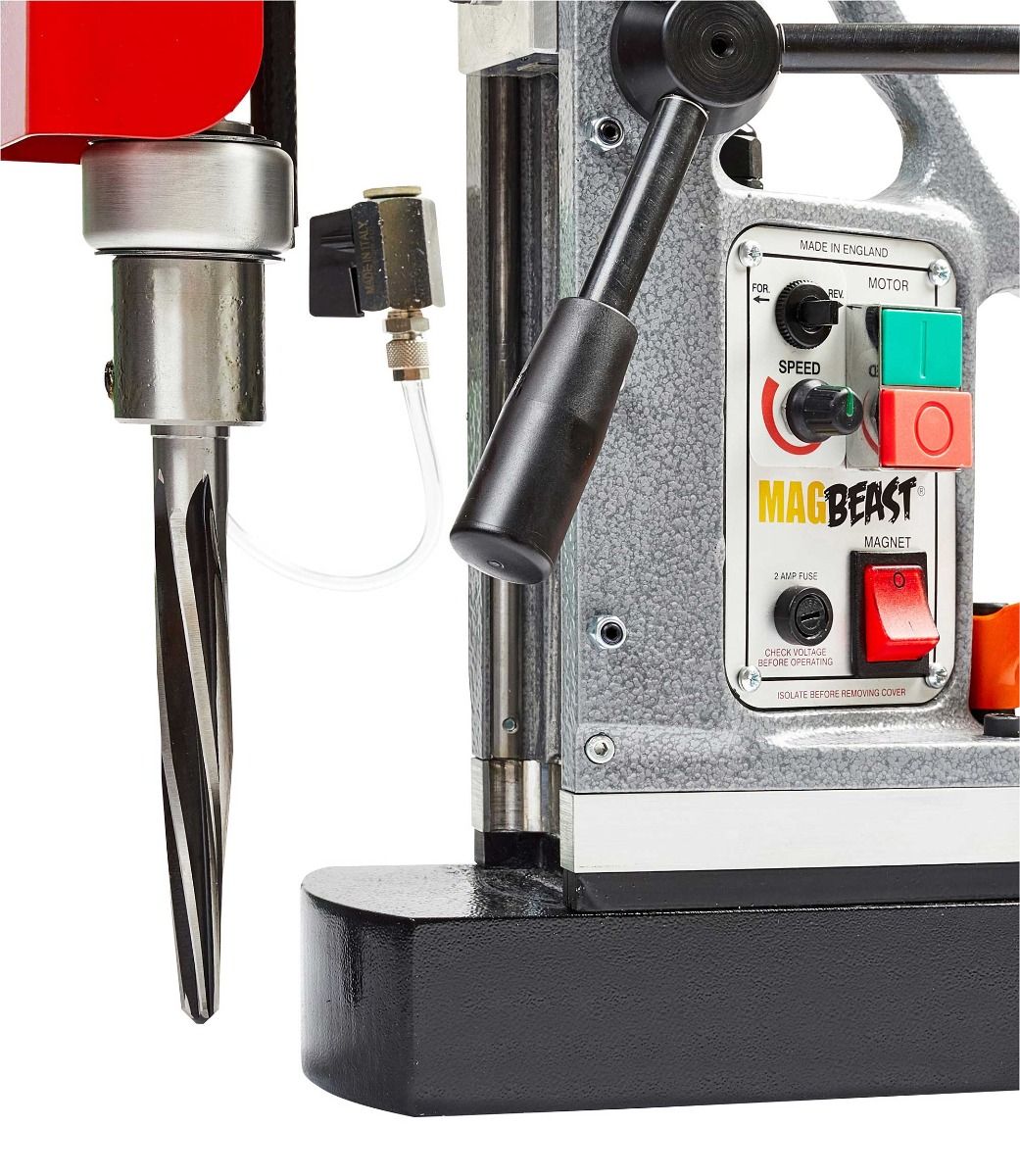

ideal for reaming

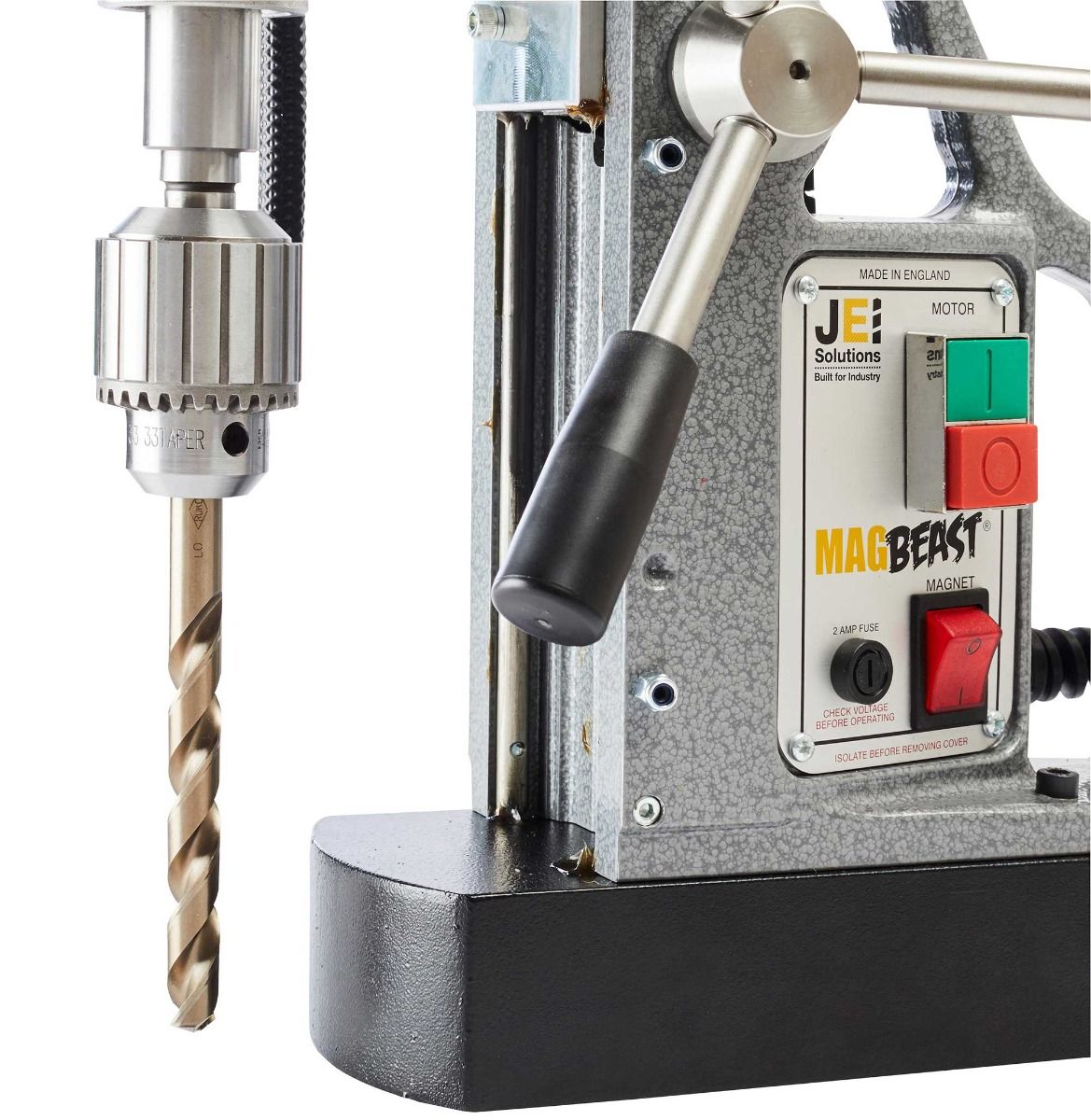

13mm twist drill chuck option

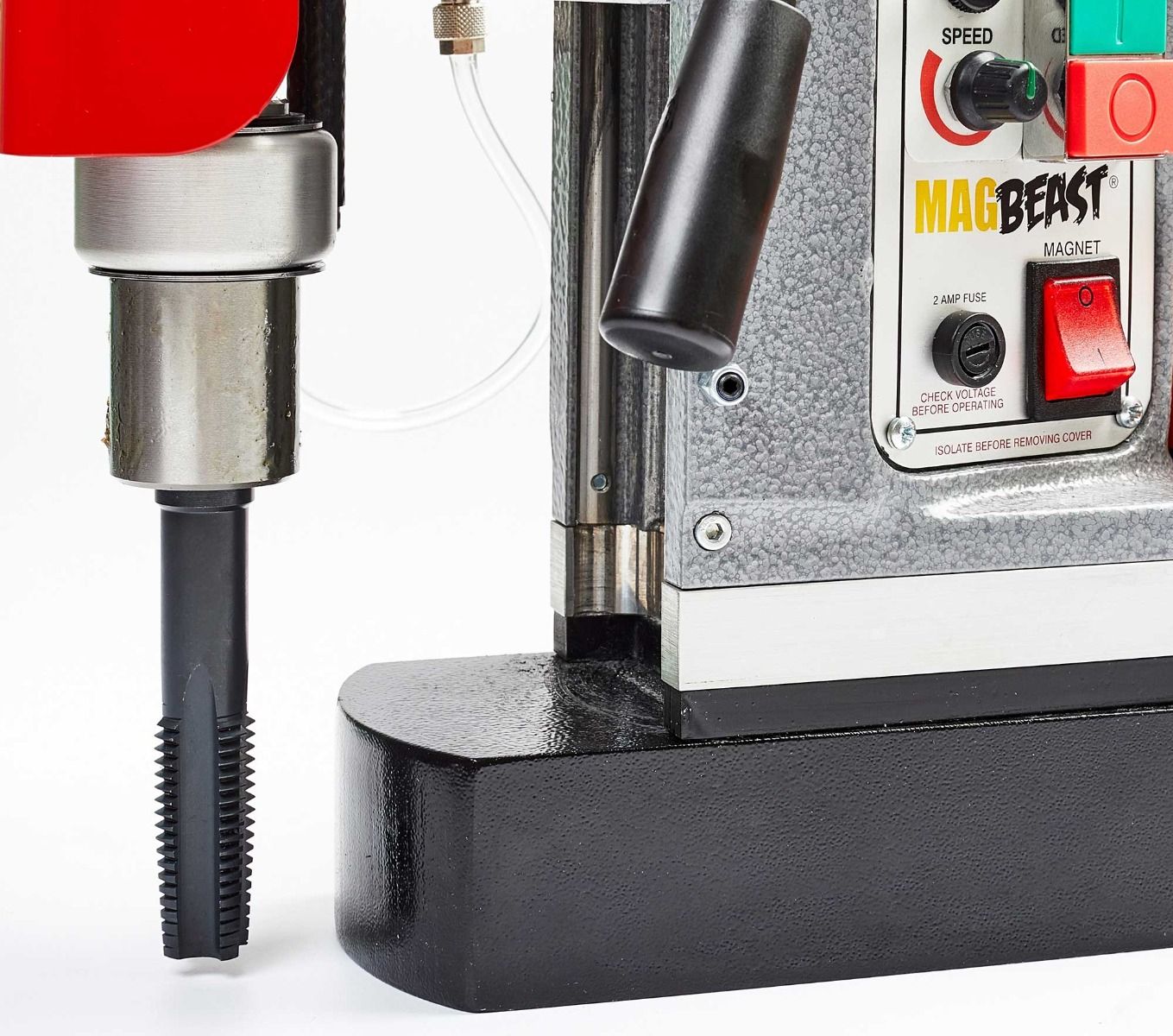

ideal for tapping

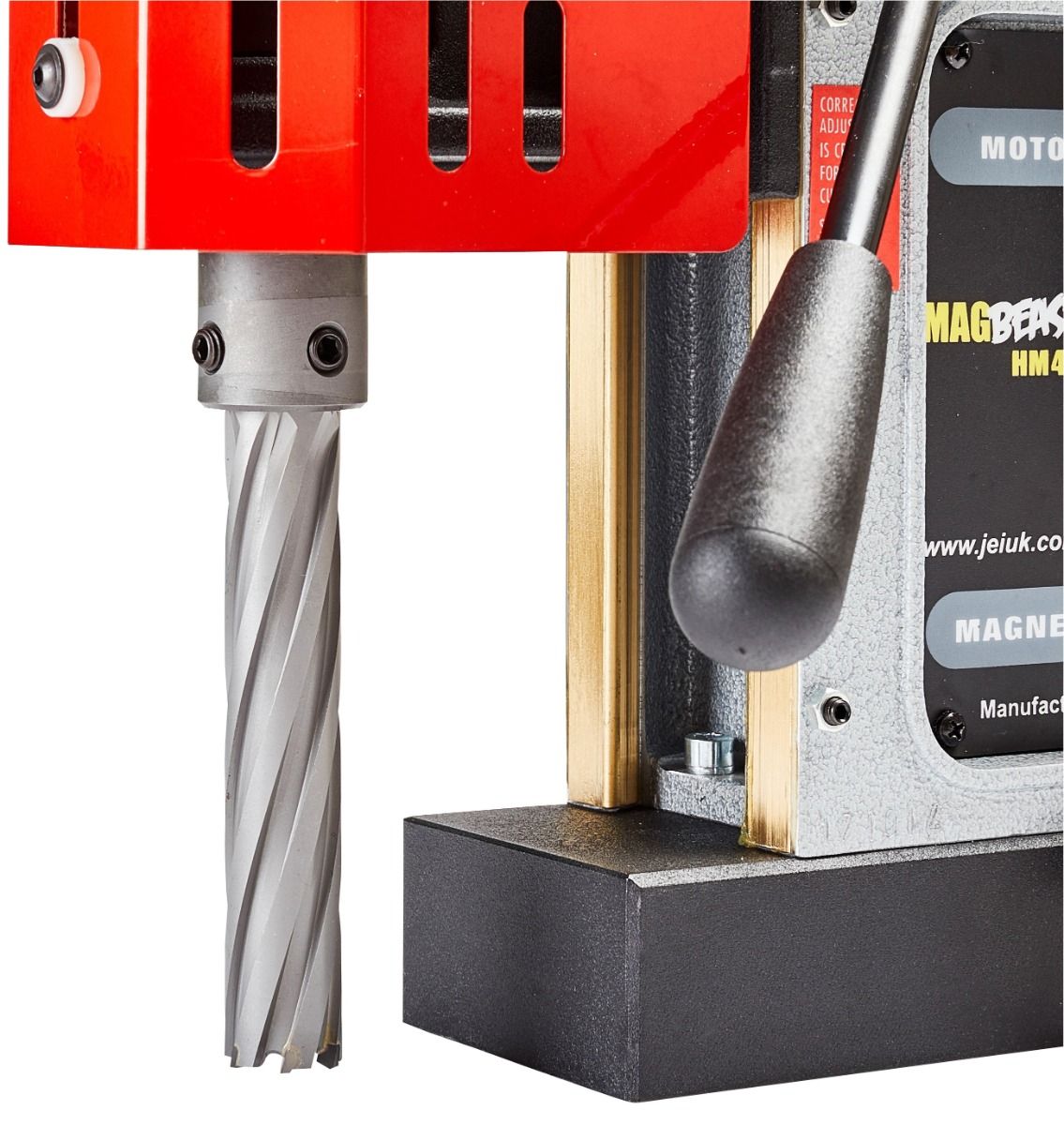

extra long drill travel - ideal for 100mm long cutters

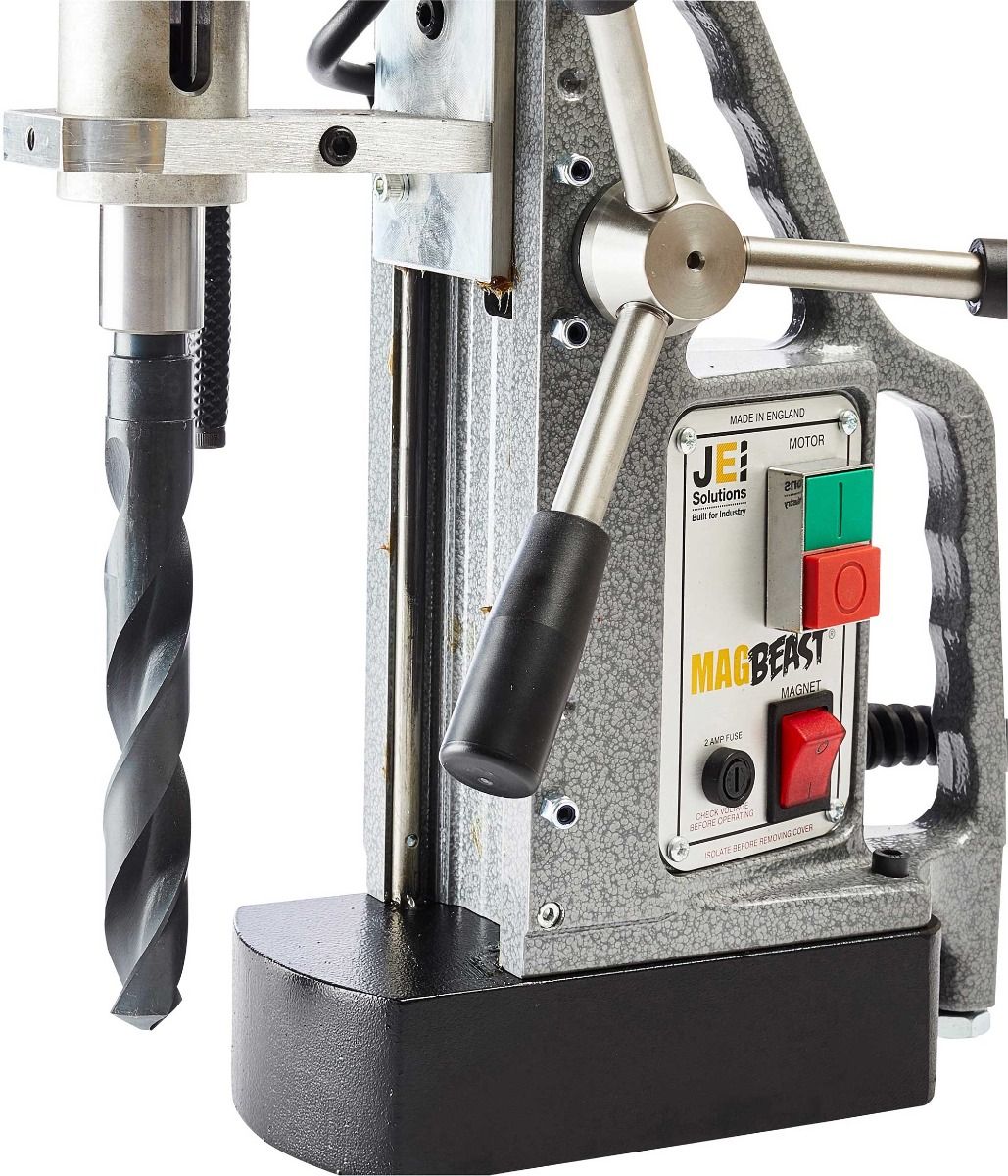

23mm morse taper drill capacity

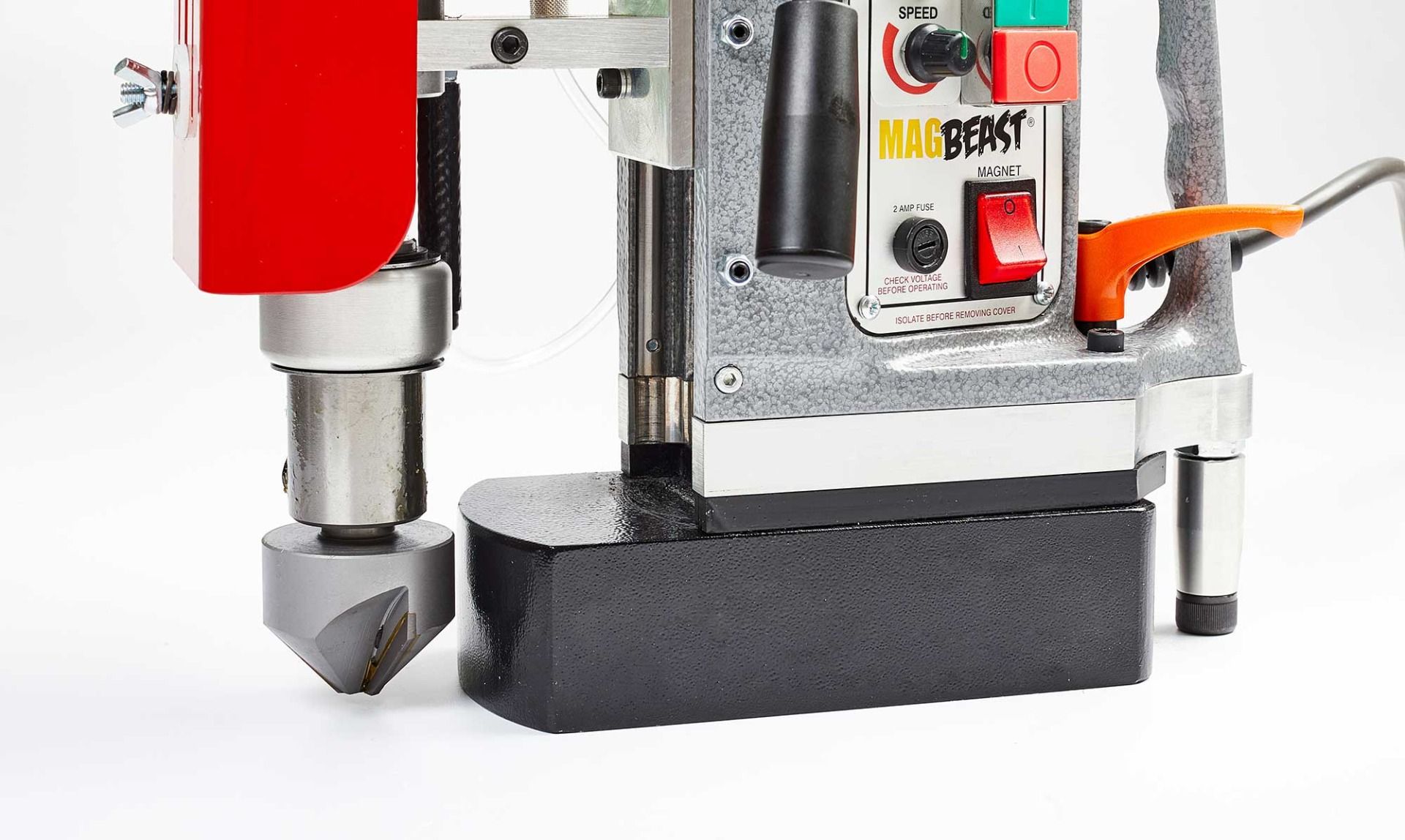

Ideal for countersinking

MagBeast® HM50T SPECIFICATIONS

Model	HM50T / HM50TS (WITH SWIVEL BASE)
Countersink Capacity	40mm
Cutter Capacity	50 mm Ø x 4” depth of cut
Magnetic Base Dimensions	90 x 180 mm
Magnet Deadlift	1250 kg on 1” Plate (12000 N)
Max Stroke	180 mm / 200mm
Twist Drill Capacity	13 mm with 2MT Chuck ~ 23 mm with 2MT Twist Drill
Tapping Capacity	M20
Reaming Capacity	22 mm (19 mm shank)
Motor	1150 W (110 V) 1250 W (240 V)
Spindle	MT2
Height Min/Max	380 / 560 mm Swivel version: 390 / 590 mm
Length / Width	280 x 170 mm
RPM	2 Variable Speeds, 180–430, 100–250 RPM
Noise Level	< 90dB
Vibration Level	< 2.5 m/s2
Voltage / Part No.	110 V – DRILL-HM50T ~ 240 V – DRILL-HM50T/2
Shipping Weight (Incl. 4.0Ah Battery)	19 kg / 22kg
Shipping Dimensions	490 x 380 x 200 mm
Weight with 4.0Ah Battery	14 kg / 16.5kg

Available with Full 360° swivel base - HM50TS

The Ultimate HM50 magdrill option - the HM50TS. Gives you all the power of the 2 MT HM50 magdrill with the additional variable speed, reverse and swivel base features in one machine.
