MagBeast® HM50

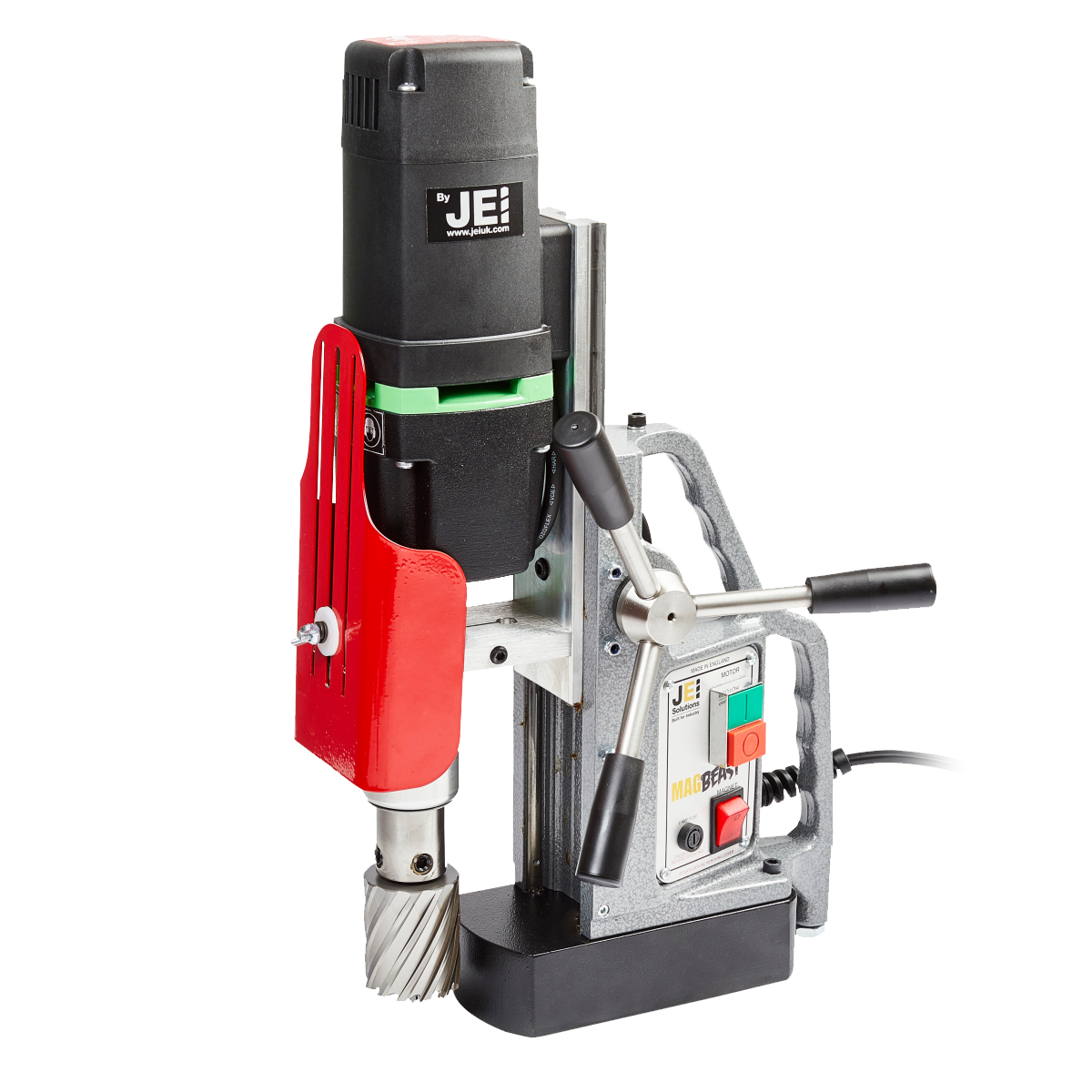

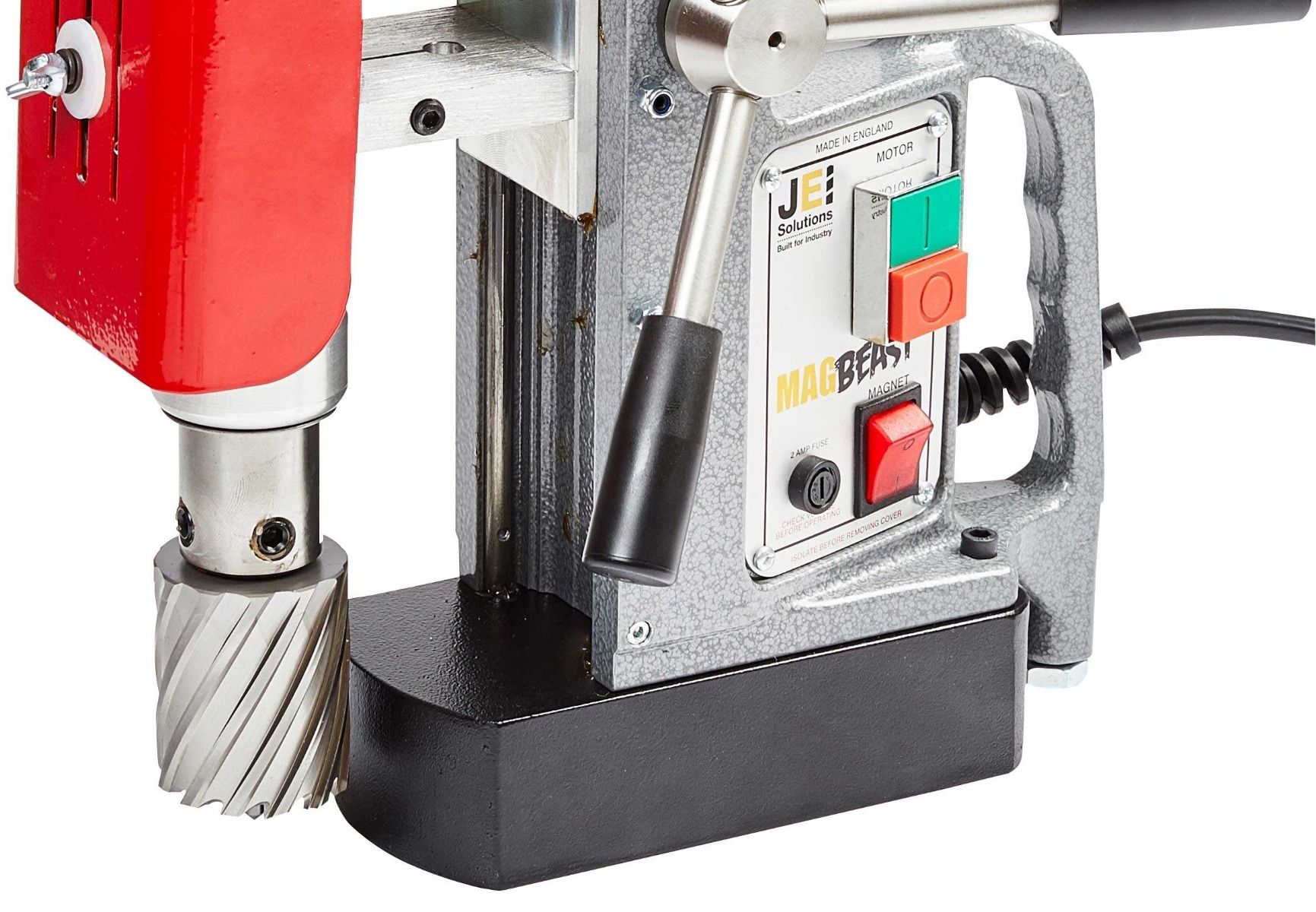

  • 10-50mm Core Drilling
  • Countersink 40

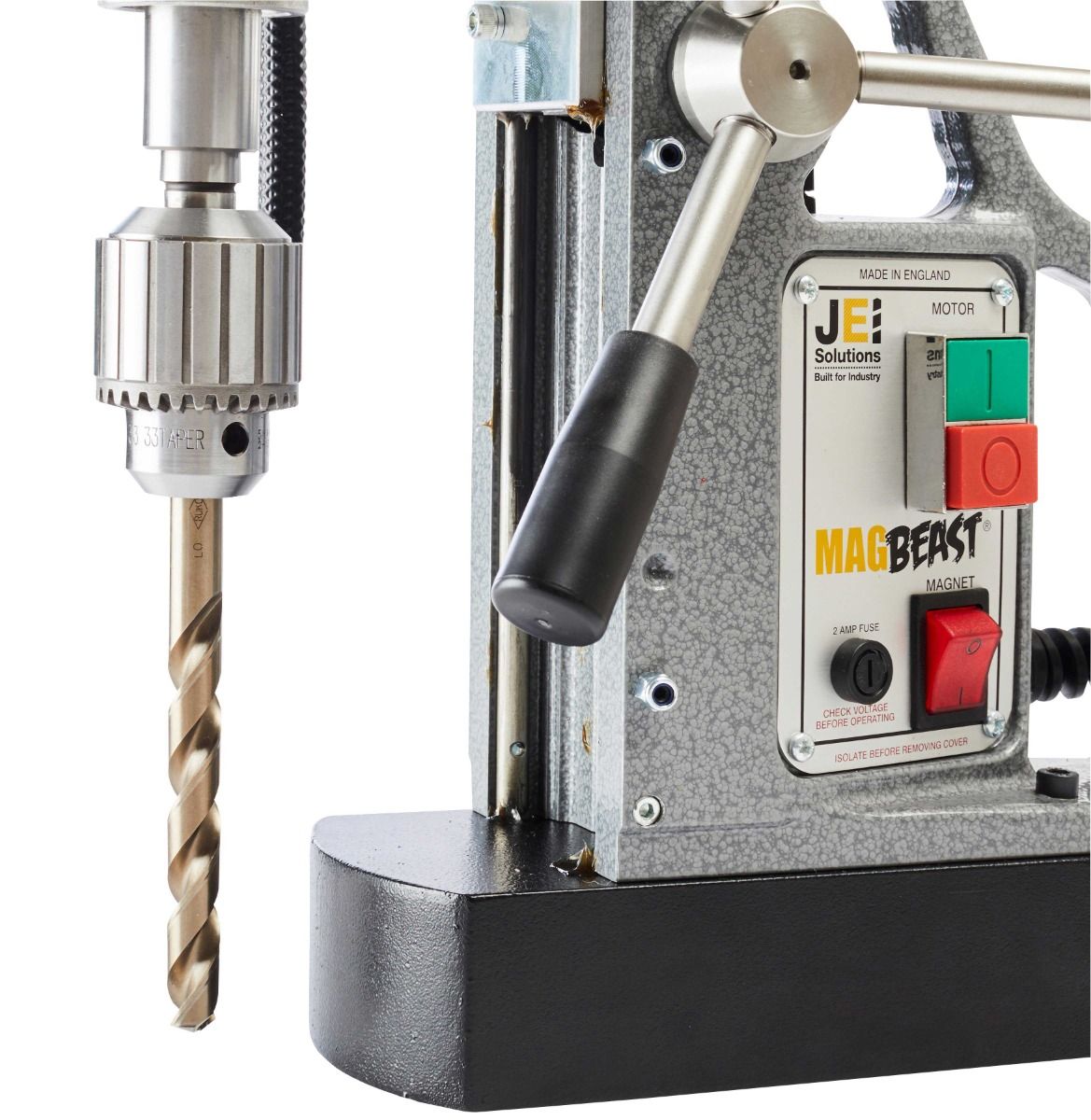

  • Twist Drill 23mm
  • 22mm Reaming

A durable, dependable heavy duty 2 morse taper drilling machine.

Designed for accurate. practical hole making with both TCT and HSS Cutters

  • Heavy duty 1150 W motor – enables larger cutting capacity.
  • Weighs only 14 kg with a 50 mm cutter capacity – unrivalled weight to cutting capacity ratio.
  • 150mm total drill travel – facility to use extra-long cutters.

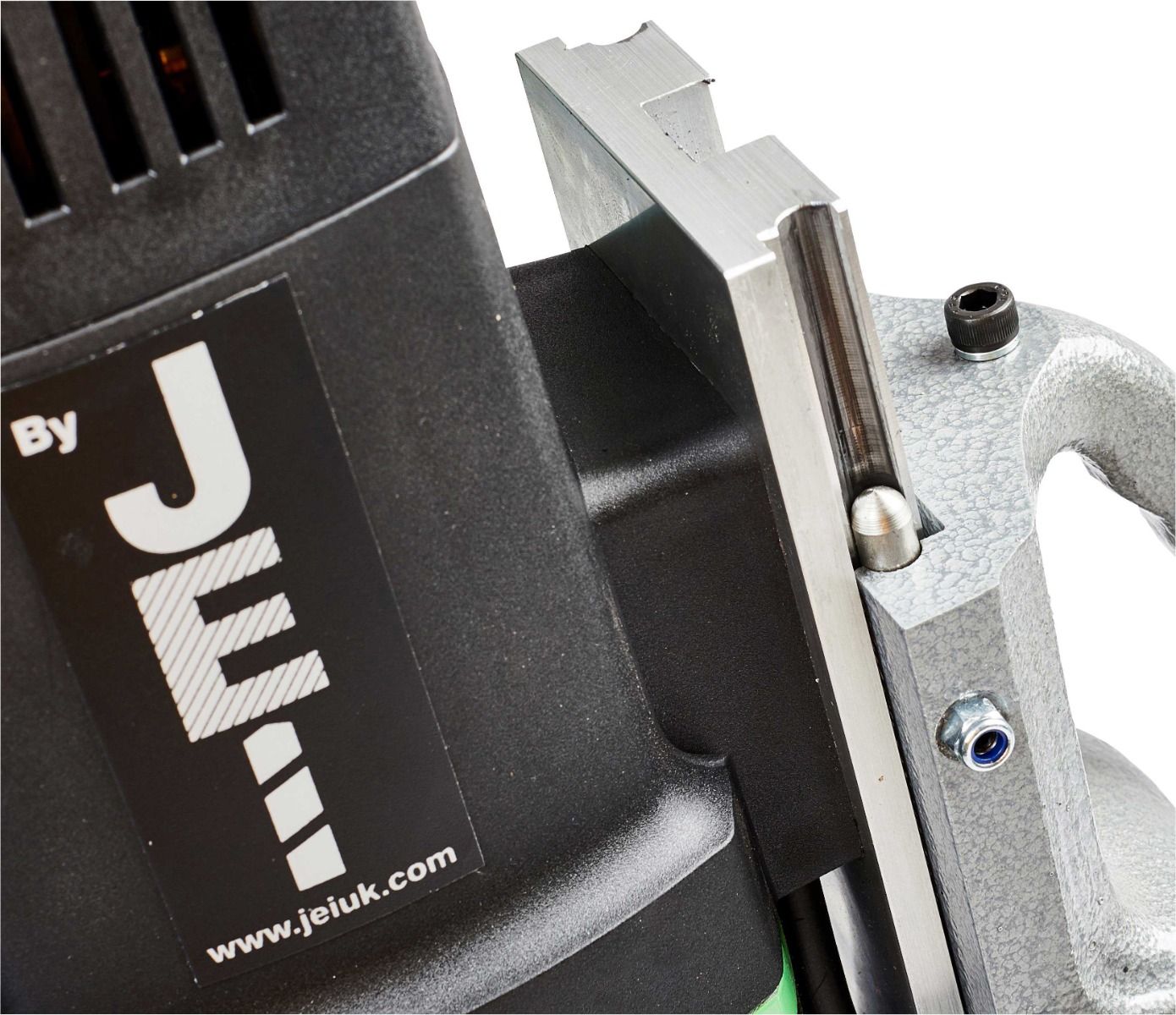

  • Maintenance friendly twin slide rails – no wearing parts and adjustment free operation.
  • Spoke handles can be fitted on left or right side for operator convenience (applies to all HM50 models).
In stock
SKU
DRILL-MAGBEAST-HM50

DOWNLOADS:

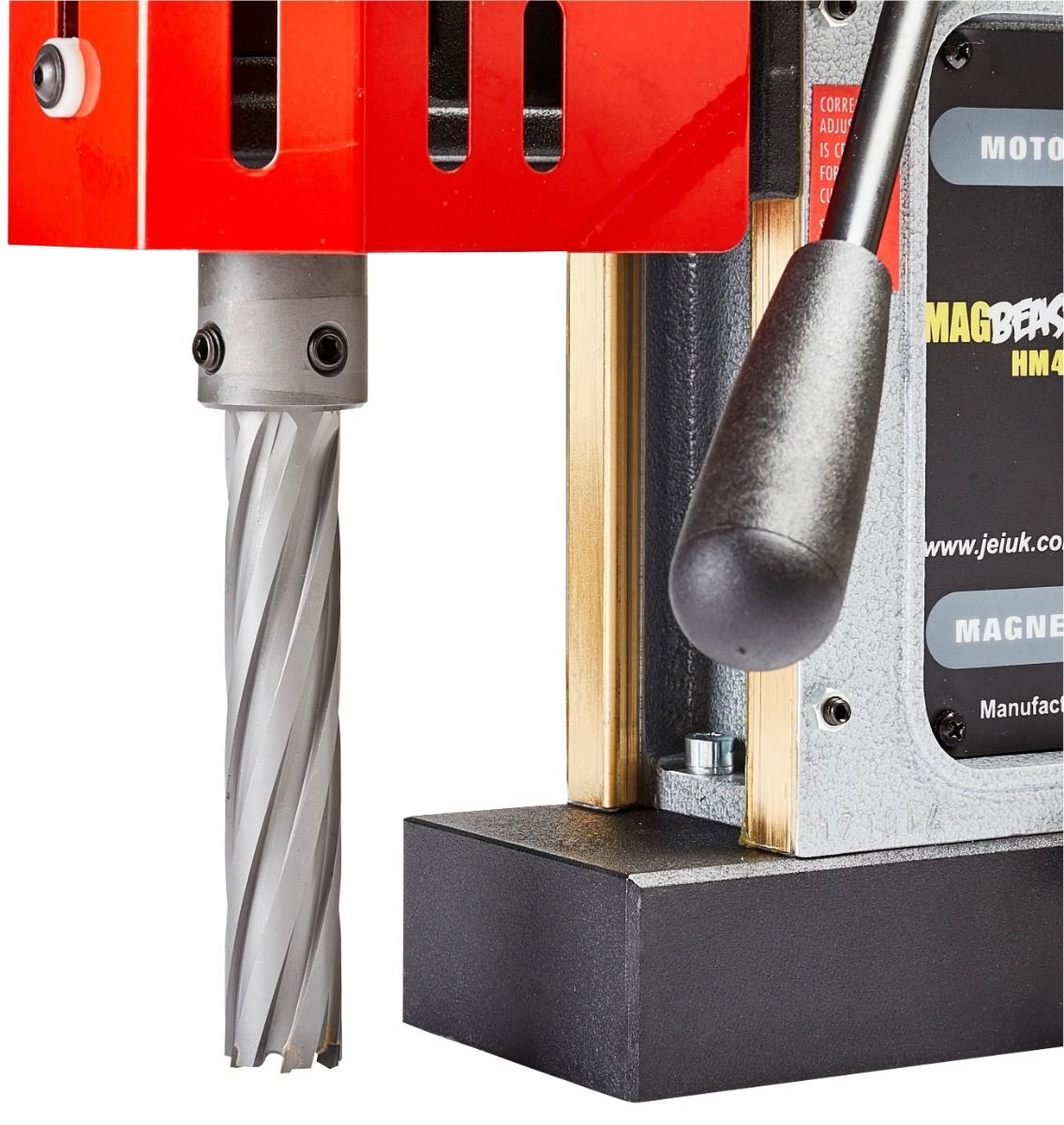

Rely on the expert capabilities of the MagBeast® HM50. Featuring extra long drill travel, ideal for 100 mm long cutters, and a 50mm diameter cutting capacity.

MagBeast® HM50 SPECIFICATIONS


Model HM50 / HM50S (with Swivel Base)
Countersink Capacity 40 mm
Cutter Capacity 50 mm Ø x 4” depth of cut
Magnetic Base Dimensions 90 x 180 mm
Magnet Deadlift 1250 kg on 1” Plate (12000 N)
Max Stroke 180 mm /200mm

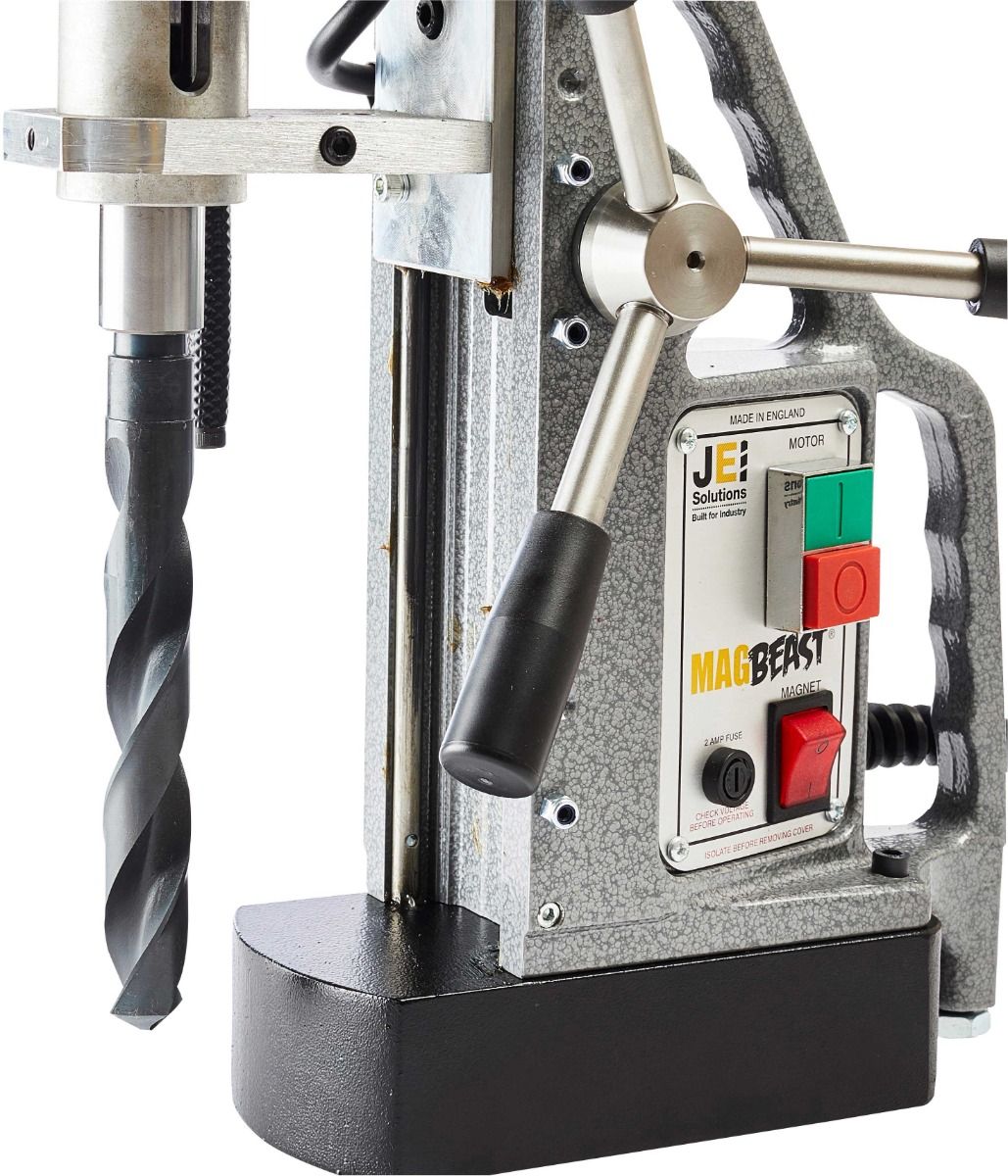

Twist Drill Capacity 13 mm with 2MT Chuck / 23 mm with 2MT Twist Drill
Reaming Capacity 22 mm (19 mm shank)
Motor 1150 W
Spindle MT2
Height Min/Max 380 / 560 mm Swivel version: 390 / 590 mm
Length / Width 280 x 170 mm
RPM No load 465/720 RPM Loaded 250/450 RPM
Noise Level < 90dB
Vibration Level < 2.5 m/s2
Voltage / Part No. 110 V - DRILL-HM50 / 240 V - DRILL-HM50/2
Shipping Weight (Incl. 4.0Ah Battery) 18.15 kg / 20.5 kg
Shipping Dimensions 490 x 380 x 200 mm / 490 x 380 x 200 mm
Weight with 4.0Ah Battery 14 kg / 16.5kg

Available with Full 360° swivel base - HM50S
