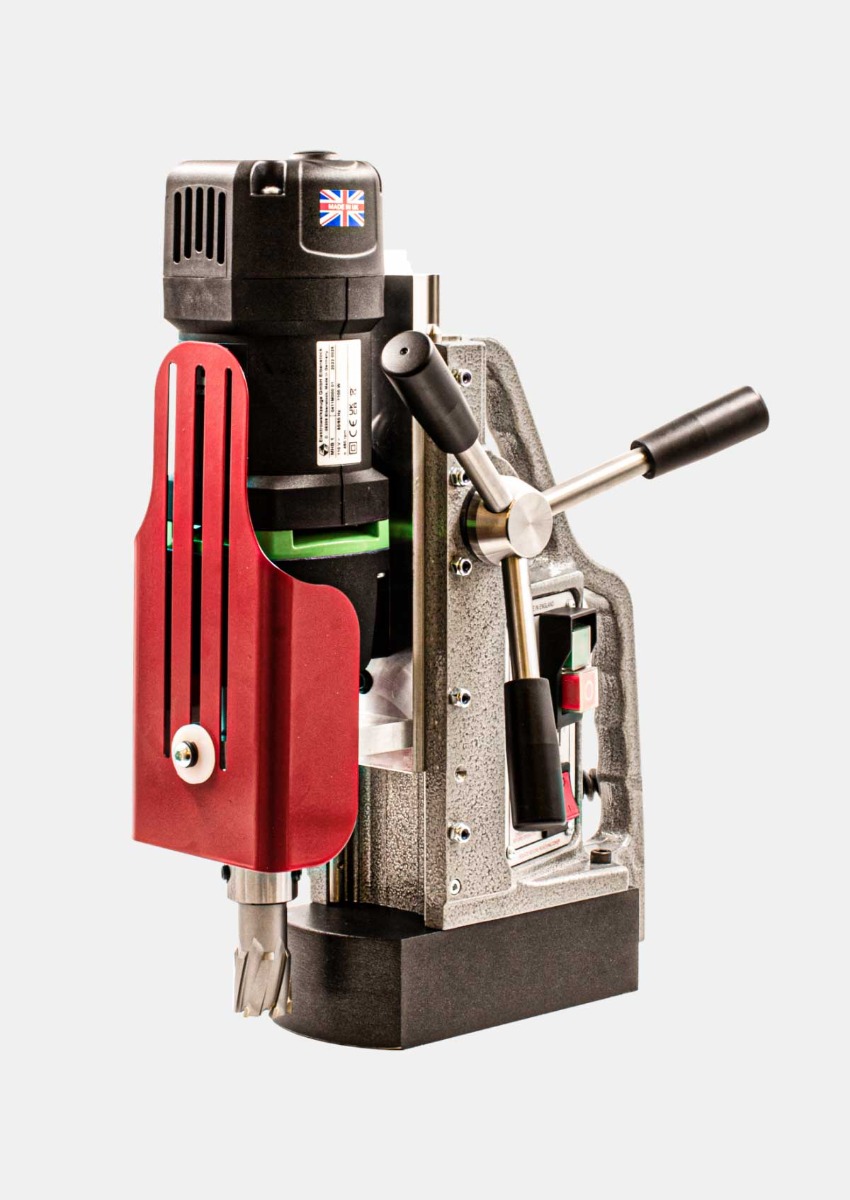

MagBeast® HM40EX


  • 10-40mm Core Drilling
  • Countersink 40
  • Twist Drill 13mm

A lightweight and powerful magnetic drilling machine for maximum performance

  • Powerful 1100 W motor – enabling 40 mm cutter capacity.Weighs only 11.5 kg with a 40 mm cutter capacity – unrivalled weight to cutting capacity ratio.
  • 170mm total drill travel – facility to use extra-long cutters.
  • Maintenance friendly twin slide rails – no wearing parts and adjustment free operation.
  • Maximum stroke of 210mm allowing for drilling depths of up to 150mm.
  • Spoke handles can be fitted on left or right side for operator convenience.

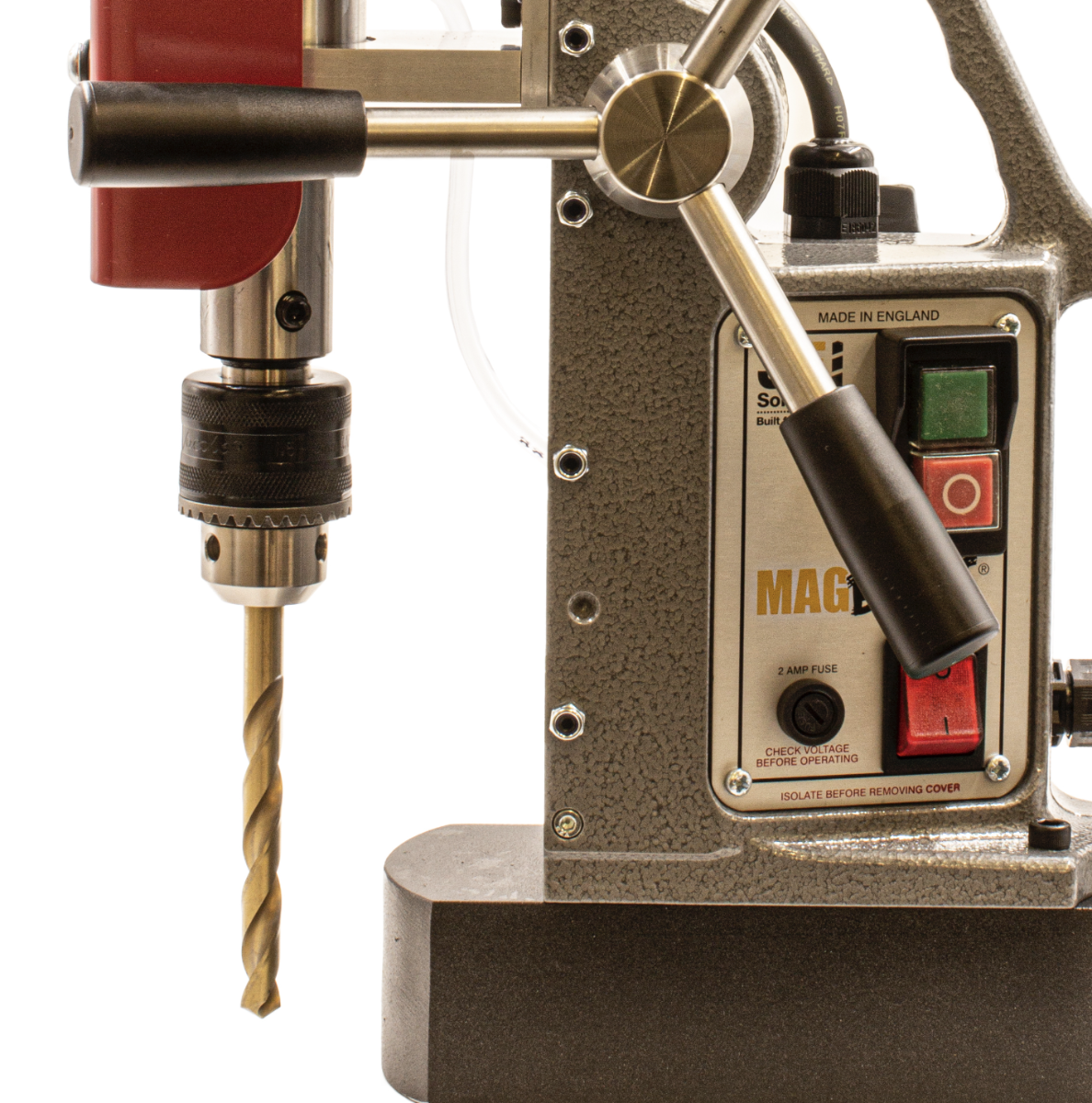

  • Easily adapted to use with additional chuck and adaptor kit to accept twist drills up to 13 mm (part no - JEICA-13MM/19).
In stock
SKU
DRILL-MBEAST-HM40EX


Rely on the expert capabilities of the MagBeast® HM40EX. Featuring extra long drill travel, ideal for 100 mm long cutters, and a 40mm diameter cutting capacity.

MagBeast® HM40EX SPECIFICATIONS

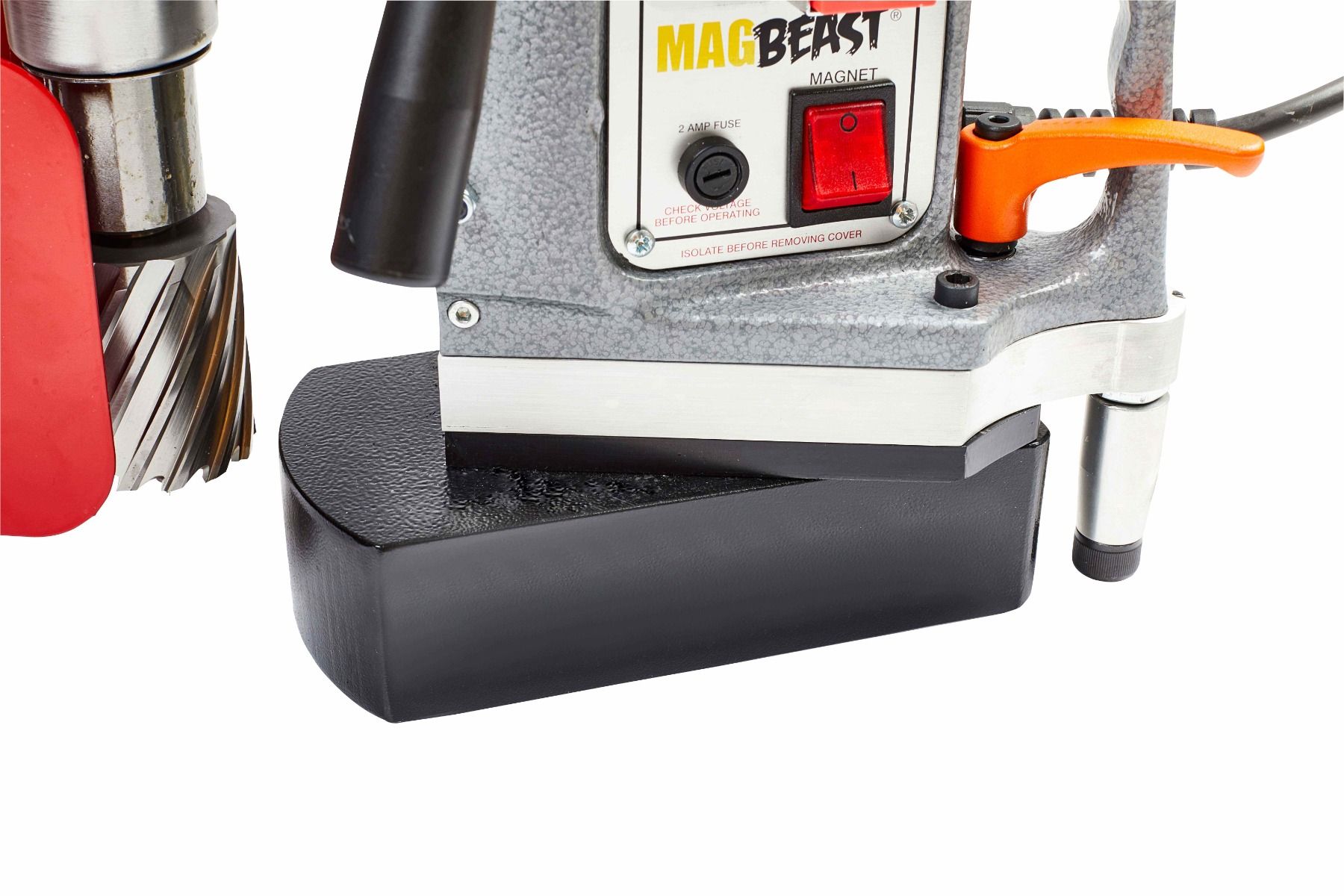

Model HM40EX / HM40EX SWIVEL
Countersink Capacity 40 mm
Cutter Capacity 40 mm Ø x 110 mm depth of cut
Magnetic Base Dimensions 85 x 170 mm
Magnet Deadlift 1100 kg on 1” Plate (10750 N)
Twist Drill Capacity 13 mm Ø with optional attachment (part no - JEICA-13MM/19)

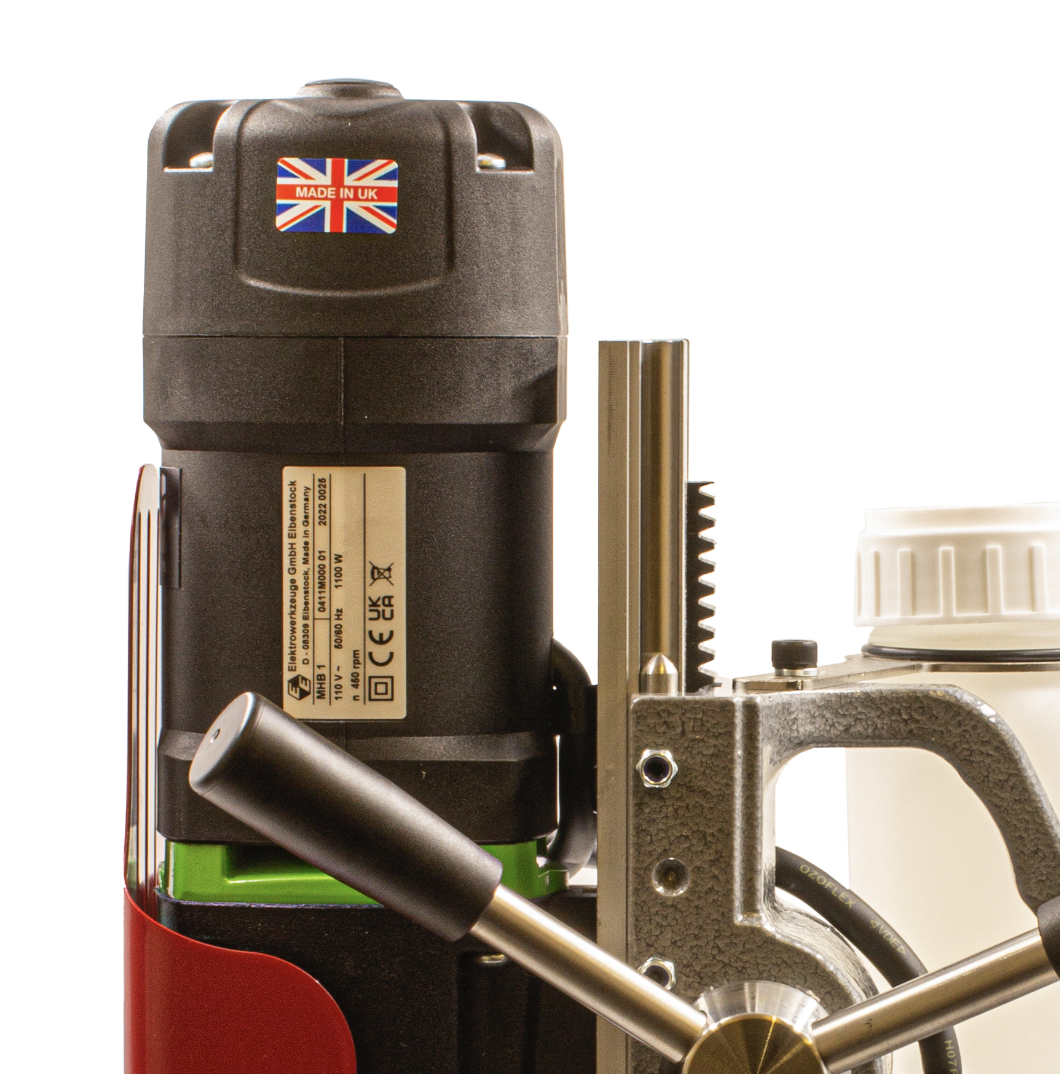

Motor 1100 W
Spindle 19 mm
Height Min/Max 320 / 500 mm Swivel: 330 / 510 mm
Length / Width 280 x 165 mm
Noise Level < 90dB
Vibration Level < 2.5 m/s2
Voltage / Part No. 110 V - DRILL-HM40EX/1 240 V - DRILL-HM40EX/2
Shipping Weight (Incl. 4.0Ah Battery) 16 kg/ 16.5kg
Shipping Dimensions 460 x 360 x 180 mm Swivel: 470 x 360 x 180 mm
Weight with 4.0Ah Battery 11.5 kg / 12kg

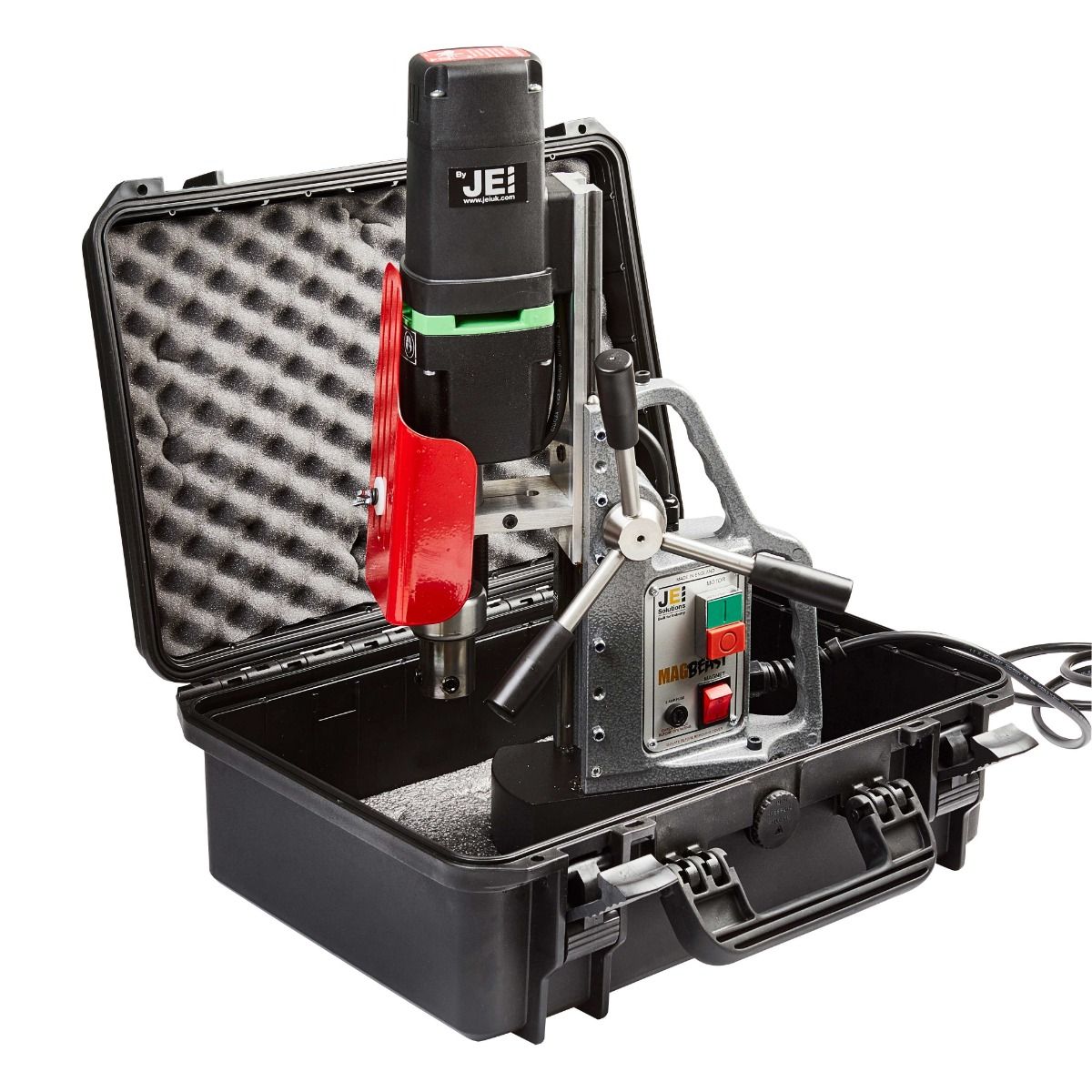

Available as a Machine Package


Purchase your HM40EX magdrill as a complete package, including:

HM40EX magdrill
5 piece Turbo™ Steel Cutter Set (14, 16, 18, 20, 22 mm x 1" depth of cut plus pin to suit)

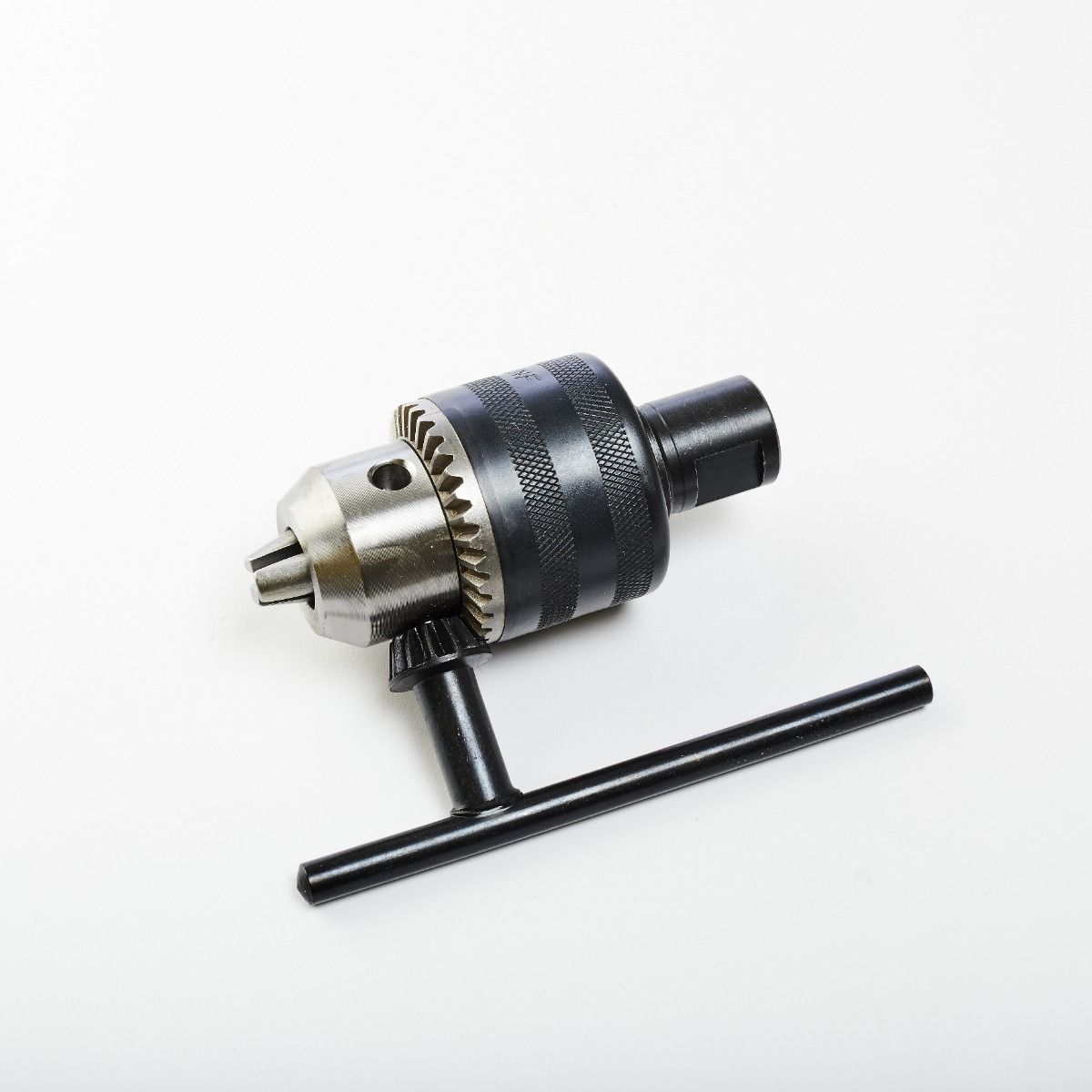

13 mm chuck with 19mm shank adaptor

Part Number:

110v - DRILL-HM40EX/1SET

240v - DRILL-HM40EX/2SET

Available as a Machine Package
