MagBeast® HM140T


  • 10-140mm Core Drilling

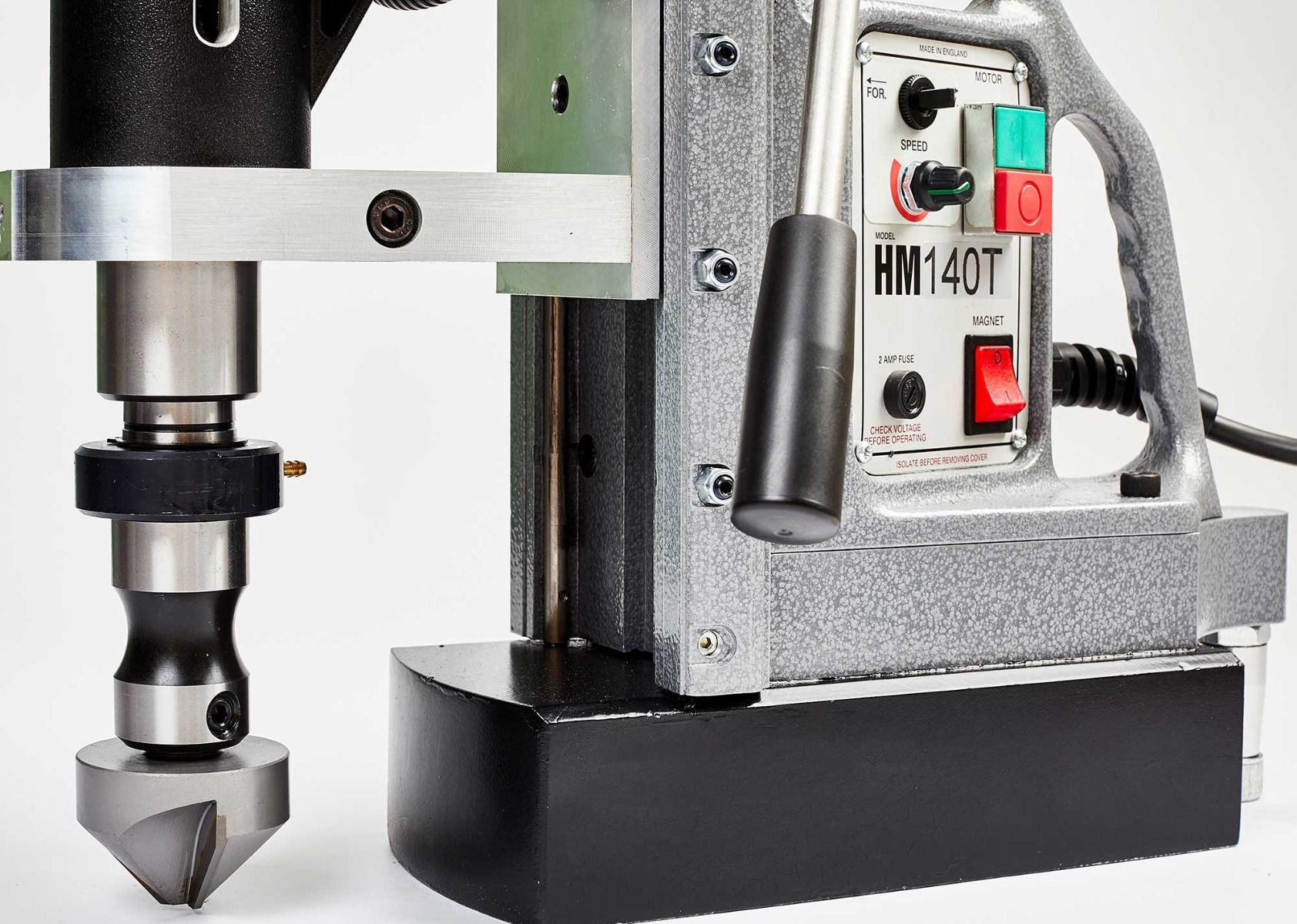

  • Countersink 80mm
  • Twist Drill 50mm

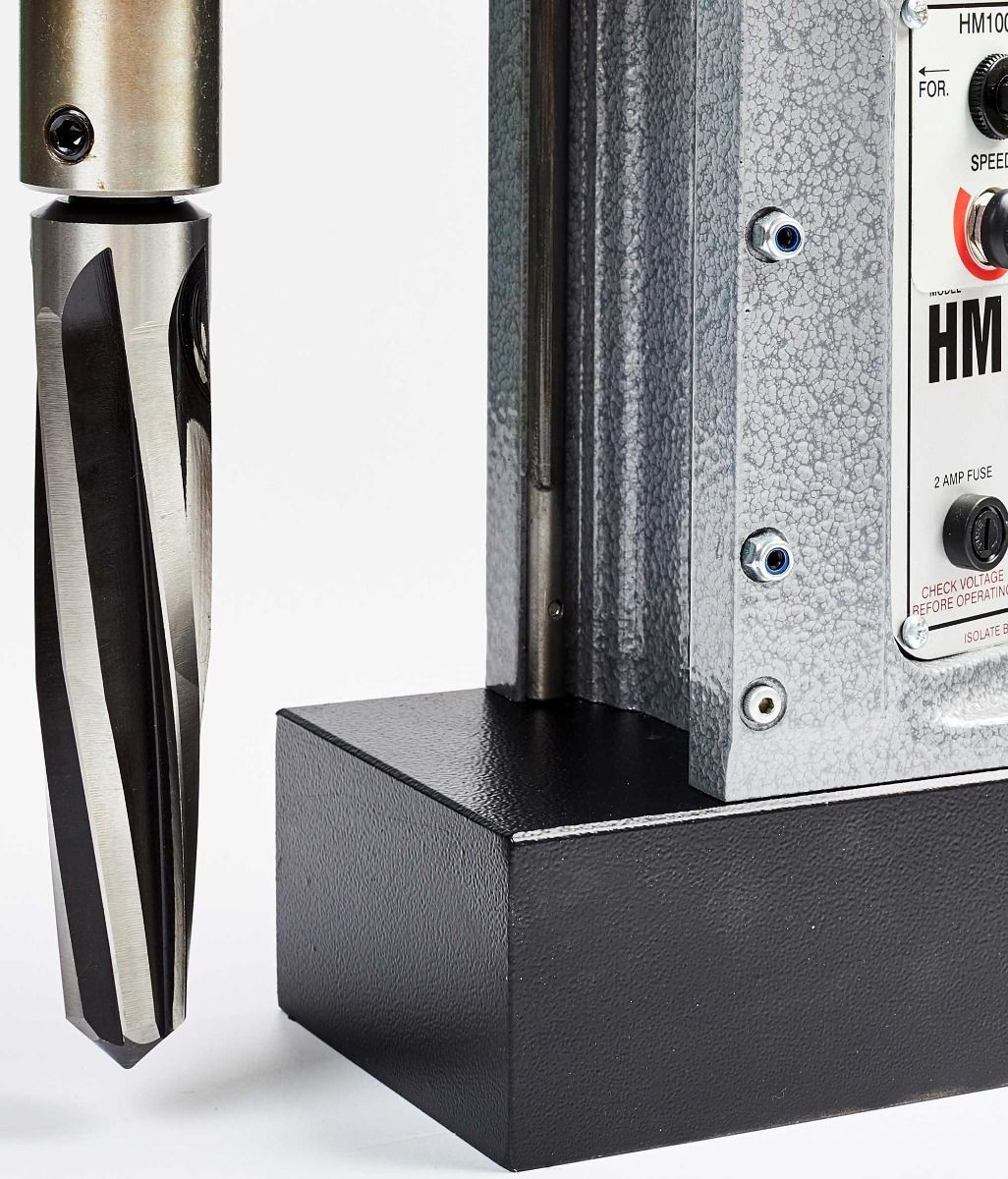

  • 47mm Reaming
  • M44 Tapping Capacity

A durable, heavy duty 4 Morse Taper Powerhouse designed for many holemaking applications

  • Heavy duty 2300 watt, variable speed motor - enables larger cutting capacity.
  • Weighs only 35kg - a one man job to position and operate machine.

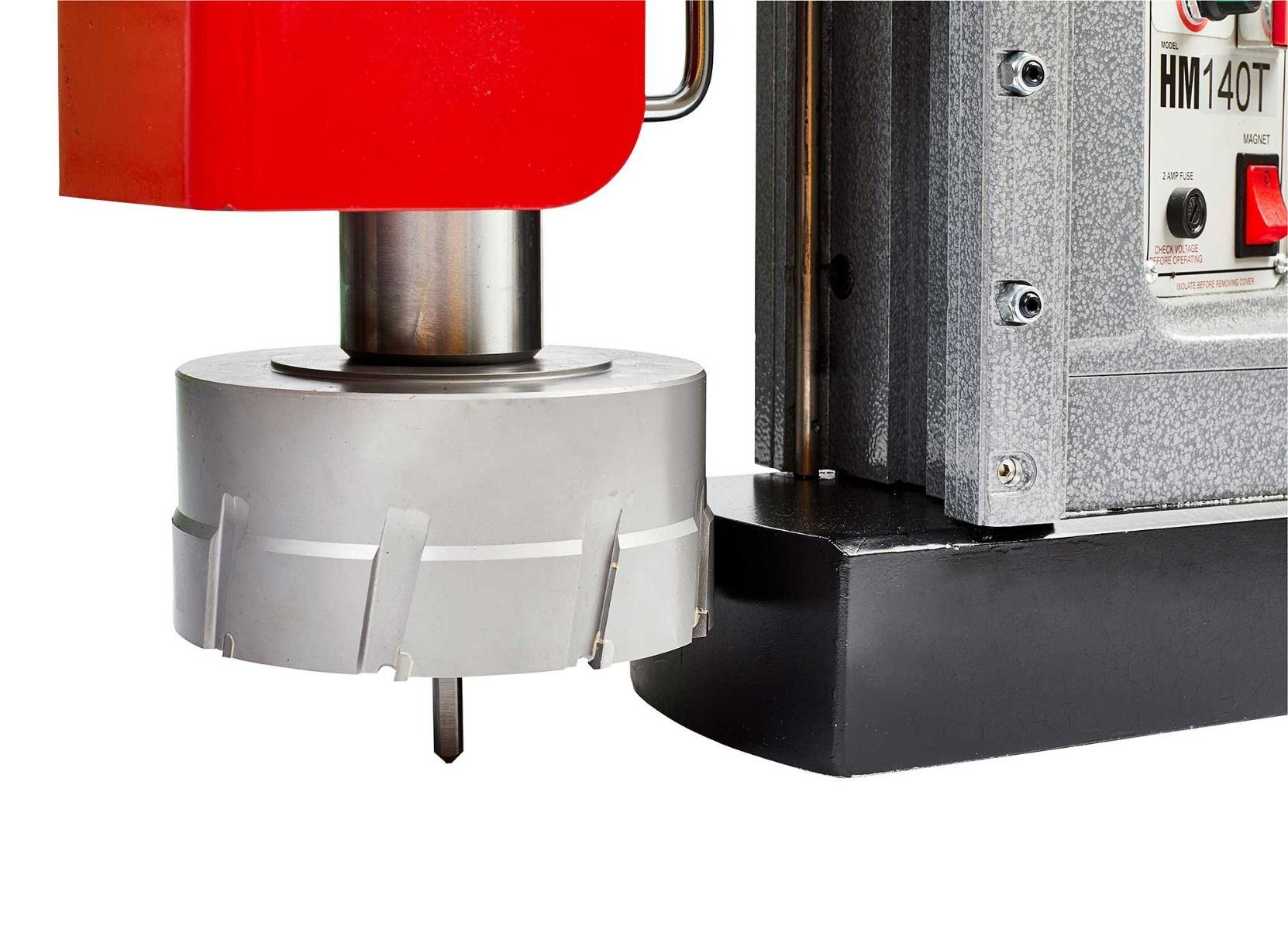

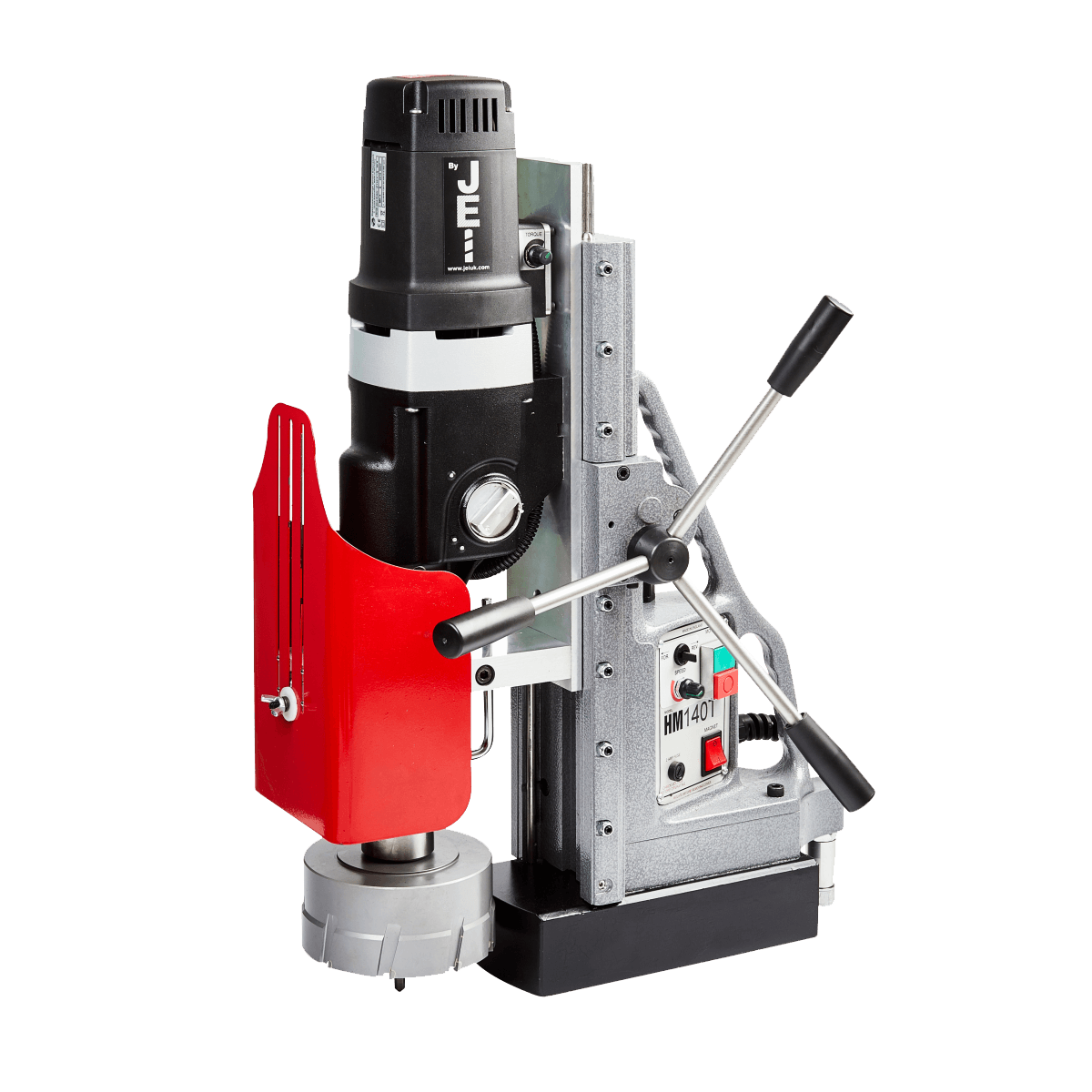

  • 140mm cutter capacity - unrivalled weight to cutting capacity ratio.

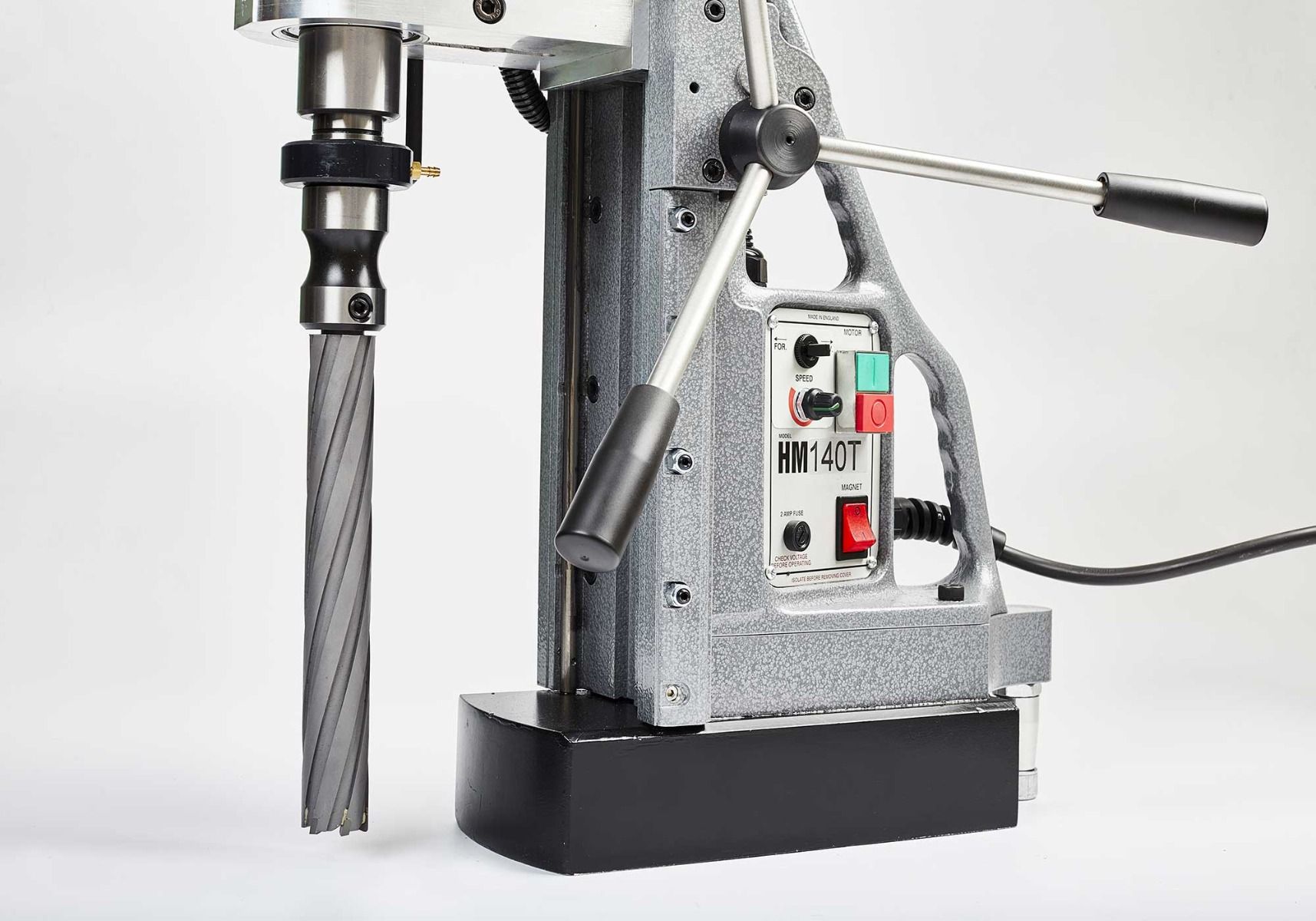

  • 300mm total drill travel - facility for extra long cutting depth and stroke.

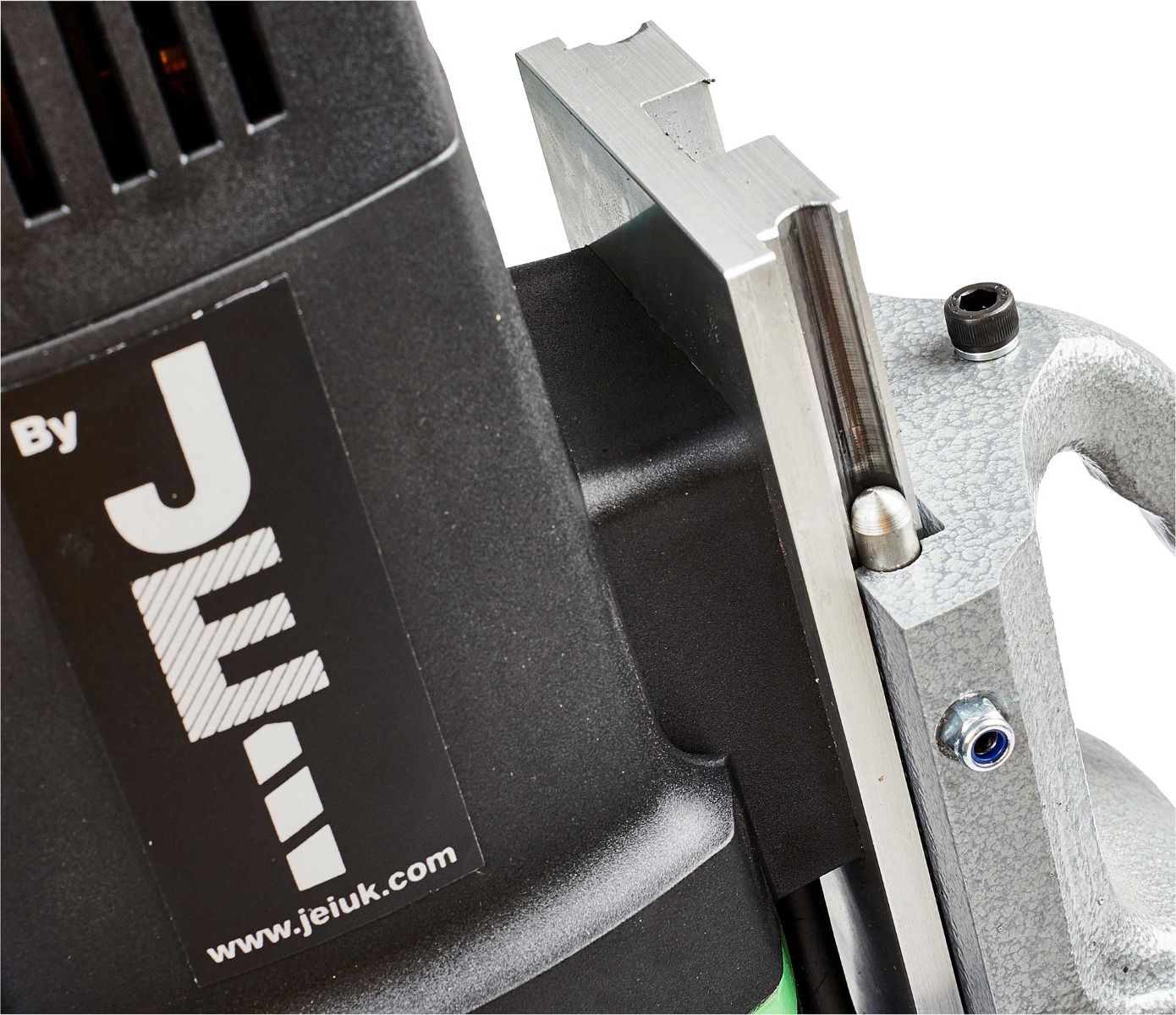

  • Maintenance friendly twin slide rails - no wearing parts and adjustment free operation.

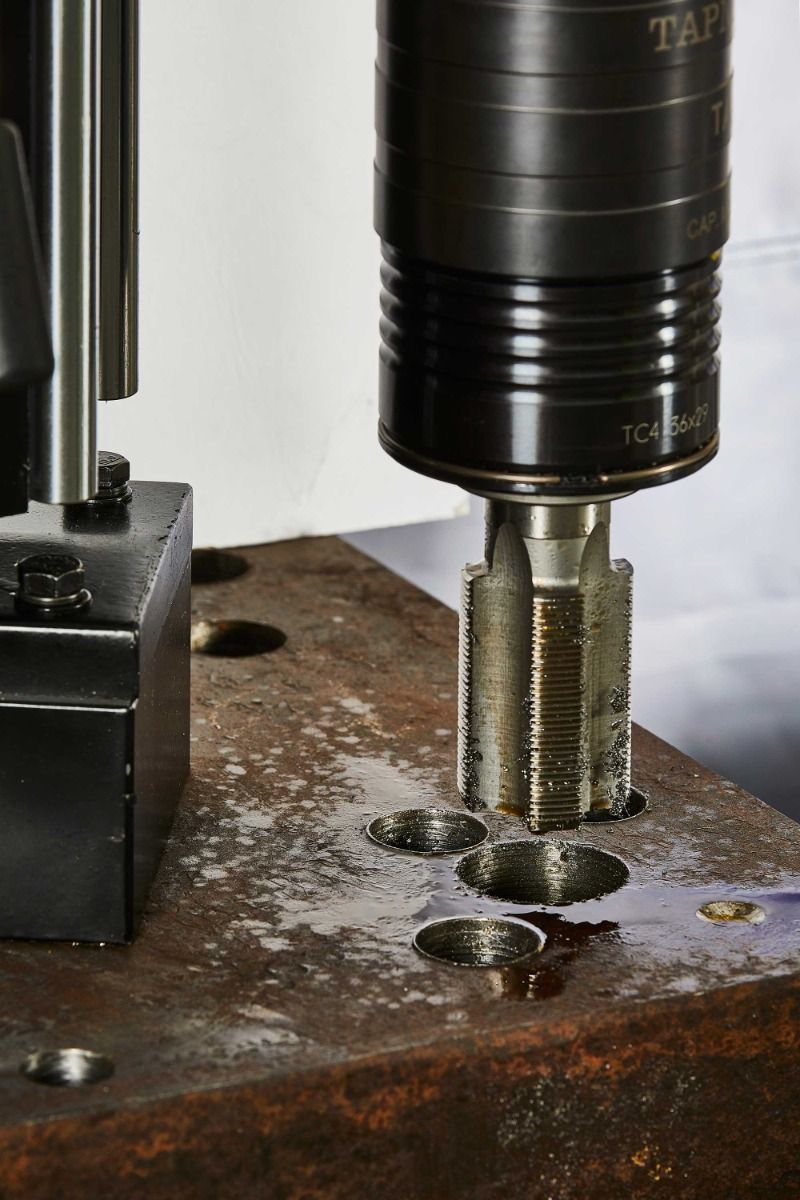

  • Integral forward/reverse operation - Ability to tap pre-drilled holes up to M44.

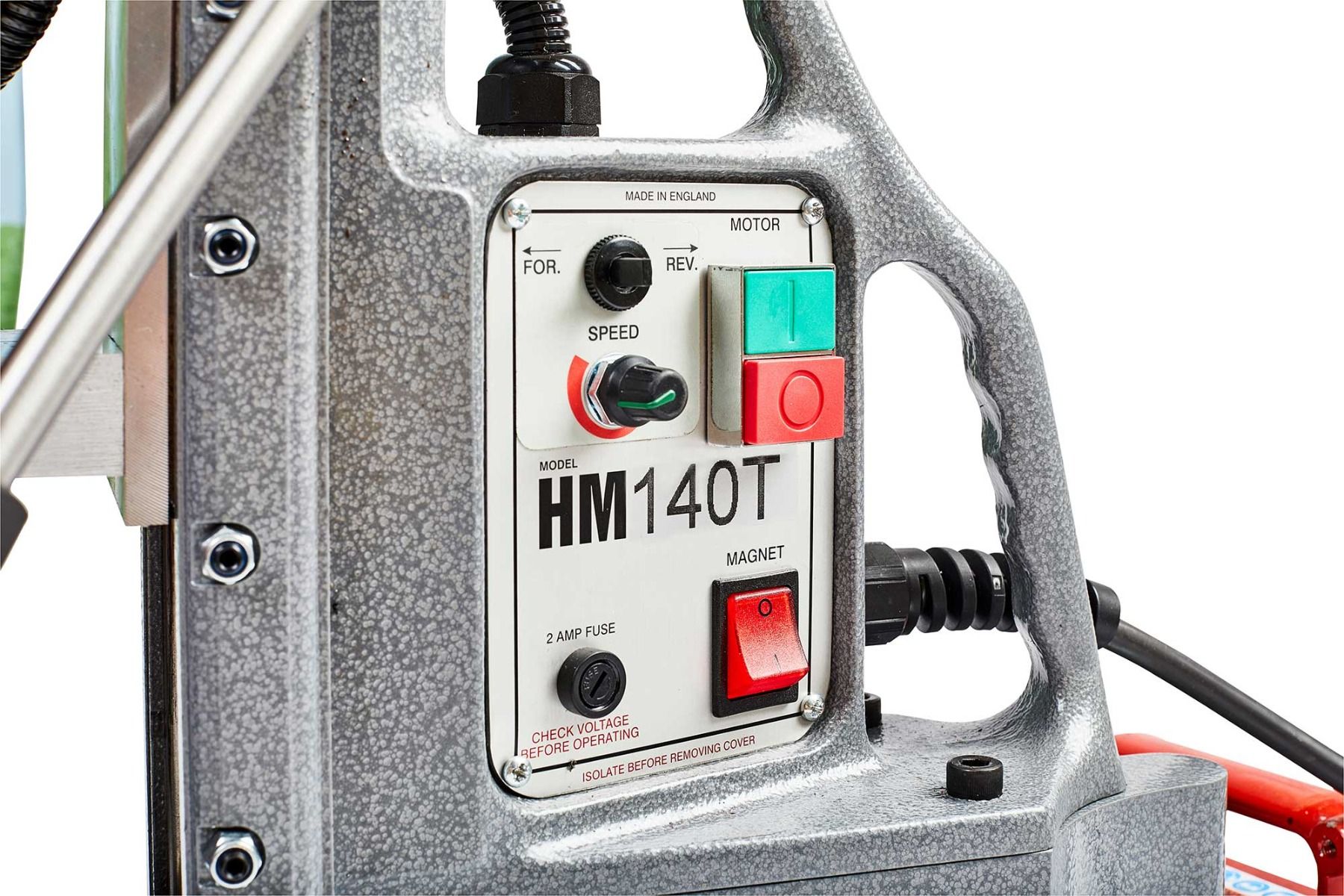

  • Built in soft start Motor switch - Provides protection to motor when tapping.

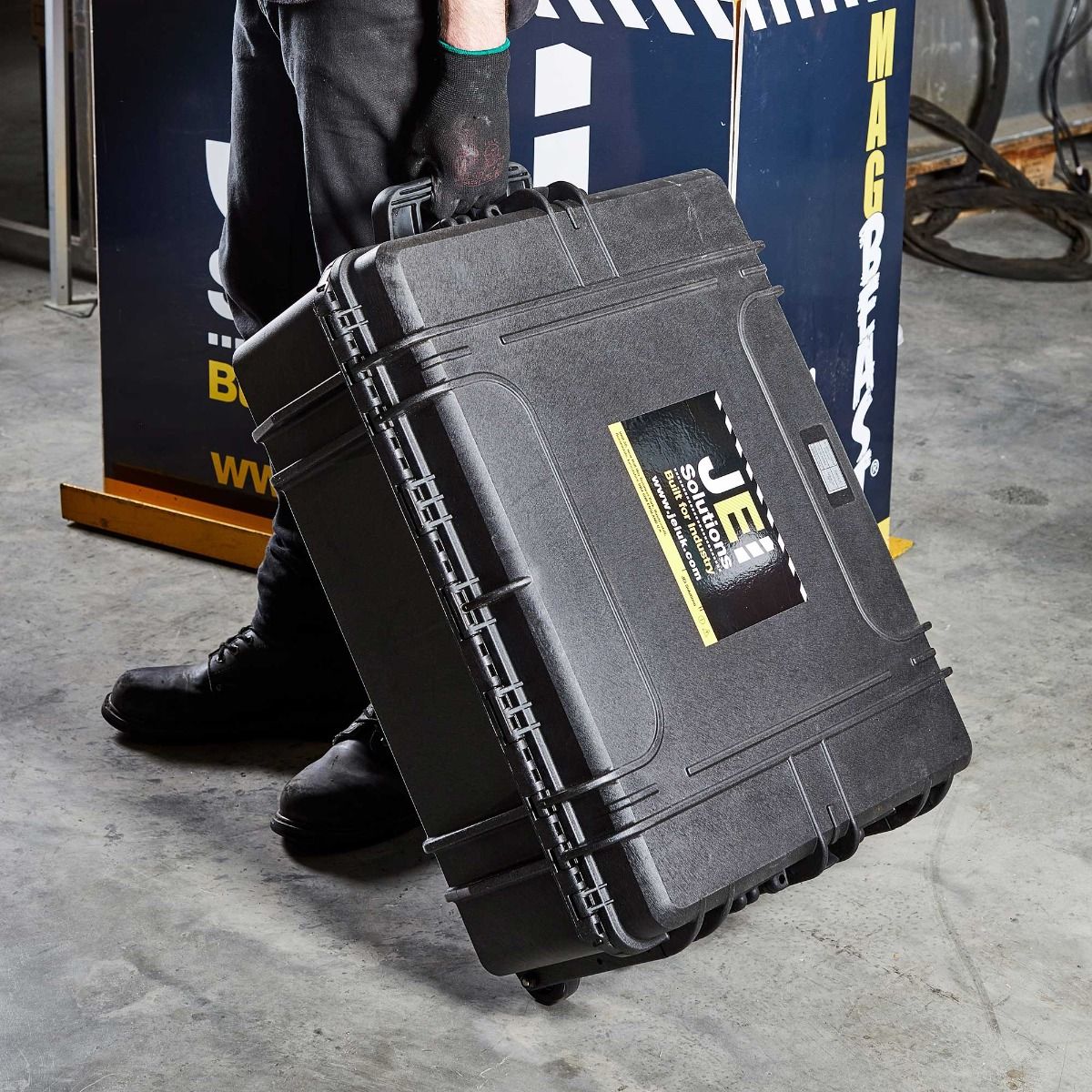

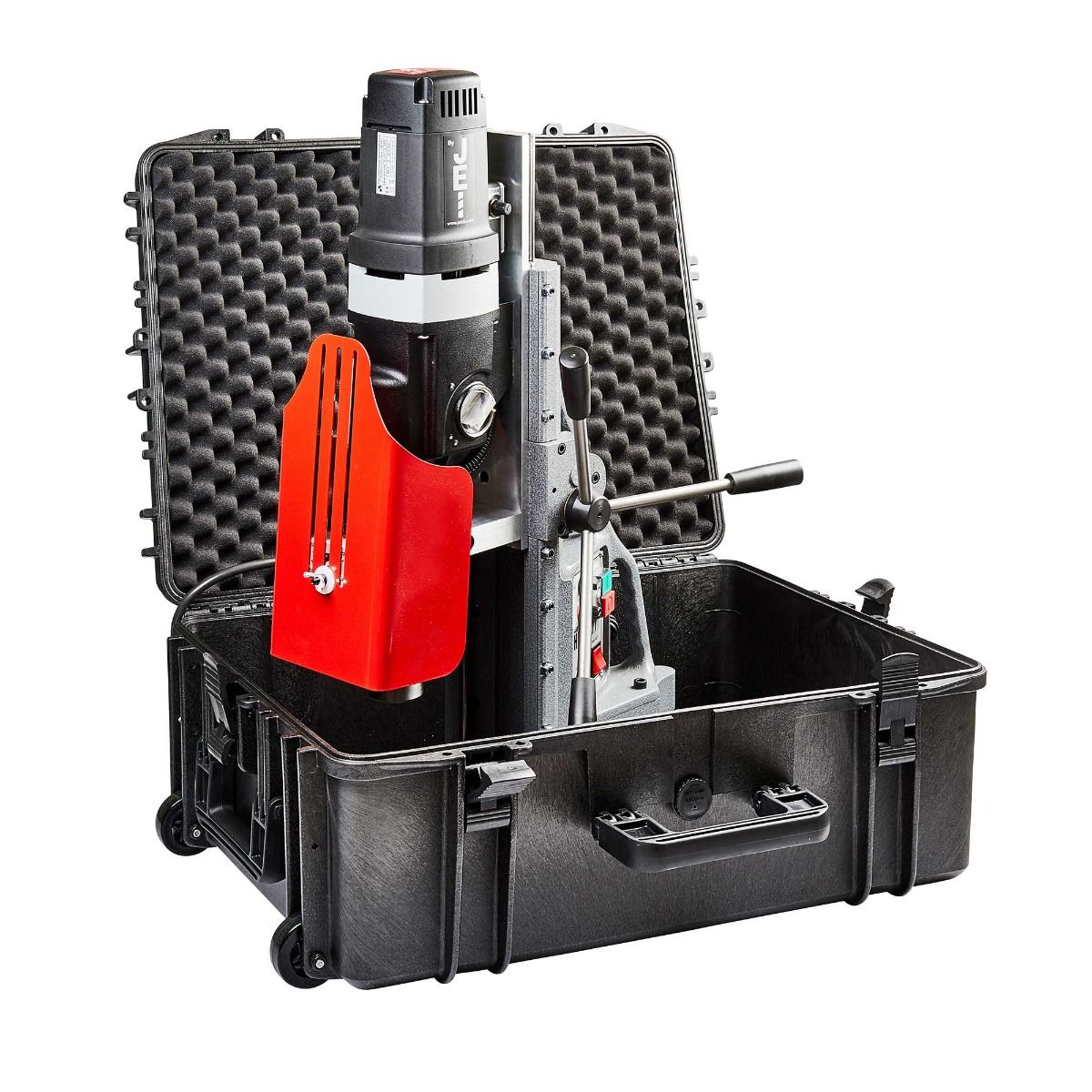

  • Complete with robust carrying case with wheels - easy movement to site.
In stock
SKU
MagBeast® HM140T


With built in forward/reverse and variable speed, the HM140T has the ability to tap/thread pre-drilled holes up to M44. Weighing only 35kgs, this machine has an unrivalled weight to capacity ratio for a machine of its size and can be lifted into position by one operator.

MagBeast® HM140T SPECIFICATIONS


Model HM140T
Countersink Capacity 80mm
Cutter Capacity 140mm Ø
Magnetic Base Dimensions 120 x 260 mm
No of Geared Speeds 4 Variable Speeds
Twist Drill Capacity 19 mm with 4MT Chuck ~ 50 mm with 4 MT Twist Drill
Reaming Capacity 47 mm
Motor 2300 watts
Height Min/Max 570 / 850 mm
Length / Width 440 x 245 mm
RPM 30-80/50-120/130-350/ 210-550 RPM
Noise Level < 90dB
Vibration Level < 2.5 m/s2
Voltage / Part No. 110 V - DRILL-HM140T/1 ~ 240v V DRILL-HM140T/2
Shipping Weight (Incl. 4.0Ah Battery) 50 kg
Shipping Dimensions 650 x 500 x 300 mm
Weight with 4.0Ah Battery 35kg
