MagBeast® HM100T

The complete 3MT magnetic drilling and tapping model also capable of cutting, reaming, counterboring and threading holes

Heavy duty 1800w motor.
2 speed variable gearbox with reverse.
250mm total drill travel.
Sleek, ergonomic design.
Maintenance free twin slide rails.
Fixed safety guard.

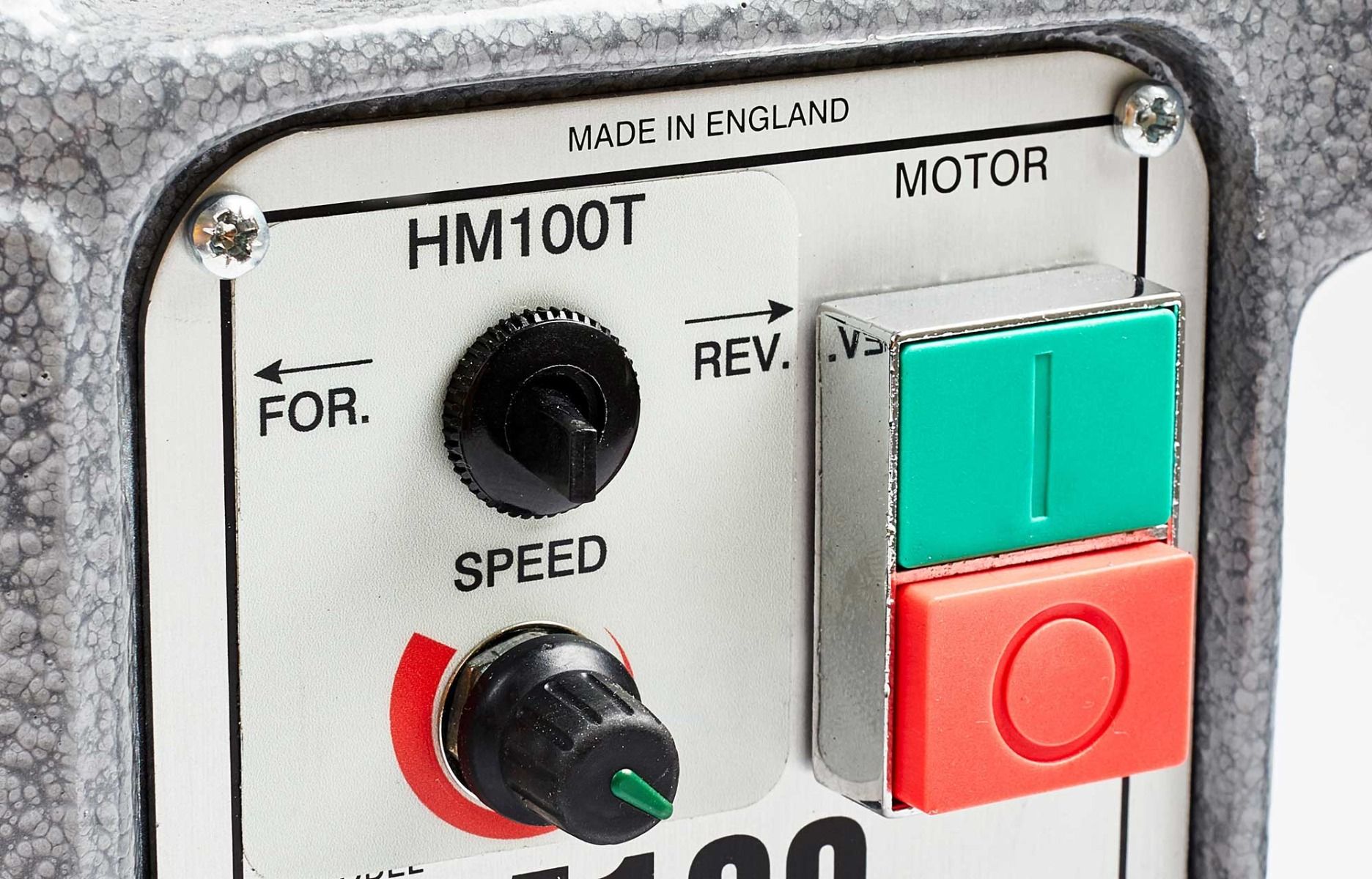

Simple and effective control panel.
Powerful electromagnetic basel.
Optional 360º swivel base.

In stock

SKU

DRILL-MAGBEAST-HM100T

DOWNLOADS:

Capable of cutting, reaming, counterboring and tapping holes, the MagBeast® HM100T is the perfect all-around choice for a variety of applications using simple and efficient electronic controls.

Why the MagBeast® HM100T?

Twin slide rails- no wearing parts adjustment free operation

Robust carry case

Simple and efficient electronic controls

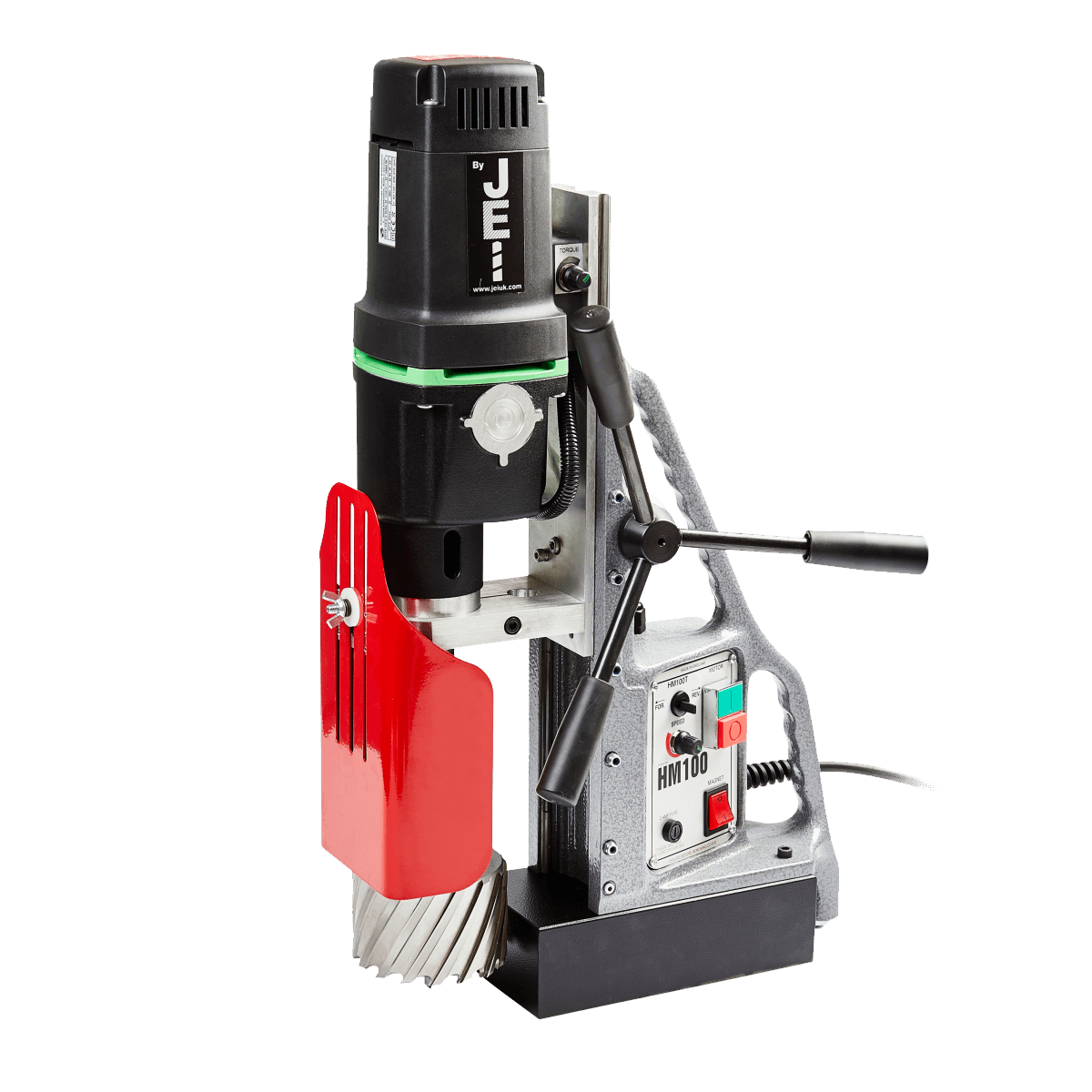

Cutters up to 100 mm with adaptor

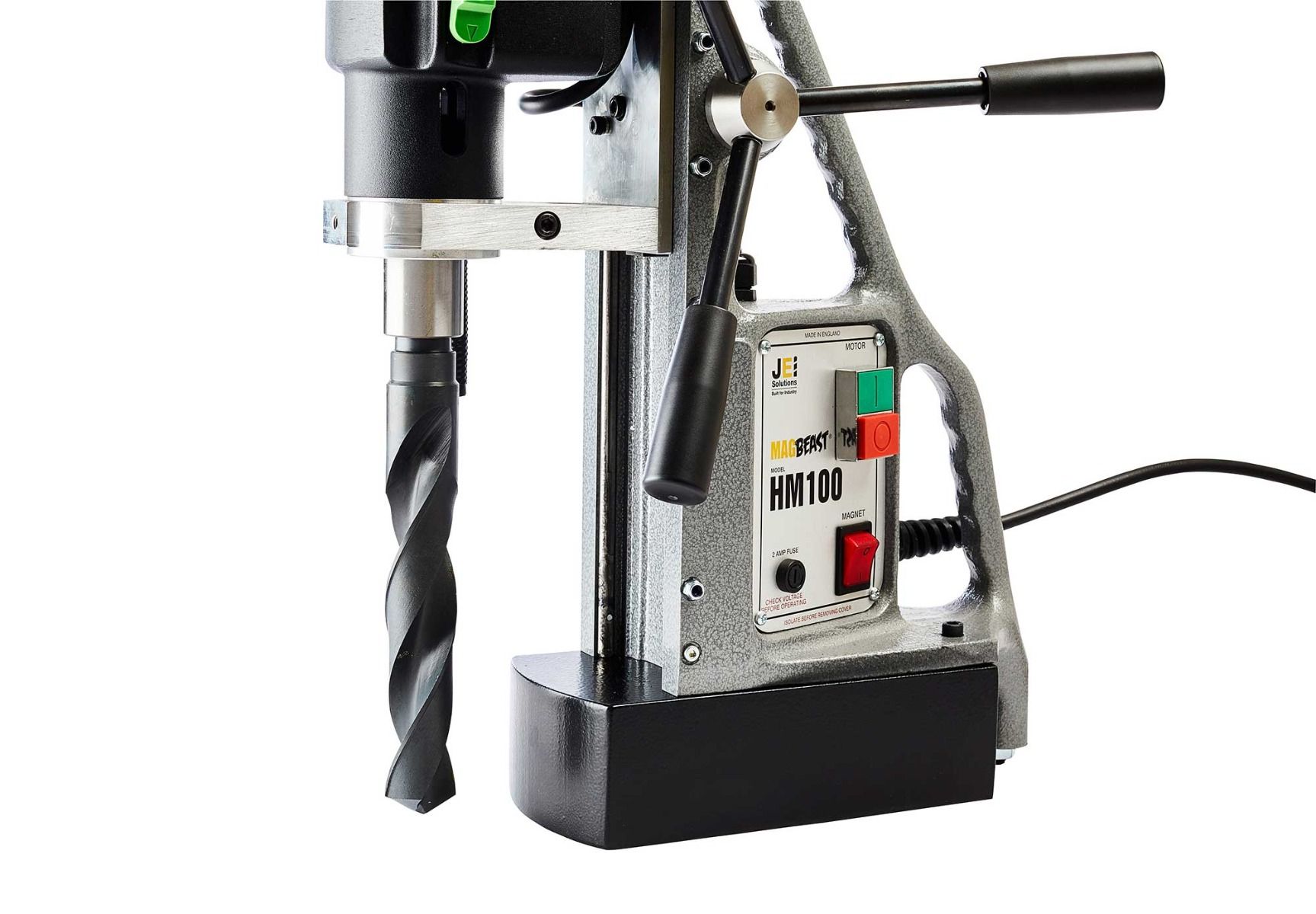

Solid drills up to 32 mm 3MT

Countersinking 55 mm capacity

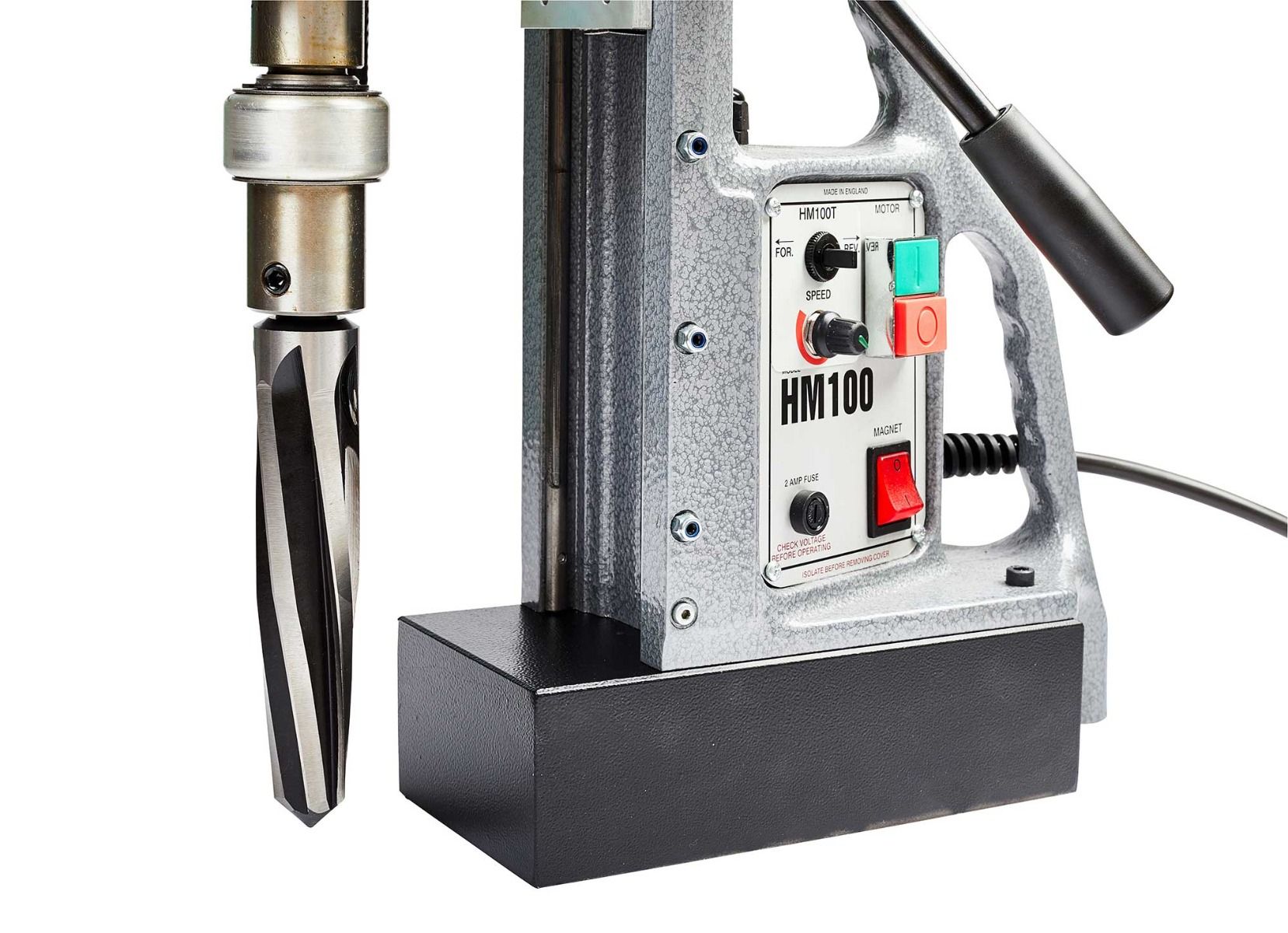

Reaming capacity 39 mm

Tapping Capacity up to M30

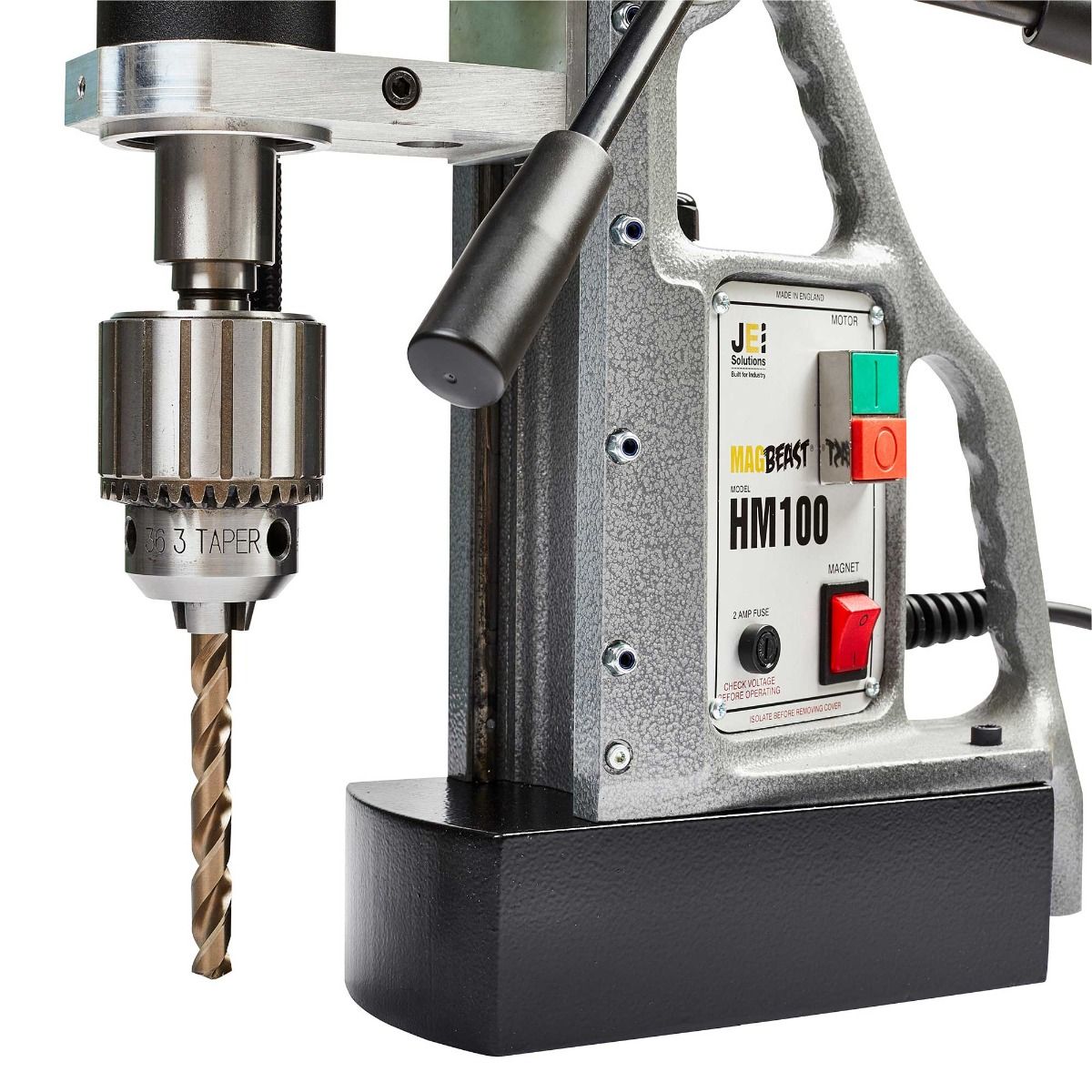

19 mm Twist Drill Capacity with a 3 MT Chuck and Adaptor

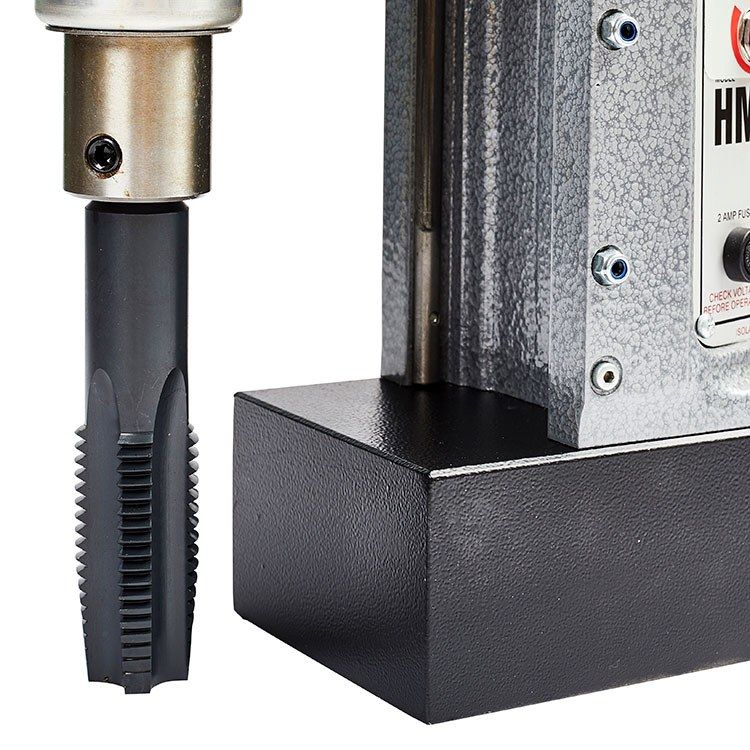

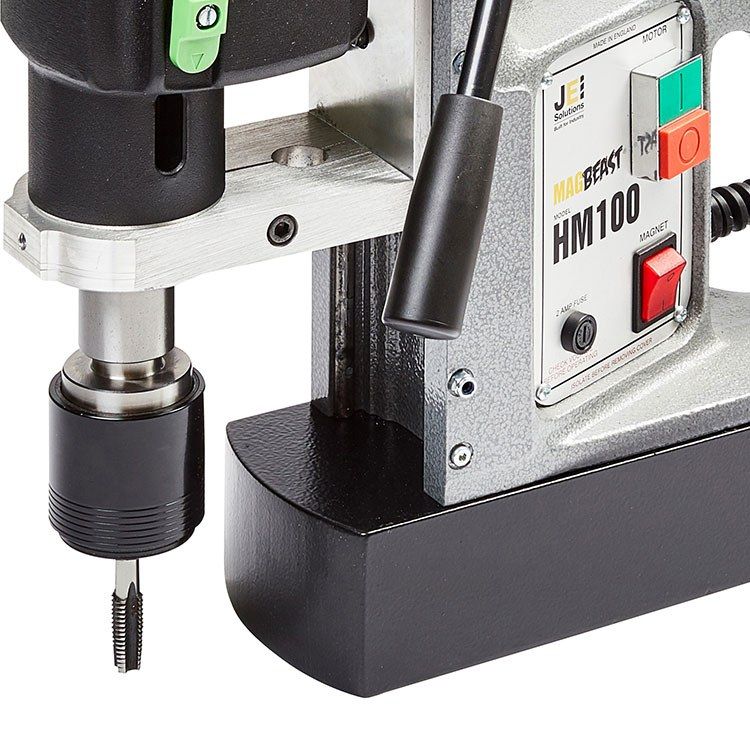

Can be used with a tapping chuck for blind or through hole tapping

MagBeast® HM100T SPECIFICATIONS

Model	HM100T / HM100TS SWIVEL BASED MODEL
Countersink Capacity	55 mm
Cutter Capacity	100 mm Ø x 6” depth of cut
Magnetic Base Dimensions	212 x 102 mm
Magnet Deadlift	2050 kg on 1” Plate (20100 N)
No of Geared Speeds	2 Variable Speeds
Twist Drill Capacity	19 mm with 3MT Chuck ~ 32 mm with 3MT Twist Drill
Tapping Capacity	M30
Reaming Capacity	39mm
Motor	1800 W
Spindle	MT3
Height Min/Max	450 / 700 mm
Length / Width	345 x 190 mm
RPM	2 Variable Speeds (torque control) 60–140 / 200–470
Voltage / Part No.	110 V – DRILL-HM100T ~240 V – DRILL-HM100T/2
Shipping Weight (Incl. 4.0Ah Battery)	28.65 kg / 32 kg
Shipping Dimensions	571 x 450 x 250 mm
Weight with 4.0Ah Battery	23.5 kg / 27kg

Available with Full 360° swivel base - HM100TS

The Ultimate HM100 magdrill option - the HM100TS. Gives you all the power of the 3 MT HM100 magdrill with the additional variable speed, reverse and swivel base features in one machine.
