MagBeast® HM100

A durable, heavy duty, 3 morse taper drilling machine

Heavy duty 1700 W motor. Enables large cutting capacity.
Weighs only 24 kg and 100 mm cutter capacity. Unrivalled weight to cutting capacity ratio.
4 speed gearbox. Ideal for a wide selection of cutting operations.
250 mm total drill travel. Facility to use 150 mm (6”) long cutters.

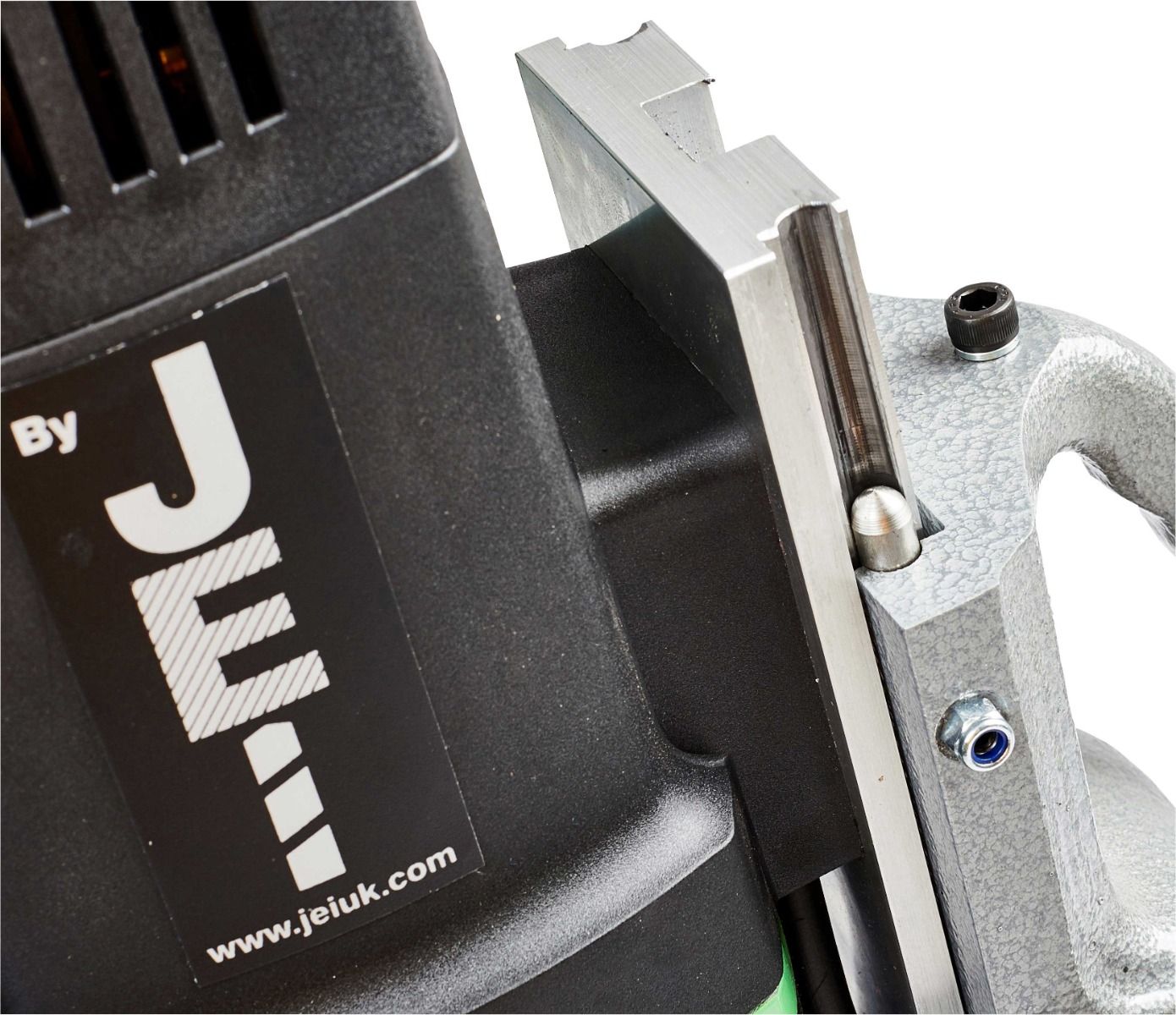

Maintenance friendly twin slide rails. No wearing parts and adjustment free operation.
Optional 360º swivel base.

In stock

SKU

DRILL-MAGBEAST-HM100

DOWNLOADS:

Product Brochure

Manual

The substantial 1700 W motor on the MagBeast® HM100 enables a large cutting capacity and 4-speed gearbox for those demanding projects. Adjustment-free operation and no wearing parts.

Why the MagBeast® HM100?

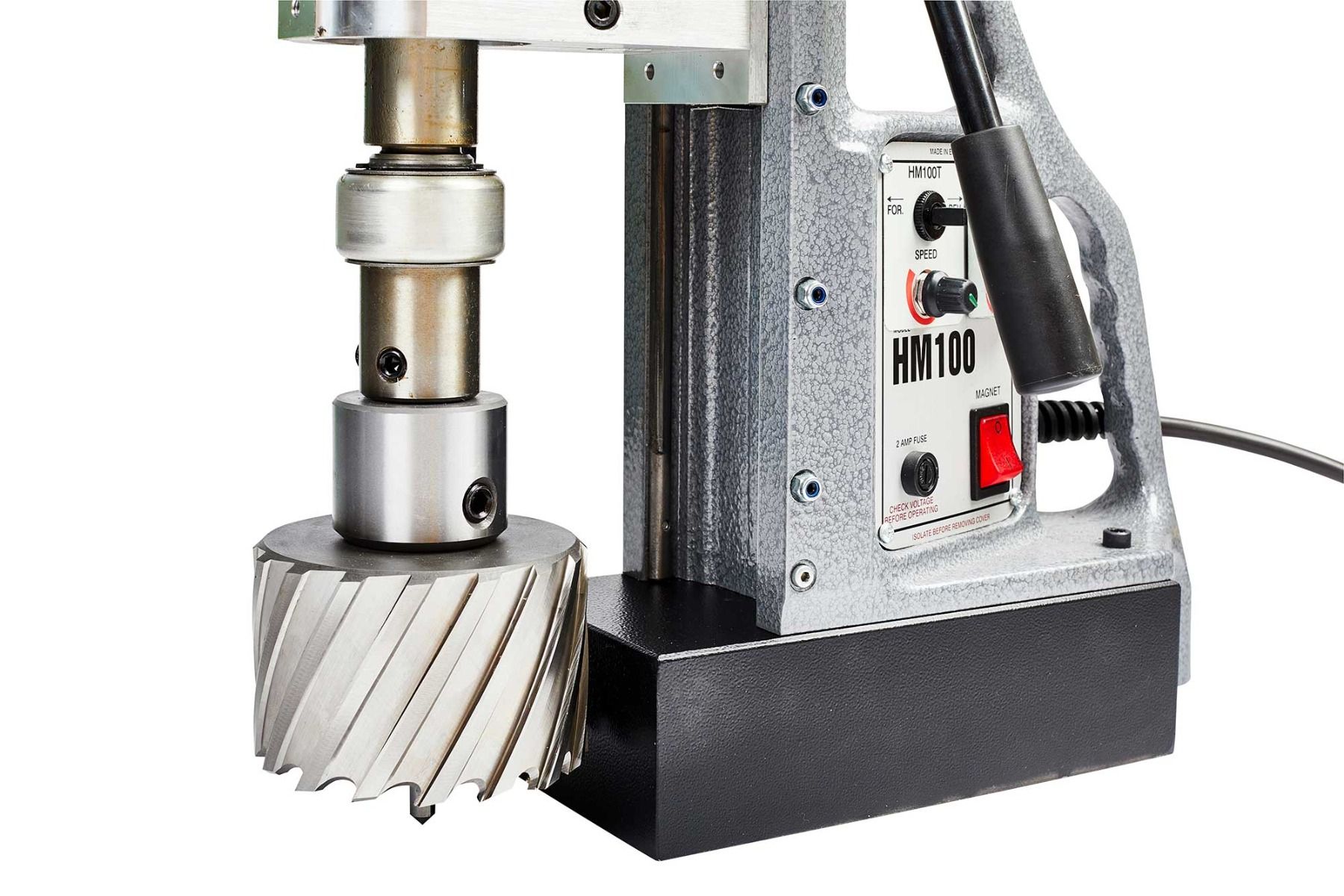

100mm Cutter Capacity

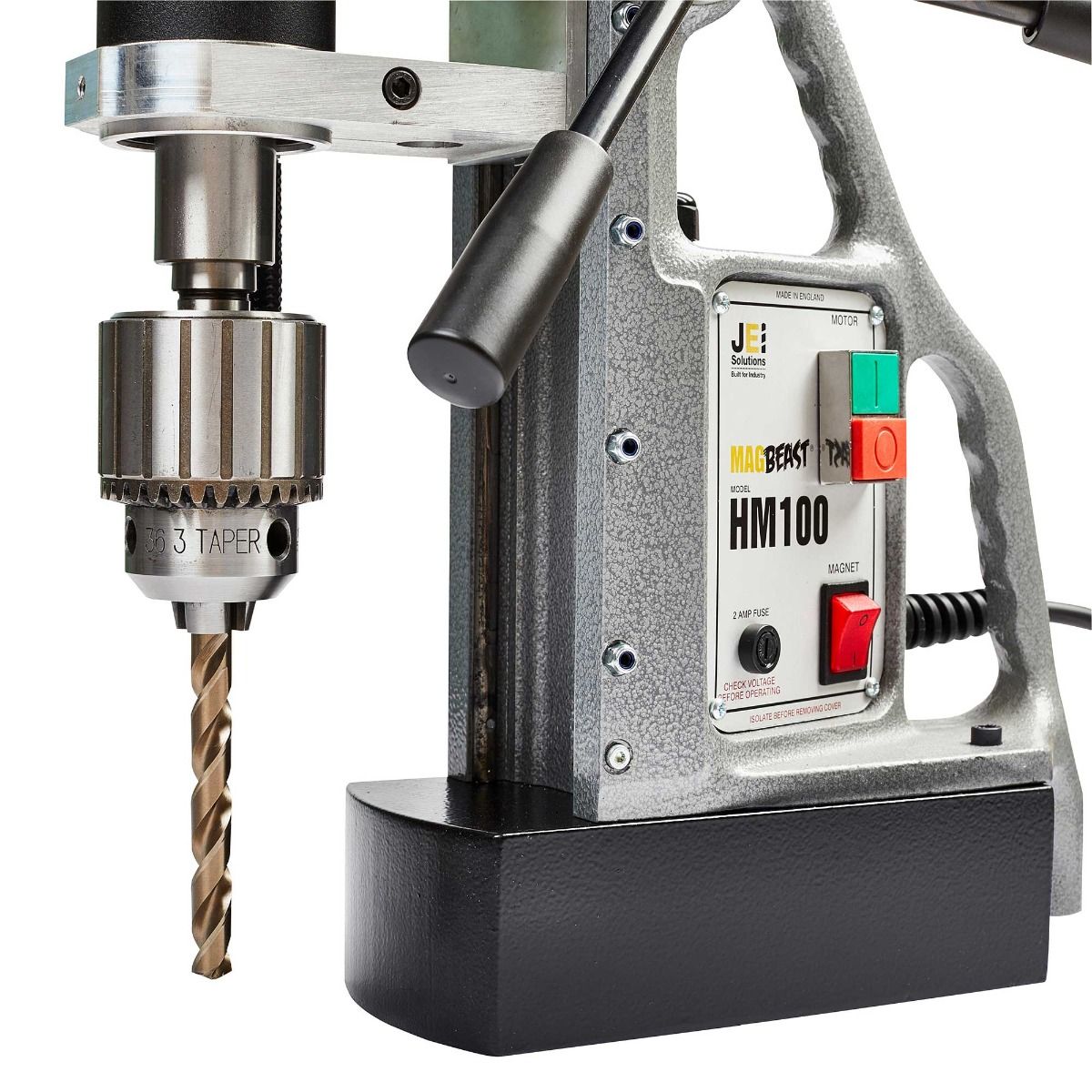

19mm Twist Drill Capacity with chuck

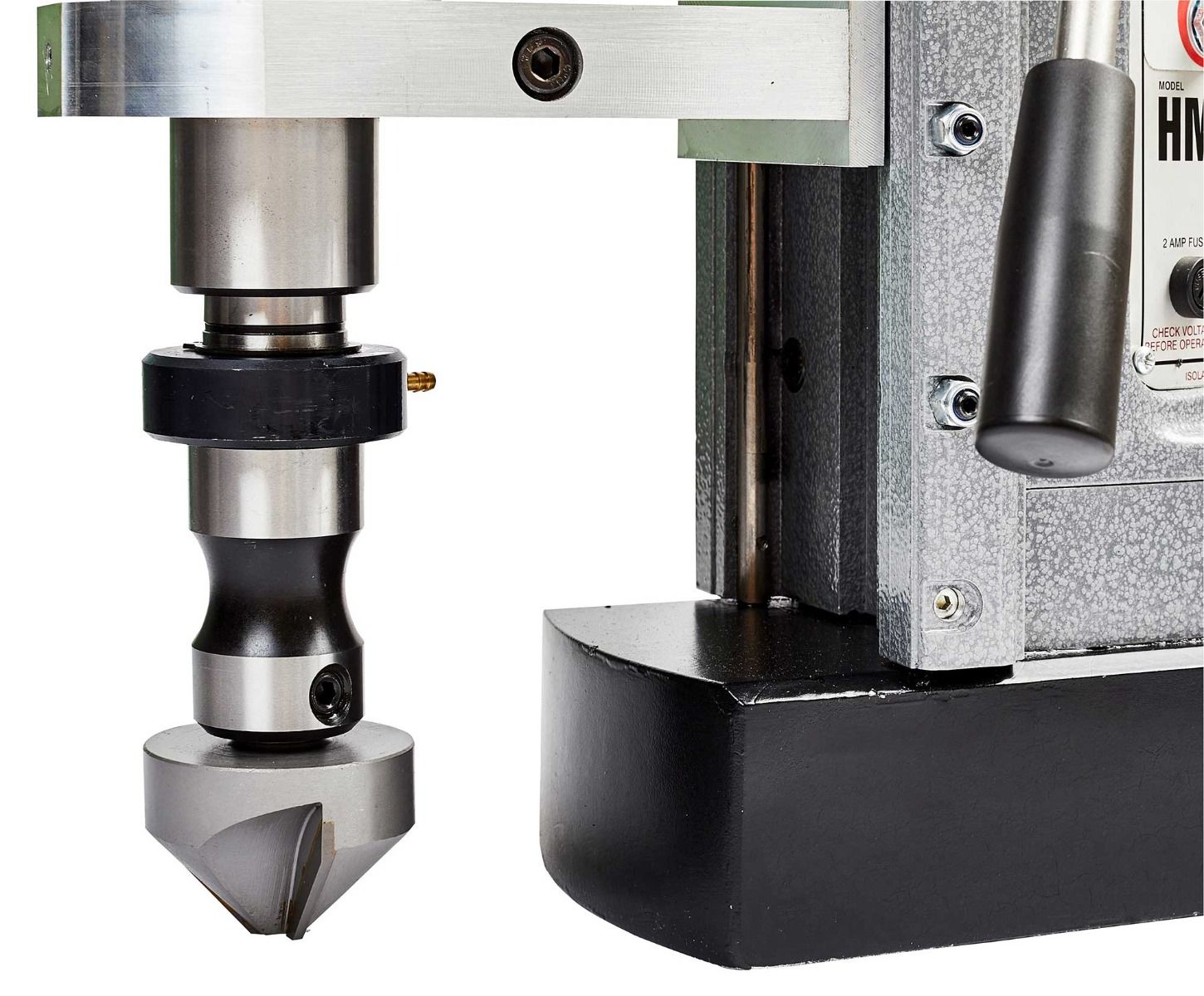

55mm countersinking capacity

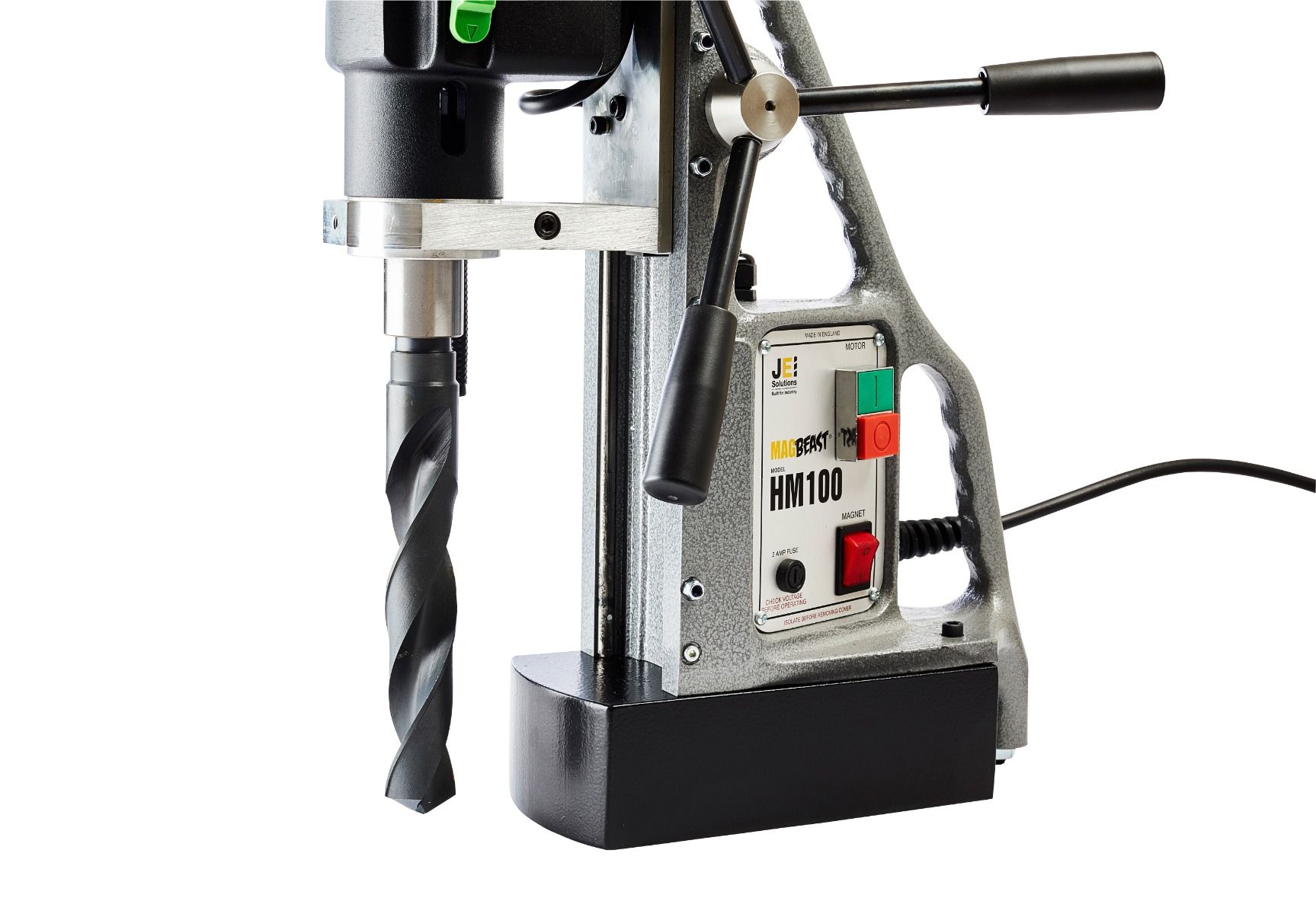

32mm 3MT drill capability

twin slide rails - maintenance-free operation

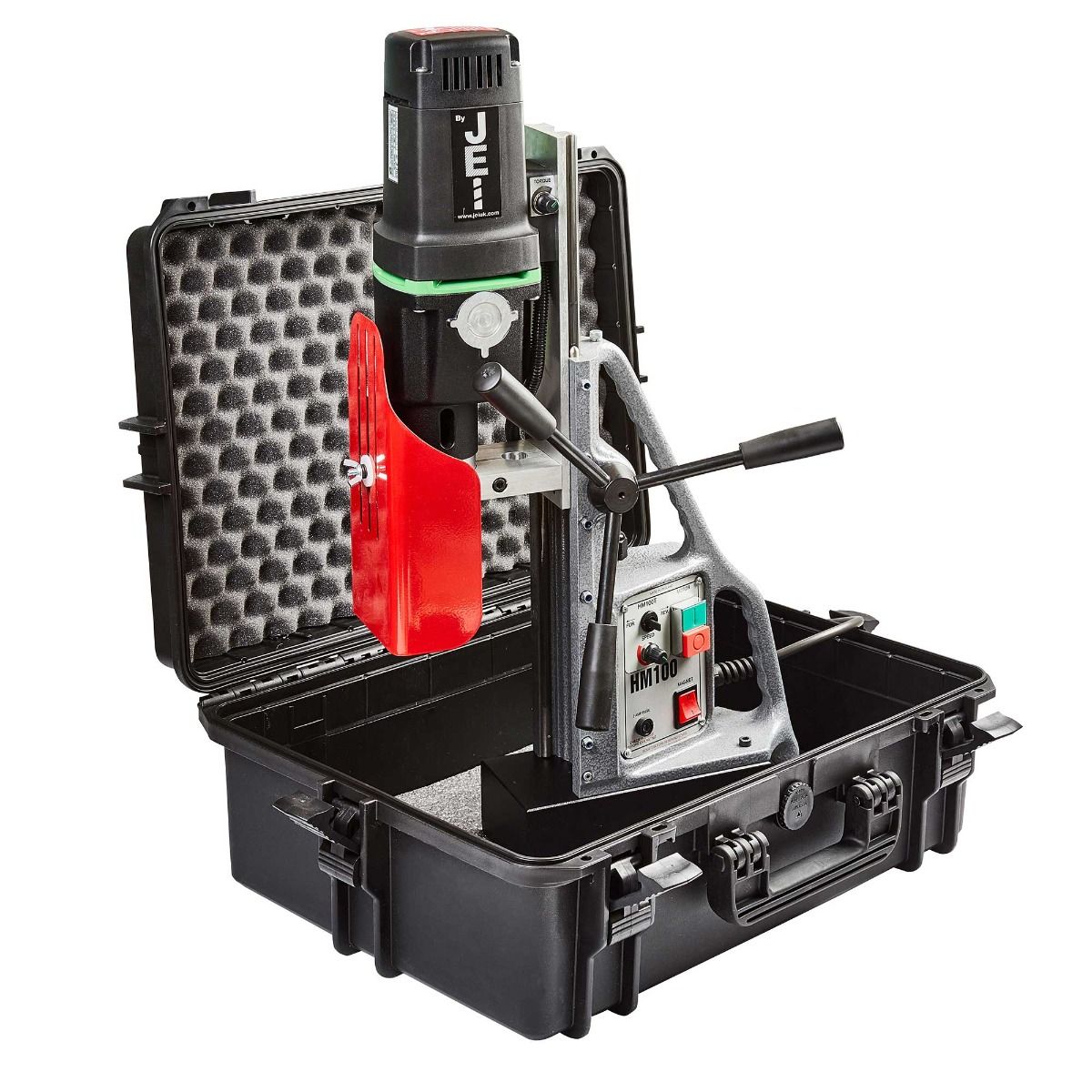

Includes robust carry case

MagBeast® HM100 SPECIFICATIONS

Model	HM100 / HM100S - SWIVEL BASE MODEL
Countersink Capacity	55 mm
Cutter Capacity	100 mm Ø x 6” depth of cut
Magnetic Base Dimensions	212 x 102 mm
Magnet Deadlift	2050 kg on 1” Plate (20100 N)
No of Geared Speeds	4 Fixed Speeds:
Twist Drill Capacity	19 mm with 2MT Chuck / 32 mm with 3MT Twist Drill
Reaming Capacity	39 mm
Motor	1700 W
Spindle	MT3
Height Min/Max	450 / 700 mm / 495 / 740 mm
Length / Width	345 x 190 mm
RPM	no load 215/330/460/680 RPM loaded 110/175/245/385 RPM
Noise Level	< 90dB
Vibration Level	< 2.5 m/s2
Voltage / Part No.	110 V – DRILL-HM100 240 V – DRILL-HM100/2
Shipping Weight (Incl. 4.0Ah Battery)	29 kg / 32kg
Shipping Dimensions	571 x 450 x 250 mm
Weight with 4.0Ah Battery	24 kg / 27.5kg
