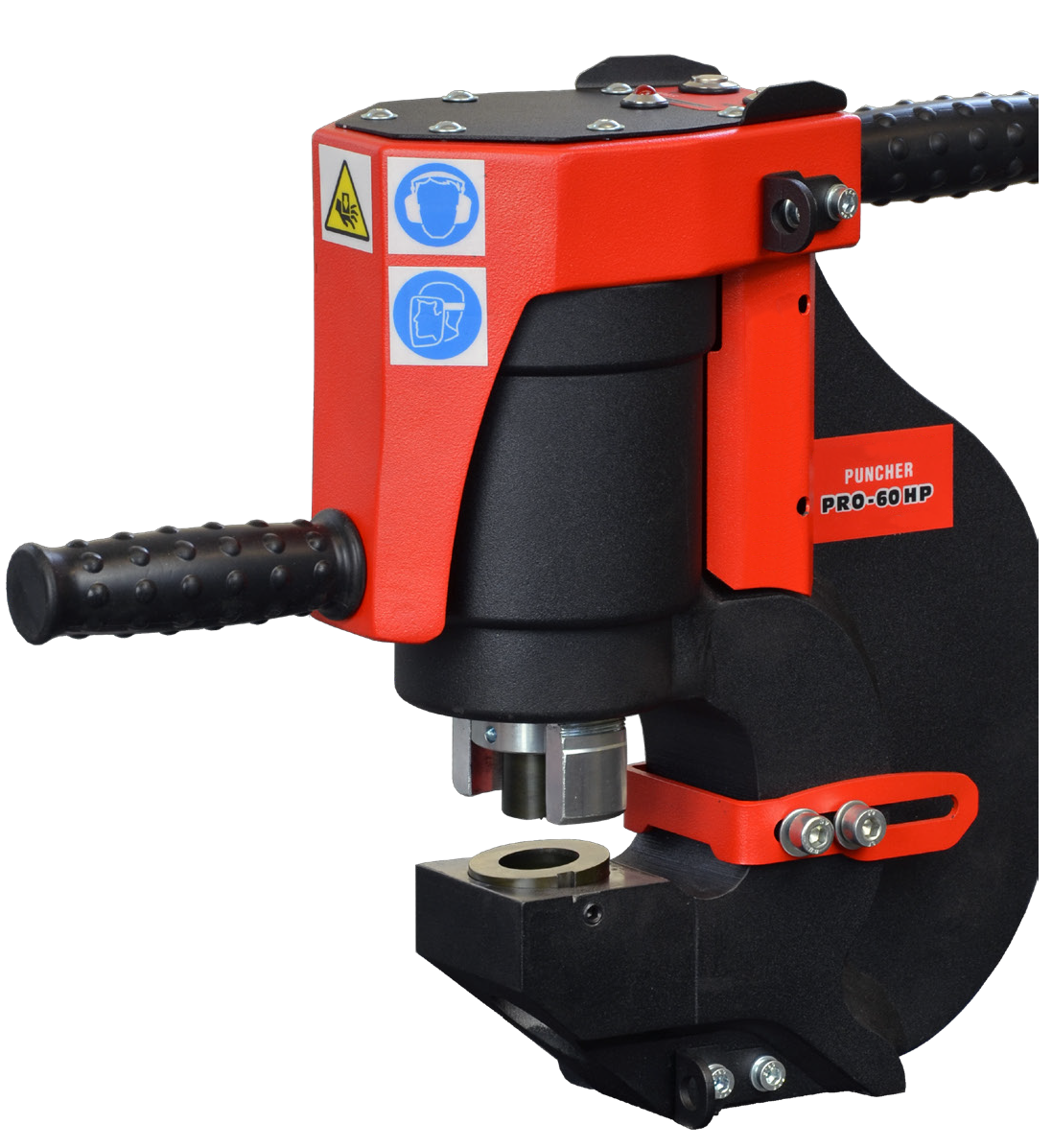

HP60 PORTABLE HYDRAULIC PUNCHER MACHINE

Portable, Double-Action Hydraulic Puncher Designed for Punching Holes

The SteelBeast® HP60 punching machine offers a fully automated process of punching and return through it's intelligent control system with inching and automatic load detection.

Featuring a 27 mm diameter capacity, through up to 13 mm thickness of steel, with a 60 mm maximum throat depth.

Customise your punching machine with our optional accessories to unlock further capabilities, such as punching in both horizontal and vertical position or punching hands free, improving your punching efficiency.

Want to make sure the 'HP60 Portable Hydraulic Puncher Machine' is right for you? Speak to our specialist solutions team today.

In stock
SKU
SB-HPM-HP-60


HP60 PORTABLE HYDRAULIC PUNCHER MACHINE SPECIFICATIONS


Model HP60
Double Action Hydraulic Movement Yes
Height 388mm
Max Hole 27mm
Max Oblong Hole 25 x 18mm
Max Thickness 13mm
Max Throat Depth 60mm
Net Weight 20kg
Motor 2000 watts
Punching Time 5 seconds
Punching Power 35 ton
Voltage / Part No. 115V or 230V
Working Pressure 700 bar
Double action hydraulic movement

Double action hydraulic movement

Oval hole max Φ 27mm

Oval hole max Φ 27mm

Oblong hole max 25 x 18 mm

Oblong hole max 25 x 18 mm

Punching time 5 seconds

Punching time 5 seconds

Max throat depth 60 mm

Max throat depth 60 mm

Material thickness 13mm

Material thickness 13mm

Punching power 35 ton

Punching power 35 ton

Weight 20 kg

Weight 20 kg

Accessories


Punch and Die Sets in Various Shapes and Sizes

Punch and Die Sets in Various Shapes and Sizes

Hydraulic Power Pack available in 110 and 230 V

Hydraulic Power Pack available in 110 and 230 V

Wheel Punch Slider

Wheel Punch Slider

Bench Top Stand with Foot Pedal

Bench Top Stand with Foot Pedal

Balancer

Balancer

Balancer

Hoist Set

Download the HP60 specifications
