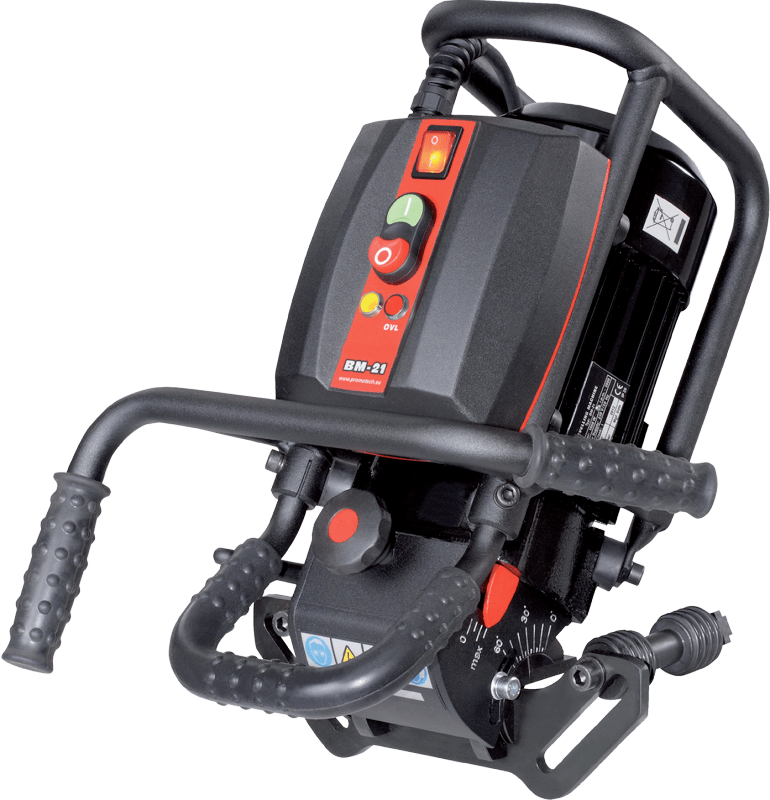

BM-21S PLATE & PIPE BEVELLING MACHINE

Multifunctional Edge Preparation Machine

The BM-21S Bevelling Machine is designed for milling edges of plates and pipes made of stainless steels. The machine enables to bevel sheet edges as well as pipe edges with diameters from 150 mm (6"} to 300 mm (12") in 0-60° range with maximum bevel width of 21 mm (13/16").

When equipped with an optional guide, BM-21S allows working on pipes with diameters over 300 mm (12").

Want to make sure the 'BM21S Plate & Pipe Bevelling Machine' is right for you? Speak to our specialist solutions team today.

In stock
Only %1 left


BM-21 – Industrial Plate & Pipe Beveler will surprise you with its variety of helpful features which will make your job easy and efficient. This state of the art beveler is perfect choice when beveling steel plates and pipes prior to welding.

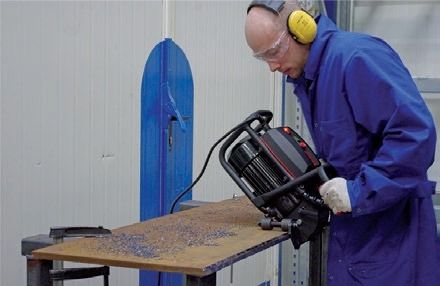

Top bevel

Top bevelling

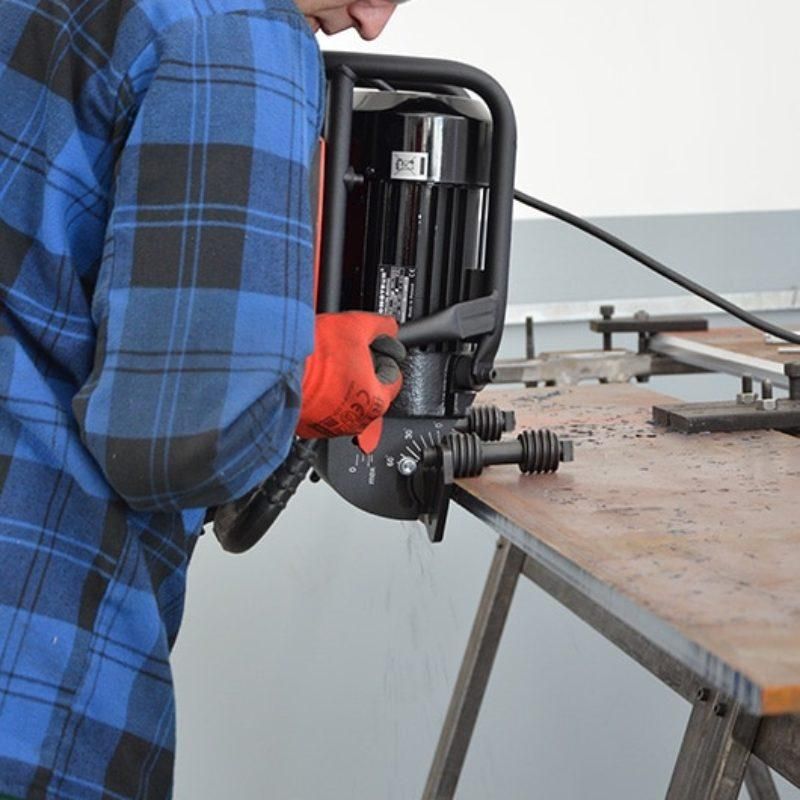

Facing Off

Facing Off

Bevel angles

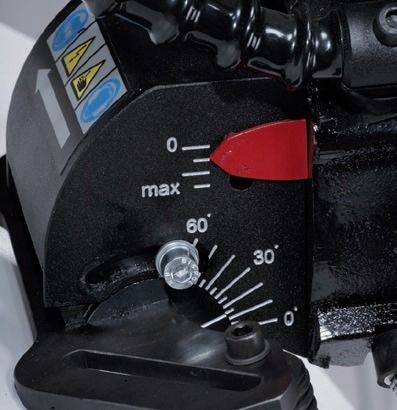

Bevel angles 0° to 60°

Bevel width up to 21mm

Bevel width up to 21mm

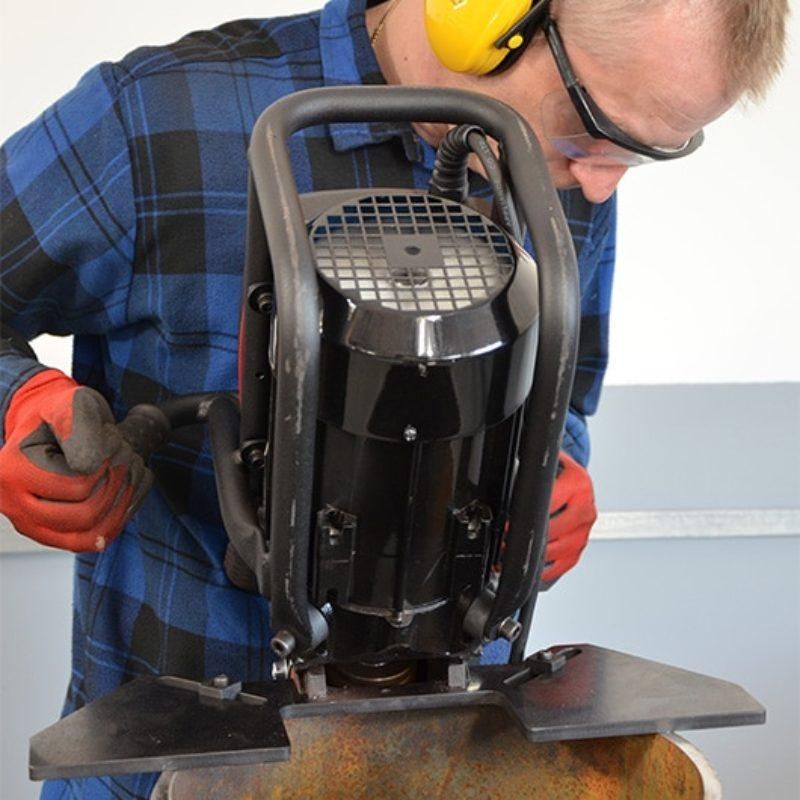

Pipe OD Bevelling

Pipe OD range 150-300mm 260-600mm (option)


Accessories


Mono block milling head, with 10 indexable inserts fixed with screws. Product code: GLW-0461-03-00-00-0

Mono block milling head, with 10 indexable inserts fixed with screws. Product code: GLW-0461-03-00-00-0

Heavy-duty Cutting Inserts - BM21IHD

Cutting Insert (1 piece), sold 10 pcs/box Product code: PLY-000282

Cutting Insert HD (1 piece), sold 10 pcs/box Product code: PLY-000591

Cutting Insert HD (1 piece), sold 10 pcs/box Product code: PLY-000591

Standard universal guide plate for beveling both plates and pipes 150-300mm (6-12”)

Standard universal guide plate for beveling both plates and pipes 150-300mm (6-12”)

Optional guide for pipes 260-600mm (10-24”) Product code: PRW-0461-22-00-00-0

Optional guide for pipes 260-600mm (10-24”) Product code: PRW-0461-22-00-00-0
