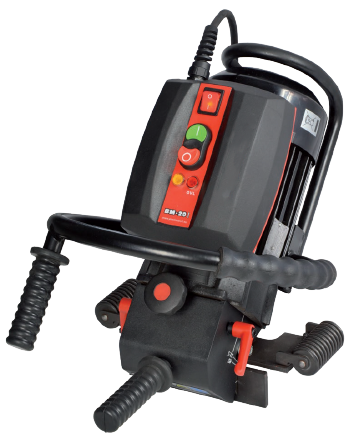

BM20 PLUS PORTABLE BEVELLING MACHINE

Multifunctional Edge Preparation Machine

The BM20 Plus is a portable, heavy-duty edge preparation bevelling machine designed for bevelling both plate and pipes prior to welding with ease and accuracy, and is both operator-friendly and versatile. Its state-of-the-art electronic motor overload module offers additional protection to the machine and tooling. Equipped with a guide roller, the BM20 Plus is light and easy to operate.

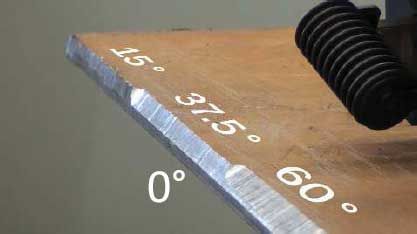

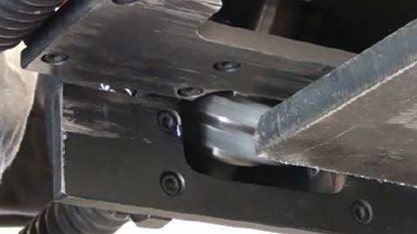

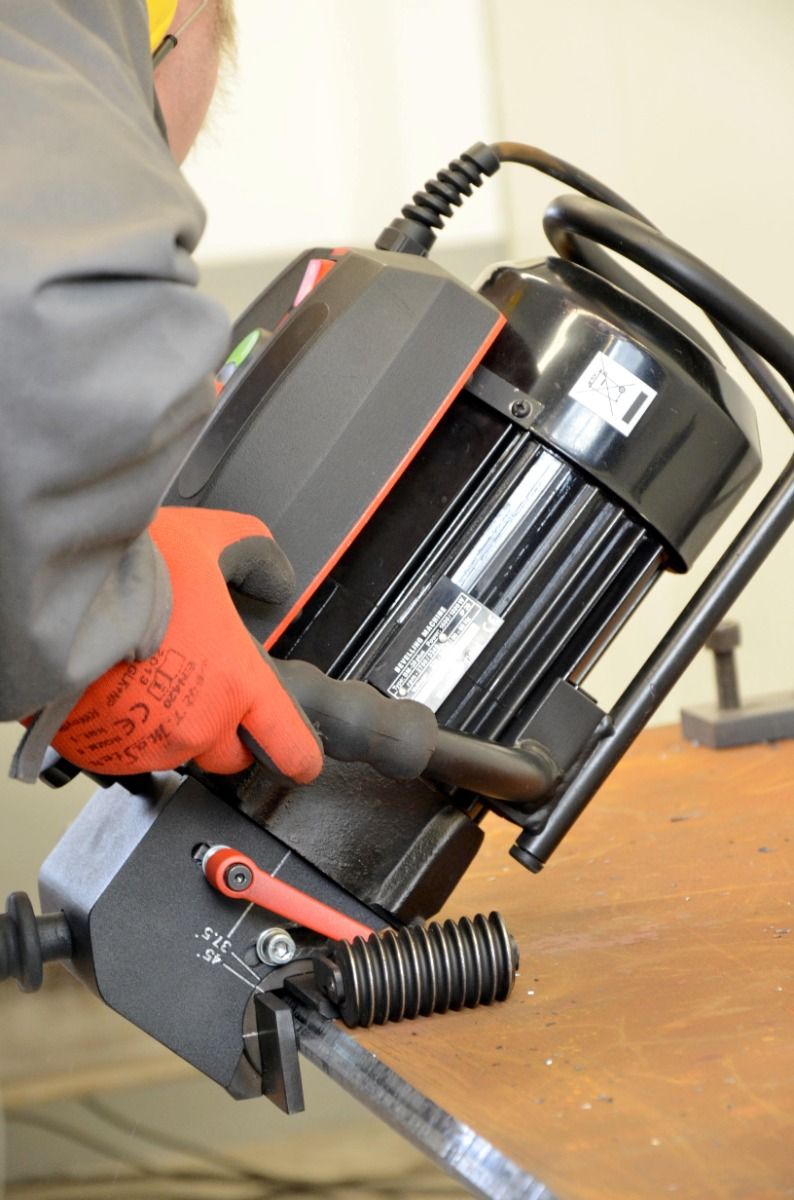

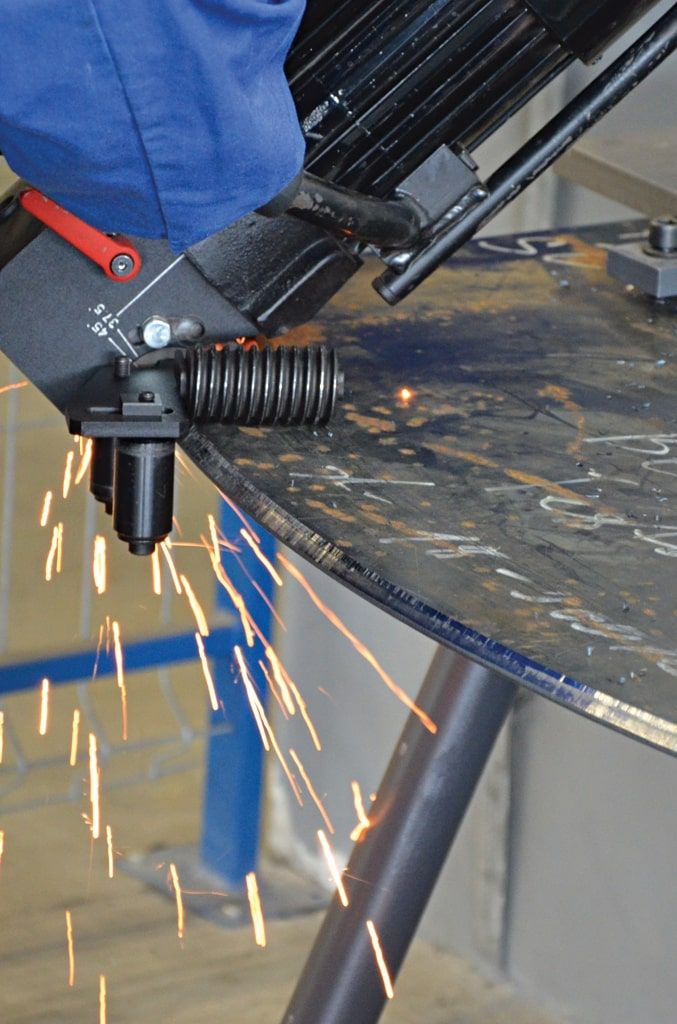

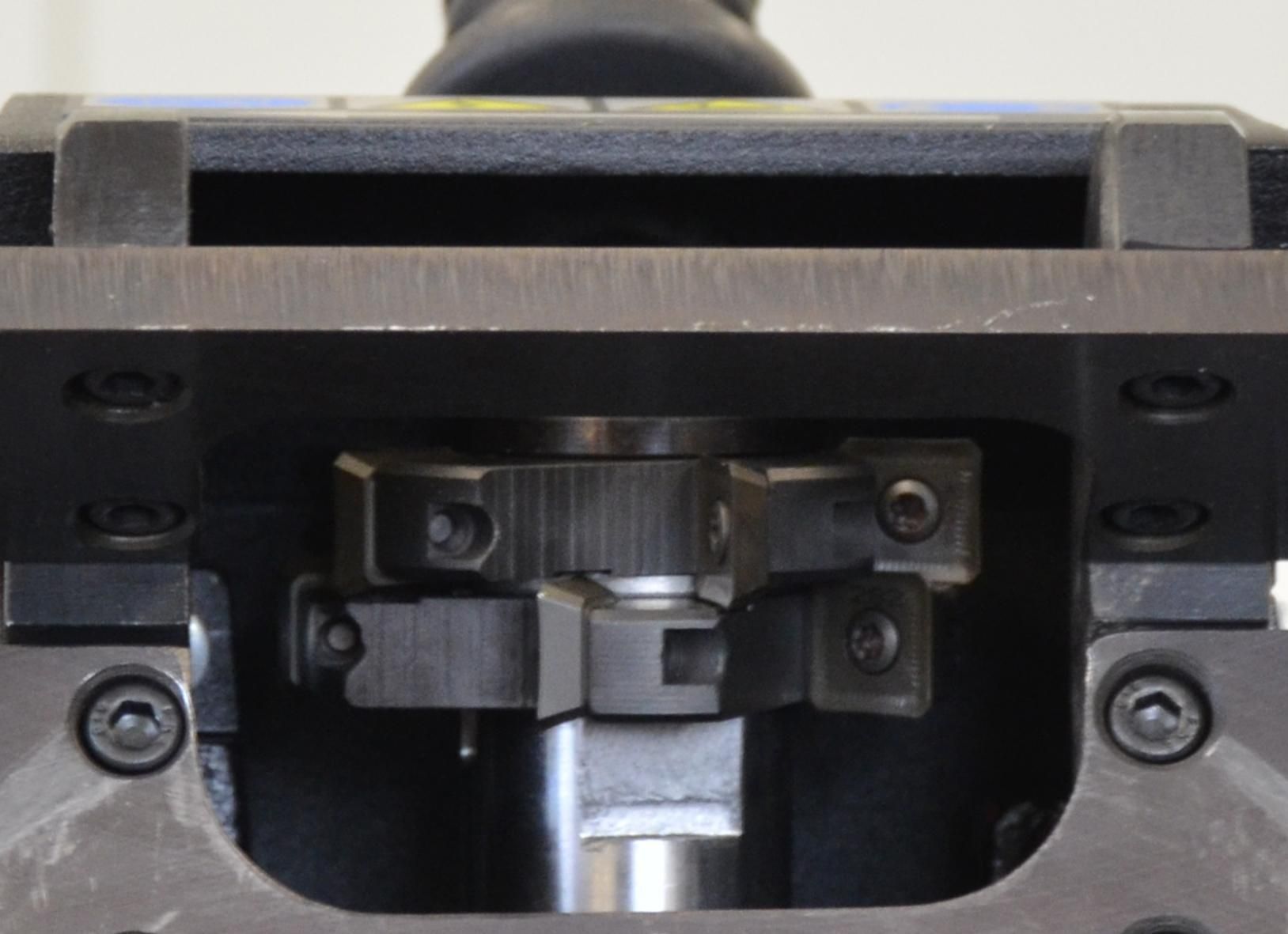

Fitted with two rotary milling heads, each holding five 4-sided cutting inserts, the BM20 Plus allows for smooth operation and exceptional efficiency. An ideal beveller for edge preparation on plate as standard from 15 -60 degrees, up to a maximum bevel width of 21 mm. The BM20 Plus features a host of additional optional tooling that enhances the beveller's capabilities further for facing off steel, bevelling curved plate and pipe.

Want to make sure the 'BM20 Plus Portable Bevelling Machine' is right for you? Speak to our specialist solutions team today.

e sure the 'BM20 Plus Portable Bevelling Machine' is right for you? Speak to our specialist solutions team today.

In stock

SKU

SB-PBEV-BM20-PLUS

DOWNLOADS:

Product Brochure

BM20 PLUS PORTABLE BEVELLING MACHINE SPECIFICATIONS

Model	BM20 Plus

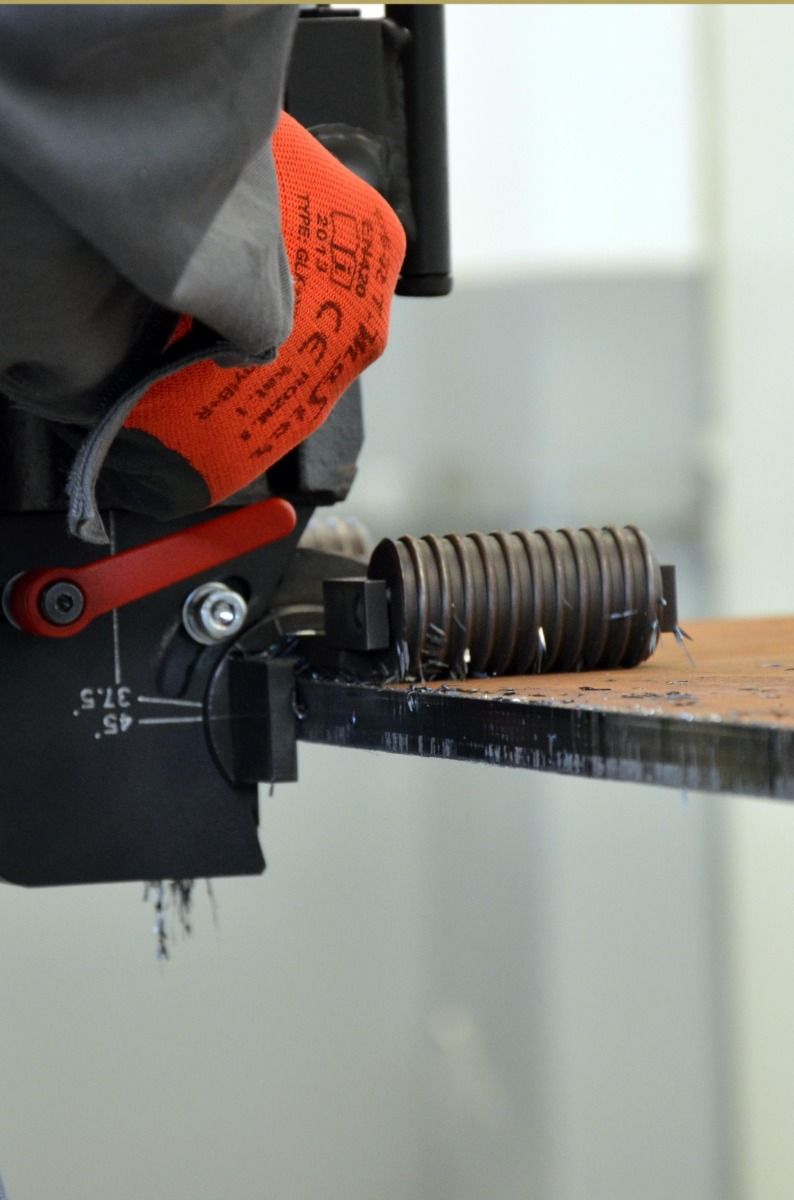

Angle Range	15-60° as Standard (0° Facing Off with additional attachment)
No of Geared Speeds	2780 - 3340 RPM (220 V) / 2740 - 3290 RPM (110 V)
Motor	1550/1600 W (for 50/60Hz, at 220 V) /1700/1850 W (for 50/60Hz, at 110 V) / 1600 W (for 60Hz, at 110 V)
Maximum Bevel Width	up to 20.5 mm (Bevelling at 30° and 60°) up to 21 mm (Bevelling at 15° and 45°)

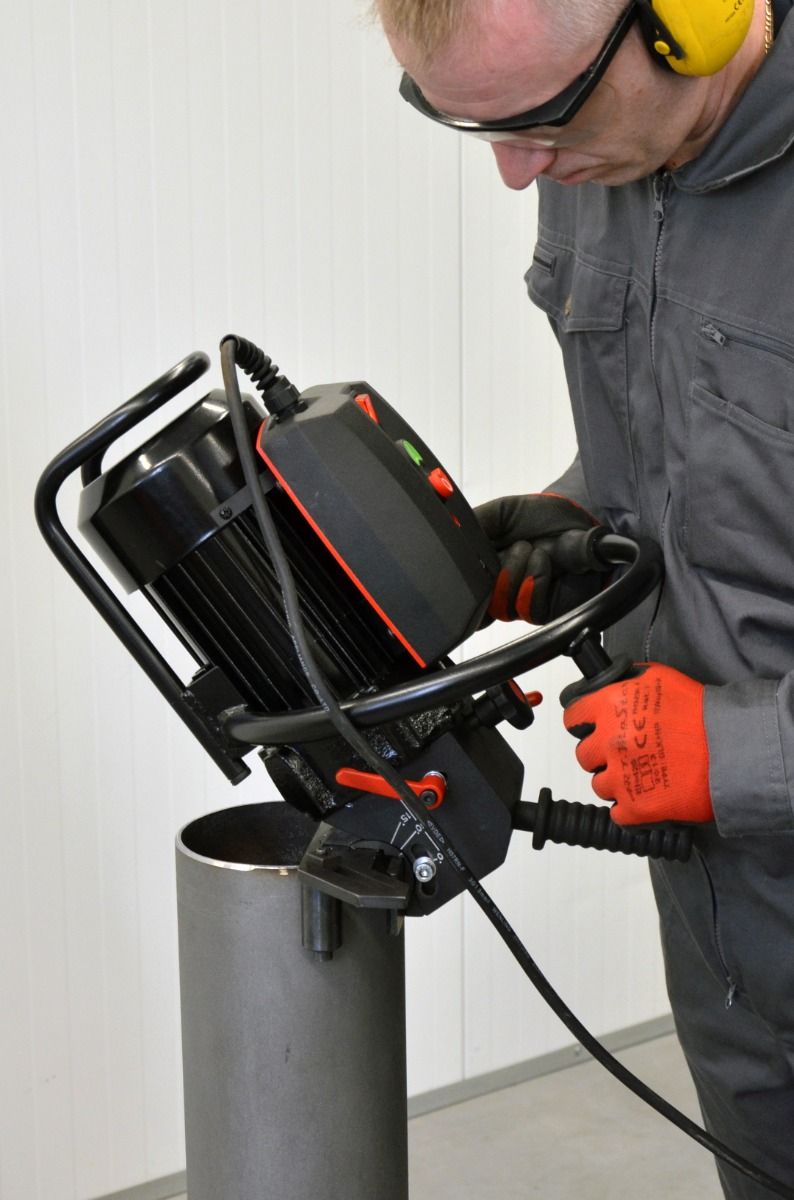

Pipe Bevelling Dia.	150 mm - 300 mm/ 260 mm - 600 mm (with additional attachments)
Tooling	Two Milling Heads with 10 square cutting inserts (4 sided)
Voltage / Part No.	220 V/50Hz / 110 V / 60Hz
Weight with 4.0Ah Battery	22 kg

Model

BM20 Plus

Angle Range

15-60° as Standard (0° Facing Off with additional attachment)

No of Geared Speeds

2780 - 3340 RPM (220 V) / 2740 - 3290 RPM (110 V)

Motor

1550/1600 W (for 50/60Hz, at 220 V) /1700/1850 W (for 50/60Hz, at 110 V) / 1600 W (for 60Hz, at 110 V)

Maximum Bevel Width

up to 20.5 mm (Bevelling at 30° and 60°)
up to 21 mm (Bevelling at 15° and 45°)

Pipe Bevelling Dia.

150 mm - 300 mm/ 260 mm - 600 mm (with additional attachments)
