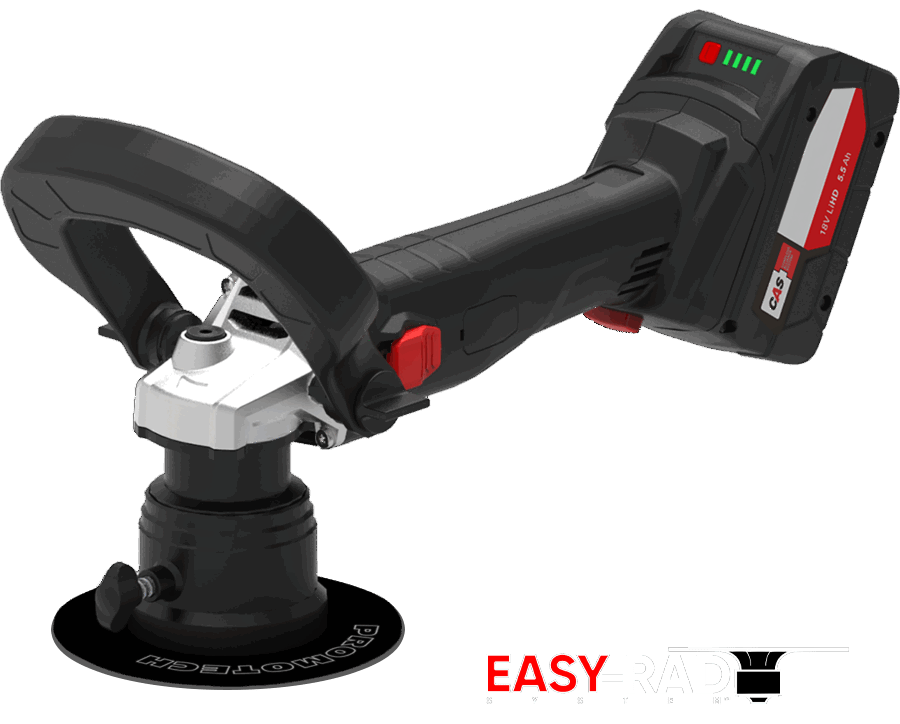

BM-6C

Cordless Compact Bevelling Machine

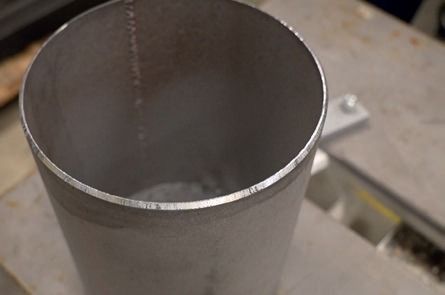

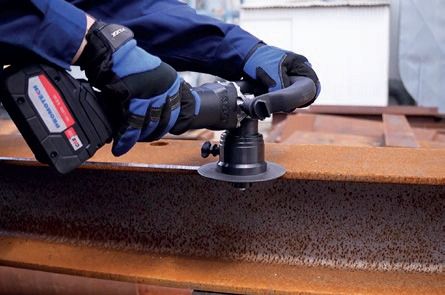

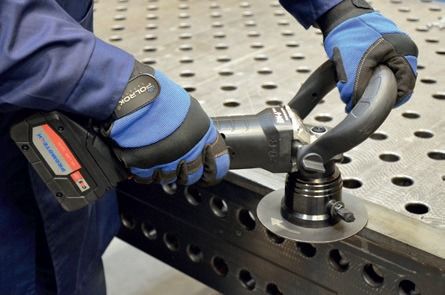

The BM-6C is a compact, lightweight, battery-powered machine that produces clean bevels up to 6 mm wide on plates, pipes, and contours. It’s also the ideal tool for rounding off radii R2, R3, R4, and R5 on metal structures before painting, which helps to prevent rust build-up on sharp edges.

With no supply cable to trip over or tangle, the BM-6C offers maximum flexibility and portability, making it perfect for outdoor use or remote locations with no access to mains power.

To keep you working longer, the BM-6C comes with two rechargeable CAS batteries included.

Want to make sure the 'BM-6C' is right for you? Speak to our specialist solutions team today.

In stock

SKU

SB-PIPBEV-BM-6C

DOWNLOADS:

Product Brochure

Manual

WHY THE BM-6c?

The new EN 1090 & EN-ISO 12944 Part 2 applications directive, demands a soft or radius edge applying to all steel sections before painting, to prevent rust build up on sharp edges. The BM-6C, is quick, simple-to-use, and creates a perfect radius in just one pass, saving time and money over conventional grinding methods.

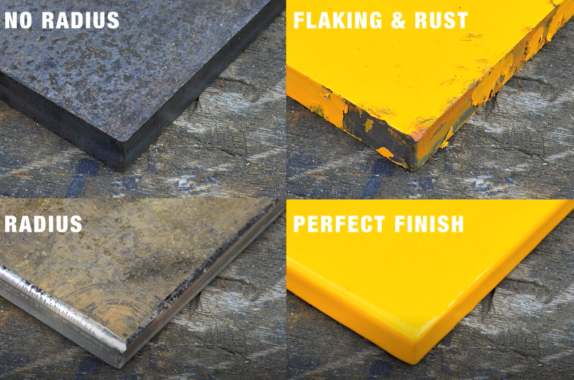

Multitask bevelling solution: For the perfect finish, create a radius edge with just one pass using the BM-6 Battery. This avoids flaking and gives a high-quality finish that lasts.

BM-6C SPECIFICATIONS

Model	BM-6C
Power Supply	18 V DC
Bevel Angle	45° (30° option)

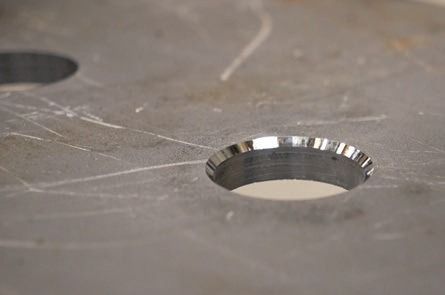

Countersink Capacity	40 mm (1.57’’
Dimensions	339 mm x 135 mm x 319 mm

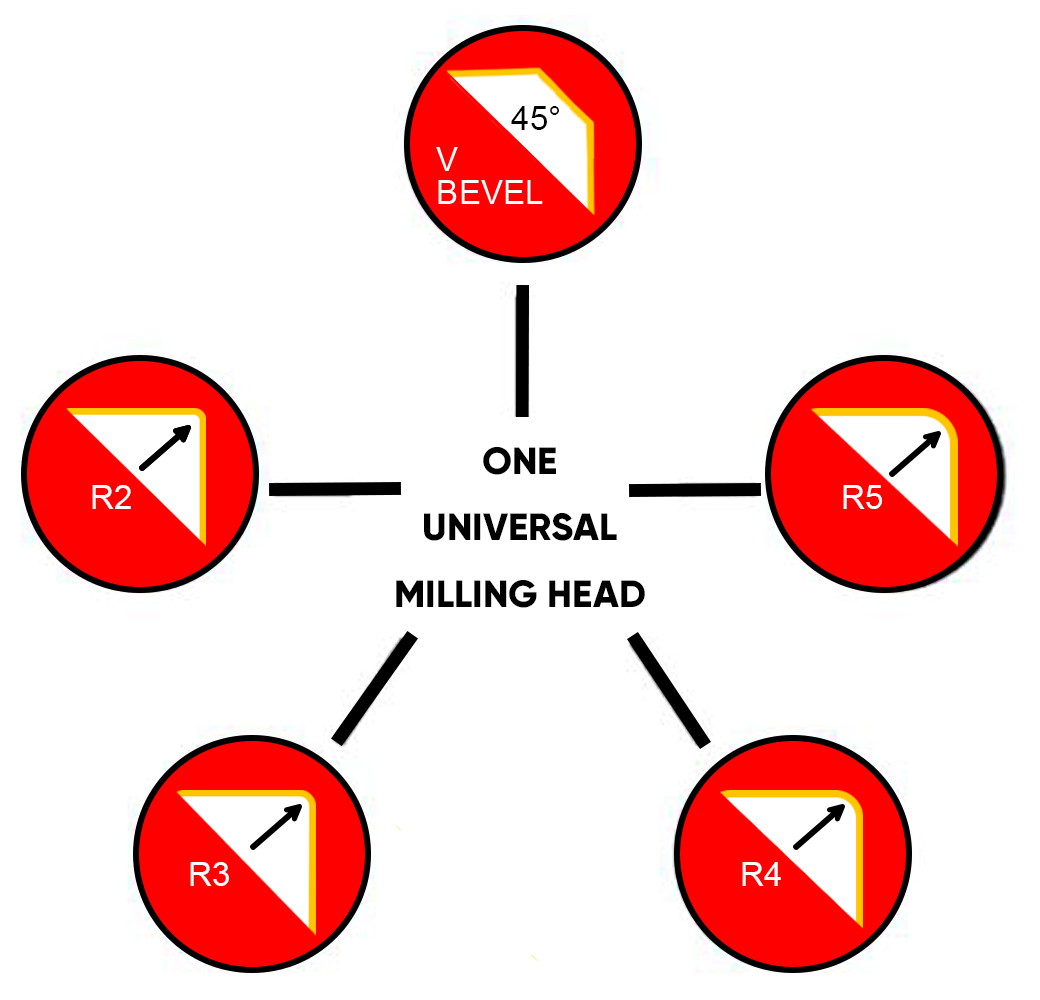

Radius Bevelling	R2, R3, R4, R5
Spindle Speed w/o Load	7800 rpm
Weight (without milling head)	3.7 kg (8.2 lbs)
