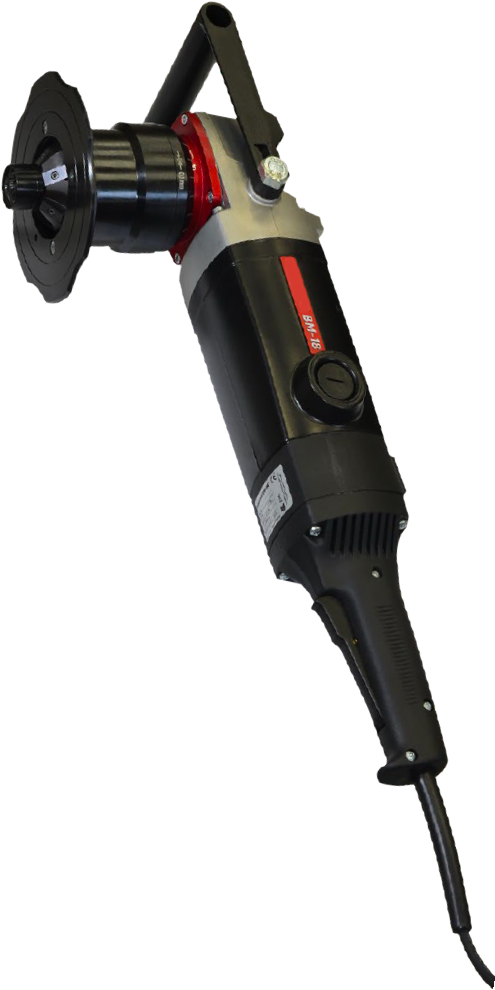

BM-18

The New Generation of Powerful, Portable Plate Bevelling.

Features new more durable milling heads with hexagonal fixing for easy replacement.

The BM18 is a new generation, portable, multitask plate and pipe beveller is driven by a powerful electric motor and ideal for plate bevelling, pipe bevelling, radius edge bevelling and countersinking. Designed for bevelling edges of steel, aluminium, alloys, brass or plastic. Also available as a radius edge plate bevelling solution.

Want to make sure the 'BM-18' is right for you? Speak to our specialist solutions team today.

In stock

SKU

SB-PBEV-BM-18

DOWNLOADS:

Product Brochure

Manual

The new EN 1090 & EN-ISO 12944 Part 2 applications directive, demands a soft or radius edge applying to all steel sections before painting, to prevent rust build up on sharp edges. This quick, simple-to-use system with a 4-tip cutting head, creates a perfect radius in just one pass, saving time and money over conventional grinding methods.

Why the BM-18?

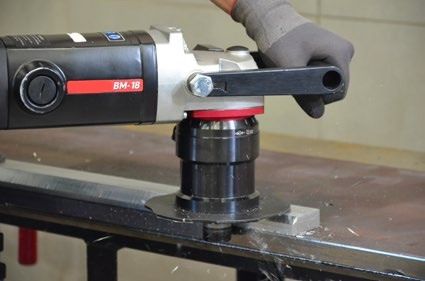

Aluminium Bevelling

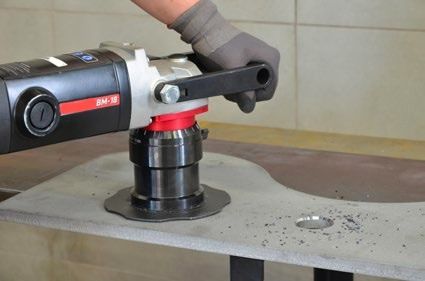

Countersinking

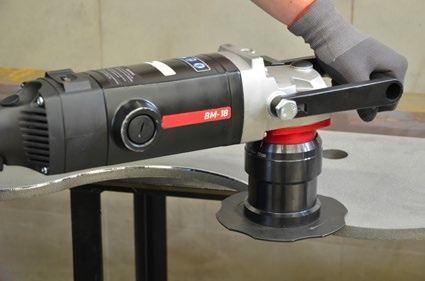

Rounding off curved edges

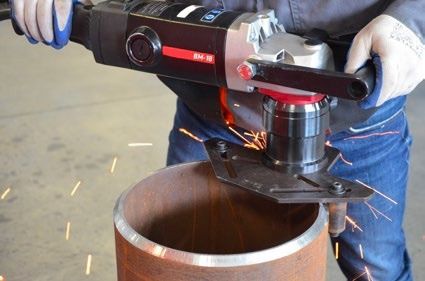

Pipe bevelling

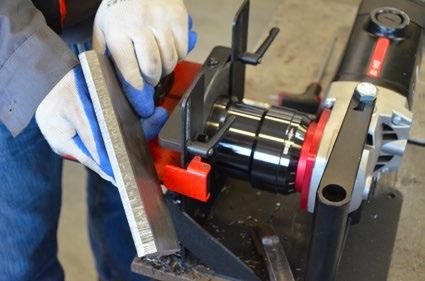

Machining small workpiece

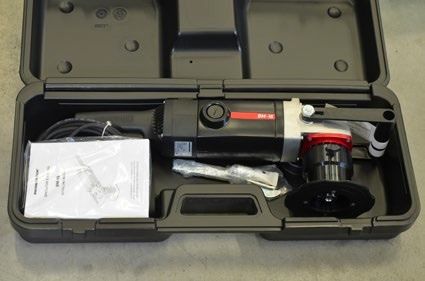

Lightweight and durable plastic box for convenient storage and transportation

Top bevelling

Bevel radius R2, R3, R4 or R5

Arched edge bevelling

COUNTERSINKING MIN. ID 40 MM

PIPE OD BEVELLING

PIPE ID BEVELLING

BEVEL ANGLES 22.5°, 30°, 37.5°, 45°, 55° OR 60°

MAX BEVEL WIDTH 18 MM

New, more durable milling heads that are easily replaced

The new milling heads for the BM-18 are longer-lasting and feature a hexagonal fixing which offers an easy and quick solution for replacements.

Multitask bevelling solution

ABM-50 can perform beveling along steel plate’s edge eliminating hard physical work of the operator. The maximum bevel at 45 degrees is up to 50 mm (2”).
