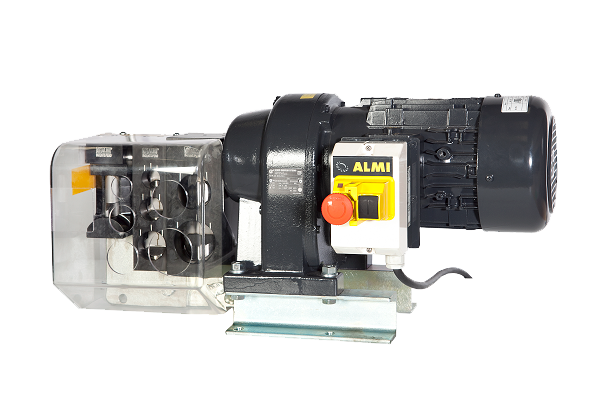

AL-12U HAND NOTCHER

Producing Weld Ready 90 Degree Pipe Joints

A fast production tool for producing weld ready 90-degree pipe joints.

The AL-12U is an automatic pipe notcher, designed for intensive use.

Incorporating the AL-1, AL-2 and AL-U notchers on a motorised cam shaft, the AL-12U provides a fast production method of producing weld ready pipe end joints.

Comes with 3-year manufacturer's warranty on main parts.

Want to make sure the 'AL-2 Hand Notcher' is right for you? Speak to our specialist solutions team today

In stock
SKU
SB-HN-AL-12U


AL-12U HAND NOTCHER SPECIFICATIONS


Model AL-12U
Max Wall Thickness Mild Steel - 4mm / Stainless steel - 3mm
Net Weight 93 kg
Outer Diameter for Sink Outflow 61mm/2", 49mm/1-1/2", 42.8mm/1-1/4", 34.8mm/1", 27.9mm/ 3/4" + Sink Outflow

Features


  • Quick and clean operation
  • Covers nominal Bore Pipe from 3/4" to 2" I.D
  • Works on mild and stainless steels, aluminium and other metals
  • Hard Wearing cutting block - covered by 3 years manufacturer warranty
  • Includes V notch tool for sink outflows

Download the AL-12U specifications

DOWNLOAD BROCHURE

Watch our video of the AL-12U Hand Notcher
