AirBeast® 40 A

  • Atex
  • 10-40mm Core Drilling

ATEX Approved, pneumatic drill specifically designed for space restricted and hazardous environments

  • Pneumatic drive and permanent magnetic base eliminates the need for electric power.
  • Compact - only 180mm high.
  • Lightweight.
  • Extended cutting diameter up to 40mm.
  • New motor switch and new valve assembly for increased power.
In stock
SKU
DRILL-AIR40A

DOWNLOADS:

Product Brochure
Manual
Spare Parts

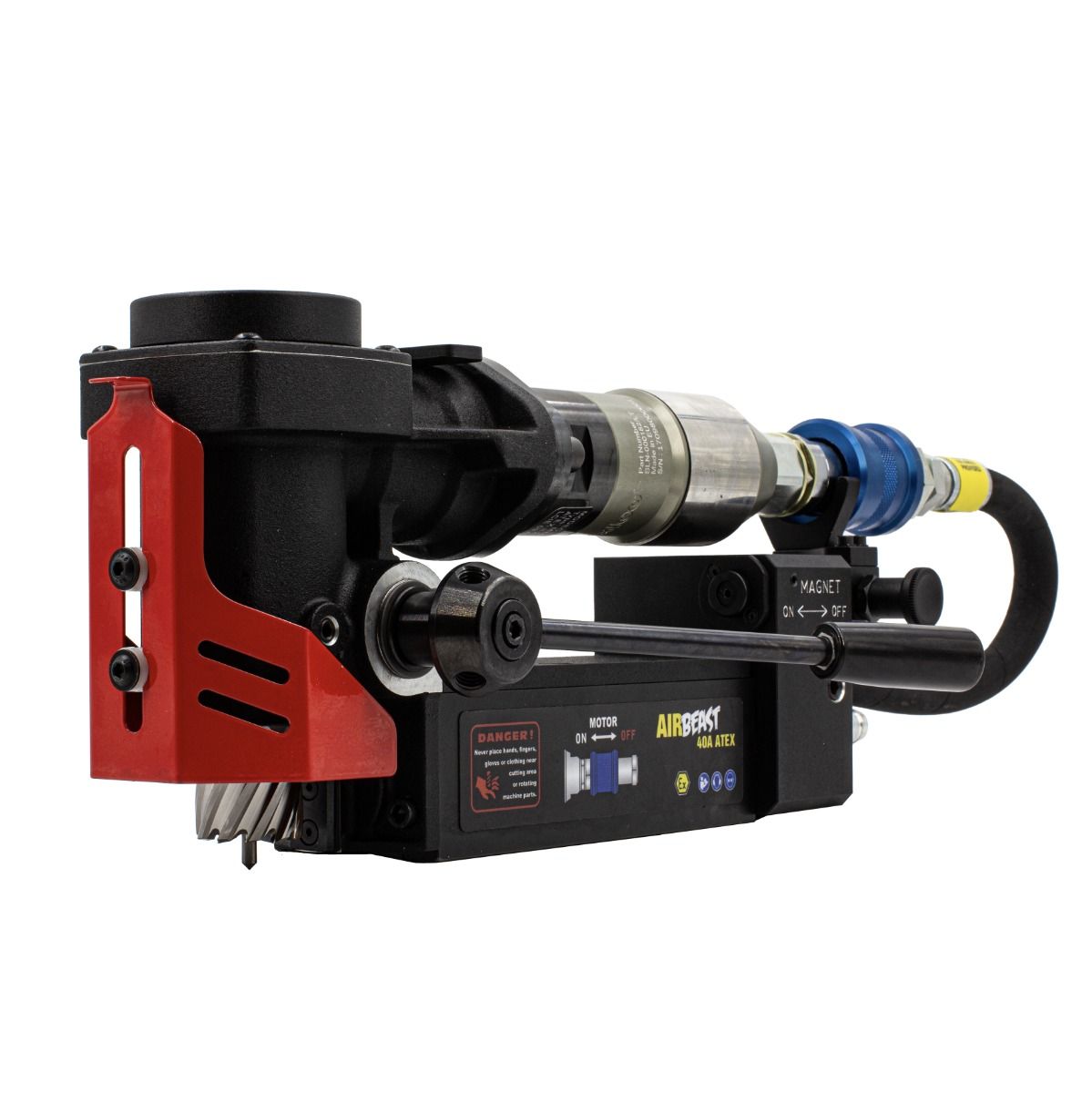

main product photo
A compact pneumatic drill ideally suited to space restricted and hazardous environments such as oil drilling platforms, mining industry, shipbuilding or petrochemical industry. Combining a pneumatic drive and permanent magnetic base eliminates the need of electric power supply.

Why the AirBeast® 40 A?

40 mm Ø x 1” Turbo Steel cutter capacity

Suitable for tougher materials

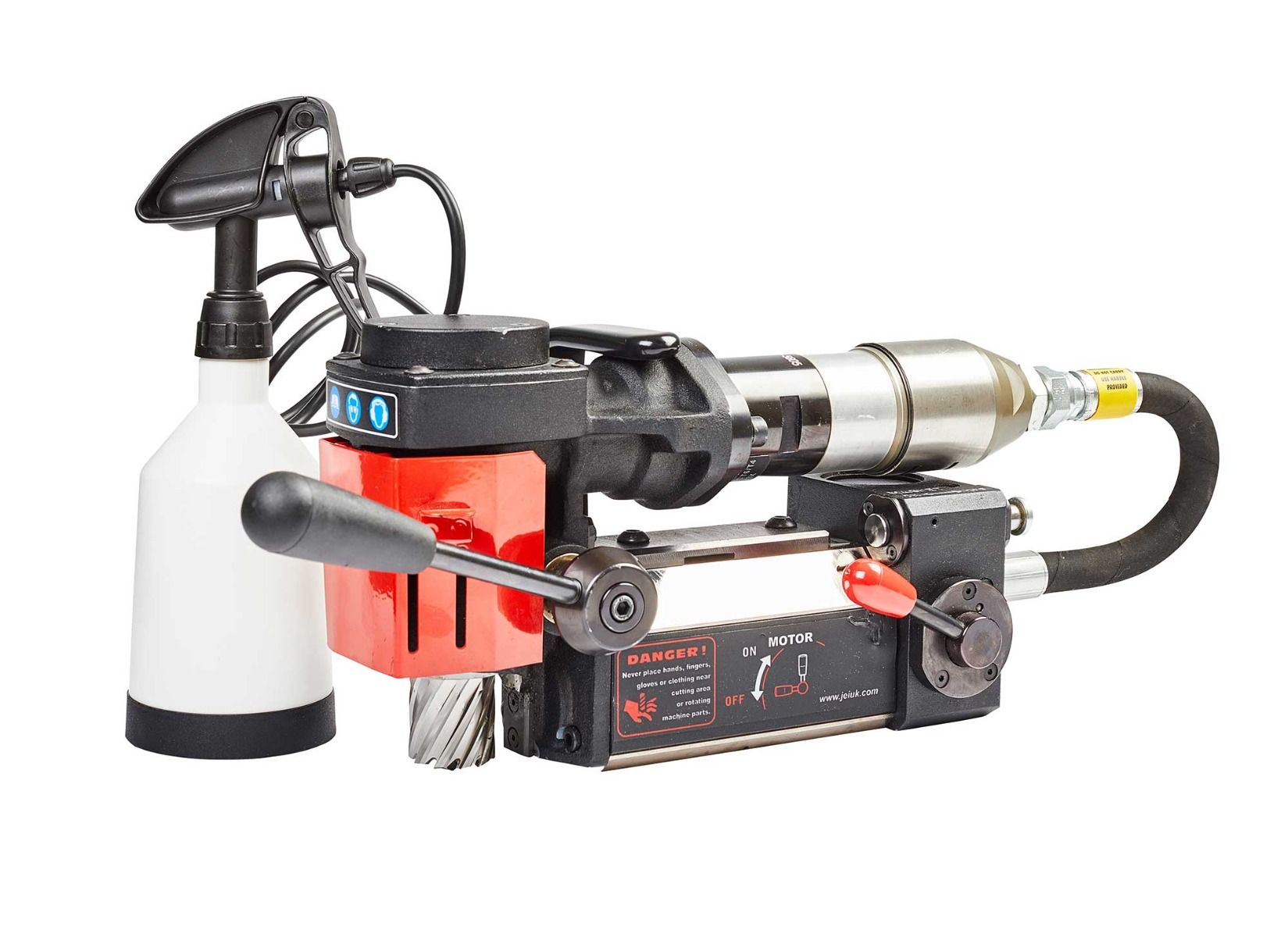

Supplied with pressurised coolant system

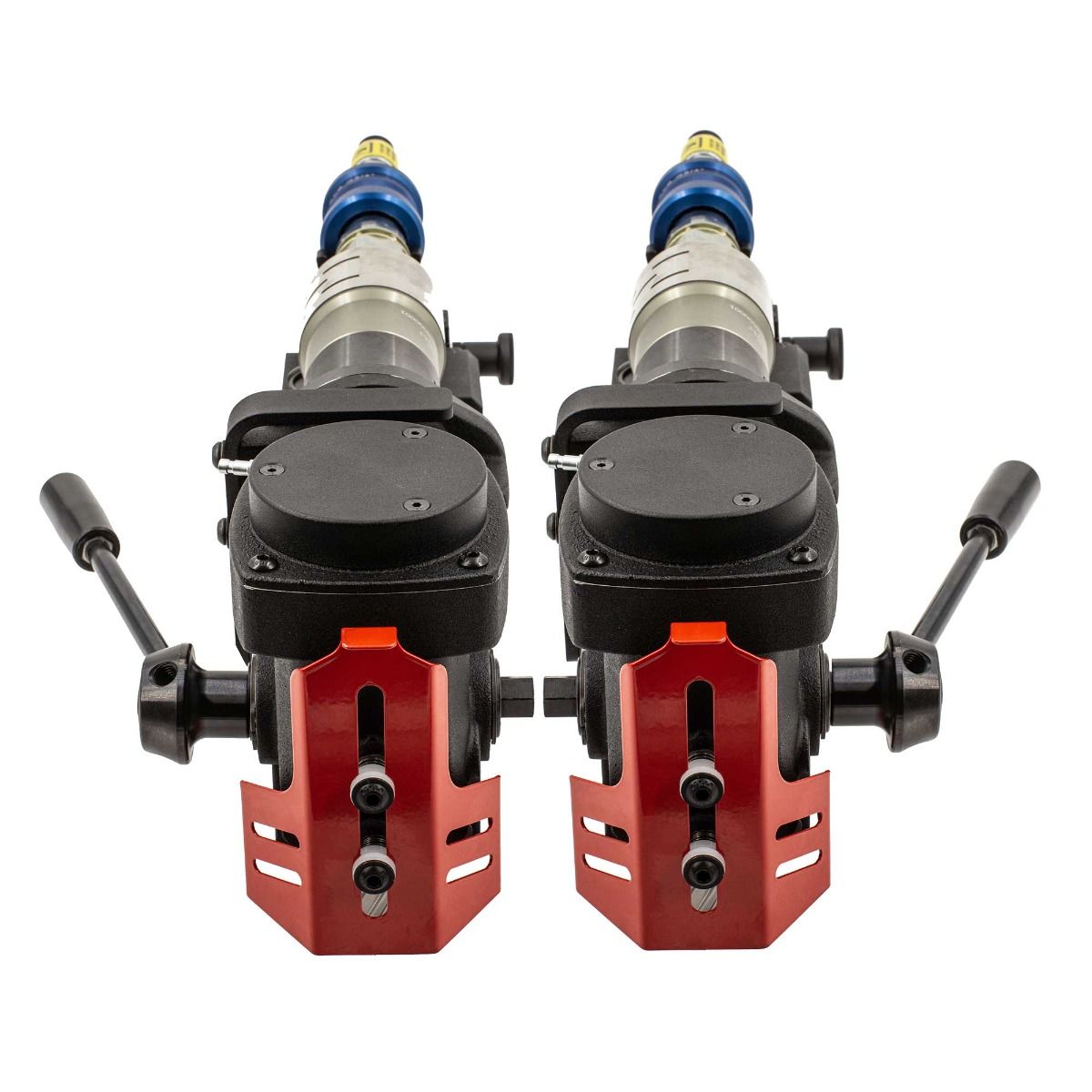

Handle can be used on left or right side for close access areas

Convenient carry handle

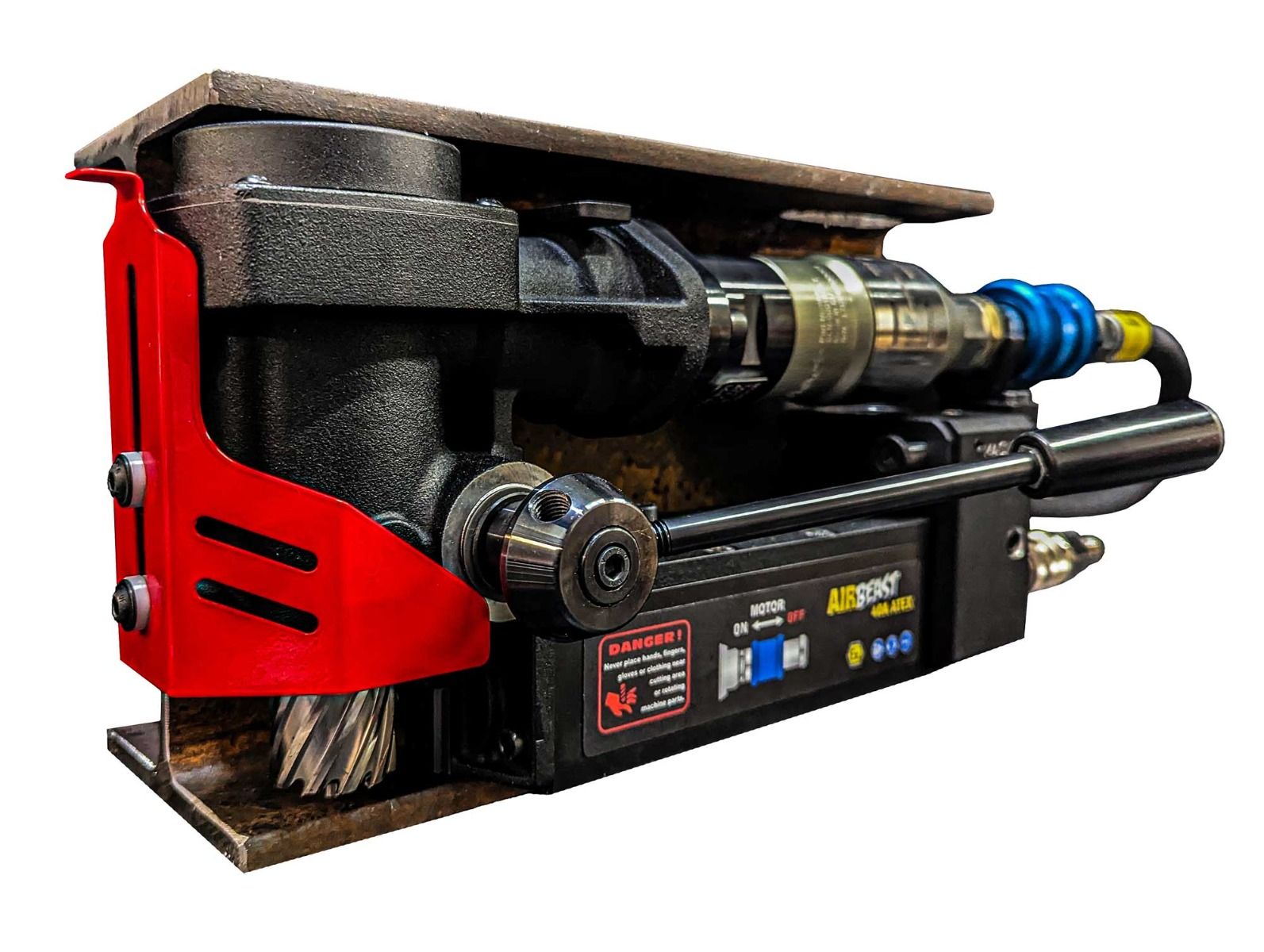

Fits in the most height restrictive areas

Fits in the most height restrictive areas

AirBeast® 40 A SPECIFICATIONS

Model Airbeast 40A
Air Consumption 1400 I/min (50 CFM)
Cooling System Through Spindle
Cutter Capacity 40 mm Ø x 1" depth of cut
Magnet Deadlift 7000 N
Max Stroke 40 mm
Motor 800 w
Spindle 19 mm
Height Min/Max 185 mm
RPM 240 rpm
Shipping Weight (Incl. 4.0Ah Battery) 21.4 kg
Shipping Dimensions 510 x 320 x 160 mm
Weight with 4.0Ah Battery 15 kg
