AirBeast® 200A


  • Atex
  • 10-200mm Core Drilling
  • Countersink 110mm
  • Twist Drill 45mm
  • M48 Tapping Capacity

For use in the most hazardous of environments

  • ATEX Class II approved – for use in the most hazardous of environments.

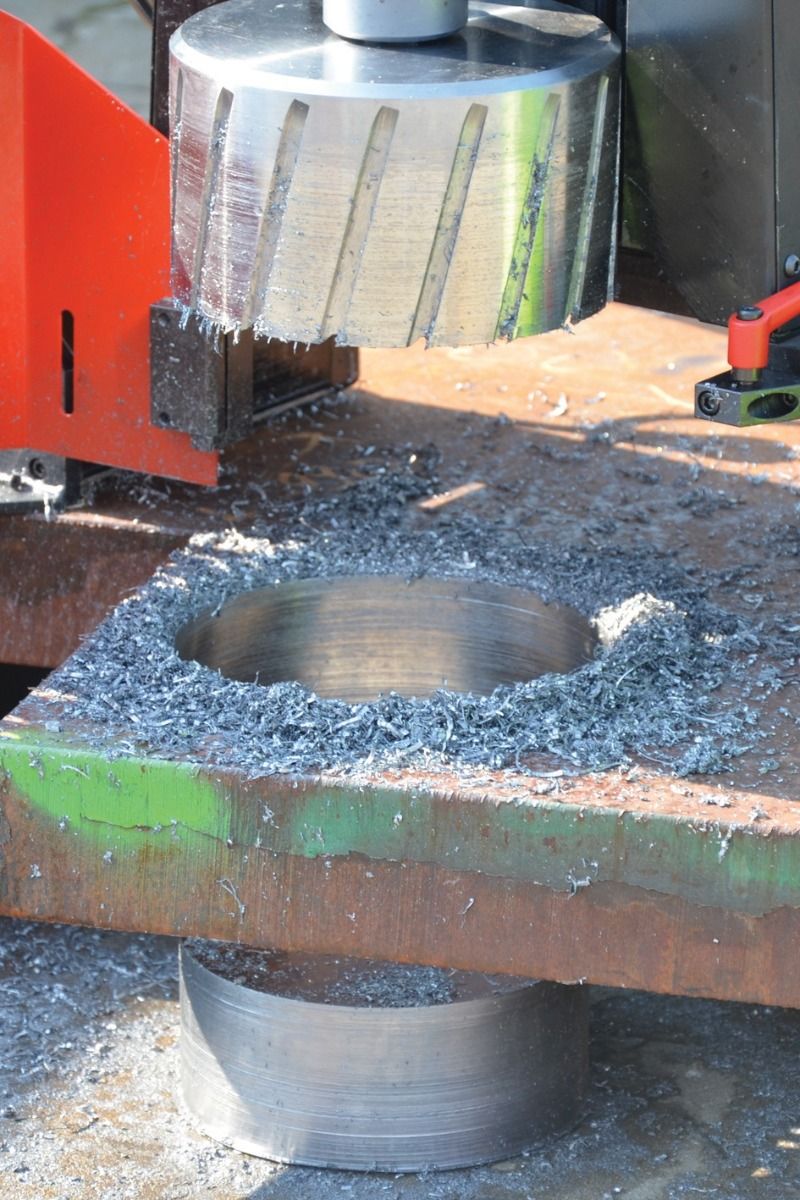

  • 200 mm diameter cutter capacity.

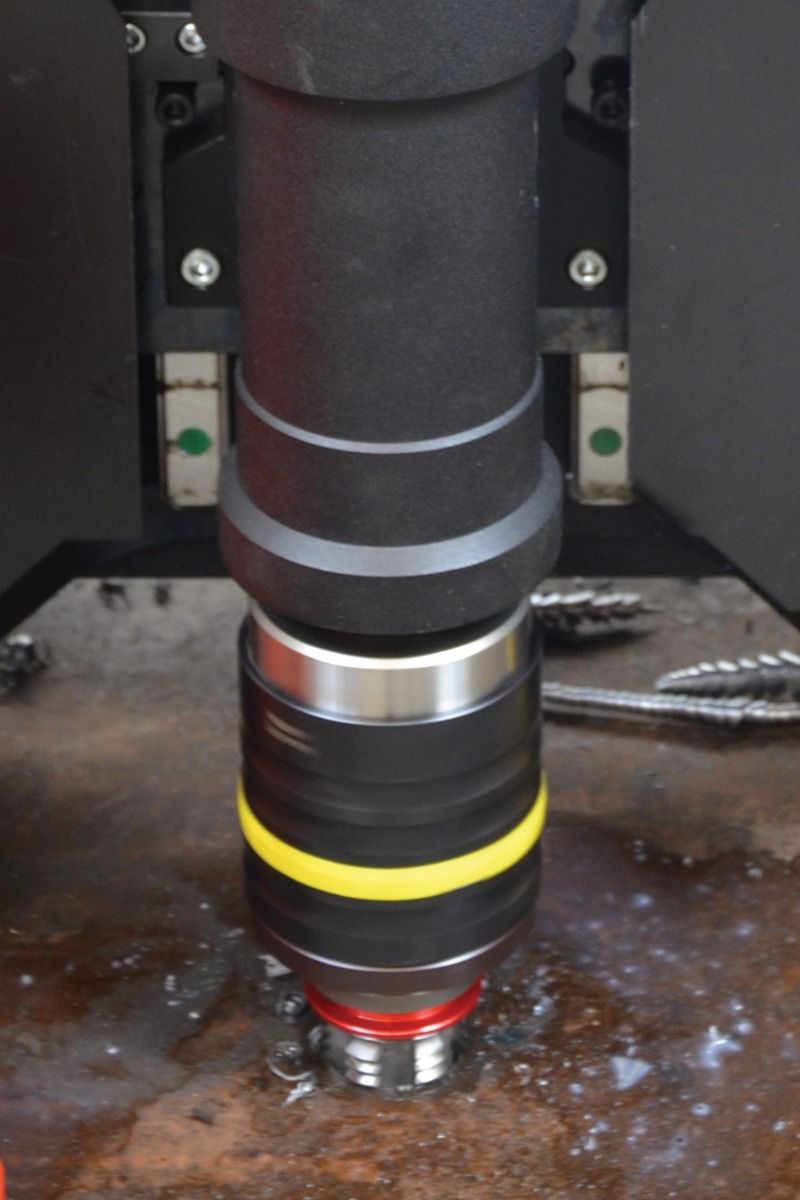

  • M48 tapping capacity.
  • Impressive 2 speed gear box with forward and reverse increasing flexibilty of use.
  • 400 mm drill travel – for demanding drilling applications.
  • Rugged one piece slide and gear box – for extra stability.
  • Double permanent magnetic base – suitable for clamping to pipe and radius surfaces.
In stock
SKU
DRILL-AIR200A


Designed to meet the most challenging hole making applications in challenging environments, the AirBeast® 200A is an ATEX Class II approved pneumatic drill, featuring 200mm diameter cutting capacity.

AirBeast® 200A SPECIFICATIONS


Model AirBeast® 200A
Air Consumption 3500 l/min (125 CFM)
Cutter Capacity 200 mm Ø x 4” depth of cut
Magnetic Base Dimensions 250 x 110 mm
Magnet Deadlift 2 x 1530 kg on 25 mm Plate (2 x 15000 N)
No of Geared Speeds 2 Fixed Speeds
Twist Drill Capacity 45 mm
Tapping Capacity M48
Motor 3650 W
Spindle 5MT (1-1/4” shank)
Height Min/Max 991 / 1391 mm
Length / Width 764 x 485 mm
RPM No load 140/35 RPM loaded 80/20 RPM
Noise Level < 90dB
Vibration Level < 2.5 m/s2
Pressure 6.5 bar
Shipping Weight (Incl. 4.0Ah Battery) 150 kg
Shipping Dimensions 510 x 320 x 160 mm
Weight with 4.0Ah Battery 130 kg
