ABM-50 DD VARIO AUTO-FEED HEAVY DUTY BEVELLER

Featuring load level LED monitoring system

ABM-50 DD Vario is the self-propelled bevelling machine that produces high-quality bevels up to 50 mm wide without thermal distortion or the creation of heat heat-affected zone on the top edge of plates from 8 mm to 80 mm thick. Adjustment of spindle speed and feed rate, together with a load level LED monitoring system, helps to optimise cutting conditions depending on the grade of material, including stainless steel, duplex, alloys, Hardox and many others. The ABM-50 DD Vario allows continuous adjustment of the bevel angle over a wide range from 15 to 70 degrees. If you're only bevelling carbon steel, you can opt for the basic ABM-50 DD model with a fixed spindle speed.

Want to make sure the 'ABM-50 DD Vario Auto-Feed Heavy Duty Beveller' is right for you? Speak to our specialist solutions team today.

In stock
SKU
SB-PBEV-ABM-50-DD-V

DOWNLOADS:

Product Brochure

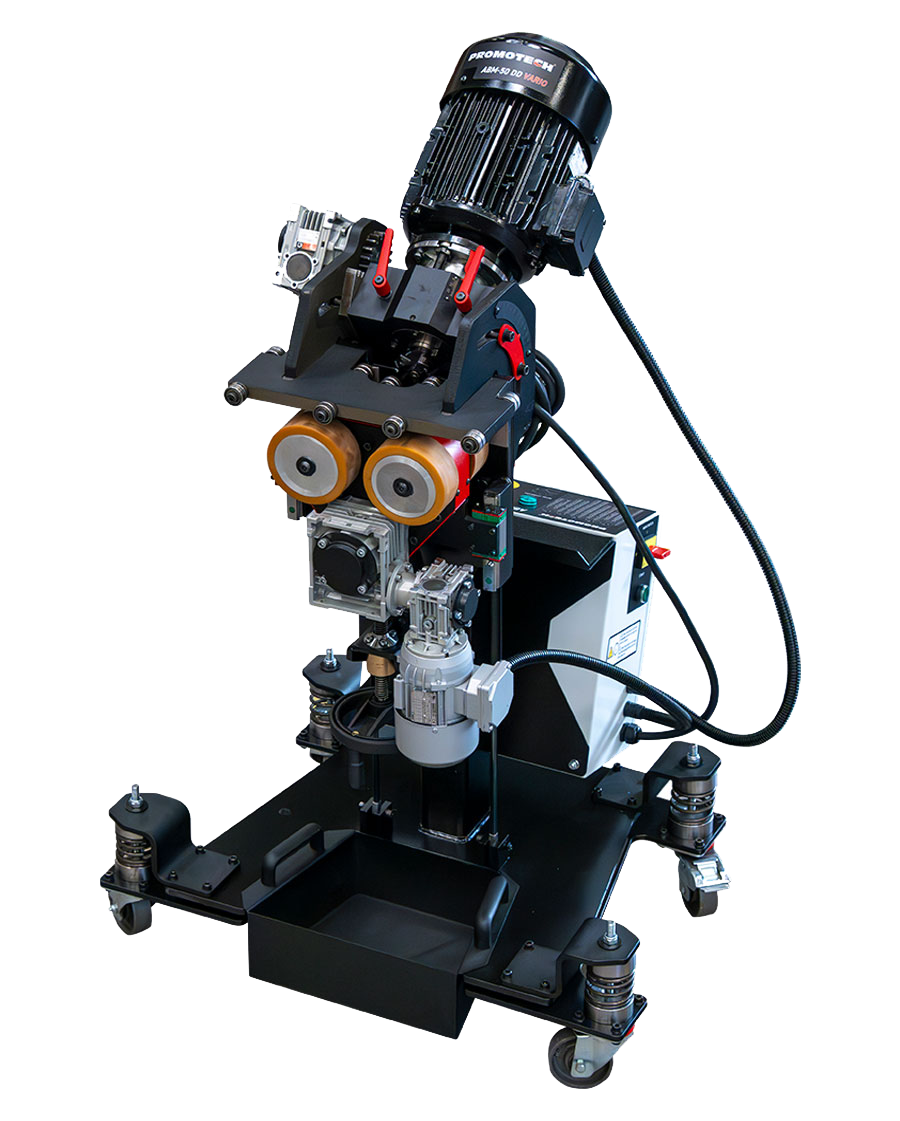

main product photo
Top bevelling

Top bevelling

Min plate thickness 8 mm Max plate thickness 80 mm

Min plate thickness 8 mm Max plate thickness 80 mm

Bevel Angle: 0° - 45

Bevel angles top 15° - 70°

Bevel width up to 50 mm / 45°

Bevel width up to 50 mm / 45°

FEATURES

  • Self-propelled machine moves along the edge of the plate at speeds of up to 1.2 m/min.
  • Auto-feed machining to increase ergonomics, comfort, and productivity.
  • Continuous bevel angle adjustment from 15° to 70°.
  • High-quality bevels made without thermal distortion or creation of heat-affected zone on plate thickness range 8-80 mm.
  • Continuous bevel width adjustment up to 50 mm at 45 degrees.
  • Variable spindle speed for machining a wide range of steel grades.
  • LED monitoring system indicates the load level using green, yellow and red signals to prevent motor damage.

Download the ABM-50 DD Vario specifications
