ABM-30

AUTO FEED TRACKLESS BEVELLER

The ABM-30 portable beveling machine from SteelBeast performs auto-feed beveling on steel plates on the top, face and bottom edges. This beveller doesn't need a track to move along the steel plate yet still produces accurate high-quality, double-sided bevels without thermal distortion or heat-affected zones on plate thicknesses ranging from 8-60 mm.

Want to make sure the 'ABM-30' is right for you? Speak to our specialist solutions team today.

In stock
SKU
SB-PBEV-ABM-30

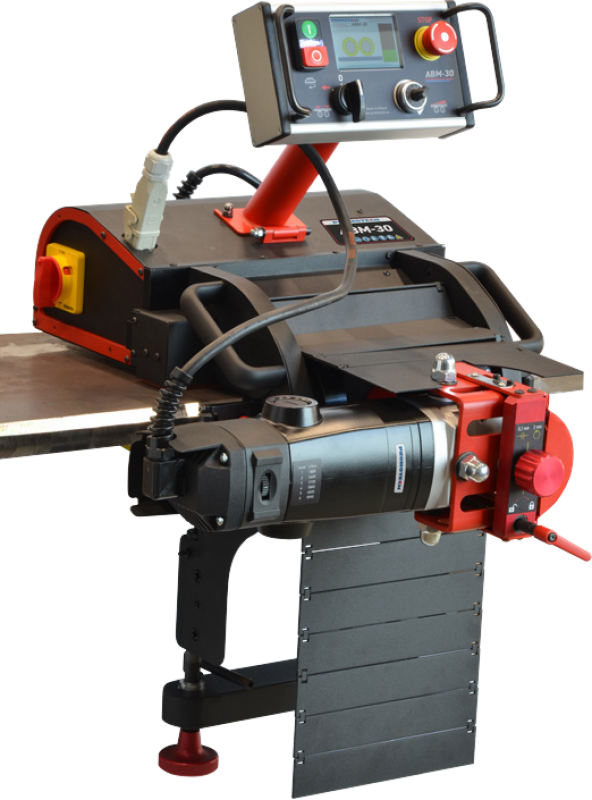

main product photo

ABM-30 SPECIFICATIONS


Model ABM-30
Bevel Angle From -70° to 70°
Feed Speed 0-2 m/min (0-6.5 ft/min)
Net Weight 53kg
Motor 2200 W
Required Ambient Temperature 5-40°C
RPM 1800-5650 rpm
Sheet Thickness 8-60mm (0.3-2.3")
Maximum Bevel Width 30mm (1.18")

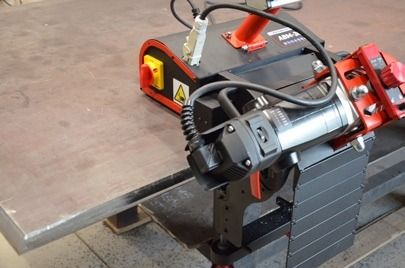

Top Beveling

Top Beveling

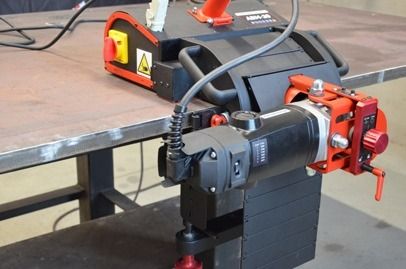

Facing Off

Facing Off

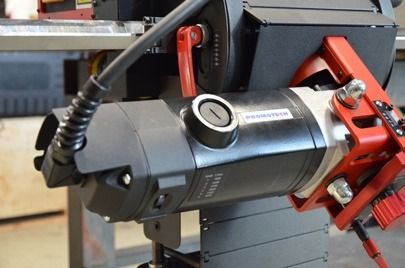

Bottom Bevelling

Bottom Bevelling

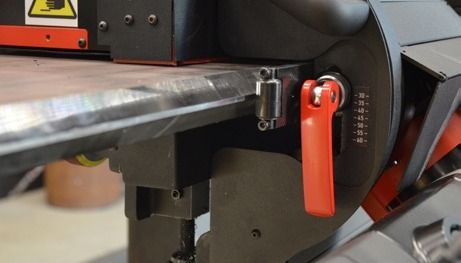

Plate Thickness Max 60mm

Plate Thickness Max 60mm

Bevel Width up to 30mm

Bevel Width up to 30mm

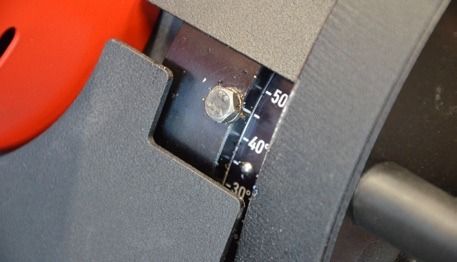

Bevel Angle between -70° & 70°

Bevel Angle between -70° & 70°

Why choose the ABM-30?

Needs no track to travel in both directions with feed speed up to 2 m/min
4 wheels feed drive eliminates hard physical work of the operator
Produces double-side bevels without having to flip the plate enhancing safety and reducing material handling time and expense
Edge to Edge working range
Semi-automatic feed stop at end of the metal sheet
Variable spindle speed
Bevel width up to 30 mm (1-3/16”)
Variable angle (-70°+70)°
Max. plate thickness up to 60 mm
Innovative, robust chip protection solution

ABM-30 Control Panel


  • Feed direction indication
  • Material detection
  • Bar graph for motor load illustration
  • Visual warning signals
ABM-30 Control Panel
