MagBeast® HM40



Lightweight and powerful for maximum performance.

  • Powerful 1100 watt motor delivering 40 mm cutting capacity.
  • Easily adapts for a 13 mm chuck for use on twist drill applications.
  • External coolant system for extended tool life.


Weighing at only 12.7kg, this lightweight MagBeast® HM40 features a powerful 1100 watt motor, delivering 40mm cutting capacity. The external coolant system gives an extended tool life, helping complete those projects quicker.

Gallery


MagBeast® HM40SPECIFICATIONS


Model HM40
Spindle 19 mm
Weight 12.7 kg
Max Stroke 120 mm
Cutter Capacity 40 mm Ø x 4” depth of cut
Twist Drill Capacity 13 mm Ø with optional attachment (part no. JEICA-13 mm)
Countersink Capacity 40 mm
Motor 1100 W
RPM 1 Fixed Speed no load 720 RPM loaded 440 RPM
Height min/max 385 / 505 mm
Length x Width 280 x 190 mm
Magnetic Base L x W 168 x 83 mm
Magnet Deadlift 1066 kg on 1” Plate (10500 N)
Noise Level < 90dB
Vibration Level < 2.5 m/s2
Voltage / Part no 110 V – DRILL-HM40, 240 V – DRILL-HM40/2
Shipping Weight 19.10 kg
Shipping Dimensions 470 x 370 x 140 mm

Available as a Machine Package

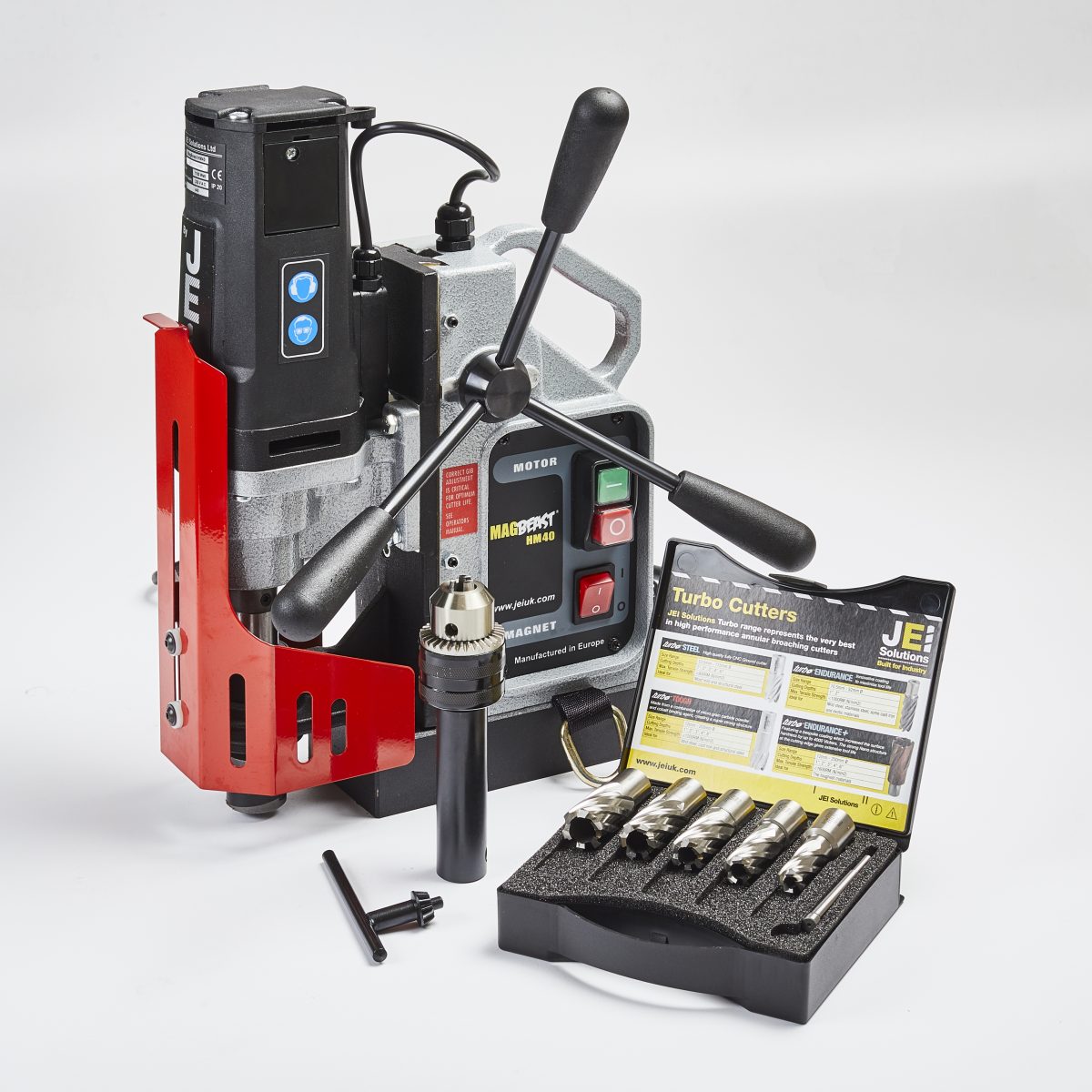

Purchase your MagBeast® HM40 magdrill as a complete package, including:

  • MagBeast® HM40 magdrill
  • 5 piece Turbo™ Steel Cutter Set (14, 16, 18, 20, 22 mm x 1" depth of cut plus pin to suit)
  • 13 mm chuck and arbor assembly

Part Number:

110v - HM40-SET1

240v - HM40-SET2

  ORDER AS A PACKAGE
