AirBeast® 35A

  • Atex
  • Core drilling 35

ATEX Approved, pneumatic drill specifically designed for space restricted and hazardous environments

  • Pneumatic drive and permanent magnetic base eliminates the need for electric power.

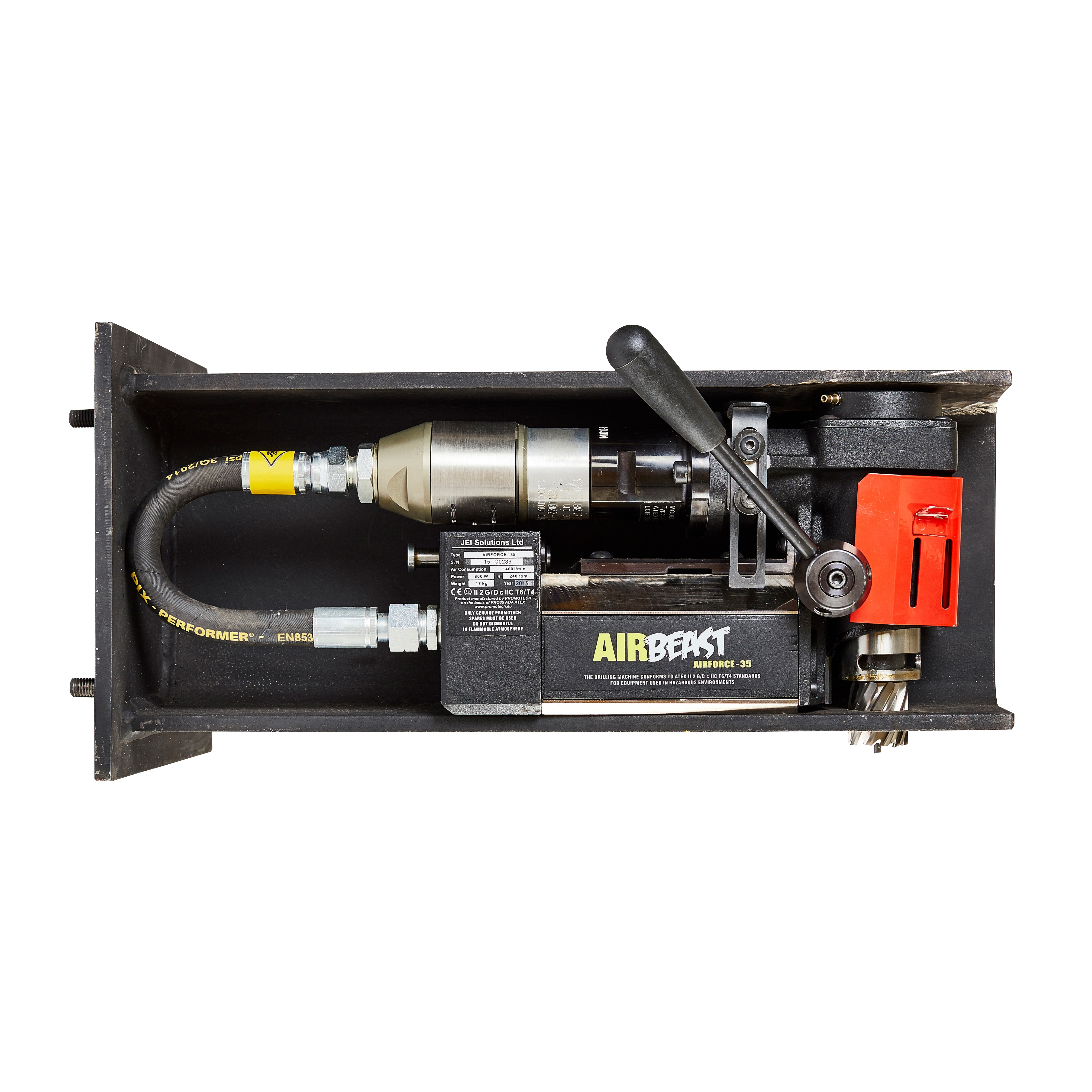

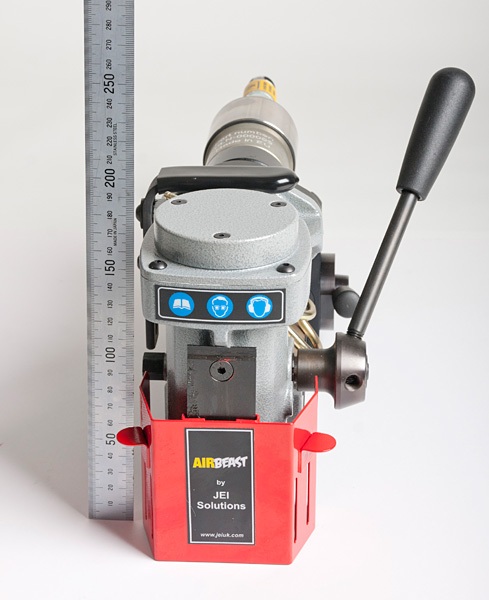

  • Compact - only 185mm high.
  • Light-weight.
  • Great safety features

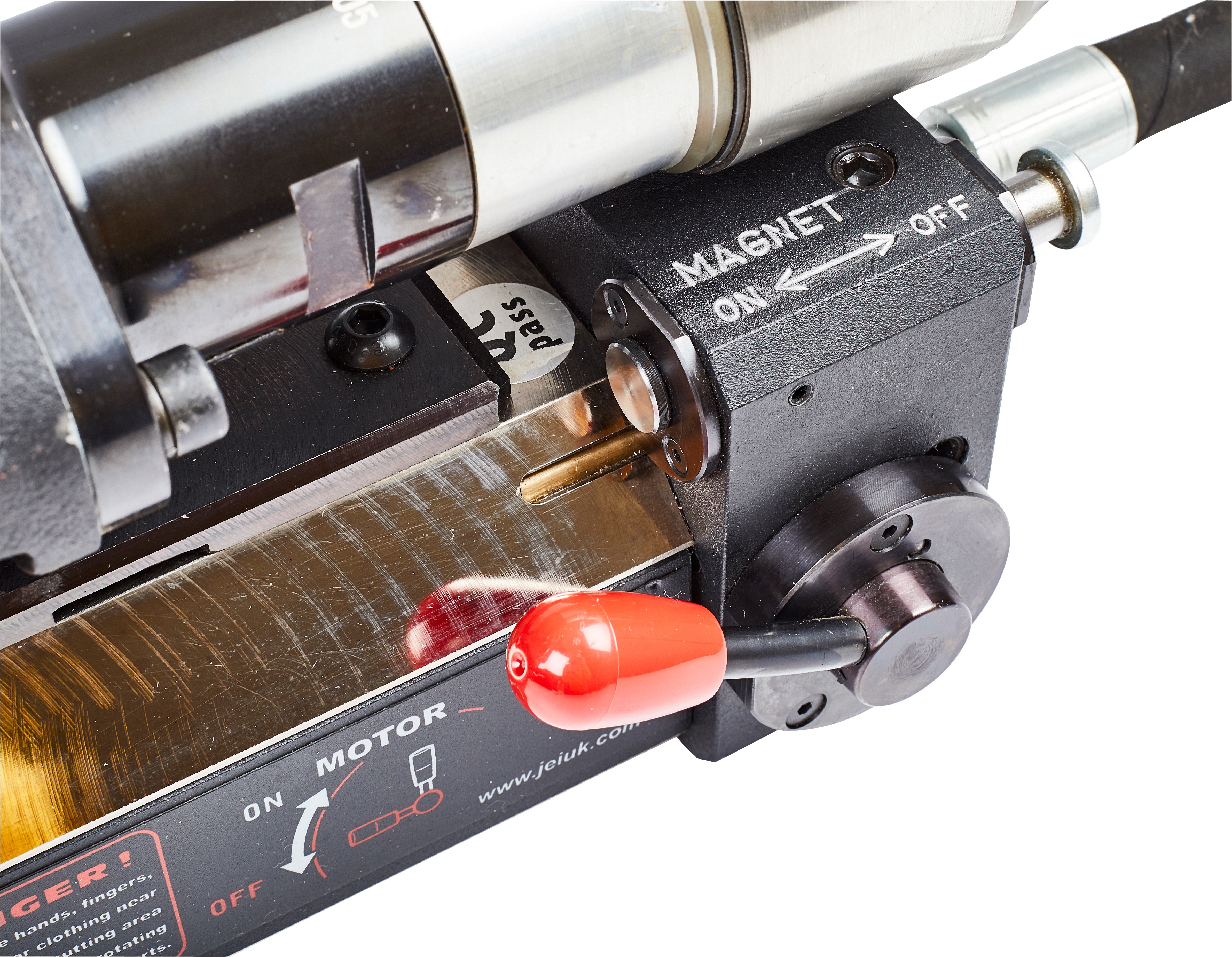

  • Strong permanent magnet base.

Available for hire!

A compact pneumatic drill ideally suited to space restricted and hazardous environments such as oil drilling platforms, mining industry, shipbuilding or petrochemical industry. Combining a pneumatic drive and permanent magnetic base eliminates the need of electric power supply.



Model Airbeast 35
Weight 17kg
Height fixed 185 mm
Spindle 19 mm
Cutter Capacity 35mm Ø x 1" depth of cut
Max Stroke 39 mm
Air consumption 1400 I/min (50 CFM)
Motor Power 800 w
Motor speed under load 240 rpm
Length x Width 480 x 168 mm
Cooling System Through Spindle
Magnetic Base Dimensions 80 mm x 80 mm x 143 mm
Magnet Deadlift 663 kg on 1" Plate (6500 N)
Shipping Weight 23.4 kg
Shipping Dimensions 510 x 320 x 160 mm
